EMP Shielding: Methods to Protect Your Electronics

Answer Summary

EMP shielding protects electronics by surrounding them with conductive materials that redirect electromagnetic energy around the protected space. This is the Faraday cage principle: a continuous conductive barrier prevents electromagnetic pulses from penetrating to the interior, keeping your devices safe from induced voltage damage.

The good news is that effective EMP shielding doesn’t require military-grade equipment or a bunker mentality. From simple DIY solutions using materials you already have to purpose-built Faraday bags, practical protection is achievable for anyone willing to understand the basics.

Key Takeaways

• EMP shielding works by enclosing electronics in conductive material that redirects electromagnetic energy around the protected space
• Complete enclosure is critical—even small gaps can allow EMP energy to penetrate and damage devices
• DIY solutions (metal trash cans, ammo cans, aluminum foil) can work but require careful attention to sealing and continuity
• Commercial Faraday bags offer verified protection with proper sealing mechanisms, typically blocking 40-60 dB across relevant frequencies
• Grounding is not required for electromagnetic shielding—the Faraday cage principle works without a ground connection

Understanding EMPs: Science Without the Scare Tactics

Before diving into protection methods, let’s establish what we’re actually protecting against. An electromagnetic pulse is a burst of electromagnetic energy that can damage electronics by inducing voltage spikes in circuits and wires.

EMPs can come from: – Lightning strikes: Common, localized, already addressed by surge protectors – Solar storms: Rare major events that primarily affect long conductors like power lines – Nuclear detonations: The scenario most EMP preppers focus on

The damage mechanism is the same regardless of source: electromagnetic induction. When a rapidly changing electromagnetic field encounters a conductor, it induces an electrical current. If that current exceeds what the circuit can handle, damage occurs.

Understanding this helps focus your protection efforts. You’re not trying to stop radiation or heat—you’re trying to prevent induced currents from reaching your electronics.

Real Threats vs. Myths: What You Actually Need to Know

The internet is full of exaggerated EMP claims. Let’s separate fact from fiction.

What EMP Protection Can Actually Do

Effective EMP shielding can:

• Protect backup electronics from all EMP types
• Preserve communication devices, data storage, and critical equipment
• Give you options when infrastructure fails
• Provide peace of mind without extreme lifestyle changes

What EMP Protection Cannot Do

No practical personal protection can:

• Protect the power grid (that’s a government-scale problem)
• Keep your actively-used devices protected while they’re functioning
• Guarantee protection against all possible EMP scenarios
• Replace broader emergency preparedness

The Realistic Scenario

If you’re concerned about EMPs, here’s the practical reality:

1. Solar EMPs primarily threaten infrastructure, not your personal devices. A disconnected phone in your pocket would likely survive a major geomagnetic storm. The grid might not.

2. Nuclear EMPs could damage unprotected electronics across wide areas, but the Congressional EMP Commission found that most vehicles and battery-powered devices would survive. The bigger issue is infrastructure recovery.

3. Lightning EMPs are already handled by existing surge protection in most homes.

Your personal EMP protection is about having backup options when infrastructure fails—not about surviving in a post-apocalyptic wasteland.

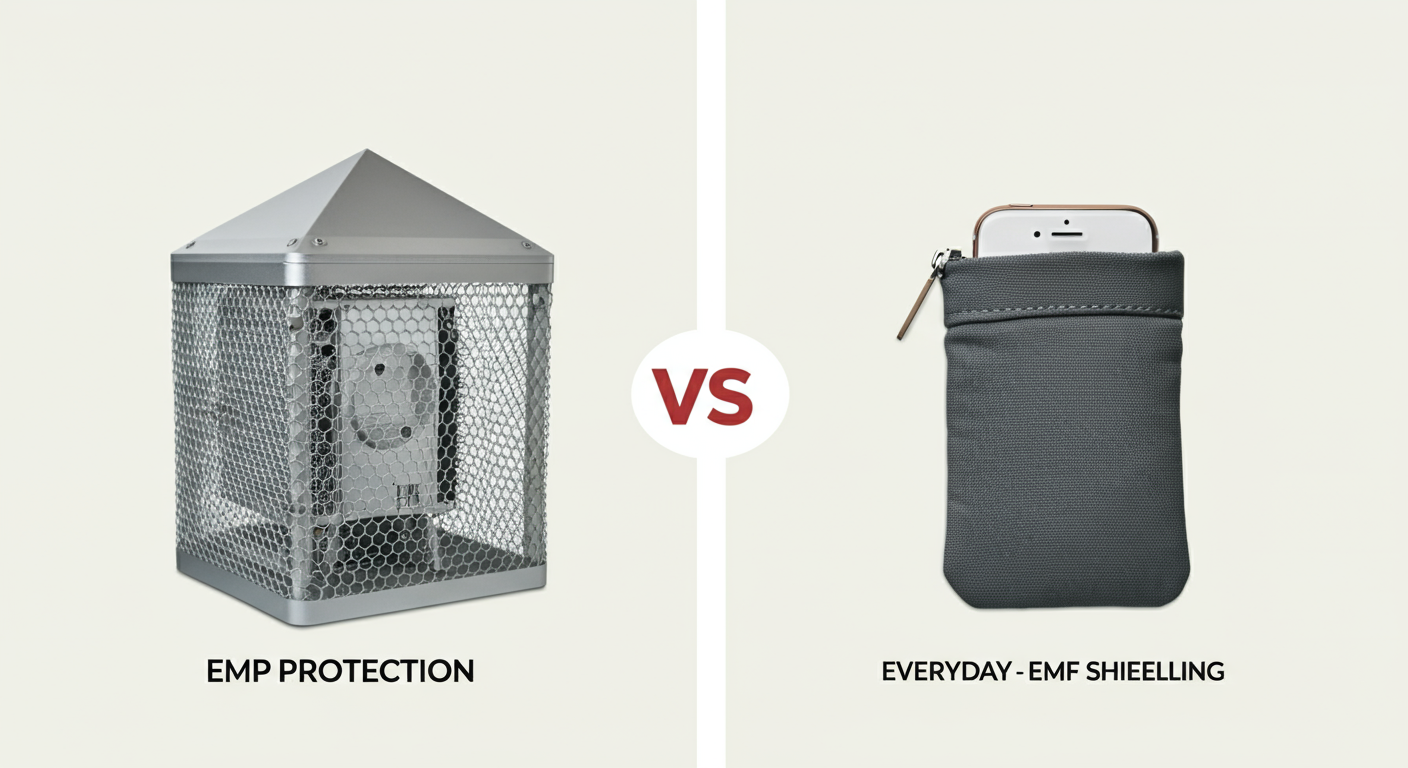

EMP vs. EMF Protection: Why Both Matter

Since both terms involve electromagnetic energy, it’s worth understanding how EMP protection differs from everyday EMF reduction.

EMF Protection (Everyday Use)

Everyday EMF shielding aims to reduce exposure from devices like phones and WiFi routers while still allowing those devices to function. Phone pouches that shield one side, laptop pads that block radiation toward your body—these reduce exposure without completely blocking signals.

EMP Protection (Emergency Preparedness)

EMP protection requires complete signal blocking. A device inside a proper Faraday enclosure can’t send or receive any wireless signals. This makes EMP protection impractical for devices you’re actively using but essential for backup equipment.

This is why you might use an SYB Phone Pouch for everyday EMF reduction but keep a backup phone in a Faraday bag for emergencies. Different goals require different solutions.

Budget-Conscious Protection: From DIY to Professional Systems

EMP shielding doesn’t have to be expensive. Let’s walk through options from free to professional-grade.

DIY Option 1: Aluminum Foil

The cheapest option, and it actually works—with caveats.

How to do it: – Wrap the device in non-conductive material first (prevents short circuits) – Apply multiple layers of heavy-duty aluminum foil – Ensure complete coverage with no gaps – Press seams firmly to maintain conductivity

Pros: – Costs almost nothing – Available anywhere – Works for small devices

Cons: – Tedious to apply properly – Easy to tear or damage – Hard to maintain complete coverage – Not practical for repeated use

Effectiveness: Can provide 30-50 dB attenuation when applied correctly.

DIY Option 2: Metal Containers

Galvanized trash cans and ammo cans are popular DIY Faraday cage options.

Galvanized Trash Can: – Must have tight-fitting lid – Line interior with cardboard (prevents device contact with metal) – Seal lid seam with conductive tape (aluminum HVAC tape) – Test with a cell phone before trusting it

Ammo Cans: – Already designed for good sealing – The rubber gasket can break conductivity—may need conductive tape – Limited size restricts what you can protect

Pros: – Relatively cheap ($20-40) – Durable and reusable – Can protect multiple small devices

Cons: – Requires modification to work properly – Bulky for storage – Testing needed to verify effectiveness

DIY Option 3: Metal Filing Cabinets

A metal filing cabinet provides a larger Faraday enclosure.

What works: – All-metal construction (no wood or plastic components) – Tight-fitting drawers – May need conductive tape at gaps

What doesn’t work: – Cabinets with large gaps around drawers – Mixed-material construction – Painted surfaces that prevent conductivity

Commercial Faraday Bags

Purpose-built Faraday bags eliminate the guesswork of DIY solutions.

How they work: – Multiple layers of conductive material (typically metalized fabric) – Roll-top or velcro closures designed for complete sealing – Tested and rated for specific frequency ranges

What to look for: – Attenuation rating in dB (look for 40+ dB) – Frequency range coverage (should include cellular, WiFi, GPS) – Proper closure mechanism – Quality construction at seams

Pros: – Verified protection – Convenient, portable, reusable – No DIY assembly required – Clear specifications

Cons: – Higher cost than DIY ($15-200+ depending on size) – Quality varies between manufacturers

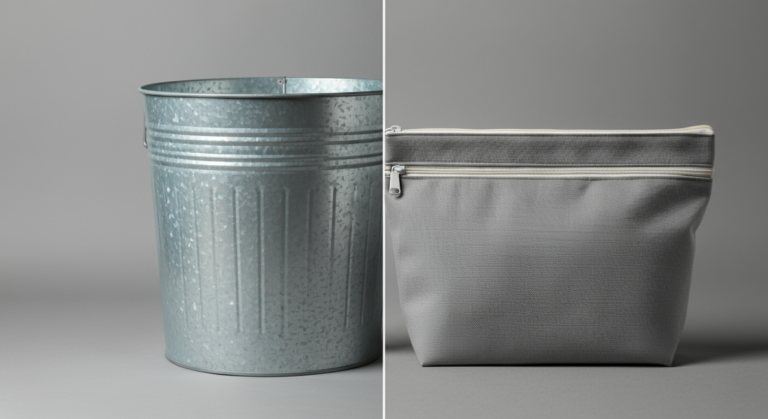

Comparison: DIY vs. Commercial

For backup storage, DIY can work fine. For grab-and-go emergency kits, commercial solutions make more sense.

Testing Your Protection: Verification Methods That Actually Work

Any EMP shielding should be tested before you trust it. Fortunately, testing is straightforward.

The Cell Phone Test

The simplest test uses a cell phone:

1. Note the phone’s signal strength
2. Place the phone inside the enclosure
3. Close the enclosure completely
4. Try to call the phone from another phone
5. If the call doesn’t connect, the enclosure is blocking cellular signals

Important: A phone going to voicemail doesn’t mean the enclosure is working—it means the phone’s software detected no signal. The call should fail to connect entirely, or the phone inside shouldn’t ring at all.

The Radio Test

For more thorough testing:

1. Tune a portable FM or AM radio to a strong local station
2. Place the radio inside the enclosure, playing
3. Close the enclosure
4. If you can still hear the radio, there are gaps in the shielding

This tests a different frequency range than cellular, providing better confidence in broad-spectrum protection.

The WiFi Test

Many phones show WiFi signal strength:

1. Note available WiFi networks and signal strengths
2. Place phone inside the enclosure
3. Close the enclosure
4. Check WiFi settings—all networks should disappear or show no signal

What These Tests Mean

If your enclosure blocks cell, FM/AM radio, and WiFi signals, it’s providing effective shielding across a broad frequency range. This correlates well with EMP protection, though a true EMP test isn’t practical for home use.

Professional Testing

If you need verified specifications, professional EMC testing facilities can measure exact attenuation in dB across specific frequency ranges. This is typically how commercial Faraday products are rated.

Protection Priority Framework: What to Shield First

You can’t protect everything, so prioritize based on utility after an EMP event.

High Priority: Communication

What to protect: – Battery-powered AM/FM radio (for emergency broadcasts) – Two-way radios (for local communication) – Backup cell phone (may work if some infrastructure survives) – Solar charger or power bank

Why: Communication determines your ability to get information and coordinate with others.

High Priority: Essential Data

What to protect: – External hard drive with important documents, photos, records – USB drives with critical information – SD cards with family memories

Why: Some data is irreplaceable. A protected backup preserves it.

Medium Priority: Medical Devices

What to protect: – Spare blood glucose monitors (diabetics) – Battery-powered medical alert systems – Any electronic device your health depends on

Why: If you depend on electronic medical equipment, backups could be life-critical.

Medium Priority: Lighting and Tools

What to protect: – LED flashlights – Battery-powered lanterns – Any electronic tools you’d need

Why: Useful but not critical—simple flashlights are cheap to replace.

Lower Priority: Entertainment

What to protect: – E-readers loaded with books – Portable media players – Gaming devices

Why: Nice to have for morale, but not essential.

What Not to Protect (Usually)

Your everyday phone/laptop: You need to use these daily. Keep a backup protected instead.

Connected devices: A protected smart thermostat is useless if the power grid is down anyway.

Large appliances: Impractical to shield; focus on small, essential devices.

Integration with Smart Homes and Emergency Planning

EMP protection should fit into broader emergency preparedness, not stand alone.

The Layered Approach

1. Primary devices: Use normally, accept they may be damaged
2. Protected backups: Keep in Faraday enclosures, ready to deploy
3. Non-electronic alternatives: Have manual backups for critical functions

Smart Home Considerations

Modern smart homes are vulnerable to EMP because everything is connected. Practical integration means:

• Keep a protected backup of router/gateway firmware if you can reinstall
• Have manual overrides for smart locks and critical systems
• Don’t rely on EMP-vulnerable systems for life-safety functions

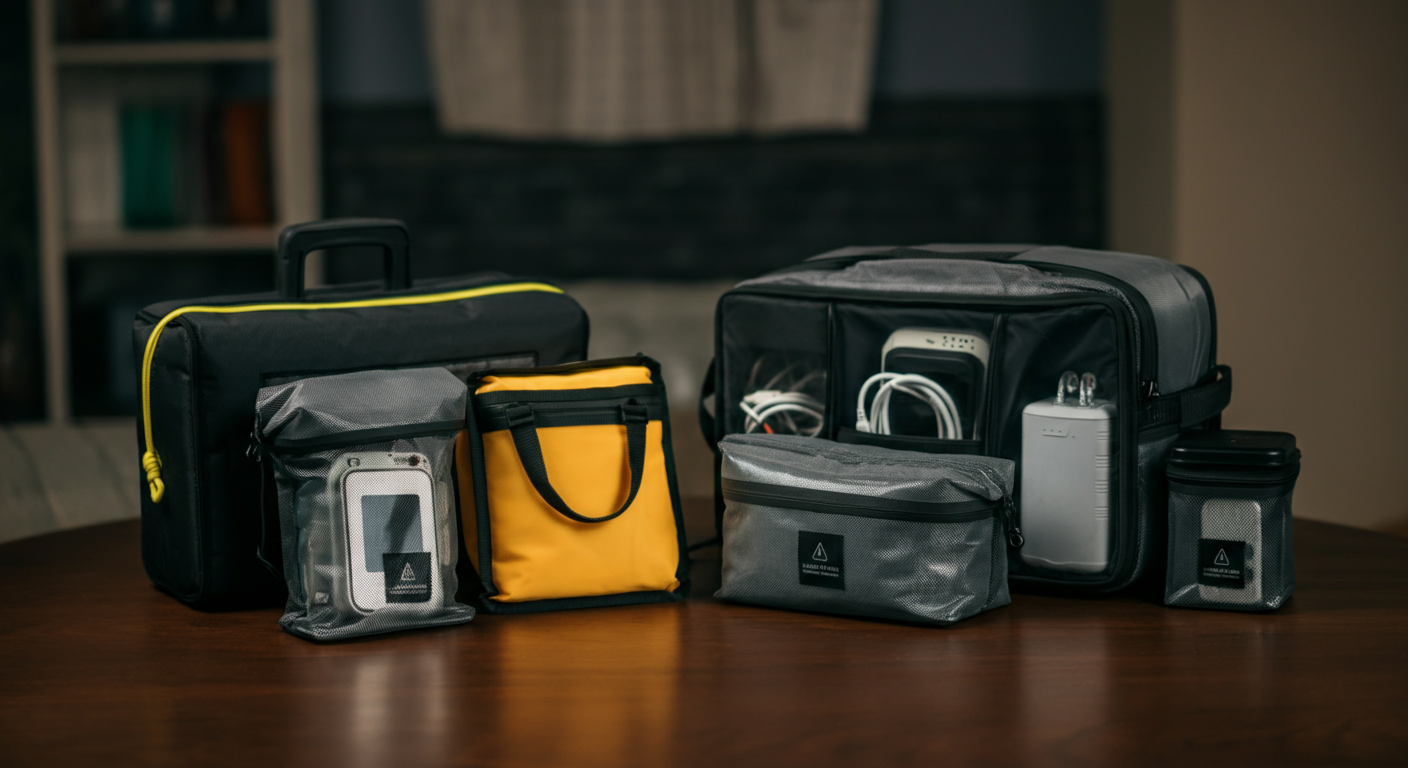

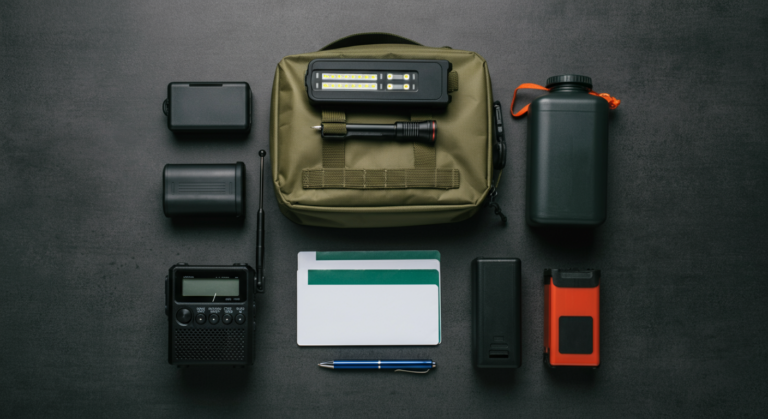

Emergency Kit Integration

A complete emergency kit might include:

In Faraday protection: – Communication devices – Charging capability – Critical data backups – Spare medical electronics

Outside Faraday protection (ready to use): – Cash – Physical documents (ID, insurance, contacts) – Non-electronic emergency supplies – Battery-powered weather radio for immediate use

Maintenance and Long-term Effectiveness

Unlike food supplies that expire, Faraday enclosures don’t degrade much over time—but they do need occasional attention.

DIY Enclosure Maintenance

Check annually: – Seal integrity (tape may peel, seams may develop gaps) – Corrosion on metal surfaces – Physical damage – Test with cell phone method

Replace/repair: – Conductive tape every 2-3 years – Any components showing corrosion – Torn or damaged aluminum foil wrapping

Commercial Faraday Bag Maintenance

Check periodically: – Closure mechanism function – Fabric integrity (no tears or wear) – Seam condition

Test: – Cell phone test every 6-12 months – After any physical damage – Before relying on it for travel

Storage Considerations

For stored devices: – Remove batteries if storing long-term (prevents leakage) – Include silica gel packets to control humidity – Store in cool, dry location – Rotate batteries annually

Common Mistakes to Avoid

Mistake 1: Incomplete Closure

The most common failure point. A Faraday enclosure that’s 99% sealed provides dramatically less protection than one that’s 100% sealed. Always verify complete closure.

Mistake 2: Assuming Grounding is Necessary

Many people believe Faraday cages must be grounded to work. This is incorrect for electromagnetic shielding. The Faraday cage principle works through redistribution of charge across the conductive surface, not through grounding.

Grounding can be useful for dissipating static buildup, but it’s not required for EMP protection.

Mistake 3: Forgetting Batteries

Protected electronics need power to be useful. Include charging options (solar panels, power banks) in your protected kit, or store devices with fresh batteries.

Mistake 4: Protecting the Wrong Things

A protected TV is useless if there’s no broadcasting and no power. Focus on portable, battery-powered devices with genuine post-event utility.

Mistake 5: Never Testing

Any protection system needs verification. Test your enclosures before you need them, not after an event when you discover they didn’t work.

Taking the Next Step

EMP shielding is a practical application of well-understood physics. The tools and techniques are accessible to anyone willing to learn the basics.

Start simple: 1. Identify your priority devices (communication, data, medical) 2. Choose a protection method (DIY or commercial) 3. Test your chosen solution 4. Integrate with broader emergency planning
