A comparative heating-pattern study of direct-contact applicators in microwave diathermy

Bioeffects Seen

Gideon Kantor, Thomas C. Cetas · 1976

Share:

Medical microwave devices from 1976 required strict leakage controls at the same 2.45 GHz frequency now flooding our homes.

Plain English Summary

Summary written for general audiences

This 1976 study tested how different microwave diathermy devices operating at 2.45 GHz heat tissue phantoms simulating fat and muscle. Researchers found that properly designed direct-contact applicators could maintain radiation leakage below 5 mW/cm² at 5 cm distance while delivering therapeutic heating. The study established safety standards for medical microwave devices that are still used in physical therapy today.

Why This Matters

This research reveals a critical reality about microwave exposure standards. Medical diathermy devices operating at 2.45 GHz (the same frequency as your microwave oven and WiFi router) were deemed safe at leakage levels of 5 mW/cm² back in 1976. Yet today's wireless devices often expose you to similar power densities during normal use. The study demonstrates that even therapeutic applications of microwaves required careful engineering to minimize leakage, highlighting how our everyday wireless environment subjects us to chronic low-level exposure that wasn't fully understood when these safety standards were established. What's particularly telling is that this research focused on preventing unwanted radiation exposure even in medical settings where microwaves provided clear therapeutic benefits.

Exposure Information

Specific exposure levels were not quantified in this study.

Cite This Study
Gideon Kantor, Thomas C. Cetas (1976). A comparative heating-pattern study of direct-contact applicators in microwave diathermy.
Show BibTeX
@article{a_comparative_heating_pattern_study_of_direct_contact_applicators_in_microwave_d_g5085,
  author = {Gideon Kantor and Thomas C. Cetas},
  title = {A comparative heating-pattern study of direct-contact applicators in microwave diathermy},
  year = {1976},


}

Quick Questions About This Study

The diathermy applicators operated at 2.45 GHz, which is the same frequency used by microwave ovens, WiFi routers, and many Bluetooth devices. This frequency was chosen for its effective tissue heating properties in medical applications.
Researchers established that leakage should stay below 5 mW/cm² at 5 cm distance per 100 watts of power for large applicators, and per 10 watts for smaller devices. These limits were designed to prevent unwanted heating in surrounding tissue.

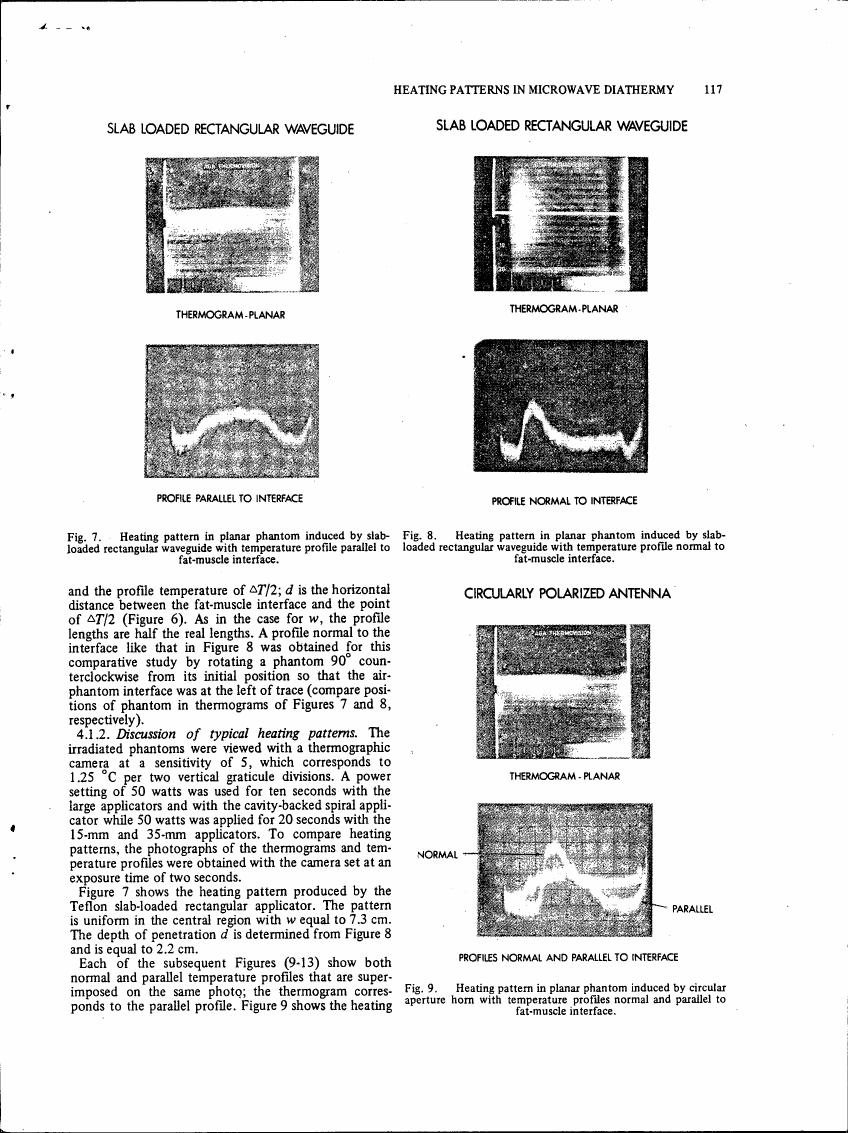

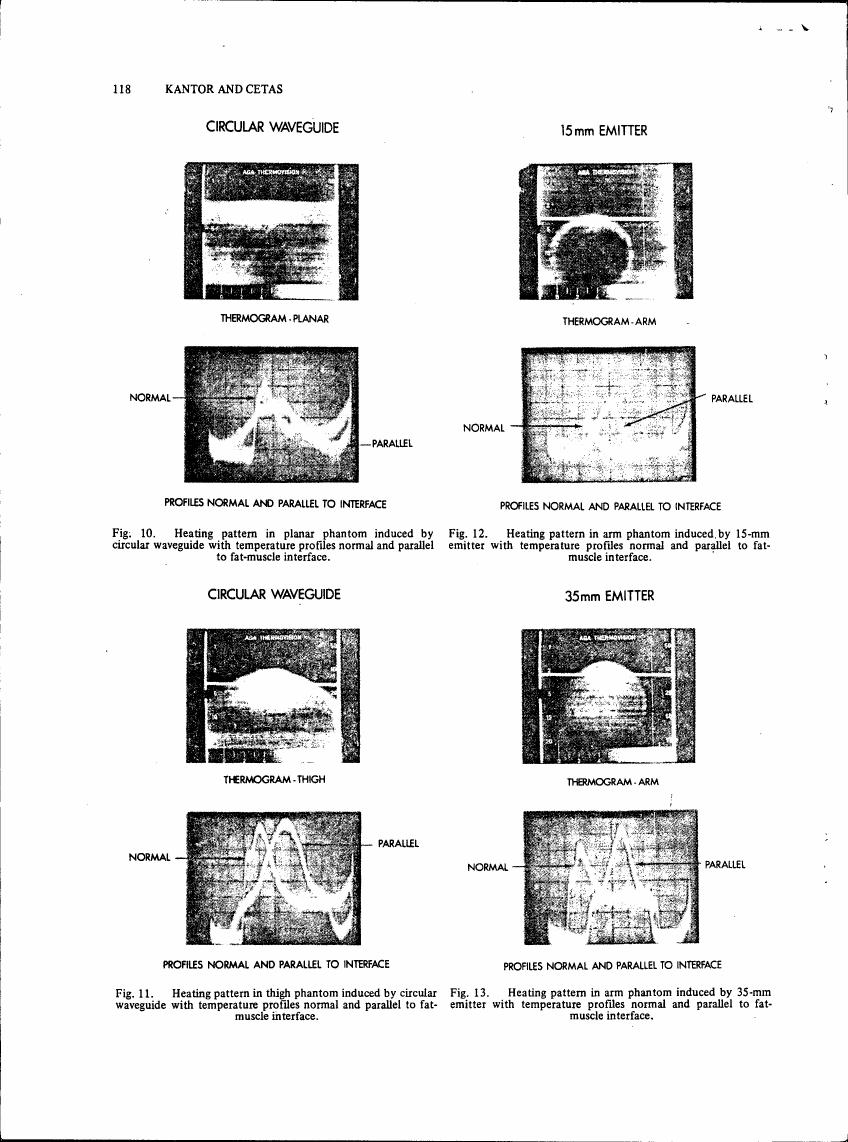

Yes, Teflon slab-loaded waveguides and circularly polarized horns produced uniform heating in the center of tissue phantoms. The study found that limb-shaped phantoms actually enhanced the depth of microwave penetration through focusing effects.

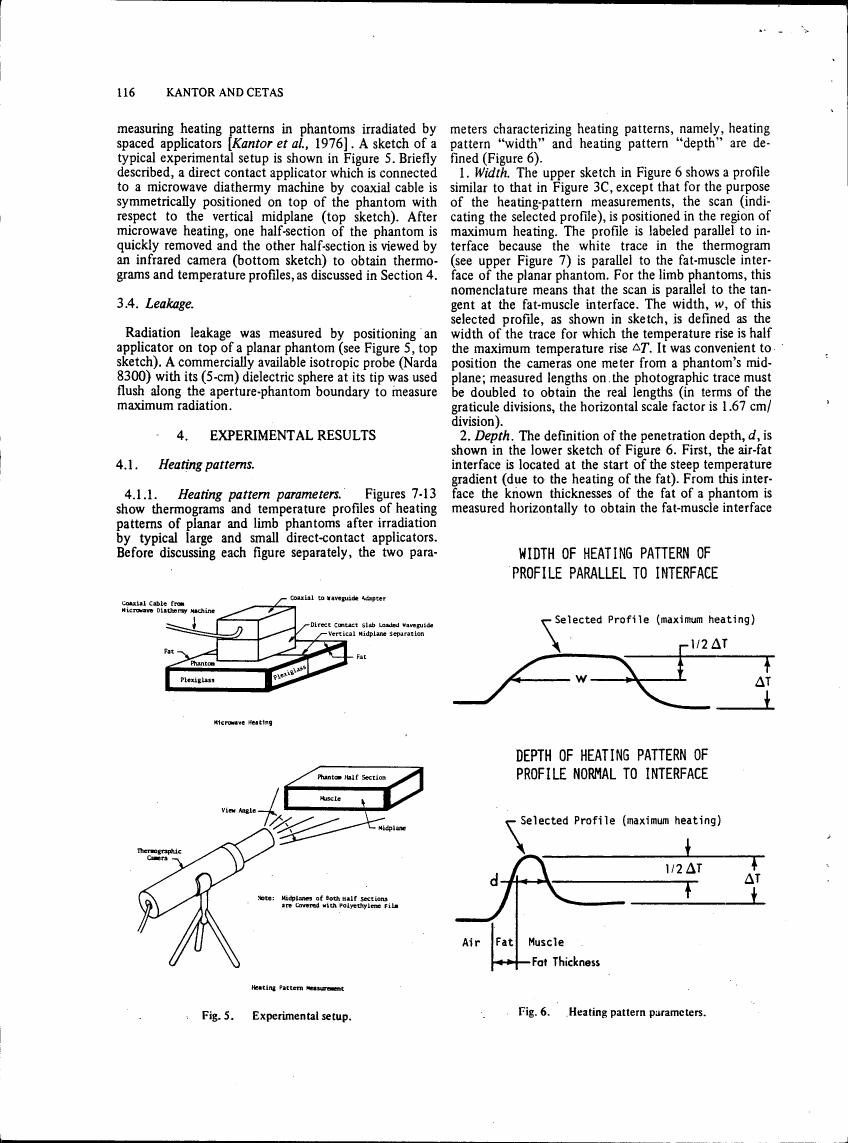

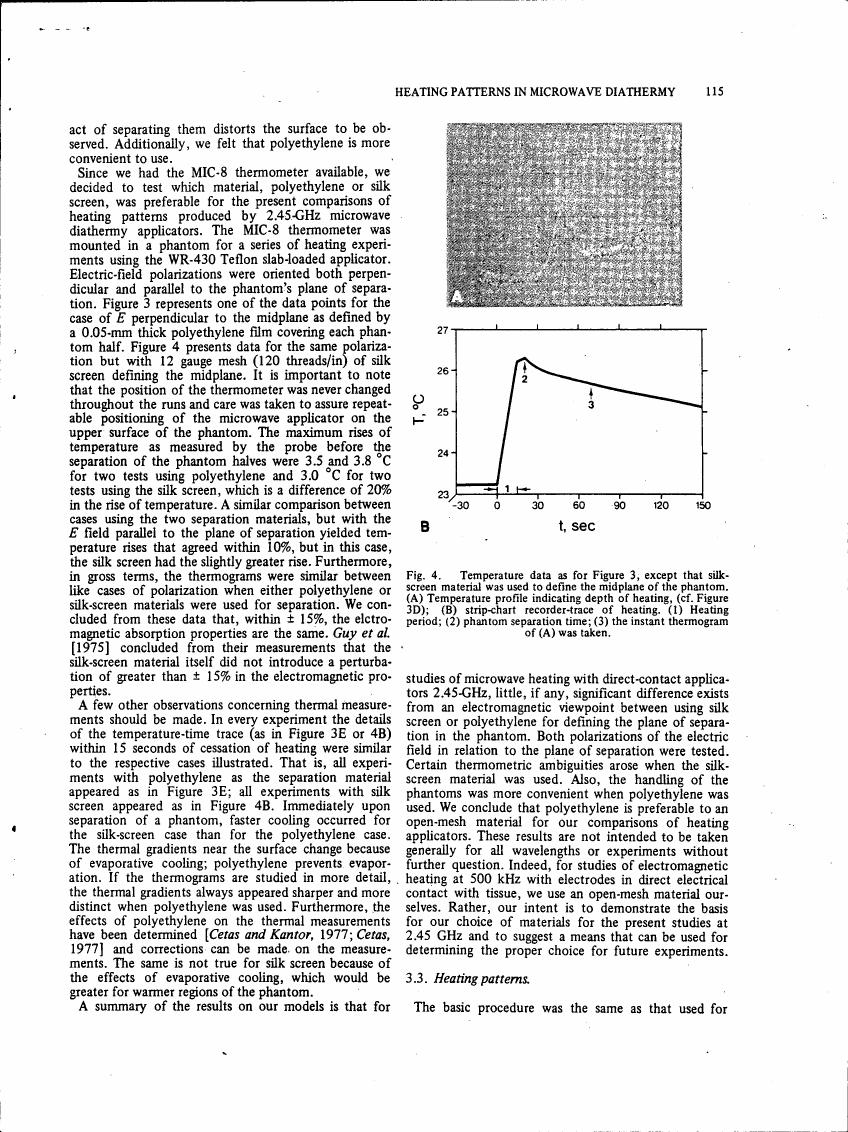

Scientists used both thermographic cameras and probe thermometry to measure heating patterns. They tested different phantom materials including polyethylene and silk screen films to ensure accurate temperature measurements in simulated fat and muscle tissue.
The research demonstrated that proper engineering design, including features like output flange chokes on circular horns, could successfully maintain leakage levels below the established safety thresholds while delivering effective therapeutic heating to target tissues.
