A DISCUSSION OF THE CONCEPTS AND APPROACHES FOR MINIMIZING EXCESSIVE EXPOSURE TO ELECTROMAGNETIC RADIATION FROM RF SEALERS

Bioeffects Seen

Paul S. Ruggera, Daniel H. Schaubert, Ph.D. · 1981

Share:

Industrial RF sealers create intense electromagnetic exposures requiring specific shielding and safety measures to protect workers.

Plain English Summary

Summary written for general audiences

This 1981 technical report examined methods for reducing excessive electromagnetic radiation exposure from RF sealers, industrial machines that use radiofrequency energy to weld plastic materials. The research focused on practical approaches including shielding techniques and exposure control measures to protect workers operating this equipment.

Why This Matters

This early industrial hygiene research highlights a critical point often overlooked in EMF discussions: some of the highest radiofrequency exposures occur in workplace settings, not from consumer devices. RF sealers can generate intense electromagnetic fields that far exceed what you experience from cell phones or WiFi. The science demonstrates that industrial RF equipment has long been recognized as requiring specific safety measures and exposure controls. What this means for you is that occupational RF exposures represent some of the most significant electromagnetic field exposures humans encounter, yet they receive far less public attention than consumer technologies. Workers in manufacturing facilities using RF sealing equipment face exposure levels that dwarf typical residential EMF sources, making proper shielding and safety protocols essential for protecting human health.

Figures from the Original Paper

Diagrams extracted from the original research document.

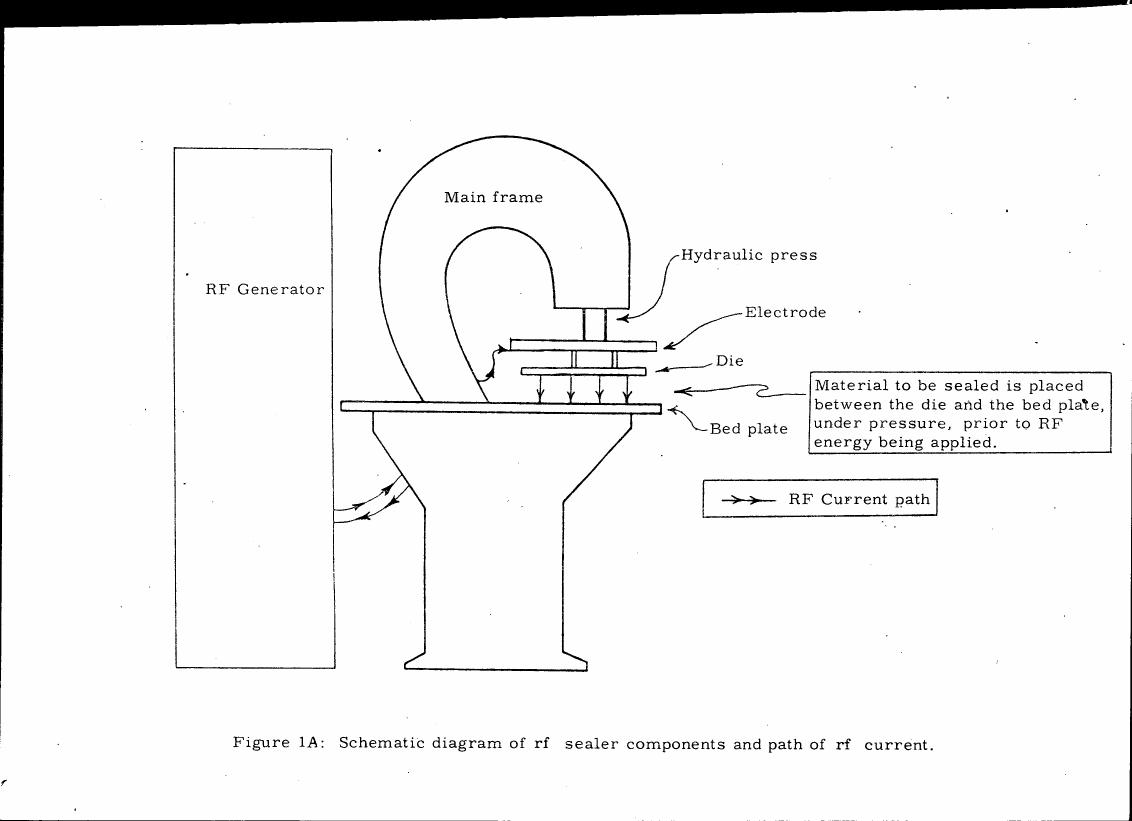

diagramPage 6 - Figure 1A: Schematic diagram of rf sealer components and path of rf current.
p. 6 of the original PDF

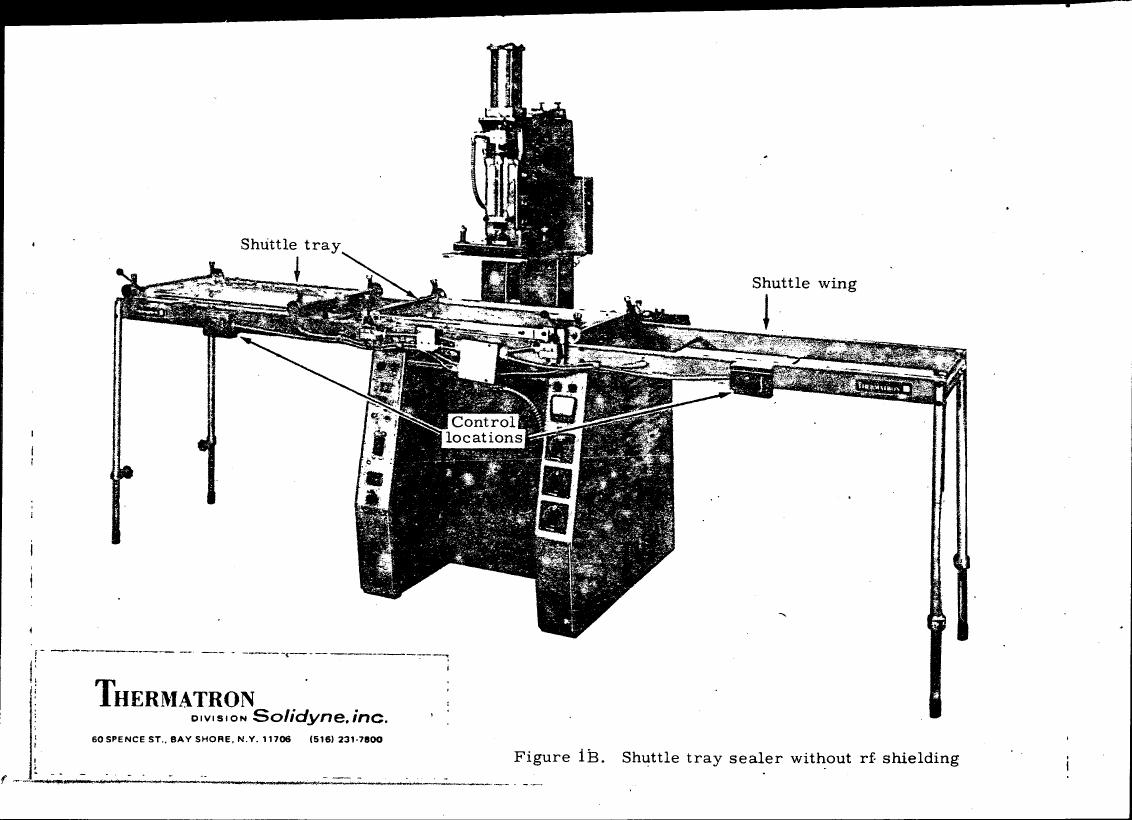

diagramPage 9 - Figure 1B. Shuttle tray sealer without rf shielding
p. 9 of the original PDF

Exposure Information

A logarithmic frequency spectrum from 10 Hz to 100 GHz showing where this study's 13.56-40.68 MHz exposure sits relative to common EMF sources.Where This Frequency Sits on the EMF SpectrumELFVLFLF / MFHF / VHFUHFSHFmm10 Hz100 GHzThis study: 13.56-40.68 MHzPower lines50/60 HzCell phones~1 GHzWiFi2.4 GHz5G mm28 GHzLogarithmic scale

Specific exposure levels were not quantified in this study.

Study Details

To discuss concepts and approaches for minimizing excessive exposure to electromagnetic radiation from RF sealers, examining both emission control and exposure control methods, and to present examples of shielding techniques used by manufacturers.

The study involved reviewing existing literature on RF sealers and their radiation hazards, conducti...

Measurements of a Solidyne RF sealer showed that with shielding in place, the highest emission level...

RF sealer shielding can be effective for reducing radiation exposure, but improper use or removal of shields can significantly increase exposure levels. Box shields that completely enclose RF electrodes can significantly reduce radiation and can be used on approximately 80% of new and existing RF sealers. Screen rooms can reduce environmental levels but may greatly increase power absorbed by operators inside the rooms. The effectiveness of shielding can be dramatically altered by changes in equipment configuration or use, requiring monitoring to ensure leakage does not exceed acceptable levels.

Cite This Study
Paul S. Ruggera, Daniel H. Schaubert, Ph.D. (1981). A DISCUSSION OF THE CONCEPTS AND APPROACHES FOR MINIMIZING EXCESSIVE EXPOSURE TO ELECTROMAGNETIC RADIATION FROM RF SEALERS.
Show BibTeX
@article{a_discussion_of_the_concepts_and_approaches_for_minimizing_excessive_exposure_to_g4007,
  author = {Paul S. Ruggera and Daniel H. Schaubert and Ph.D.},
  title = {A DISCUSSION OF THE CONCEPTS AND APPROACHES FOR MINIMIZING EXCESSIVE EXPOSURE TO ELECTROMAGNETIC RADIATION FROM RF SEALERS},
  year = {1981},


}
No DOI on file for this study.

Quick Questions About This Study

RF sealers are industrial machines that use intense radiofrequency electromagnetic fields to heat and weld plastic materials together. They generate much stronger RF fields than consumer electronics to create the heat needed for plastic welding processes.
RF sealers typically generate electromagnetic field intensities far exceeding cell phone emissions. While phones operate at milliwatt power levels, industrial RF sealers can operate at kilowatt levels, creating much more intense localized electromagnetic field exposures.
Effective RF shielding typically involves conductive materials like metal enclosures, screens, or specialized RF-absorbing materials. The specific shielding approach depends on the frequency, power level, and geometry of the particular RF sealing equipment being used.
By 1981, industrial hygienists recognized that RF sealers created significant electromagnetic field exposures for workers. This research addressed growing workplace safety concerns about intense RF radiation from industrial heating and sealing equipment used in manufacturing.
Yes, modern RF sealers continue to generate intense electromagnetic fields and require proper safety measures. While shielding and safety protocols have improved since 1981, these industrial machines still represent significant occupational RF exposure sources requiring careful management.
