A REVIEW OF IN-LINE RF POWER METERS FOR USE WITH ULTRASONIC INSTRUMENTATION
Authors not listed · 1973
Medical researchers needed precise RF power measurement tools for ultrasound equipment in 1973, showing early recognition of RF emissions as measurable factors.
Plain English Summary
This 1973 technical report examined different types of RF power meters designed for use with ultrasonic medical equipment. The research focused on measurement devices including Hall effect sensors and couplers that could accurately monitor radiofrequency power levels during ultrasonic procedures. This work addressed the need for precise power measurement in early medical ultrasound technology.
Why This Matters
While this appears to be primarily an engineering study from the early days of medical ultrasound, it highlights an important reality that often gets overlooked in EMF discussions: the medical field has long recognized the need to carefully measure and monitor RF power levels in their equipment. The fact that researchers in 1973 were developing sophisticated power measurement tools for ultrasonic devices shows that even then, there was awareness that RF emissions needed to be quantified and controlled. This stands in stark contrast to how we approach everyday consumer devices today, where most people have no idea what power levels their phones, tablets, or WiFi routers are actually emitting. The medical community's historical attention to RF measurement underscores that these emissions are significant enough to warrant precise monitoring in clinical settings.
Finding
Although the entire range of interest cannot be covered, recent proprietary developments by Reaction Instruments of McLean, Va., allow them to build a dual directional coupler capable of operating at greater than 200 watts, which covers the range from 20 kHz to 2 MHz. Because of the large size that would be required, conventional stripline or coupled coax fine techniques are not practical for fabricating couplers in the low kilohertz region. Reaction Instruments builds their coupler of transformers wound with coax cable. The resultant dual coupler is less than 2 inches by 4 inches by 5 inches in size.
In their words
“Although the entire range of interest cannot be covered, recent proprietary developments by Reaction Instruments of McLean, Va., allow them to build a dual directional coupler capable of operating at greater than 200 watts, which covers the range from 20 kHz to 2 MHz. Because of the large size that would be required, conventional stripline or coupled coax fine techniques are not practical for fabricating couplers in the low kilohertz region. Reaction Instruments builds their coupler of transformers wound with coax cable. The resultant dual coupler is less than 2 inches by 4 inches by 5 inches in size.”
Source

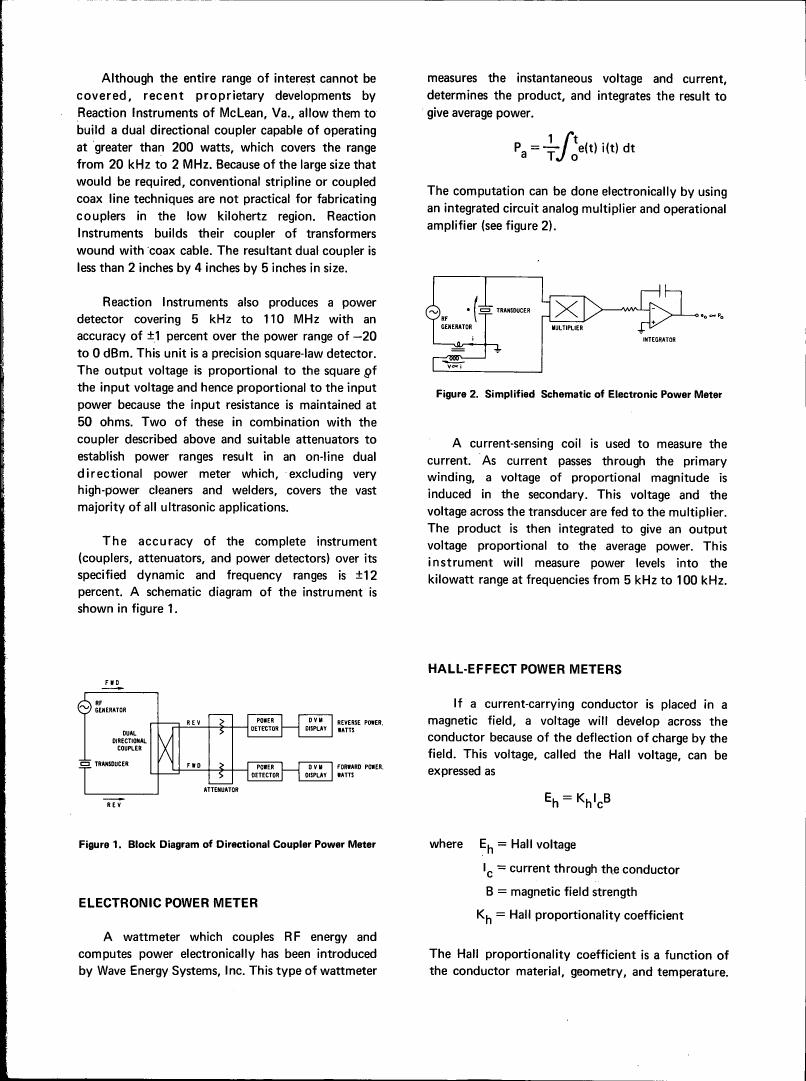

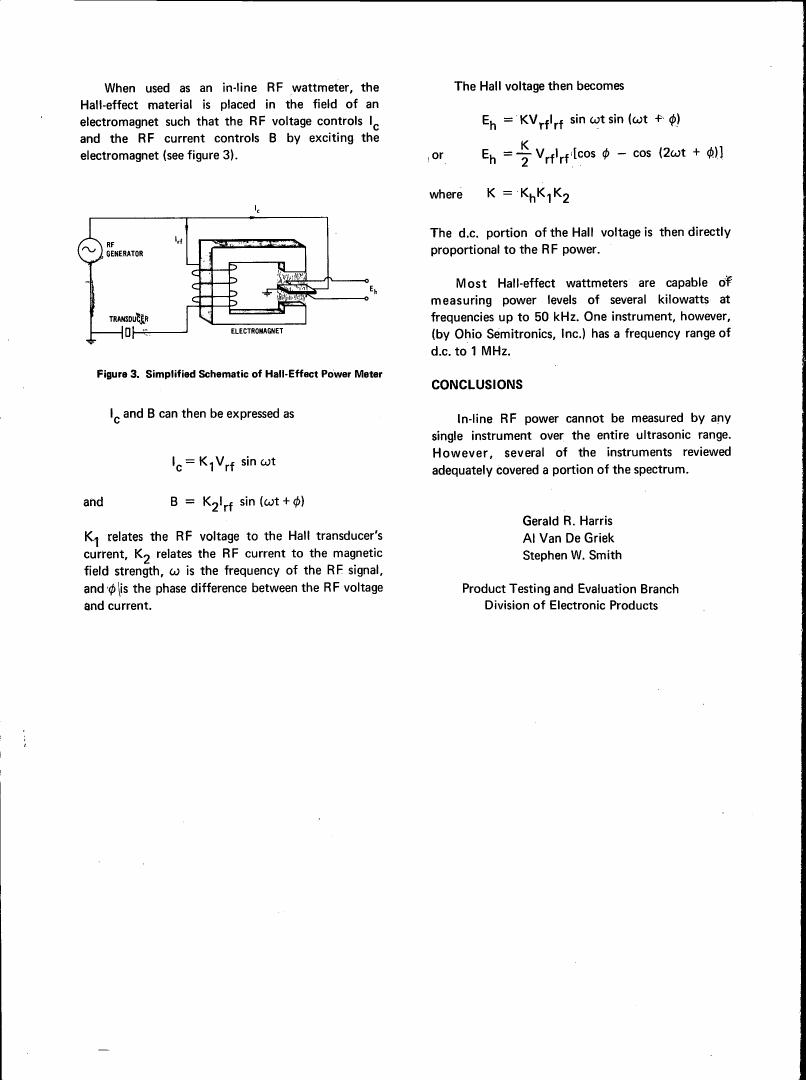

(1973) (1973)Figures from the Original Paper
Diagrams extracted from the original research document.
Exposure Information
Specific exposure levels were not quantified in this study.
Study Details
To review and analyze available in-line RF power meters for use with ultrasonic instrumentation, focusing on their capabilities to measure power across the ultrasonic frequency range from 15 kHz to 50 MHz.
The study reviewed 25 companies manufacturing in-line RF power meters and analyzed the specification...
Terminating power meters require total energy absorption and are limited to small power increments. ...
In-line RF power cannot be measured by any single instrument over the entire ultrasonic range. However, several instruments adequately covered portions of the spectrum. The most promising approach involves combinations of directional couplers and power detectors, with Reaction Instruments producing a dual directional coupler capable of operating at greater than 200 watts from 20 kHz to 2 MHz.
