Analyses of Electromagnetic Fields Induced in Biological Tissues by Thermographic Studies on Equivalent Phantom Models

Bioeffects Seen

Arthur W. Guy · 1971

Share:

Thermographic imaging revealed that microwave fields create uneven heating patterns throughout biological tissues, establishing the foundation for modern EMF exposure assessment.

Plain English Summary

Summary written for general audiences

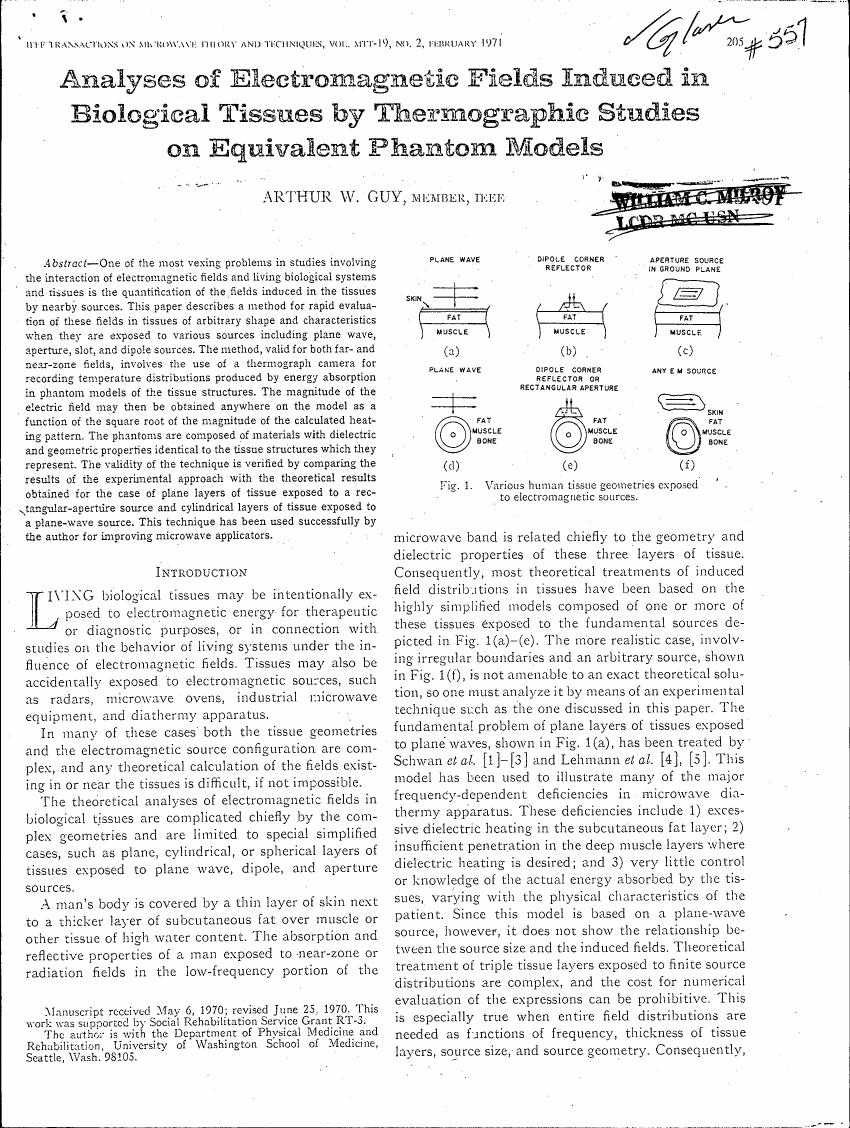

This 1971 study developed a groundbreaking method using thermal imaging to measure electromagnetic fields inside biological tissues exposed to microwave sources. Researchers created tissue-equivalent phantom models and used thermographic cameras to map heating patterns, allowing them to calculate field strengths throughout the tissue. The technique proved accurate when compared to theoretical predictions and helped improve microwave medical applicators.

Why This Matters

This pioneering work from 1971 established the foundation for understanding how electromagnetic fields penetrate and distribute within biological tissues. What makes this study particularly significant is that it provided the first practical method for visualizing the invisible electromagnetic energy patterns inside our bodies when exposed to microwave radiation. The research demonstrated that EMF exposure isn't uniform throughout tissue - energy concentrates in certain areas, creating hotspots of absorption that can vary dramatically based on tissue type and geometry. This uneven distribution helps explain why EMF health effects can be so complex and variable. The phantom models used in this study became the gold standard for EMF research, and the heating patterns they revealed showed that our bodies absorb microwave energy in ways that weren't previously understood. Today, as we're surrounded by microwave-emitting devices from WiFi routers to cell phones, this foundational research remains crucial for understanding exposure patterns in real-world scenarios.

Exposure Information

Specific exposure levels were not quantified in this study.

Cite This Study
Arthur W. Guy (1971). Analyses of Electromagnetic Fields Induced in Biological Tissues by Thermographic Studies on Equivalent Phantom Models.
Show BibTeX
@article{analyses_of_electromagnetic_fields_induced_in_biological_tissues_by_thermographi_g7020,
  author = {Arthur W. Guy},
  title = {Analyses of Electromagnetic Fields Induced in Biological Tissues by Thermographic Studies on Equivalent Phantom Models},
  year = {1971},


}

Quick Questions About This Study

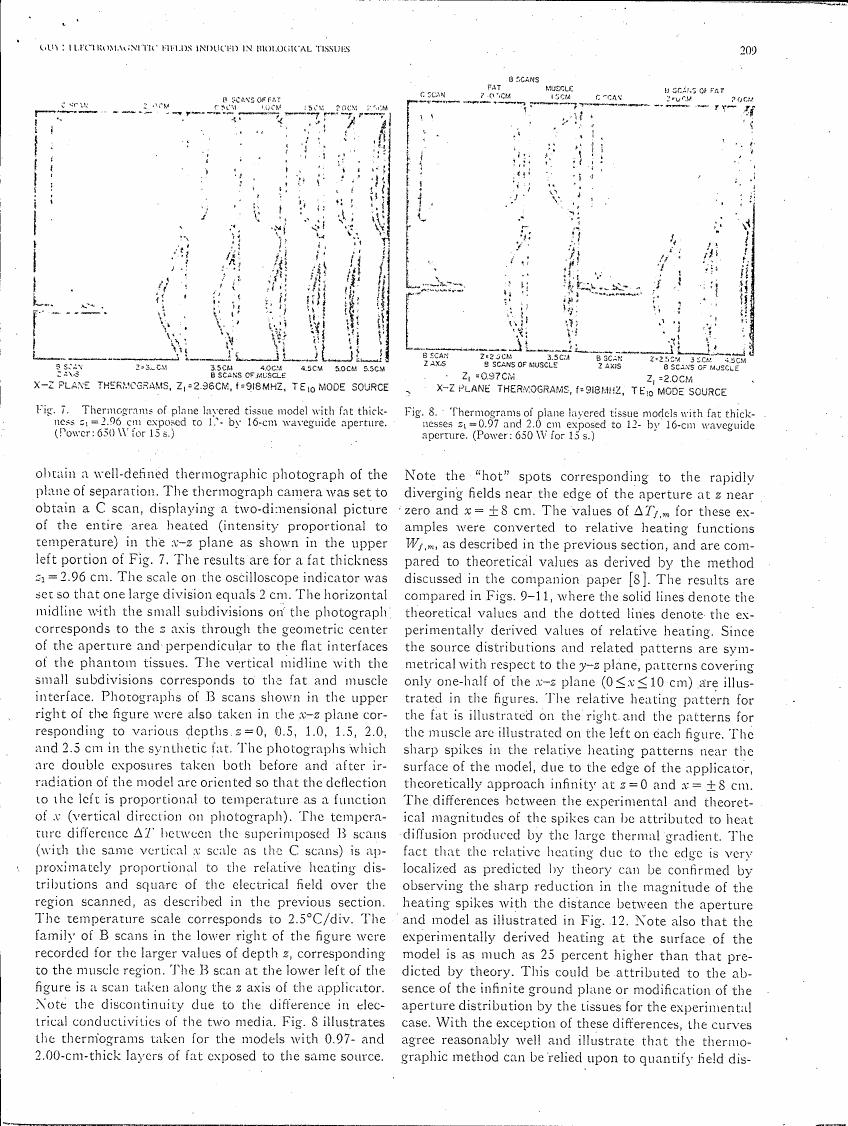

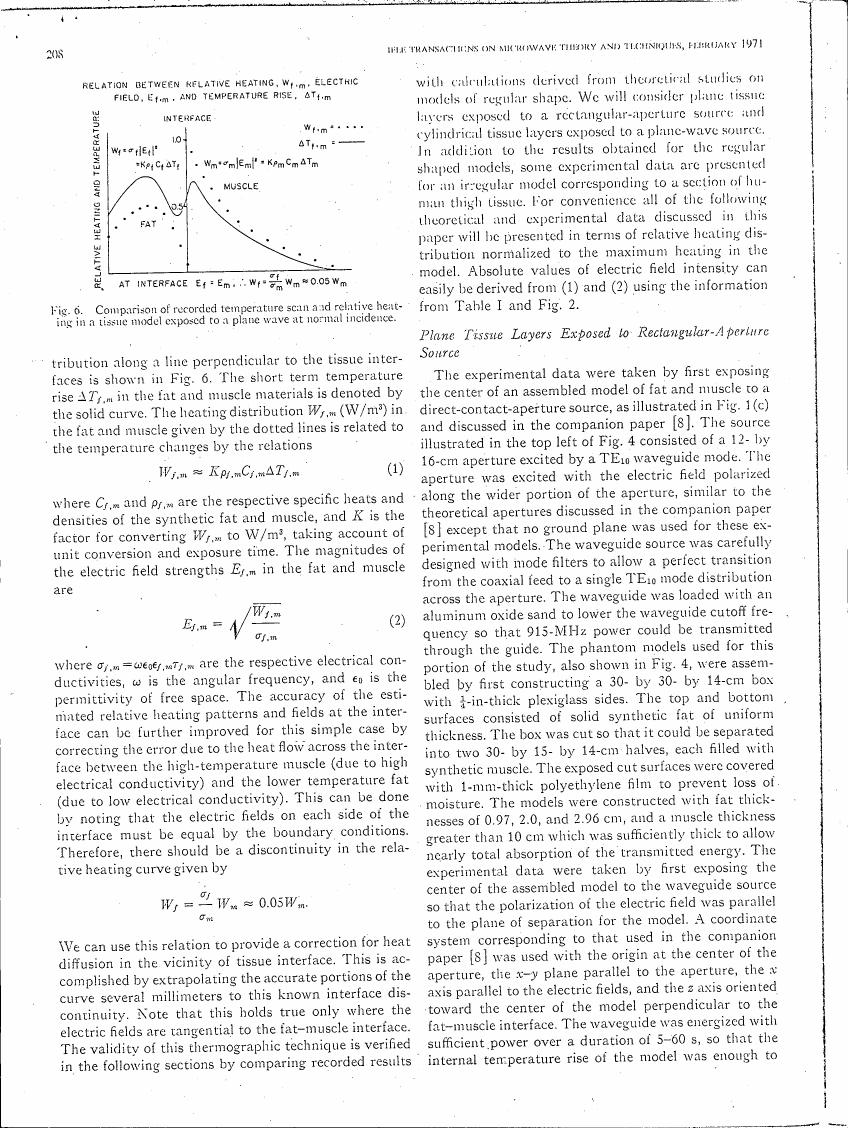

Thermographic cameras detect heat patterns created when tissues absorb electromagnetic energy. The heating distribution reveals field strength throughout the tissue, with the electric field magnitude proportional to the square root of the heating pattern intensity.

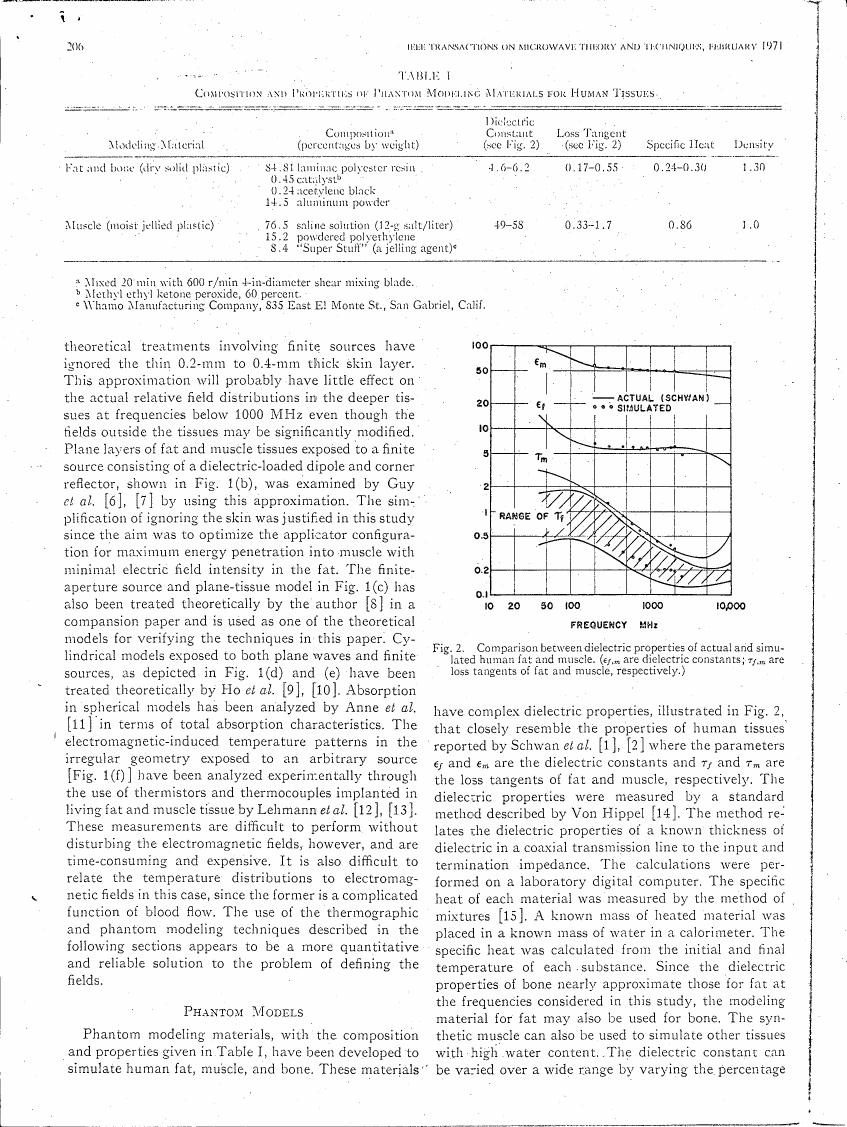

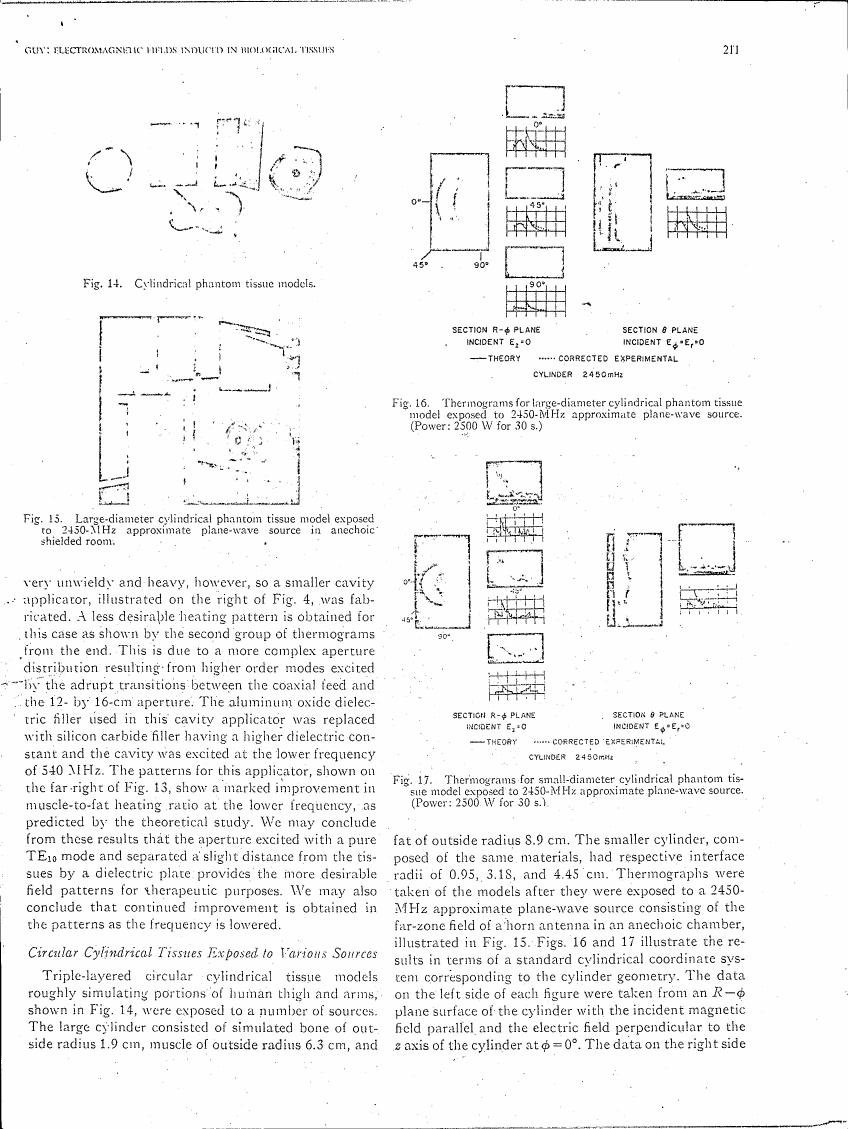

Phantom models are artificial materials designed to mimic the dielectric and geometric properties of real biological tissues. They allow researchers to safely study electromagnetic field patterns without using living subjects while maintaining accurate tissue-like responses.
Different tissues have varying electrical properties that cause electromagnetic fields to concentrate in some areas while being reduced in others. This creates hotspots and cold spots of energy absorption depending on tissue density, water content, and geometry.
Yes, the thermographic technique successfully measured electromagnetic field patterns for both near-field exposures from nearby sources and far-field exposures from distant transmitters, making it versatile for various exposure scenarios and source configurations.

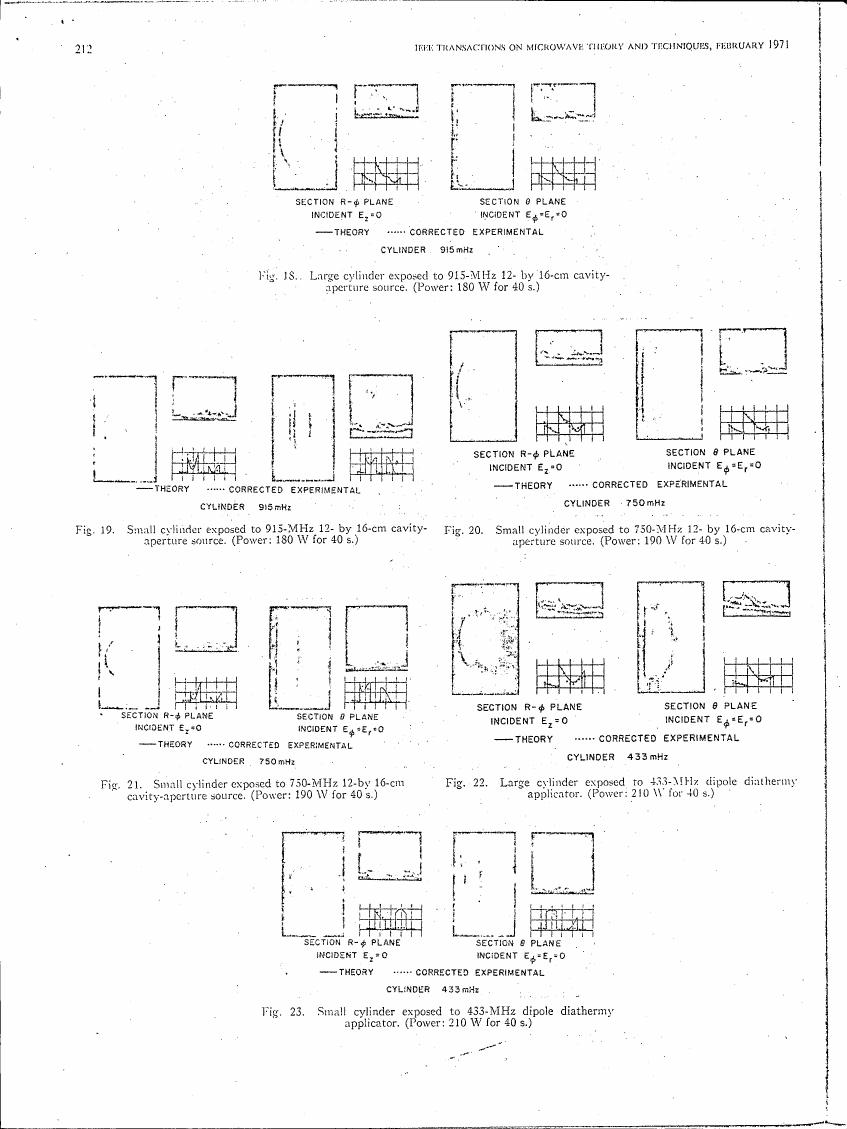

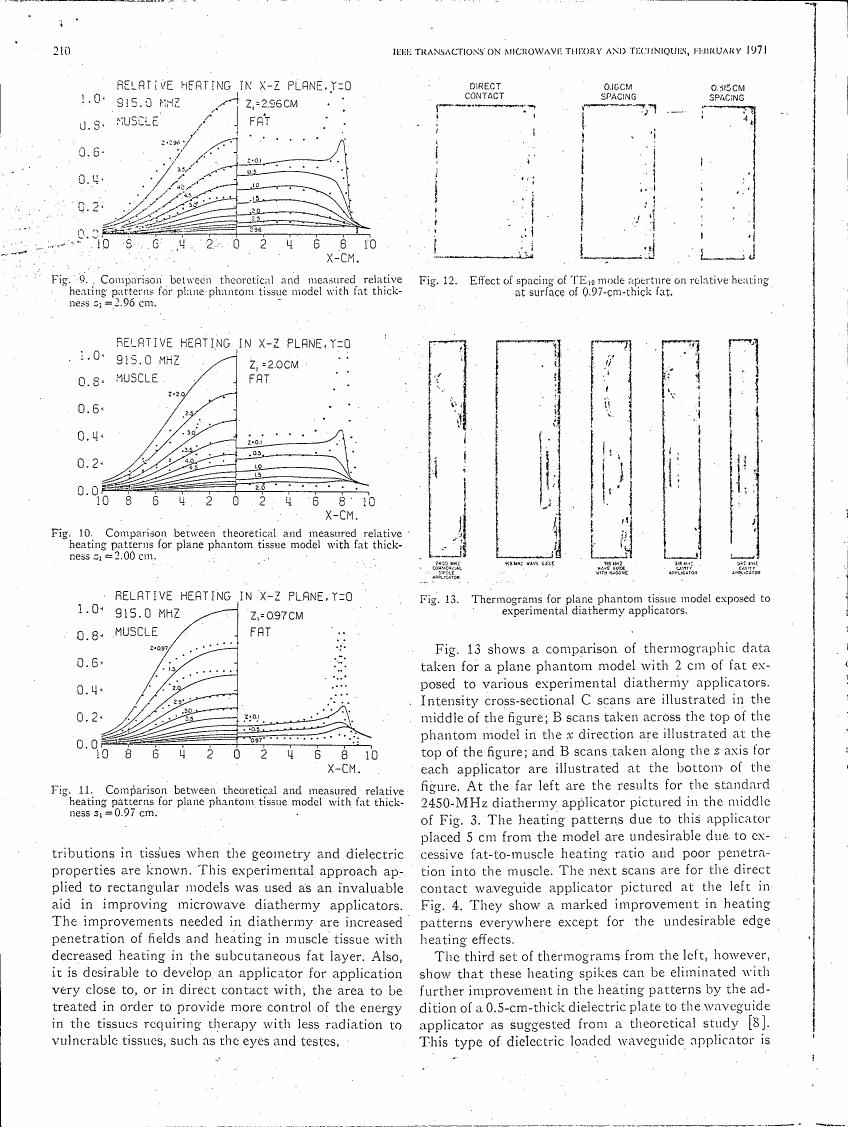

Scientists compared their experimental thermographic results with theoretical calculations for known scenarios like plane wave exposures and rectangular aperture sources. The close agreement between experimental and theoretical results validated the measurement technique's accuracy.
