Application of Electric and Acoustic Impedance Measuring Techniques to Problems in Diathermy
Herman P. Schwan, Edwin L. Carstensen · 1952
This 1952 diathermy research established fundamental methods for measuring how RF energy heats human tissue.
Plain English Summary
This 1952 research by H.P. Schwan examined how to measure electrical and acoustic properties of human tissues during diathermy (medical heating with radio frequency energy). The study developed techniques to understand how RF energy penetrates and heats biological tissues, particularly blood. This foundational work helped establish scientific methods for studying electromagnetic field interactions with the human body.
Why This Matters
This research represents a pivotal moment in understanding how electromagnetic fields interact with living tissue. H.P. Schwan's work on diathermy laid the groundwork for much of what we know today about RF energy absorption in the human body. What makes this particularly relevant is that diathermy uses the same basic physics as modern wireless devices - radio frequency energy that heats tissue through molecular agitation. The difference is one of degree, not kind. While diathermy intentionally heats tissue for therapeutic purposes, your cell phone, WiFi router, and other wireless devices operate on the same fundamental principle of RF energy absorption. Schwan's impedance measurement techniques became the foundation for calculating Specific Absorption Rate (SAR), the metric still used today to measure how much RF energy your body absorbs from wireless devices.
Figures from the Original Paper
Diagrams extracted from the original research document.
Exposure Information
Specific exposure levels were not quantified in this study.
Study Details
To evaluate the effectiveness of electric and acoustic impedance measuring techniques for problems in diathermy, particularly focusing on the depth of penetration, reflection coefficient, and beaming angle of electromagnetic and ultrasonic radiation in biological tissues.

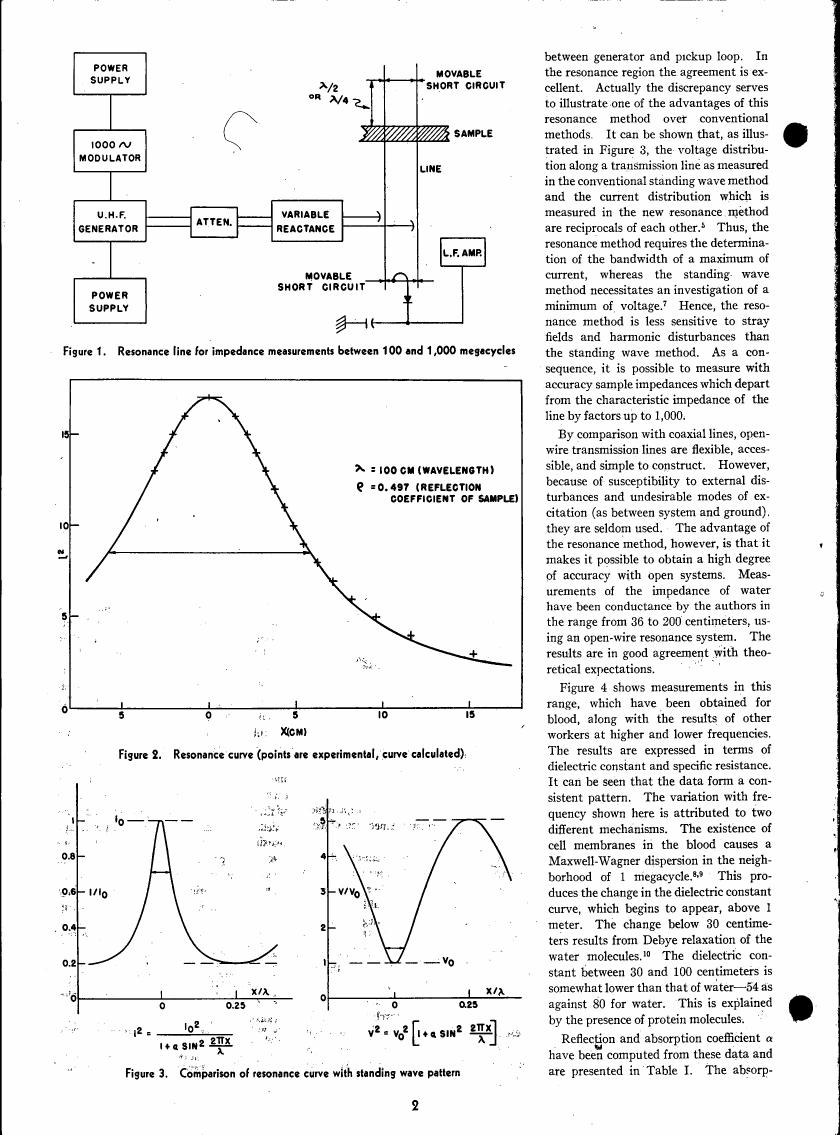

A special resonance method was adopted for measurements in the frequency range 100-1,000 megacycles,...
Measurements of the impedance of water and blood were conducted in the range from 36 to 200 centimet...

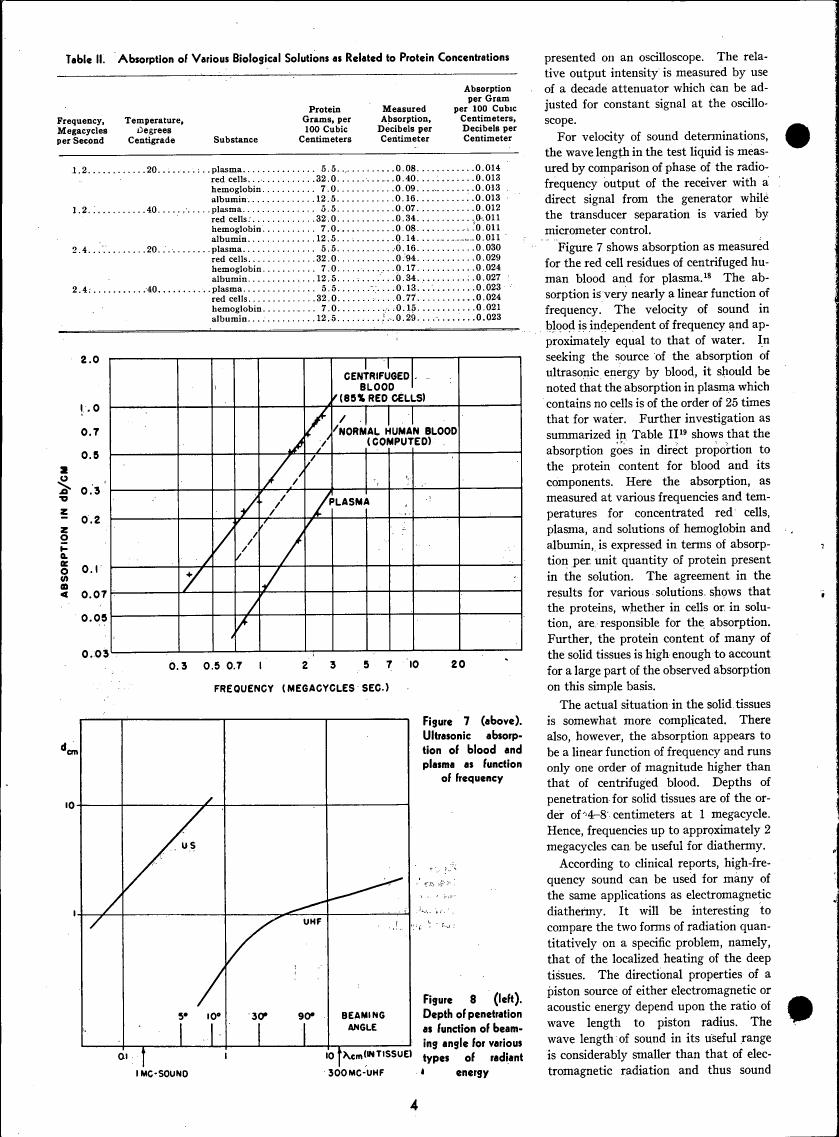

The optimum range for electromagnetic diathermy lies between 30 and 100 centimeters. Ultrasound is superior to electromagnetic radiation for the purposes of localized deep heating due to better beaming properties. The absorption of ultrasonic energy by blood is primarily due to proteins, whether in cells or in solution. Frequencies up to approximately 2 megacycles can be useful for diathermy. High-frequency sound can be used for many of the same applications as electromagnetic diathermy.
Show BibTeX
@article{application_of_electric_and_acoustic_impedance_measuring_techniques_to_problems__g7,
author = {Herman P. Schwan and Edwin L. Carstensen},
title = {Application of Electric and Acoustic Impedance Measuring Techniques to Problems in Diathermy},
year = {1952},
}
