APPLICATION OF ELECTRICAL IMPULSES TO SEPARATED TISSUES IN AQUEOUS MEDIA

Bioeffects Seen

P. J. W. AYRES, H. McILWAIN · 1953

Share:

Early 1953 research established that electrical impulses measurably affect tissue metabolism in laboratory conditions.

Plain English Summary

Summary written for general audiences

This 1953 study by Ayres investigated how electrical impulses affect separated tissues when placed in water-based solutions. The research examined tissue metabolism responses to electrical stimulation in laboratory conditions. This early work helped establish foundational understanding of how electrical fields interact with biological tissues.

Why This Matters

This pioneering 1953 research represents some of the earliest scientific investigation into how electrical fields affect living tissue. While we lack the specific findings, the study's focus on tissue metabolism under electrical stimulation was groundbreaking for its time. The science demonstrates that biological tissues respond to electrical impulses in measurable ways, a principle that underlies much of today's EMF health research.

What this means for you is that even seven decades ago, scientists recognized that electrical fields could alter fundamental biological processes. Today's EMF exposures from wireless devices, power lines, and electronics operate on similar principles but at vastly different frequencies and intensities than this early laboratory work. The reality is that this foundational research helped pave the way for understanding how modern electromagnetic fields might affect our cells and tissues.

Figures from the Original Paper

Diagrams extracted from the original research document.

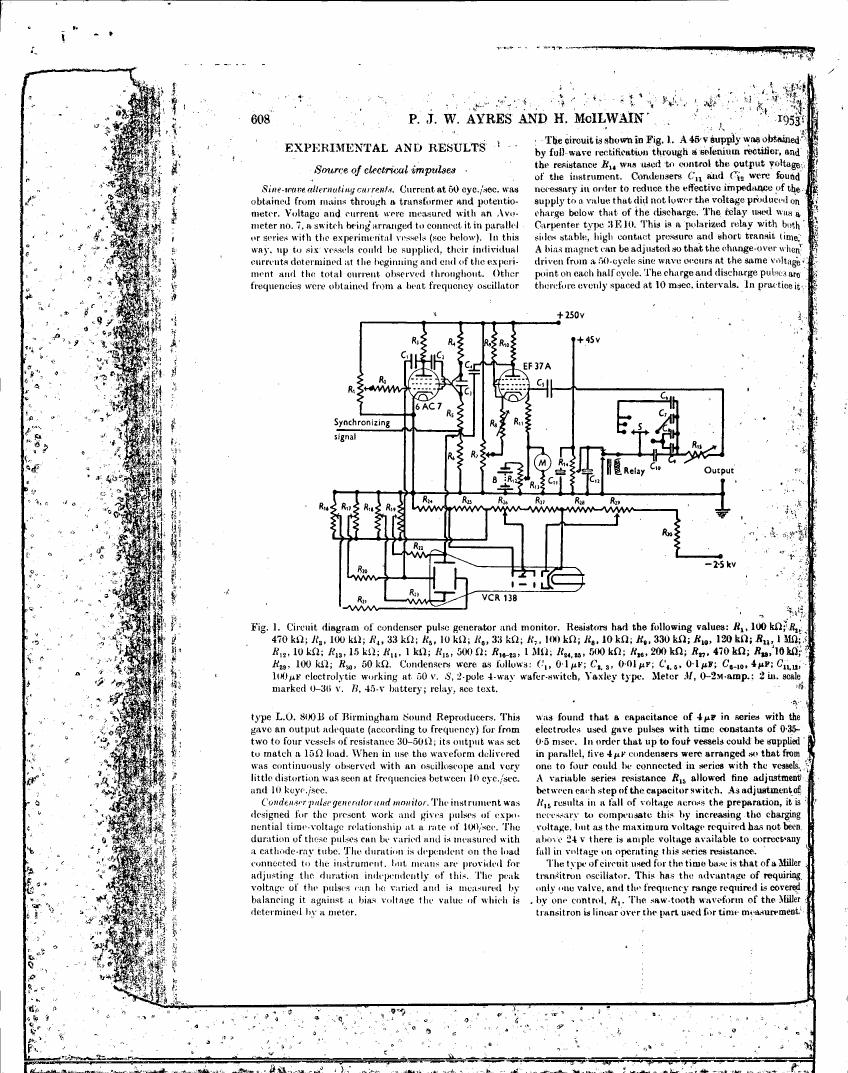

diagramPage 2 - AI-described figure: Figure 1. Circuit diagram of condenser pulse generator and monitor.
p. 2 of the original PDF

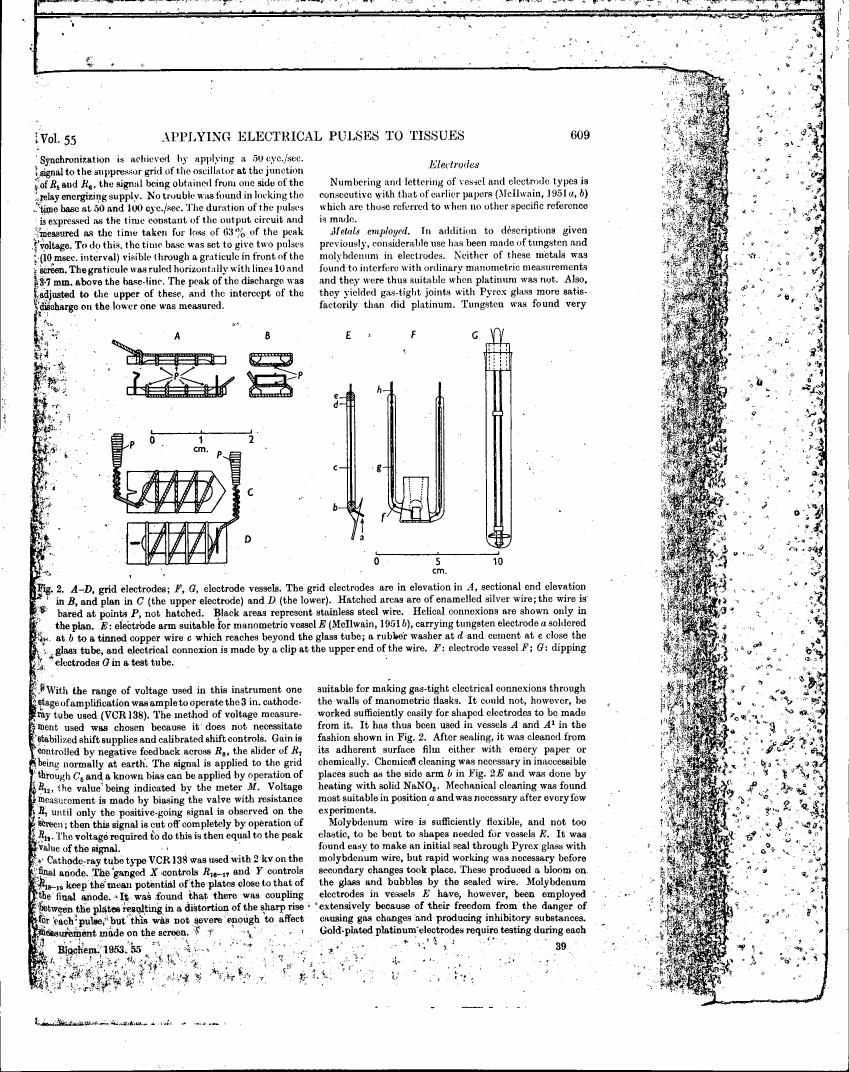

diagramPage 3 - Figure 2 illustrates various types of electrodes and electrode vessels used in applying electrical pulses to tissues.
p. 3 of the original PDF

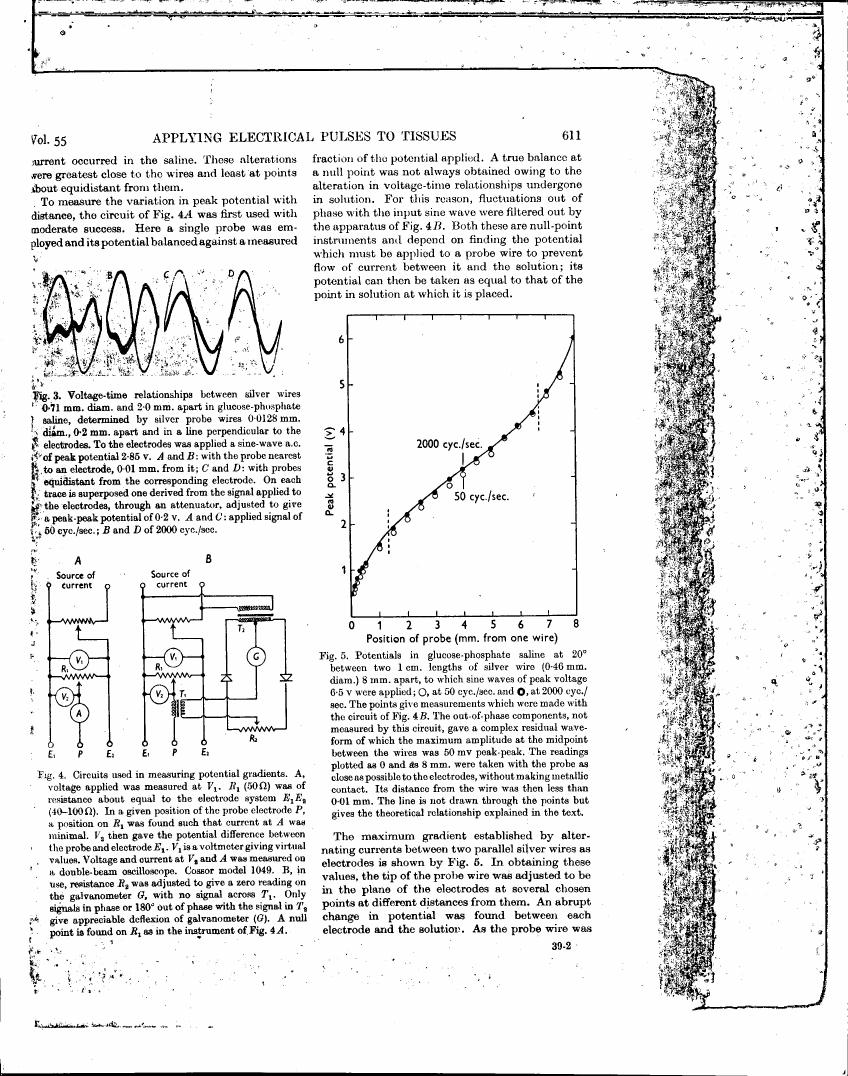

chartPage 5 - AI-described figure: Figure 5 illustrates potential measurements in glucose-phosphate saline at different probe positions between two silver wires.
p. 5 of the original PDF

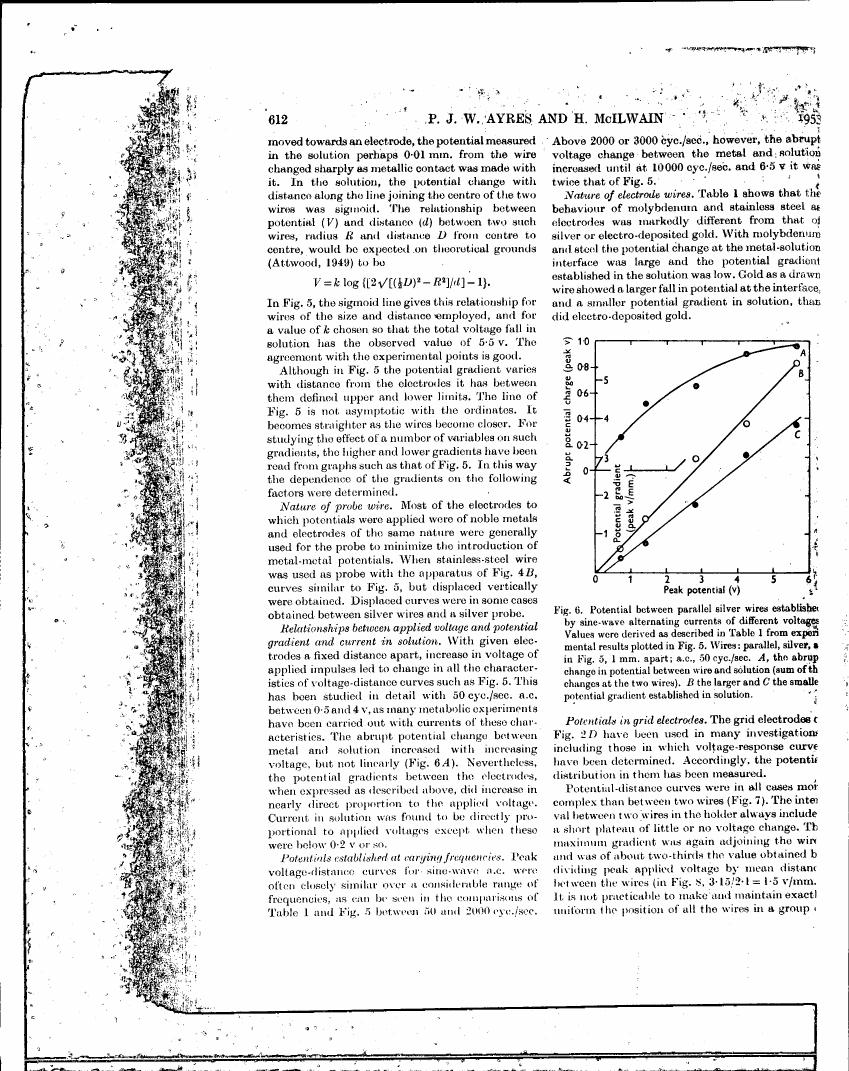

graphPage 6 - AI-described figure: A graph showing potential change between parallel silver wires as a function of peak potential (V), with different symbols representing various experimental conditions.
p. 6 of the original PDF

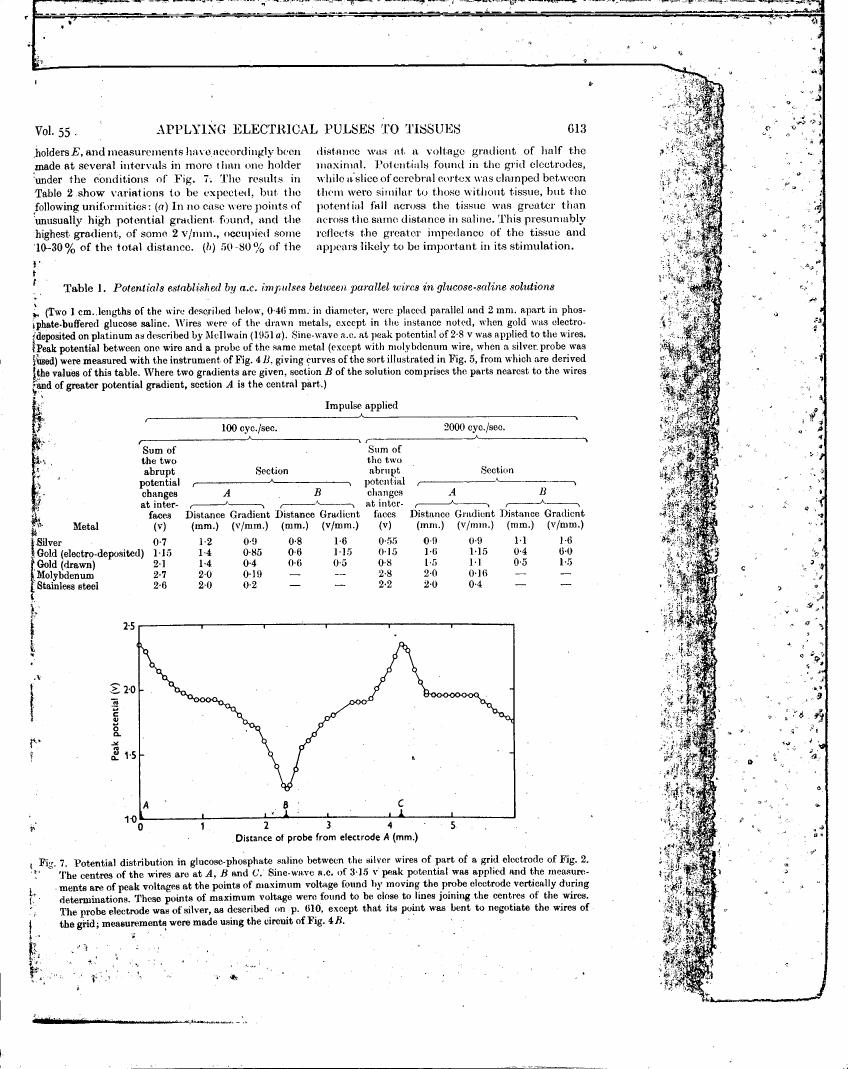

graphPage 7 - Figure 7 illustrates the potential distribution in glucose-phosphate saline between the silver wires of part of a grid electrode.
p. 7 of the original PDF

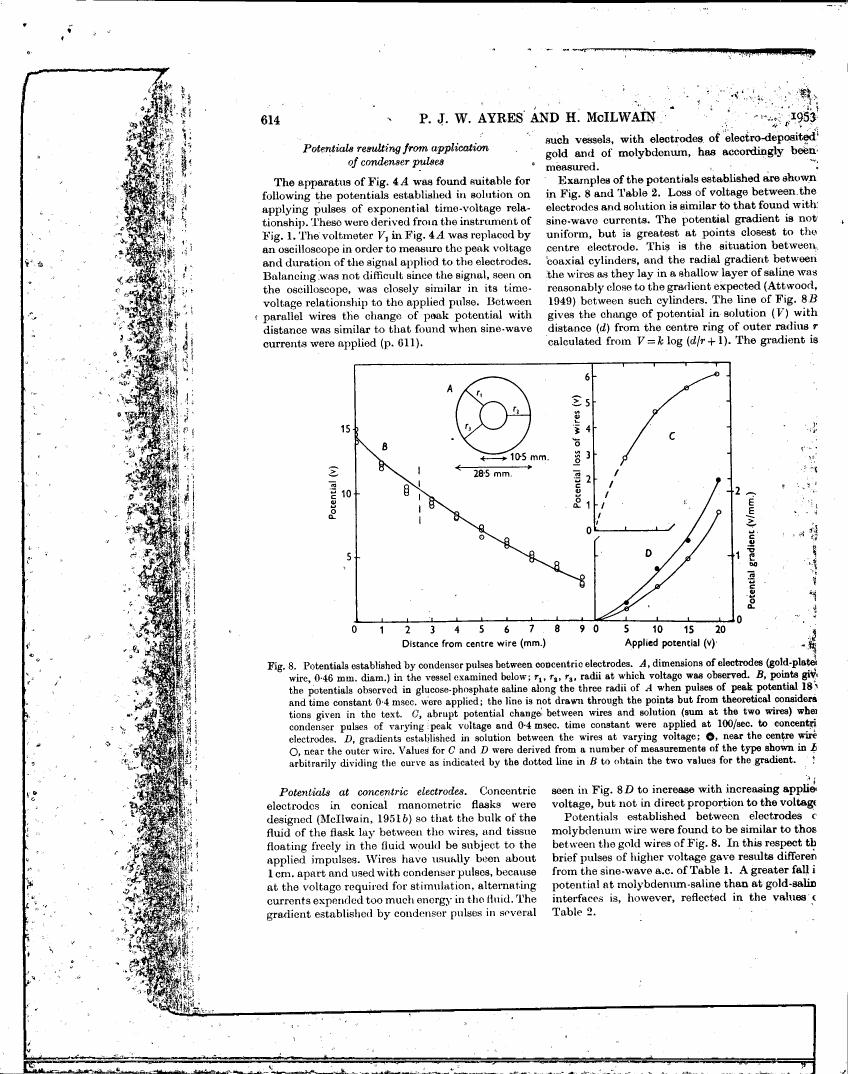

chartPage 8 - AI-described figure: Figure 8 illustrates potential established by condenser pulses between concentric electrodes in a vessel with dimensions and applied potentials plotted against distance from the center wire.
p. 8 of the original PDF

Exposure Information

A logarithmic frequency spectrum from 10 Hz to 100 GHz showing where this study's 50-2000 Hz exposure sits relative to common EMF sources.Where This Frequency Sits on the EMF SpectrumELFVLFLF / MFHF / VHFUHFSHFmm10 Hz100 GHzThis study: 50-2000 HzCell phones~1 GHzWiFi2.4 GHz5G mm28 GHzLogarithmic scale

Specific exposure levels were not quantified in this study.

Study Details

To describe apparatus for applying electrical impulses to separated tissues in vitro, electrode arrangements, and to measure the electrical fields and metabolic responses.

Electrical impulses were applied using a condenser pulse generator and monitor. Sine-wave alternatin...

The apparatus was found dependable over periods of 1-4 years. Potentials established in glucose-sali...

The apparatus described has been in use for periods between 1 and 4 years and has been found dependable. Choice among different stimulating and electrode systems may be made based on the relationship between tissue and electrodes. Grid electrodes provide the most definite and reproducible relationship. Concentric electrodes between which the tissue floats freely were designed for use with small fragments of tissue. The potentials established in nutrient saline solutions between such electrodes have been measured and assessed. The uniformity of potential gradient and of metabolic response in a number of electrode systems has been determined.

Cite This Study
P. J. W. AYRES, H. McILWAIN (1953). APPLICATION OF ELECTRICAL IMPULSES TO SEPARATED TISSUES IN AQUEOUS MEDIA.
Show BibTeX
@article{application_of_electrical_impulses_to_separated_tissues_in_aqueous_media_g5811,
  author = {P. J. W. AYRES and H. McILWAIN},
  title = {APPLICATION OF ELECTRICAL IMPULSES TO SEPARATED TISSUES IN AQUEOUS MEDIA},
  year = {1953},


}
No DOI on file for this study.

Quick Questions About This Study

The study examined separated tissues placed in aqueous (water-based) media under laboratory conditions. The specific tissue types are not detailed in the available documentation, but the research focused on how these tissues responded metabolically to electrical impulse applications.
This early work established fundamental principles about electrical field interactions with biological tissue. While modern EMF exposures use different frequencies and intensities, the basic concept that electromagnetic fields can alter cellular processes traces back to foundational research like this study.
In 1953, understanding how electricity affected living tissue was crucial for developing medical treatments and safety protocols. This research helped establish that biological tissues respond measurably to electrical stimulation, laying groundwork for both therapeutic applications and safety research.
Yes, the research specifically focused on tissue metabolism responses to electrical impulses. The study examined how separated tissues in aqueous solutions changed their metabolic activity when subjected to electrical stimulation, though specific findings aren't available in current documentation.
Aqueous (water-based) media provided a controlled laboratory environment that mimics the fluid conditions tissues experience in living organisms. This setup allowed researchers to study pure electrical effects on tissue metabolism without interference from other biological systems.
