CHANGES IN THE ELECTROCARDIOGRAMS OF RATS AND DOGS EXPOSED TO DC MAGNETIC FIELDS

Bioeffects Seen

Authors not listed

Share:

DC magnetic field exposure produced detectable changes in heart electrical activity patterns in laboratory animals.

Plain English Summary

Summary written for general audiences

This research examined how direct current (DC) magnetic fields affected the heart rhythms of laboratory rats and dogs by measuring changes in their electrocardiograms (ECGs). The study specifically looked at alterations in T wave patterns, which reflect the heart's electrical recovery phase between beats. This type of cardiovascular research helps scientists understand how magnetic field exposure might influence heart function in mammals.

Why This Matters

This cardiovascular research represents an important piece of the EMF health puzzle that often gets overlooked in discussions focused on cancer risk. The science demonstrates that magnetic fields can produce measurable changes in heart electrical activity, as recorded through ECGs. What makes this particularly relevant is that DC magnetic fields are everywhere in our modern environment - from MRI machines and industrial equipment to the growing number of DC power systems in electric vehicles and solar installations.

The focus on T wave changes is significant because these electrical patterns reflect how well the heart muscle recovers between beats. Any disruption to this process could potentially affect heart rhythm stability. While we don't have the specific findings from this study, the fact that researchers detected ECG changes in both rats and dogs suggests the effects may translate across mammalian species, including humans.

Figures from the Original Paper

Diagrams extracted from the original research document.

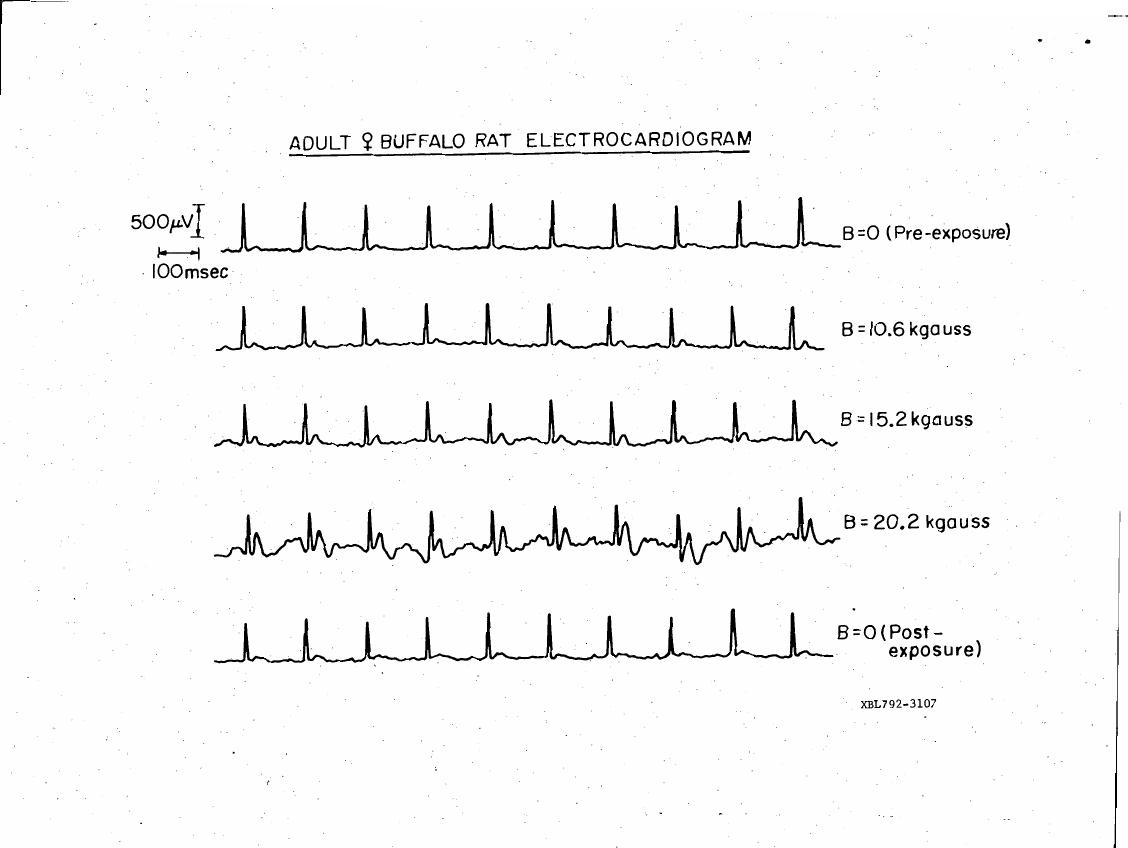

electrocardiogramPage 6 - AI-described figure: Electrocardiograms from an adult female buffalo rat under different magnetic field strengths before and after exposure.
p. 6 of the original PDF

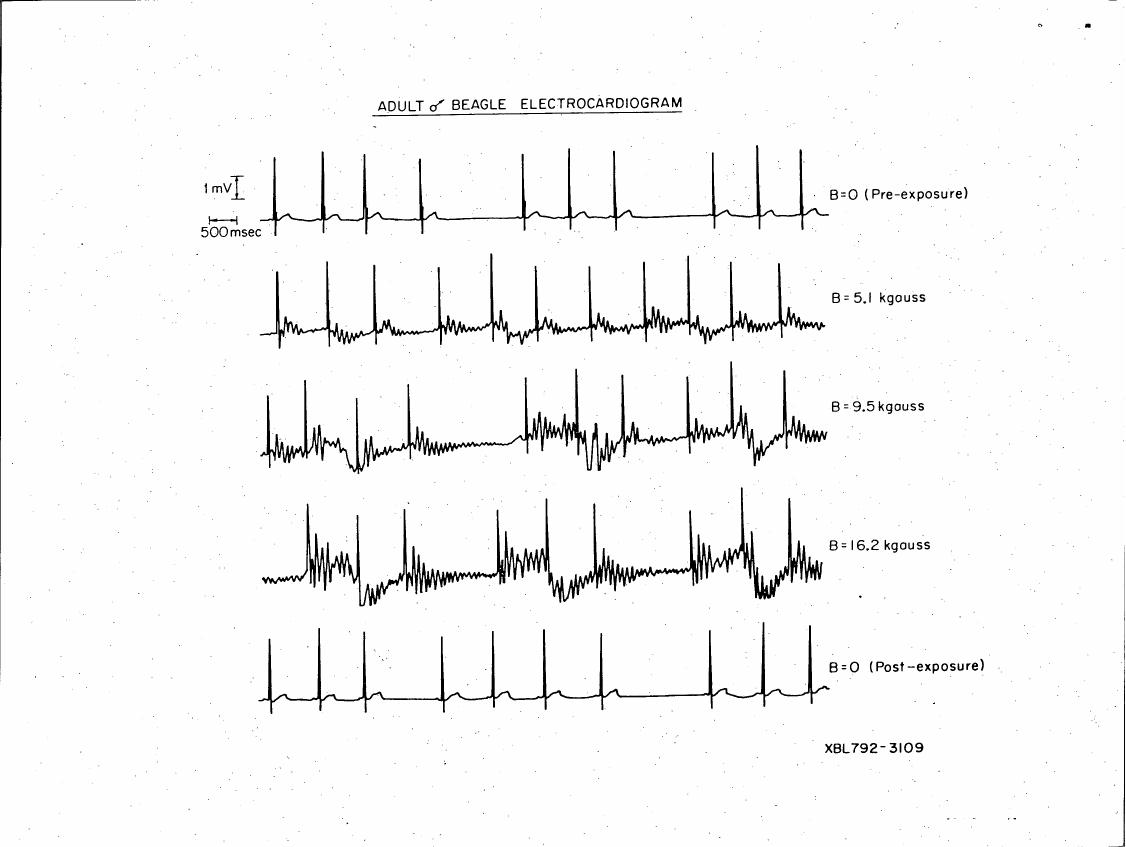

graphPage 7 - AI-described figure: Electrocardiogram (ECG) recordings from an adult beagle at different magnetic field strengths before and after exposure.
p. 7 of the original PDF

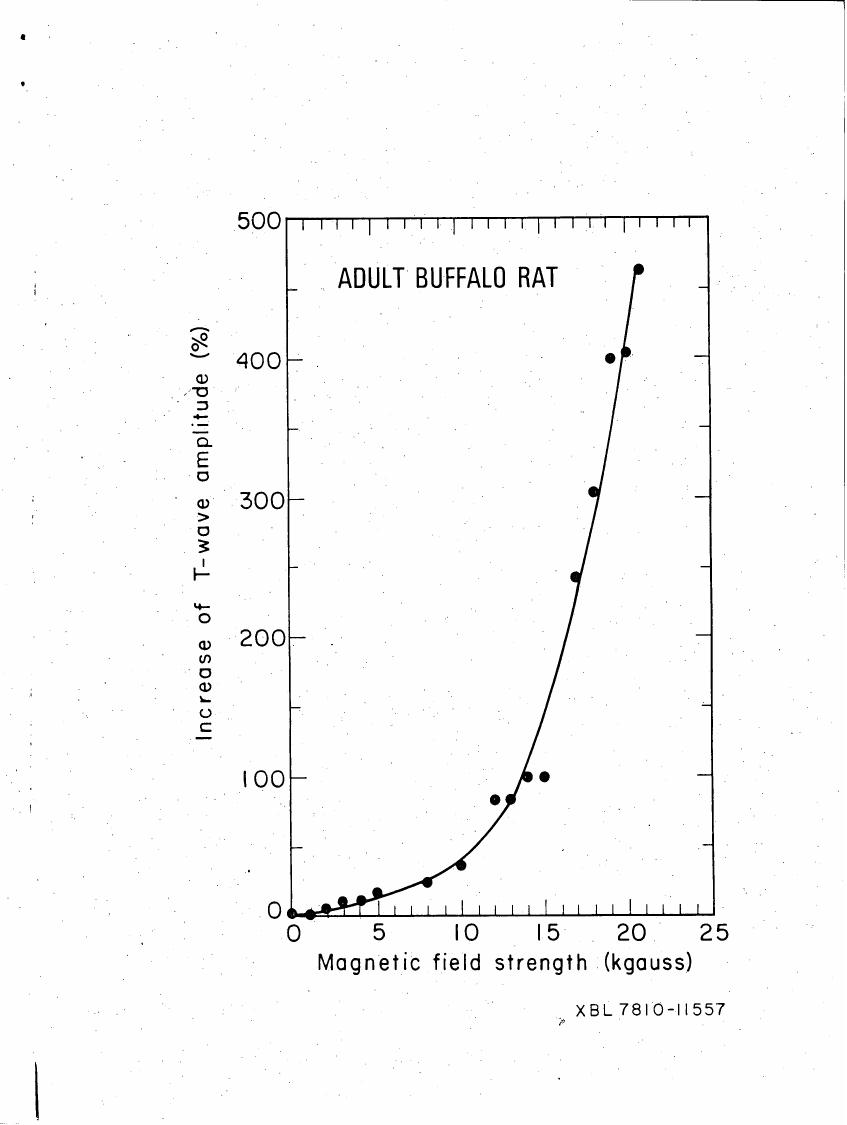

graphPage 8 - AI-described figure: A graph showing the increase in T-wave amplitude (%) as a function of magnetic field strength (kgauss) for an adult buffalo rat.
p. 8 of the original PDF

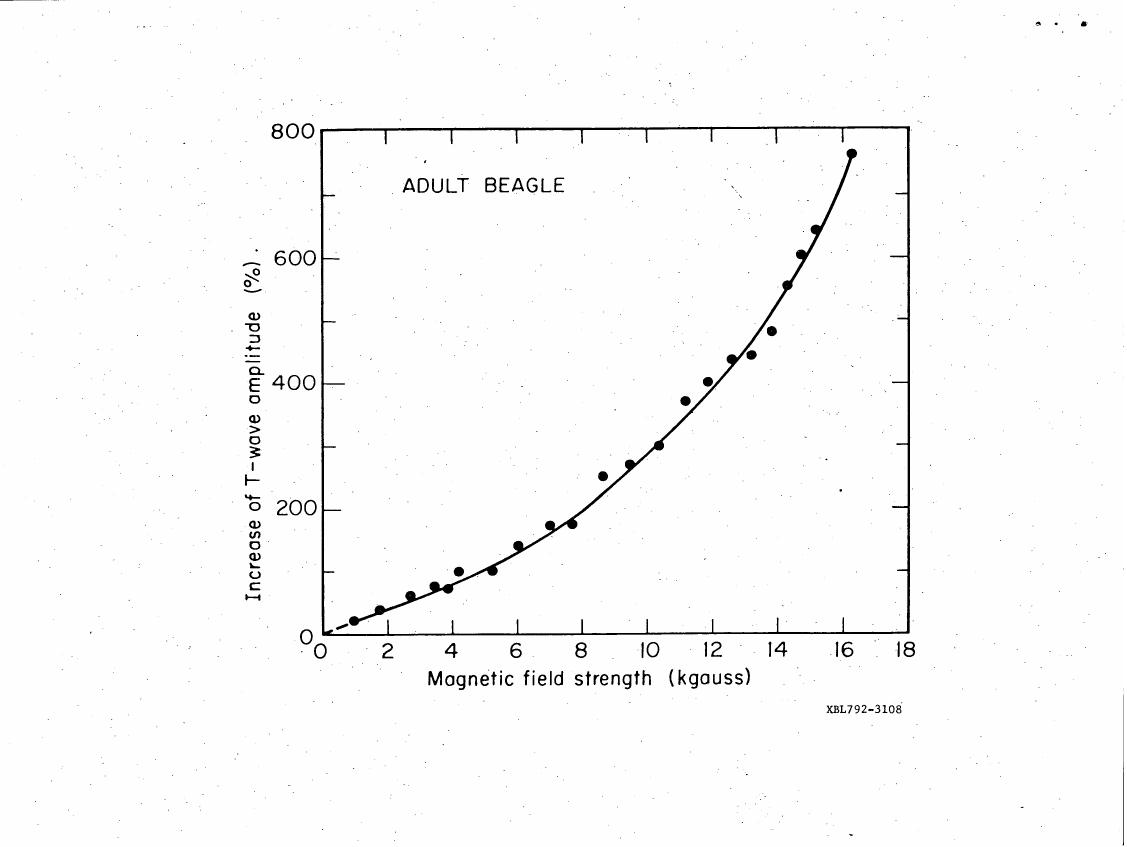

graphPage 9 - AI-described figure: A graph showing the increase in T-wave amplitude (%) as a function of magnetic field strength (kgauss) for an adult beagle.
p. 9 of the original PDF

Exposure Information

A logarithmic frequency spectrum from 10 Hz to 100 GHz showing where this study's DC exposure sits relative to common EMF sources.Where This Frequency Sits on the EMF SpectrumELFVLFLF / MFHF / VHFUHFSHFmm10 Hz100 GHzThis study: DCPower lines50/60 HzCell phones~1 GHzWiFi2.4 GHz5G mm28 GHzLogarithmic scale

Specific exposure levels were not quantified in this study.

Study Details

To evaluate cardiovascular performance in magnetic fields and to test for the presence of a magnetic strength threshold (MST) to evoke T wave enhancement.

Experimental animals (rats and dogs) were exposed to D.C. magnetic fields at the Magnetic Testing Fa...

The major change in the ECG pattern induced by a magnetic field is an increase in the amplitude of t...

The T wave amplitude is significantly enhanced in magnetic fields, with greater susceptibility in dogs than rats. The enhancement is completely reversible. The magnetic strength threshold (MST) for T wave enhancement is 3000 gauss for rats and 850 gauss for dogs. Subject orientation in the magnetic field influences the ECG profile, with perpendicular orientation producing greater T wave augmentation than parallel orientation. Changes in heart rate and breathing rate observed in rats exposed to magnetic fields do not agree with changes reported by Beischer and Knepton (1964) on squirrel monkeys.

Cite This Study
Unknown (n.d.). CHANGES IN THE ELECTROCARDIOGRAMS OF RATS AND DOGS EXPOSED TO DC MAGNETIC FIELDS.
Show BibTeX
@article{changes_in_the_electrocardiograms_of_rats_and_dogs_exposed_to_dc_magnetic_fields_g5376,
  author = {Unknown},
  title = {CHANGES IN THE ELECTROCARDIOGRAMS OF RATS AND DOGS EXPOSED TO DC MAGNETIC FIELDS},
  year = {n.d.},


}
No DOI on file for this study.

Quick Questions About This Study

Yes, this research found that DC magnetic field exposure caused measurable changes in electrocardiogram patterns in both rats and dogs, specifically affecting T wave characteristics that reflect the heart's electrical recovery between beats.
T waves represent the electrical activity when heart muscle cells reset between beats. Changes in T wave patterns can indicate problems with the heart's electrical recovery process, potentially affecting rhythm stability and overall cardiac function.
This study examined both species and found ECG changes in both rats and dogs exposed to DC magnetic fields, suggesting that magnetic field effects on heart electrical activity may occur across different mammalian species.
DC magnetic fields come from MRI machines, industrial equipment, electric vehicle charging systems, solar panel installations, and some transportation systems like magnetic levitation trains. Exposure levels vary significantly depending on proximity and duration.
Animal cardiovascular systems share fundamental similarities with human hearts, making them valuable for understanding how magnetic fields might affect heart electrical activity. ECG changes in animals can indicate potential risks for human cardiac function.
