Concepts and Approaches for Minimizing Excessive Exposure to Electromagnetic Radiation from RF Sealers
Paul S. Ruggera, Daniel H. Schaubert · 1982
Government researchers recognized the need to minimize RF sealer radiation exposure in 1982, decades before similar frequencies became ubiquitous in consumer devices.
Plain English Summary
This 1982 government report examined ways to reduce excessive electromagnetic radiation exposure from RF sealers, industrial machines that use radio frequency energy to heat and seal materials like plastics. The research focused on developing practical approaches and concepts to minimize worker exposure to potentially harmful RF radiation in industrial settings.
Why This Matters
This early government research highlights a crucial reality: industrial RF equipment has long been recognized as a significant source of electromagnetic exposure requiring protective measures. RF sealers operate at much higher power levels than consumer devices, often generating intense electromagnetic fields that can exceed safety guidelines within several feet of the equipment. What makes this particularly relevant today is that many of these same frequencies are now used in wireless communications and consumer electronics. The fact that government researchers were developing exposure minimization strategies for RF sealers in 1982 demonstrates that the potential health risks of RF radiation have been acknowledged by authorities for decades, even as similar frequencies have proliferated in our daily environment through cell phones, WiFi, and other wireless technologies.
Figures from the Original Paper

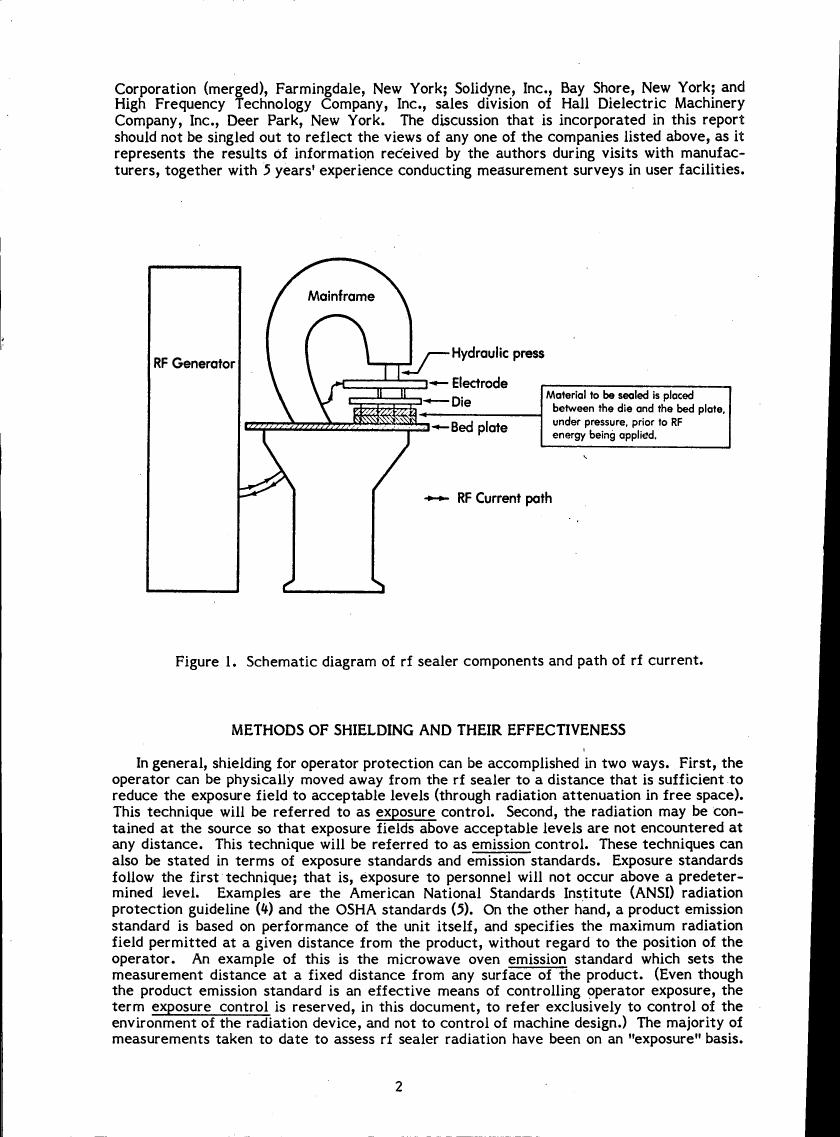

Diagram extracted from the original research document.
Exposure Information
Specific exposure levels were not quantified in this study.
Study Details
To assess various means for reducing exposure to operators of radiofrequency (rf) dielectric sealers and to discuss approaches taken by users and manufacturers to reduce that exposure.
The report describes two basic approaches to operator protection: emission controls and exposure con...
Measurements of radiation fields around a shielded sealer indicate that the conditions of use can si...
Several methods for protecting personnel from excessive levels of rf energy around sealers and heaters have been discussed. Exposure controls, which are usually effected by moving the operator away from the rf electrodes during sealer operation, can be effective but may hinder operator performance. Emission controls, which are implemented to reduce radiation from the sealers, consist primarily of box enclosures and grounding. Box shields that completely enclose the rf electrodes can significantly reduce radiation and can probably be used on approximately 80 percent of new and existing rf sealers. Screen rooms are used to reduce environmental levels of radiation but can greatly increase the power absorbed by operators inside the rooms. Measurements indicate that radiation from rf sealers and heaters must be monitored to ensure that leakage does not exceed acceptable levels as usage and wear occur.
Show BibTeX
@article{concepts_and_approaches_for_minimizing_excessive_exposure_to_electromagnetic_rad_g3865,
author = {Paul S. Ruggera and Daniel H. Schaubert},
title = {Concepts and Approaches for Minimizing Excessive Exposure to Electromagnetic Radiation from RF Sealers},
year = {1982},
}
