Concepts and Approaches for Minimizing Excessive Exposure to Electromagnetic Radiation from RF Sealers
Paul S. Ruggera, Daniel H. Schaubert · 1982
Industrial RF sealing equipment generates extremely high EMF exposures requiring specific worker protection strategies.
Plain English Summary
This 1982 technical report examined methods to reduce excessive electromagnetic radiation exposure from RF sealers, industrial machines that use radio frequency energy to weld plastic materials. The researchers developed concepts and approaches for minimizing worker exposure to the high-power electromagnetic fields these machines generate during operation.
Why This Matters
This early workplace safety research highlights a critical but often overlooked EMF exposure source. RF sealers generate extremely high-power electromagnetic fields - often thousands of times stronger than cell phone radiation - to heat and seal plastic materials in industrial settings. Workers operating these machines face intense, localized EMF exposure that dwarfs typical consumer electronics. The fact that researchers were developing protection strategies in 1982 demonstrates long-standing awareness of EMF health risks in occupational settings, even as consumer EMF exposures have exploded with wireless technology adoption. What makes this particularly relevant today is that many manufacturing workers continue operating similar high-power RF equipment without adequate protection protocols.
Finding
One method in particular, that of shielding the active electrode of the sealers, offers the most promise and is discussed through photographic examples, analytical assessment, and field-strength measurements.
In their words
“One method in particular, that of shielding the active electrode of the sealers, offers the most promise and is discussed through photographic examples, analytical assessment, and field-strength measurements.”
Figures from the Original Paper

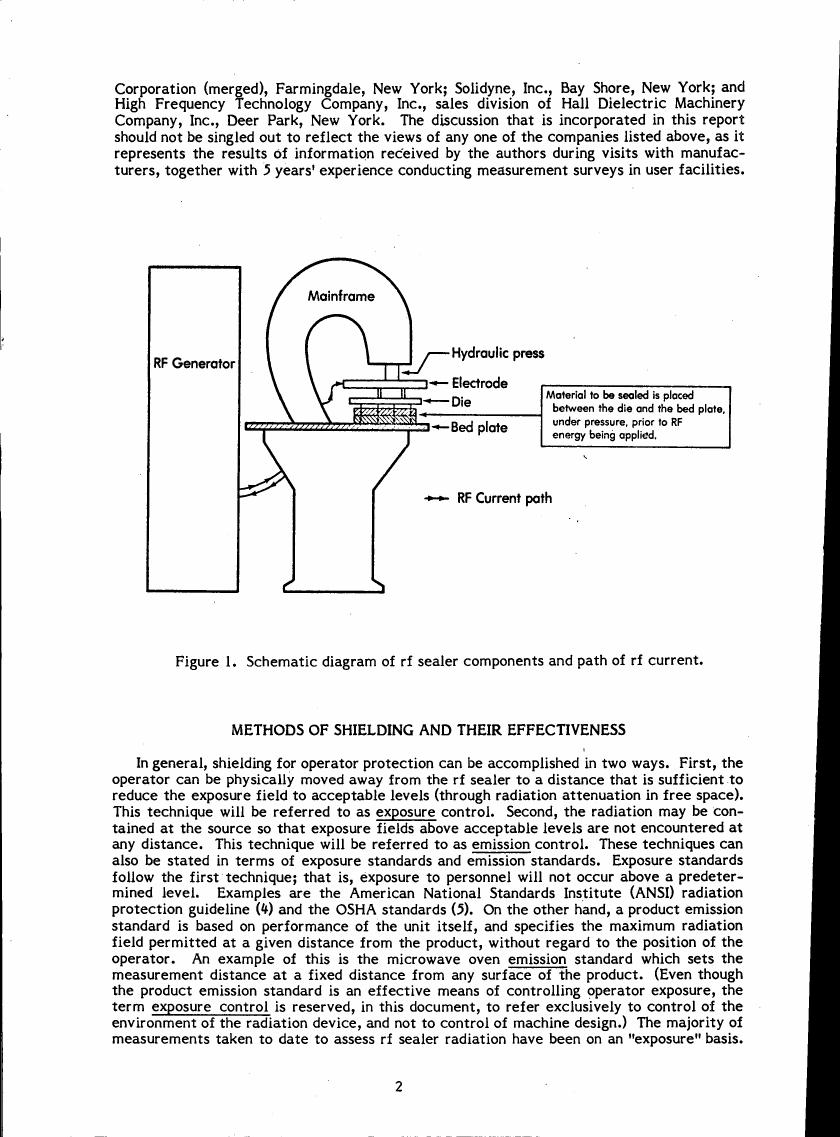

Diagram extracted from the original research document.
Exposure Information
Specific exposure levels were not quantified in this study.
Study Details
To assess various means for reducing exposure to operators of radiofrequency (rf) dielectric sealers and to discuss approaches taken by users and manufacturers to reduce that exposure.
The report describes two basic approaches to operator protection: emission controls and exposure con...
Measurements of radiation fields around a shielded sealer indicate that the conditions of use can si...
Several methods for protecting personnel from excessive levels of rf energy around sealers and heaters have been discussed. Exposure controls, such as shuttle trays, can be effective but may hinder operator performance. Emission controls, primarily box enclosures and grounding, can significantly reduce radiation. Grounding can be effective but requires measurement of both E and H fields. Box shields that completely enclose rf electrodes can significantly reduce radiation and can probably be used on approximately 80 percent of rf sealers. Screen rooms are used to reduce environmental radiation levels but can greatly increase power absorbed by operators inside the rooms. Measurements indicate that radiation from rf sealers and heaters must be monitored to ensure leakage does not exceed acceptable levels as usage and wear occur.
