Conversion of Electromagnetic to Acoustic Energy by Surface Heating

Bioeffects Seen

Luke S. Gournay · 1966

Share:

Electromagnetic energy can convert to mechanical stress waves in liquids, revealing a potential pathway for EMF effects in water-rich biological tissues.

Plain English Summary

Summary written for general audiences

This 1966 study examined how high-intensity laser light creates acoustic stress waves in liquids through rapid heating. Researchers measured the pressure transients generated when Q-switched ruby lasers heat liquids, finding their thermodynamic model accurately predicted the stress patterns across different liquid properties and electromagnetic intensities.

Why This Matters

While this study predates modern EMF health concerns, it demonstrates a fundamental principle that's increasingly relevant today: electromagnetic energy can convert to mechanical stress in biological systems. The research shows how intense electromagnetic pulses create measurable physical pressure waves in liquids through thermal expansion. What this means for you is that your body, being roughly 60% water, could theoretically experience similar mechanical stresses from high-intensity EMF exposure. Though the laser intensities used here far exceed typical consumer device exposures, the underlying physics applies to any electromagnetic heating of biological tissues. This conversion mechanism helps explain why some researchers investigate whether pulsed EMF signals from devices like smartphones might create subtle mechanical stresses in cellular fluids, potentially contributing to biological effects beyond simple heating.

Finding

The pressure and rise time of stress transients generated by a Q-switched ruby laser were measured in the liquid with results calculated from 2 simplified thermodynamic model. It is shown that the model and compare absence of a phase change agrees With experimental data over a wide range of incident electromagnetic intensity and for large variations of liquid properties.

In their words

“The pressure and rise time of stress transients generated by a Q-switched ruby laser were measured in the liquid with results calculated from 2 simplified thermodynamic model. It is shown that the model and compare absence of a phase change agrees With experimental data over a wide range of incident electromagnetic intensity and for large variations of liquid properties.”

Figures from the Original Paper

Diagrams extracted from the original research document.

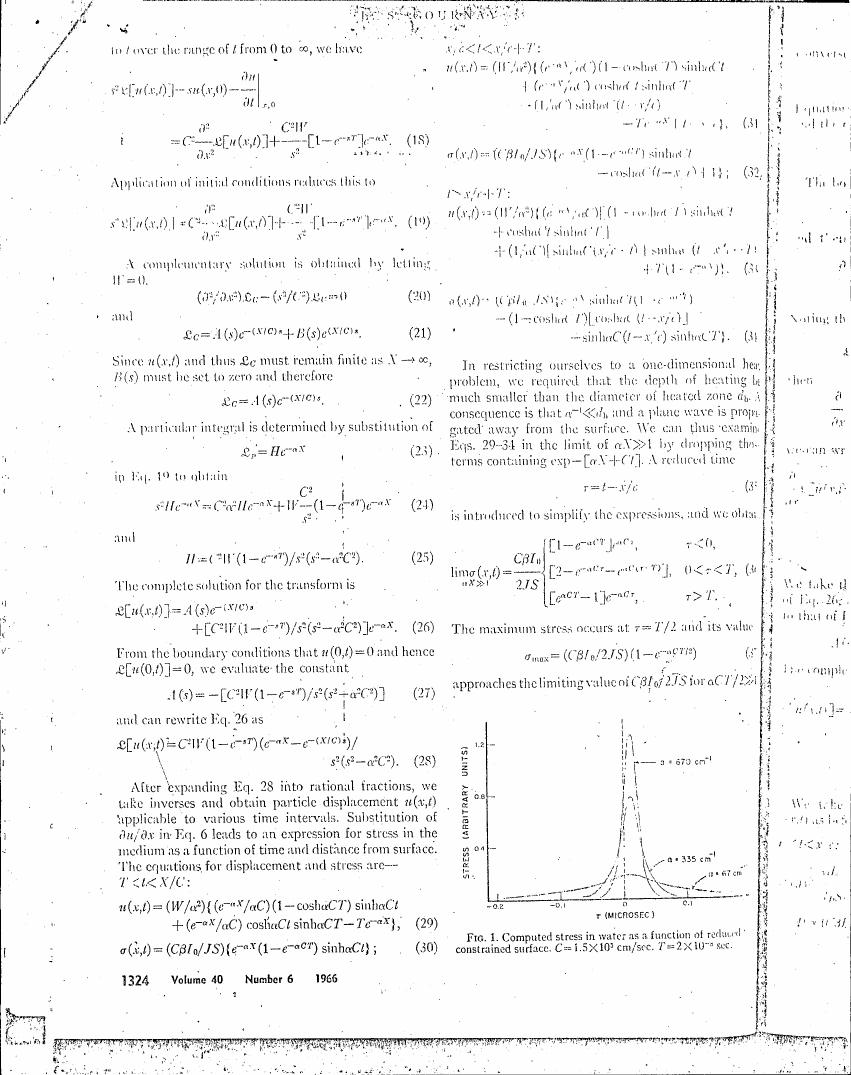

chartPage 3 - Fig. 1: Computed stress in water as a function of reduced constrained surface.
p. 3 of the original PDF

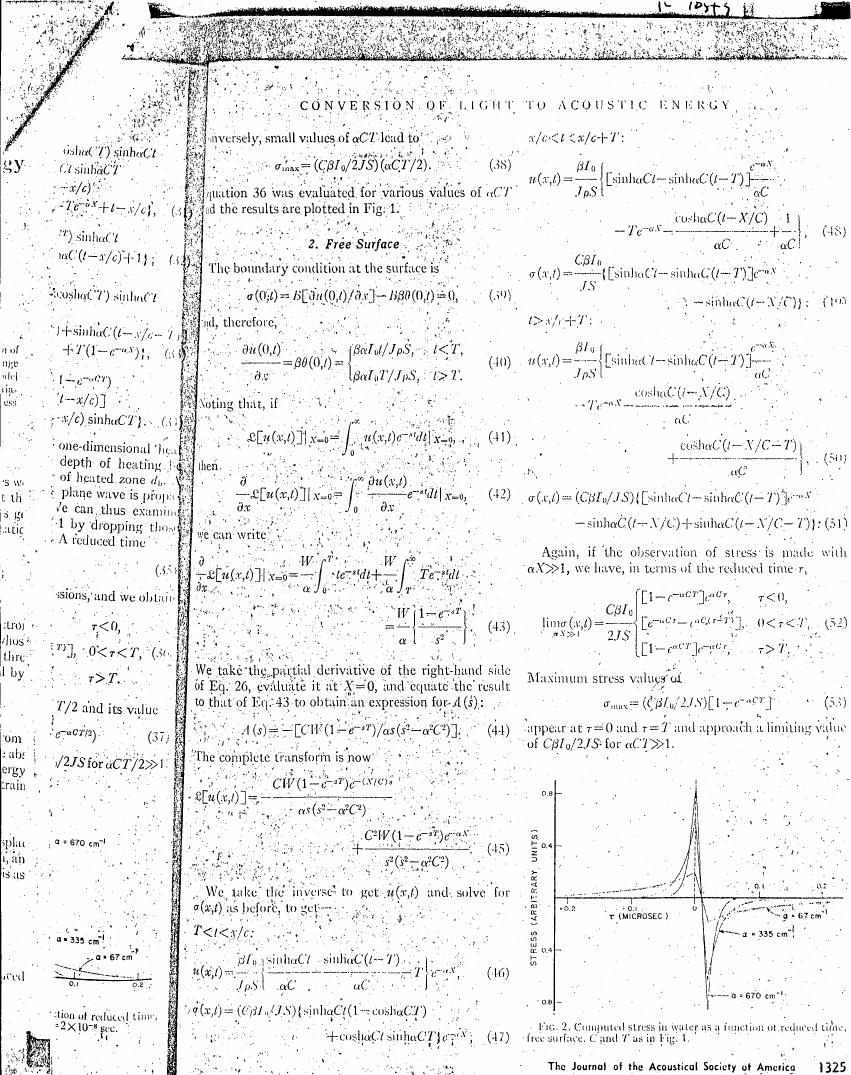

chartPage 4 - Figure 2. Computed stress in water as a function of reduced time, free surface, C and T as in Fig. 1.
p. 4 of the original PDF

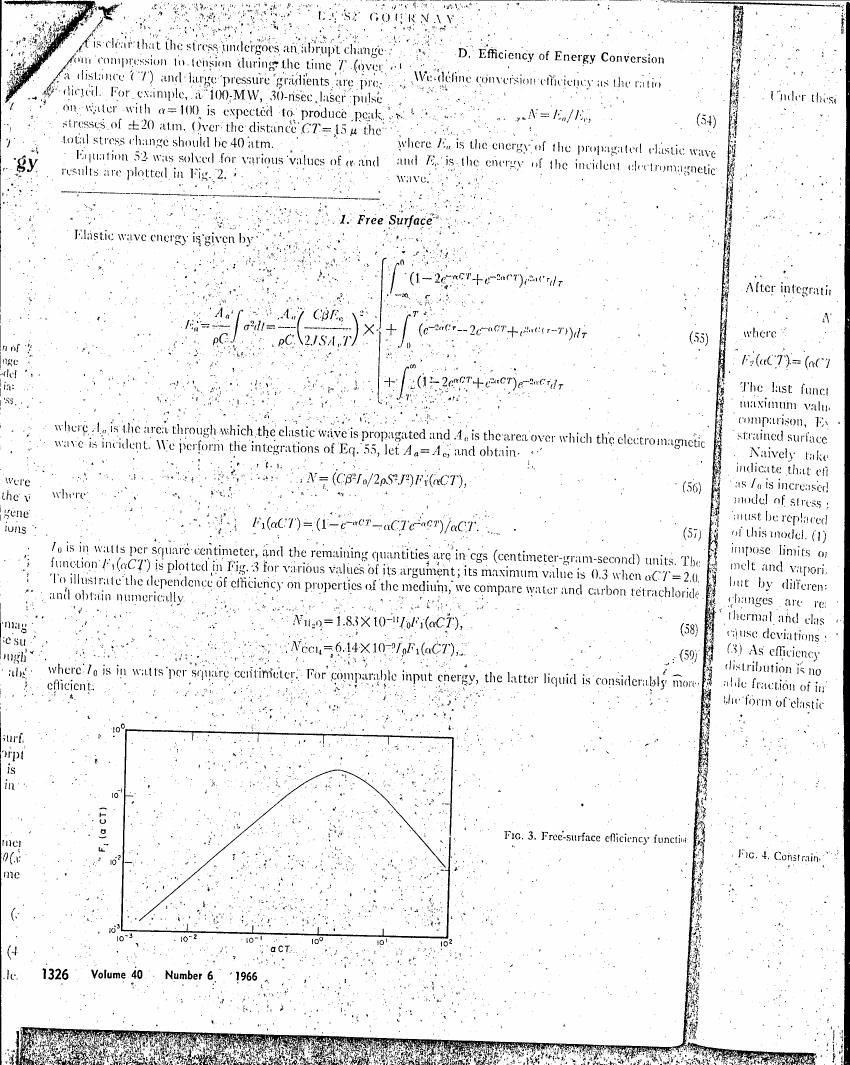

graphPage 5 - Fig. 3: Free-surface efficiency function
p. 5 of the original PDF

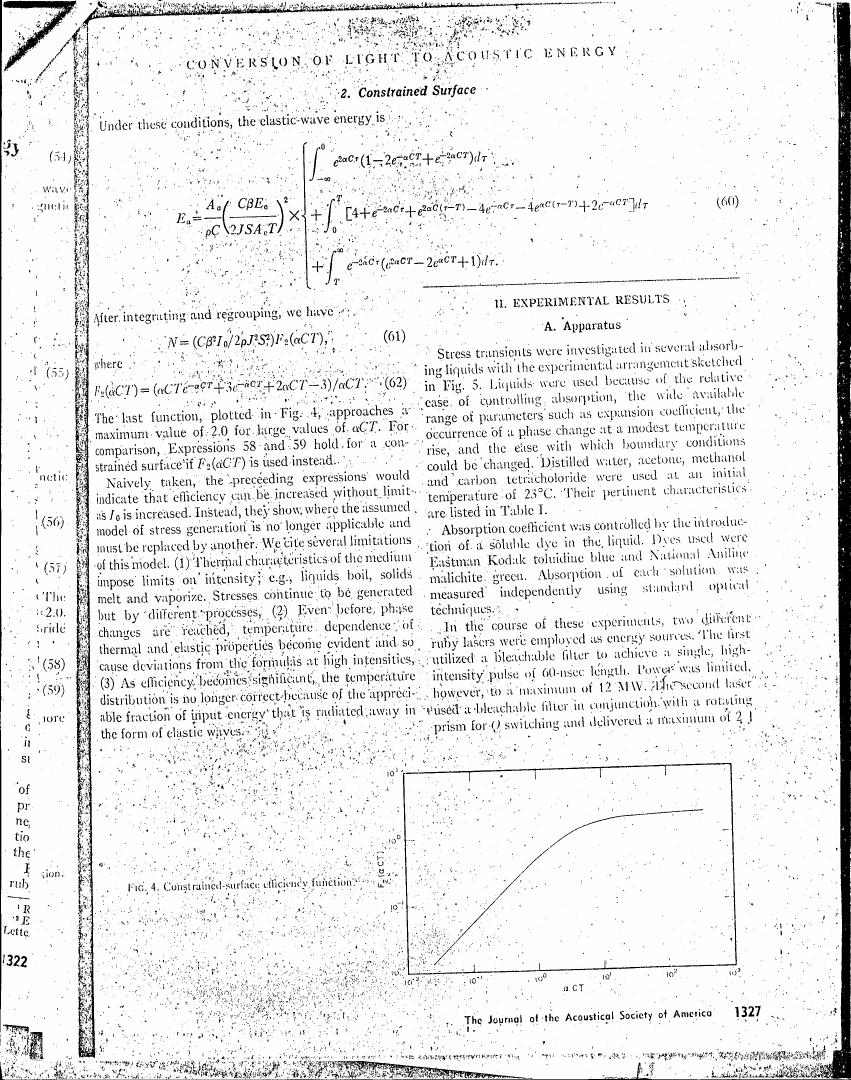

graphPage 6 - AI-described figure: Figure 4 illustrates a constrained-surface efficiency function.
p. 6 of the original PDF

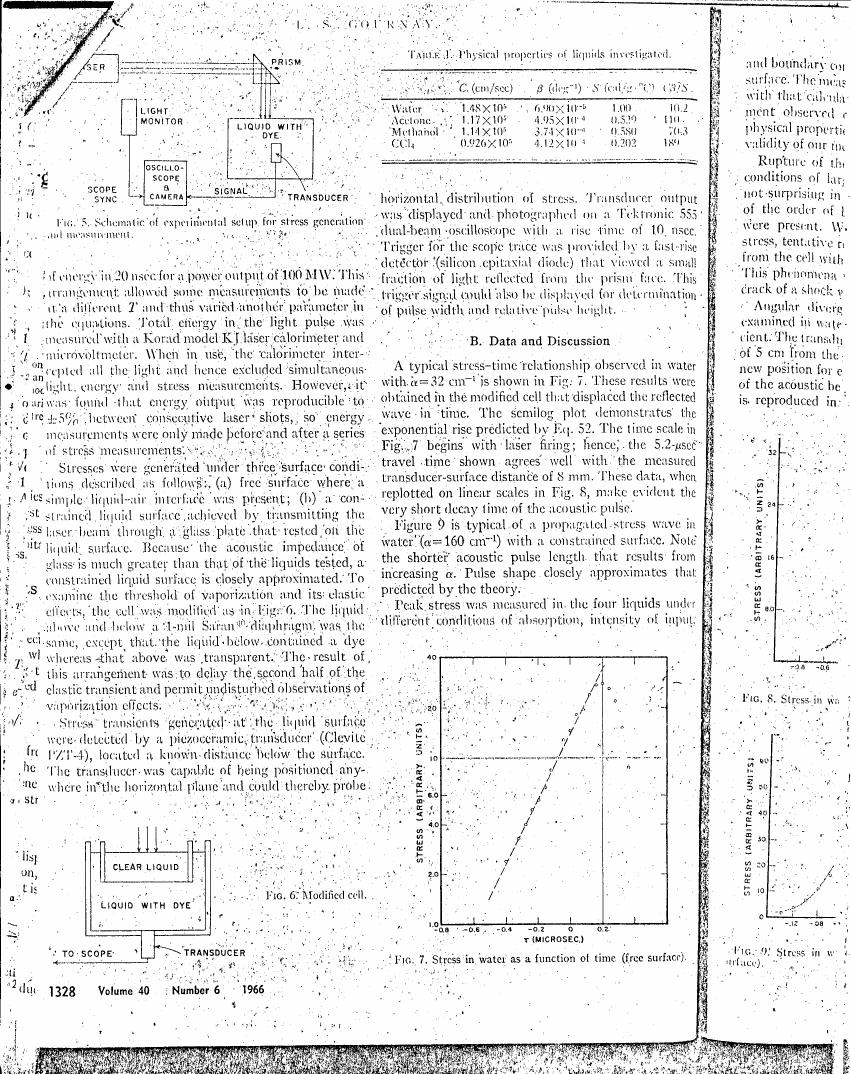

graphPage 7 - AI-described figure: Figure 7: Stress in water as a function of time (free surface)
p. 7 of the original PDF

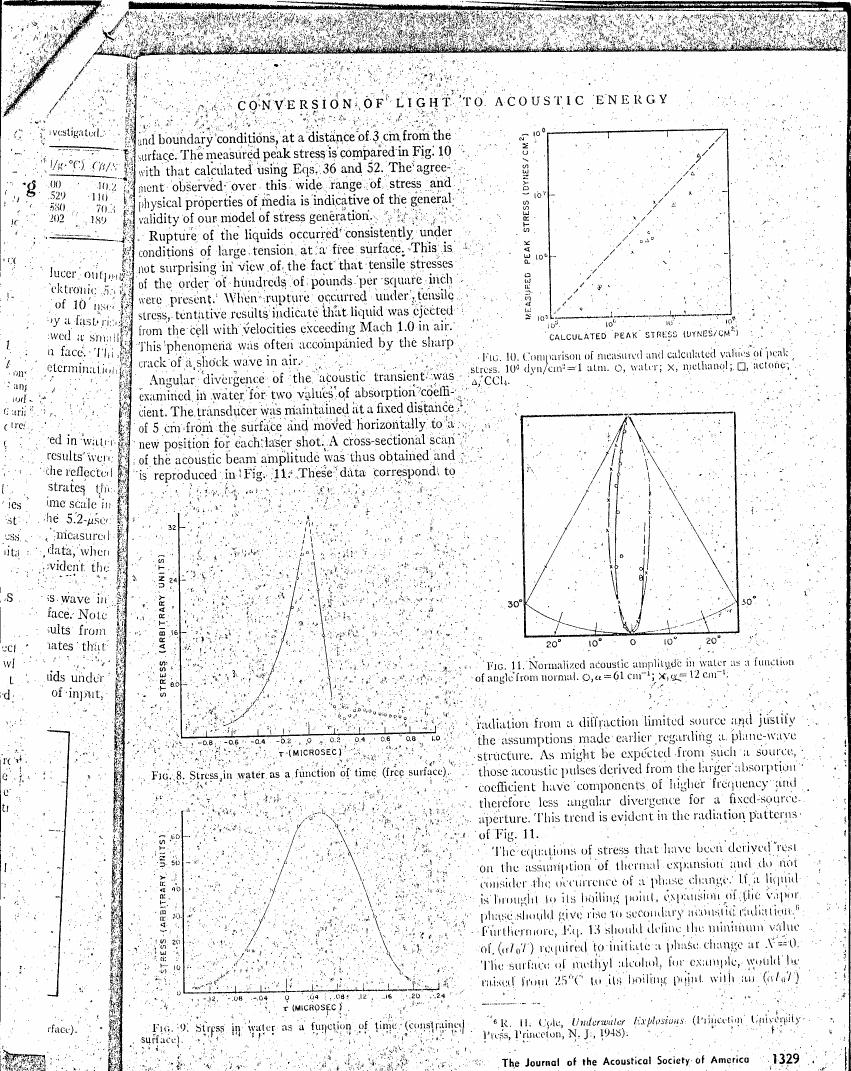

graphPage 8 - AI-described figure: Fig. 10: Comparison of measured and calculated values at peak stress for various liquids.
p. 8 of the original PDF

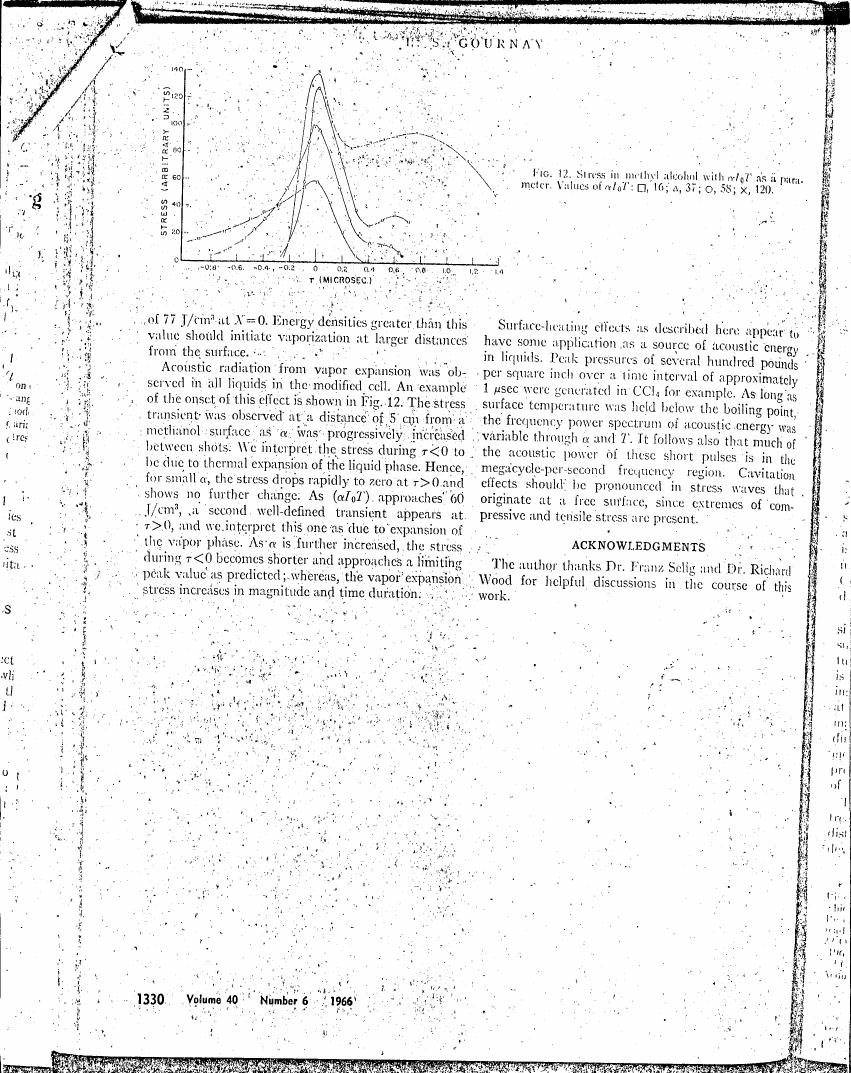

graphPage 9 - Figure 12: Stress in methanol with αIqU as a parameter. Values of αIqU: □, 16; Δ, 37; ○, 58; ×, 120.
p. 9 of the original PDF

Exposure Information

Specific exposure levels were not quantified in this study.

Cite This Study
Luke S. Gournay (1966). Conversion of Electromagnetic to Acoustic Energy by Surface Heating.
Show BibTeX
@article{conversion_of_electromagnetic_to_acoustic_energy_by_surface_heating_g7042,
  author = {Luke S. Gournay},
  title = {Conversion of Electromagnetic to Acoustic Energy by Surface Heating},
  year = {1966},


}
No DOI on file for this study.

Quick Questions About This Study

Yes, the study confirmed that Q-switched ruby laser pulses generate measurable stress transients in liquids through rapid thermal expansion. The researchers successfully measured these pressure waves and validated their thermodynamic model predictions across various liquid properties and electromagnetic intensities.
When electromagnetic energy rapidly heats a liquid, thermal expansion creates pressure waves that propagate as acoustic energy. This conversion happens because the sudden temperature increase causes volume expansion, generating mechanical stress transients that travel through the fluid medium.
The study found that liquid vaporization significantly affects stress transient formation. When electromagnetic heating is intense enough to create a gas phase, it changes the parameters associated with stress wave generation, likely amplifying the mechanical effects through rapid volume expansion.
Yes, the simplified thermodynamic model showed excellent agreement with experimental measurements across a wide range of electromagnetic intensities and liquid properties. This validation confirmed that the conversion of electromagnetic to acoustic energy follows predictable thermodynamic principles.
Higher electromagnetic intensity creates stronger thermal gradients and faster heating rates, leading to greater pressure transients. The study demonstrated this relationship held across large variations in incident electromagnetic intensity, showing the direct correlation between energy input and mechanical stress output.
