8,700 Studies Reviewed. 87.0% Found Biological Effects. The Evidence is Clear.
Shield Your Body
Whole Body / General

Determination of Power Absorption in Man Exposed to High Frequency Electromagnetic Fields by Thermographic Measurements on Scale Models

Bioeffects Seen

Arthur W. Guy, Michael D. Webb, Carrol C. Sorensen · 1976

Share:

Scale model studies revealed 31 MHz radiation can create power absorption hotspots of 5.63 W/kg in human tissue.

Plain English Summary

Summary written for general audiences

Researchers used scale models and thermographic imaging to measure how much radiofrequency energy the human body absorbs when exposed to high-frequency electromagnetic fields. They found that exposure to 31 MHz radiation at 10 mW/cm² can create power absorption densities as high as 5.63 W/kg in certain body regions. This pioneering 1976 study helped establish methods for measuring EMF absorption that are still used today.

Why This Matters

This groundbreaking research from 1976 established fundamental methods for understanding how our bodies absorb electromagnetic energy. The finding that 31 MHz radiation at 10 mW/cm² can produce absorption rates of 5.63 W/kg is particularly significant because it demonstrates how certain frequencies can create concentrated energy hotspots in human tissue. What makes this study especially relevant today is that many common EMF sources operate in similar frequency ranges. Amateur radio operators, industrial heating equipment, and some medical devices all use frequencies around 27-40 MHz. The study's demonstration that absorption decreases with the square of frequency below 31 MHz also helps explain why lower frequencies can be particularly efficient at depositing energy in biological tissue. This research laid the scientific groundwork for modern specific absorption rate (SAR) measurements that regulators now use to set exposure limits for wireless devices.

Exposure Information

Specific exposure levels were not quantified in this study.

Cite This Study
Arthur W. Guy, Michael D. Webb, Carrol C. Sorensen (1976). Determination of Power Absorption in Man Exposed to High Frequency Electromagnetic Fields by Thermographic Measurements on Scale Models.
Show BibTeX
@article{determination_of_power_absorption_in_man_exposed_to_high_frequency_electromagnet_g3874,
  author = {Arthur W. Guy and Michael D. Webb and Carrol C. Sorensen},
  title = {Determination of Power Absorption in Man Exposed to High Frequency Electromagnetic Fields by Thermographic Measurements on Scale Models},
  year = {1976},


}

Quick Questions About This Study

The study found that 31 MHz radiation at 10 mW/cm² field strength could produce peak power absorption densities as high as 5.63 W/kg in certain regions of the human body using scale model measurements.

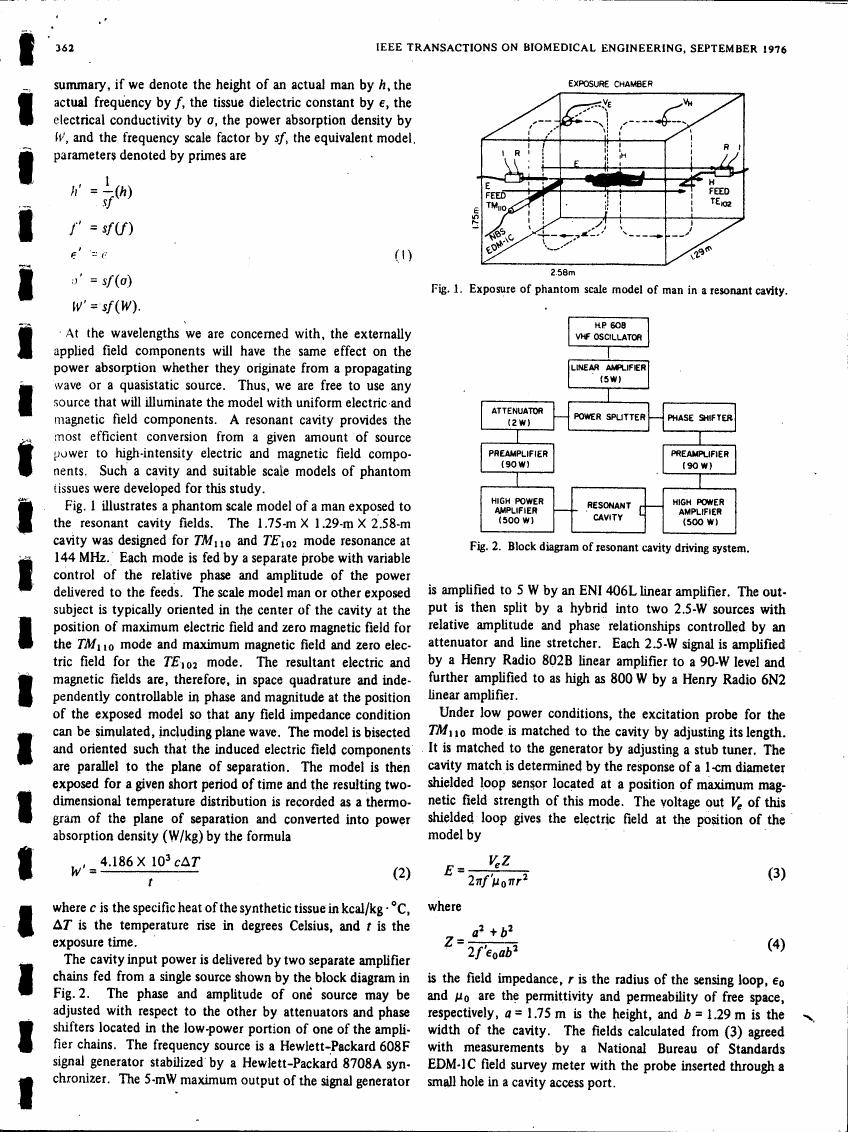

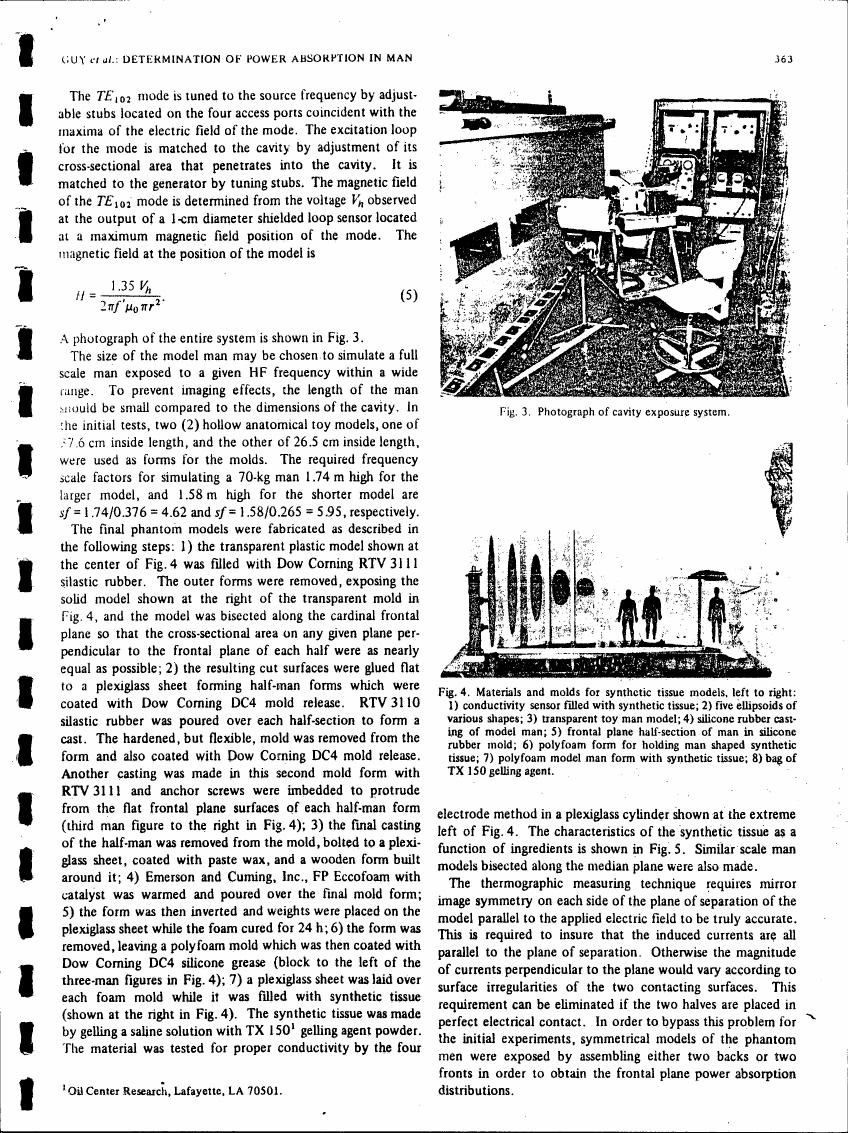

Scientists used thermographic imaging on scale models of humans exposed to scaled-up frequencies in a VHF resonant cavity. This allowed them to measure heat patterns and calculate power absorption without exposing real people.
The study confirmed theoretical predictions that power absorption decreases as the square of frequency below 31 MHz. This occurs because lower frequencies interact differently with human tissue compared to higher frequencies.
Researchers used 10 mW/cm² field strength in their experiments. This intensity was necessary to produce measurable power absorption patterns that could be detected using 1976-era thermographic measurement technology.
Scale models allow researchers to study EMF absorption safely by using proportionally higher frequencies that create the same relative effects. This technique enables detailed measurements without exposing real humans to potentially harmful radiation levels.
