DEVELOPMENT OF LIQUID CRYSTAL MICROWAVE POWER DENSITY METER
Authors not listed · 1970
1970s liquid crystal research laid groundwork for measuring microwave radiation that surrounds us today.
Plain English Summary
This 1970 technical report describes the development of a liquid crystal-based device to measure microwave power density levels. The research focused on creating measurement tools for detecting microwave radiation intensity, which was becoming increasingly important as microwave technology expanded. This work contributed to early efforts to quantify electromagnetic field exposures.
Why This Matters
This 1970 research represents a crucial milestone in EMF measurement technology, developed during the early expansion of microwave applications in radar, communications, and eventually consumer devices. The science demonstrates that even five decades ago, researchers recognized the need for precise tools to measure microwave radiation exposure levels. What this means for you is that the foundation for understanding EMF exposures was being laid long before cell phones, WiFi, and smart devices became ubiquitous in our daily lives.
The reality is that liquid crystal technology offered unique advantages for detecting microwave fields because these crystals change their optical properties when exposed to electromagnetic energy. This research helped establish measurement standards that would later become essential for evaluating the safety of microwave ovens, early mobile phones, and other RF devices that we now encounter everywhere.
Finding
The principal remaining problem is the nonuniformity of the membrane. This problem could undoubtedly be eliminated by a further refinement of the nichrome deposition method and through the use of buffers to reduce convection currents.
In their words
“The principal remaining problem is the nonuniformity of the membrane. This problem could undoubtedly be eliminated by a further refinement of the nichrome deposition method and through the use of buffers to reduce convection currents.”
Source

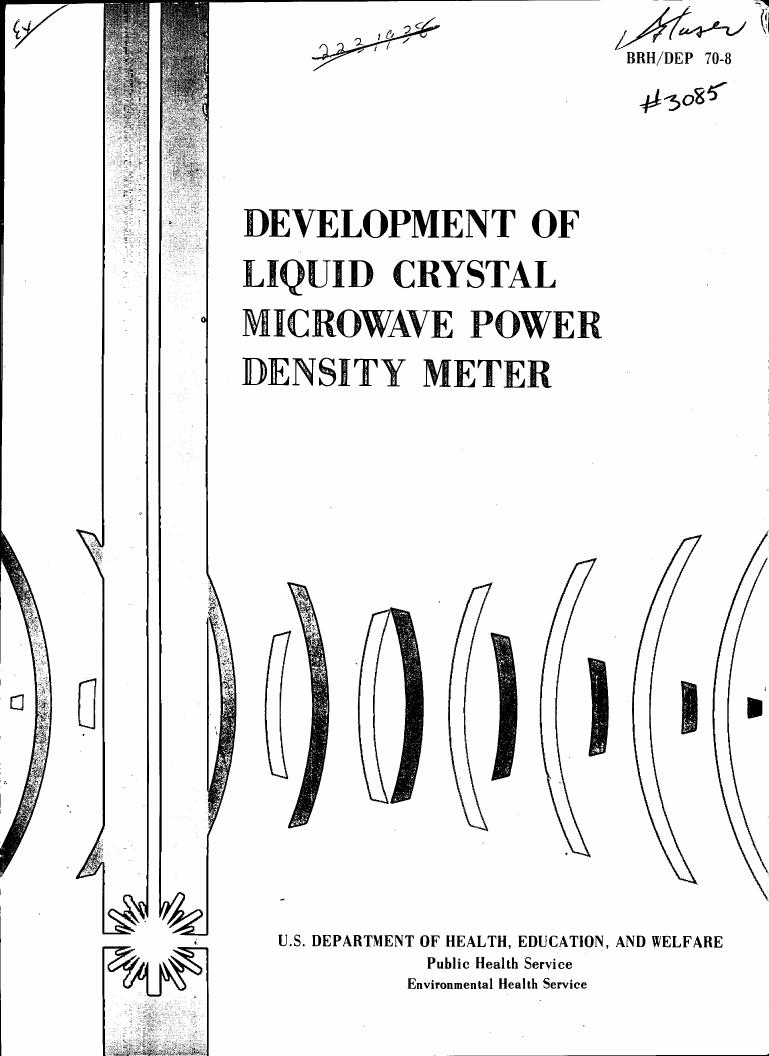

(1970) (1970)Figures from the Original Paper
Diagram extracted from the original research document.
Exposure Information
Specific exposure levels were not quantified in this study.
Study Details
To construct a prototype instrument that could be used to make quantitative measurements and to establish the advantages and limitations of the concept using liquid crystals as a basic part of the detection mechanism.
The meter uses a Mylar membrane with resistive and liquid crystal coatings which serves as a large-a...
The advantages of the concept were confirmed, including overall simplicity, fundamental method of ca...
The program achieved the basic objectives of determining the advantages and limitations of the liquid crystal microwave power density meter. The advantages apparent at the beginning of the program--overall simplicity, fundamental method of calibration, and simultaneous detection over a reasonably large, well-defined area--were all confirmed. Greater sensitivities and accuracies were possible than had been anticipated. The sensitivity was less than 0.3 milliwatt per square centimeter, and the overall accuracy was better than could be evaluated using ordinary standard gain horns. The principal remaining problem is the nonuniformity of the membrane, which could undoubtedly be eliminated by further refinement of the nichrome deposition method and through the use of buffers to reduce convection currents.
