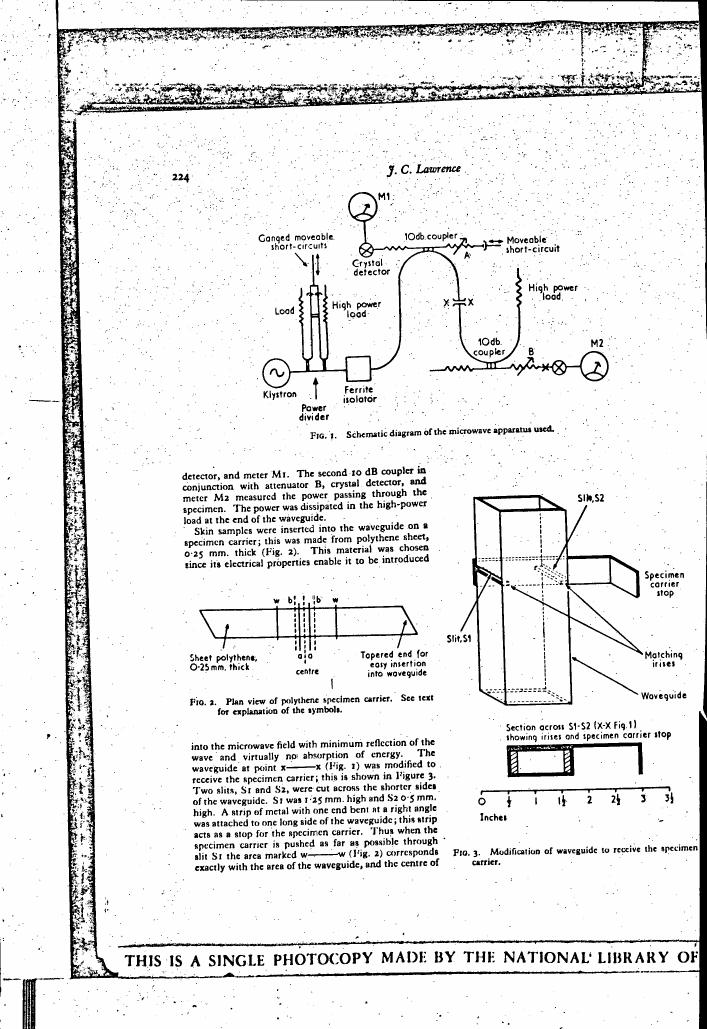

Effect of Microwaves at X-Band on Guinea-pig Skin in Tissue Culture. I. Microwave Apparatus for Exposing Tissue and the Effect of the Radiation on Skin Respiration

Bioeffects Seen

J. C. LAWRENCE · 1968

Share:

Guinea pig skin showed measurable damage from X-band microwaves at 4,740 mW/cm² exposure levels.

Plain English Summary

Summary written for general audiences

Researchers exposed guinea pig skin tissue to X-band microwaves (8,730 MHz) and found a clear dose-response relationship where higher microwave intensities caused more tissue damage. The study determined that 4,740 mW per square centimeter for one second caused 50% respiratory damage to skin cells, with tissue damage appearing to result from microwave energy being converted to heat.

Why This Matters

This 1968 study provides crucial early evidence that microwave radiation causes measurable biological damage through thermal effects, even in controlled laboratory conditions. The researchers established a precise dose-response curve showing that tissue damage increases predictably with microwave intensity. What makes this particularly relevant today is that the 8,730 MHz frequency tested falls within the range used by modern wireless technologies, including some 5G applications and WiFi systems. The power densities that caused tissue damage (thousands of milliwatts per square centimeter) are much higher than typical consumer device exposures, but the study demonstrates that biological systems respond to microwave radiation in measurable, reproducible ways. The finding that damage correlated with heat generation supports the thermal mechanism of microwave biological effects, which remains the basis for current safety standards.

Exposure Information

Specific exposure levels were not quantified in this study.

Cite This Study
J. C. LAWRENCE (1968). Effect of Microwaves at X-Band on Guinea-pig Skin in Tissue Culture. I. Microwave Apparatus for Exposing Tissue and the Effect of the Radiation on Skin Respiration.
Show BibTeX
@article{effect_of_microwaves_at_x_band_on_guinea_pig_skin_in_tissue_culture_i_microwave__g4151,
  author = {J. C. LAWRENCE},
  title = {Effect of Microwaves at X-Band on Guinea-pig Skin in Tissue Culture. I. Microwave Apparatus for Exposing Tissue and the Effect of the Radiation on Skin Respiration},
  year = {1968},


}

Quick Questions About This Study

The researchers used X-band microwaves at 8,730 MHz (plus or minus 10% MHz). This frequency falls within ranges used by some modern wireless technologies including certain 5G applications and WiFi systems.
The ED50 (dose causing 50% effect) was 4,740 milliwatts per square centimeter applied for one second. This represents the power density that caused respiratory damage in half the skin tissue samples tested.
Yes, microscopic examination after three days showed histological abnormalities in skin specimens exposed to microwave intensities causing more than 30% respiratory damage. The threshold was 2,880 mW/cm² for one second.

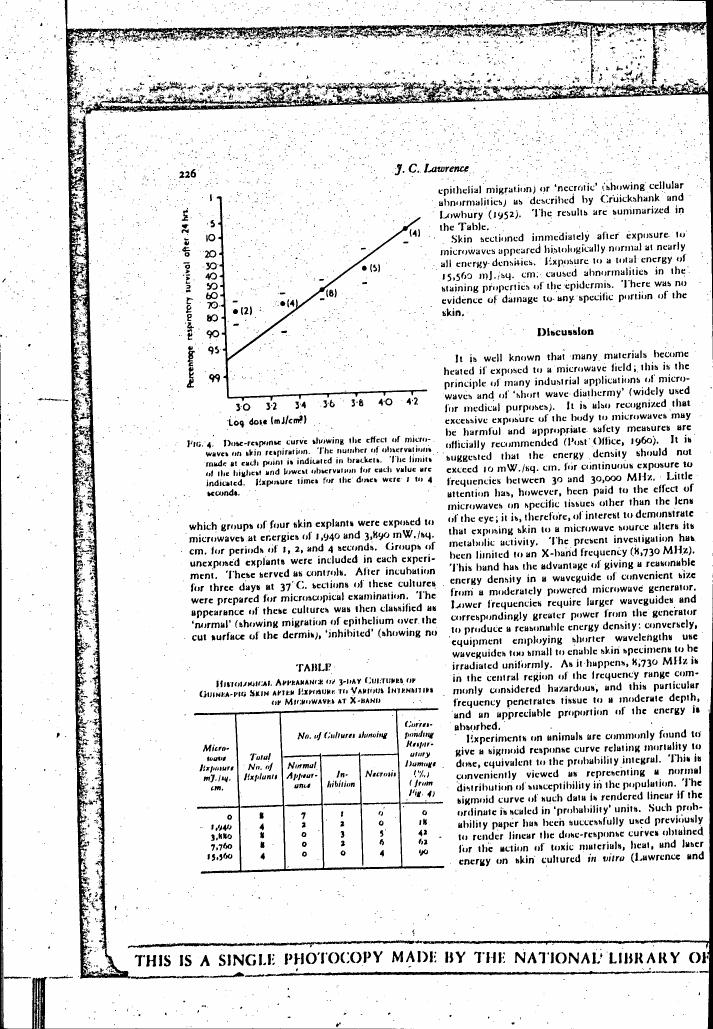

They measured respiratory function in skin tissue cultures and found a clear dose-response relationship. Higher microwave intensities caused proportionally more respiratory damage, creating a measurable curve of biological effects.
The results were consistent with thermal damage, meaning the microwave energy was absorbed by the tissue and converted to heat. This heating effect appeared to be the primary cause of the observed tissue damage.
