Effects of microwave radiation on tissue – a survey of basic mechanisms

Bioeffects Seen

H. P. SCHWAN · 1969

Share:

1969 research distinguished thermal from non-thermal microwave effects, acknowledging uncertainty about biological mechanisms that persists today.

Plain English Summary

Summary written for general audiences

This 1969 foundational study by Herman Schwan examined how microwave radiation interacts with human tissue, distinguishing between thermal heating effects and non-thermal biological effects. The research established that while thermal effects were well understood, non-thermal interactions remained uncertain, forming the basis for early radiation safety standards.

Why This Matters

This study represents a pivotal moment in EMF science history. Schwan's work in 1969 laid the groundwork for our understanding that microwave radiation affects biological tissue through two distinct pathways: thermal heating and non-thermal mechanisms. What's striking is that over 50 years ago, researchers already recognized the uncertainty around non-thermal effects - the same debate that continues today. The reality is that our current safety standards still largely ignore non-thermal effects, despite decades of research showing biological responses at levels far below what causes heating. This historical perspective reveals how long the scientific community has known about the limitations of thermal-only safety standards, yet regulatory agencies continue to rely on outdated assumptions about how EMF affects living systems.

Figures from the Original Paper

Diagrams extracted from the original research document.

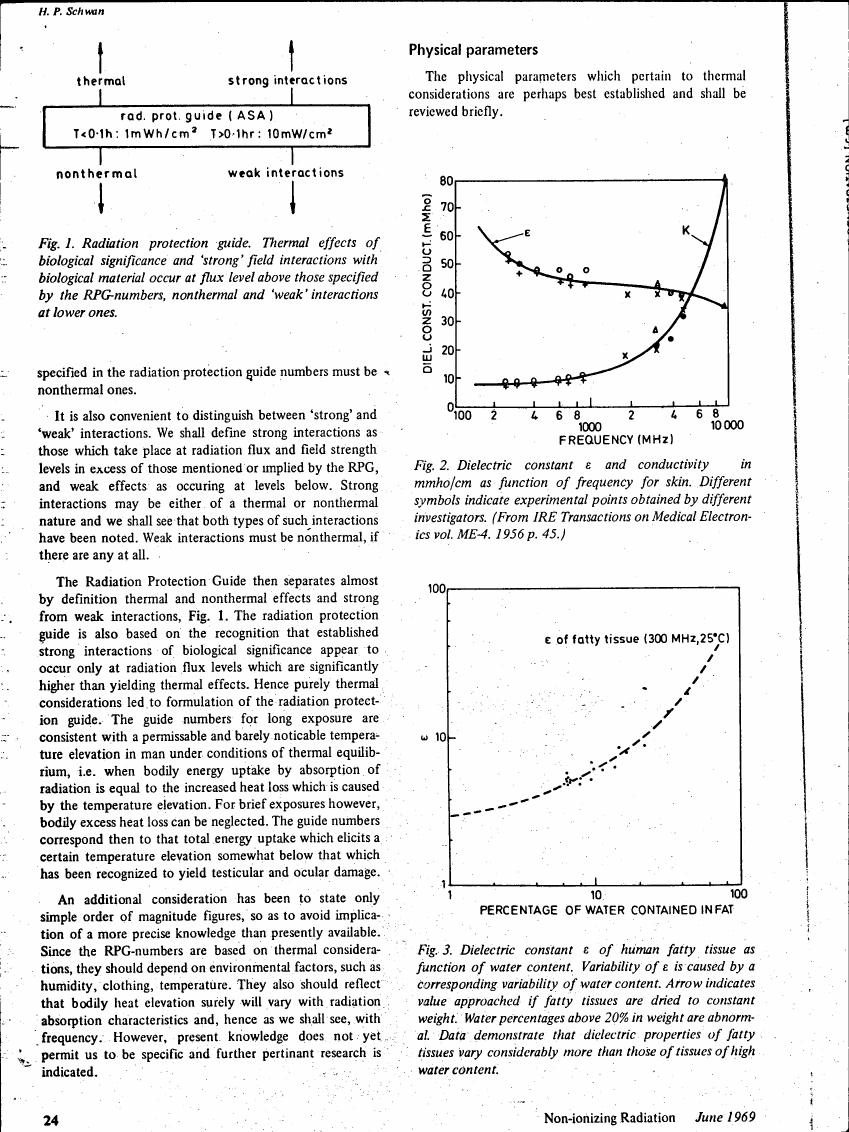

chartPage 2 - AI-described figure: Figure 2. Dielectric constant ε and conductivity in mmho/cm as function of frequency for skin.
p. 2 of the original PDF

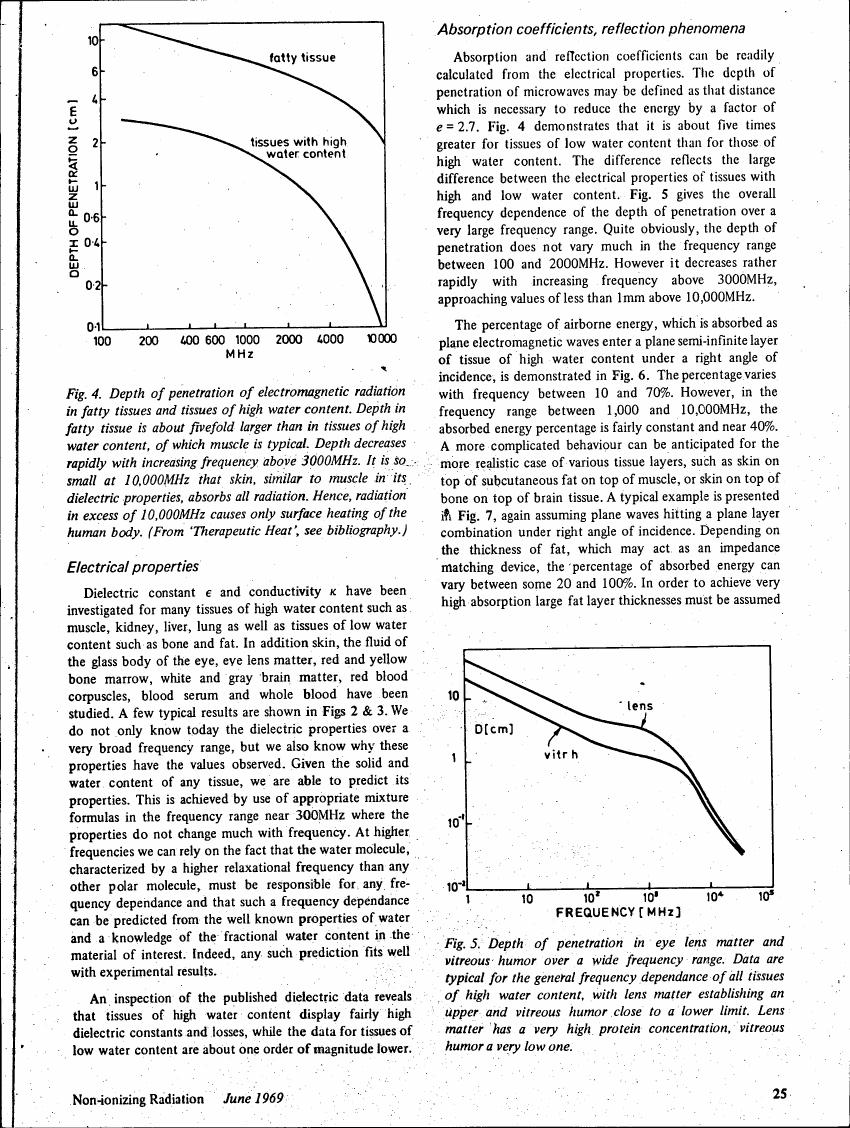

graphPage 3 - Fig. 4: Depth of penetration of electromagnetic radiation in fatty tissues and tissues of high water content.
p. 3 of the original PDF

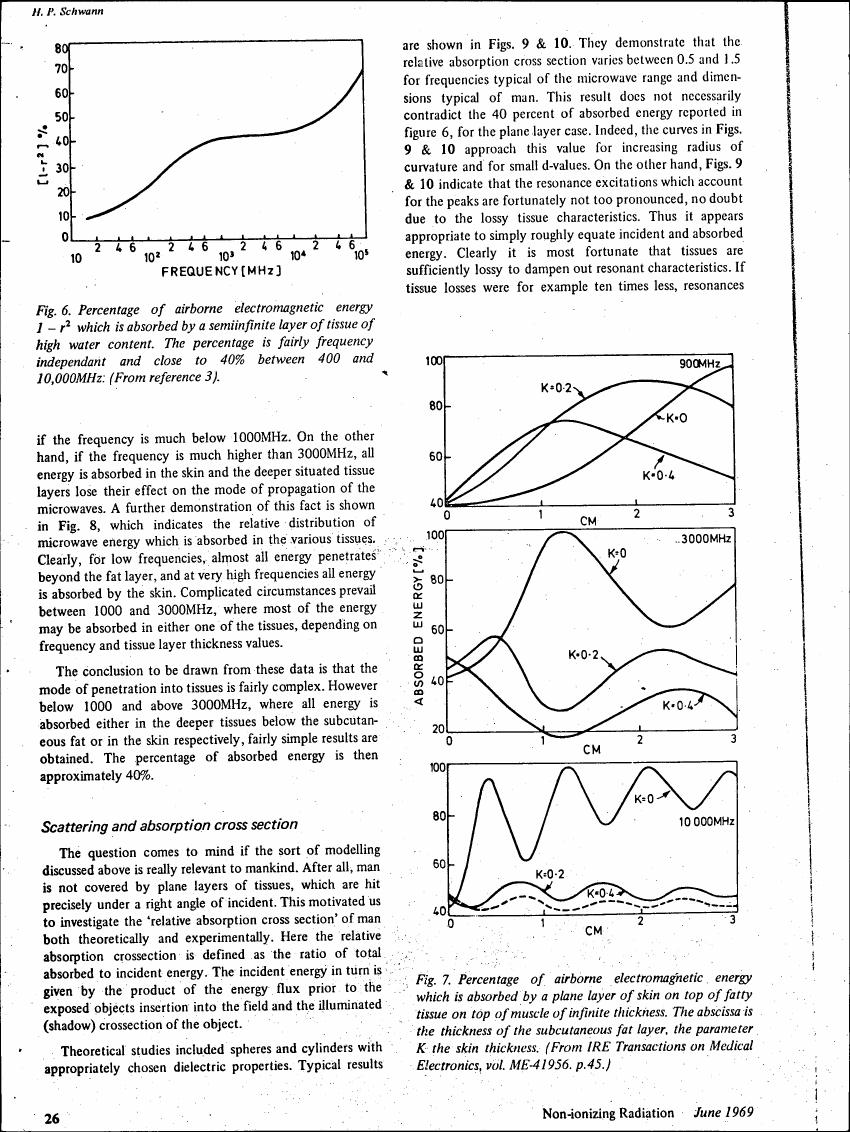

graphPage 4 - Figure 6: Percentage of airborne electromagnetic energy absorbed by a semi-infinite layer of tissue with high water content.
p. 4 of the original PDF

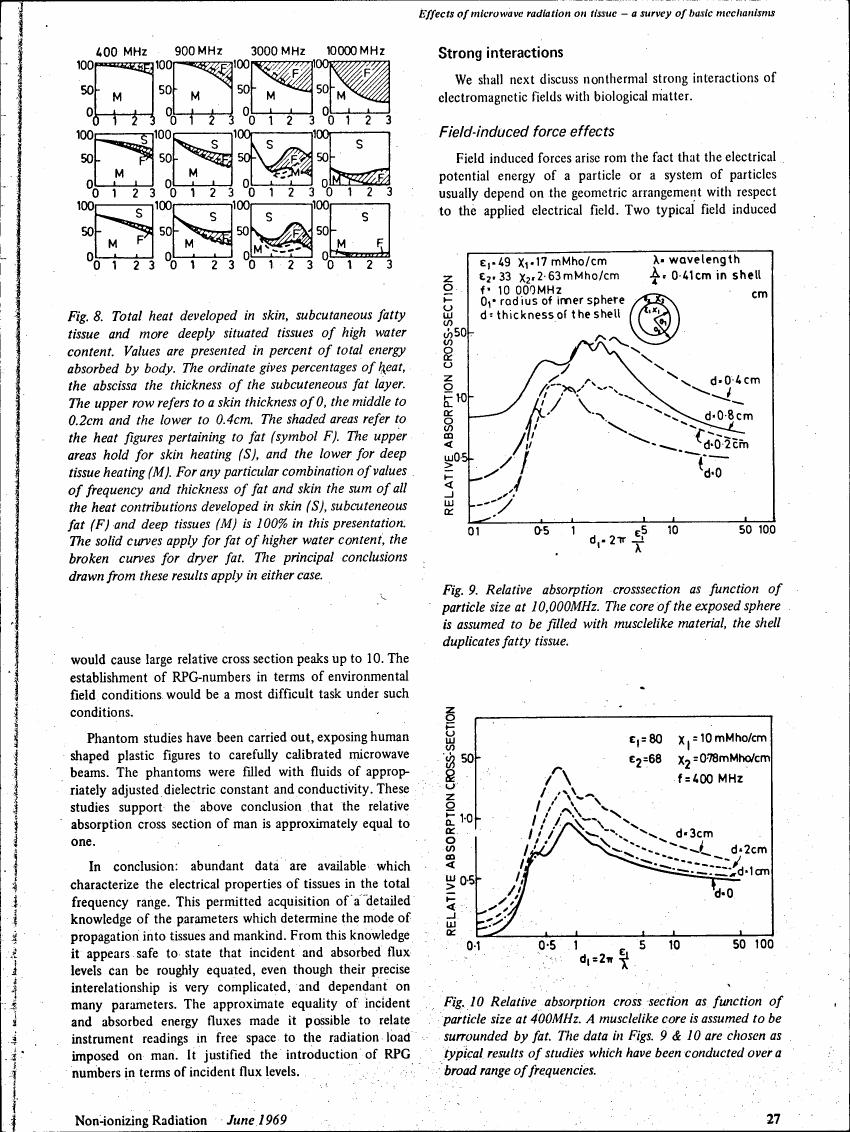

chartPage 5 - AI-described figure: Figure 8 illustrates total heat developed in skin and subcutaneous fatty tissue as a percentage of absorbed energy at different frequencies.
p. 5 of the original PDF

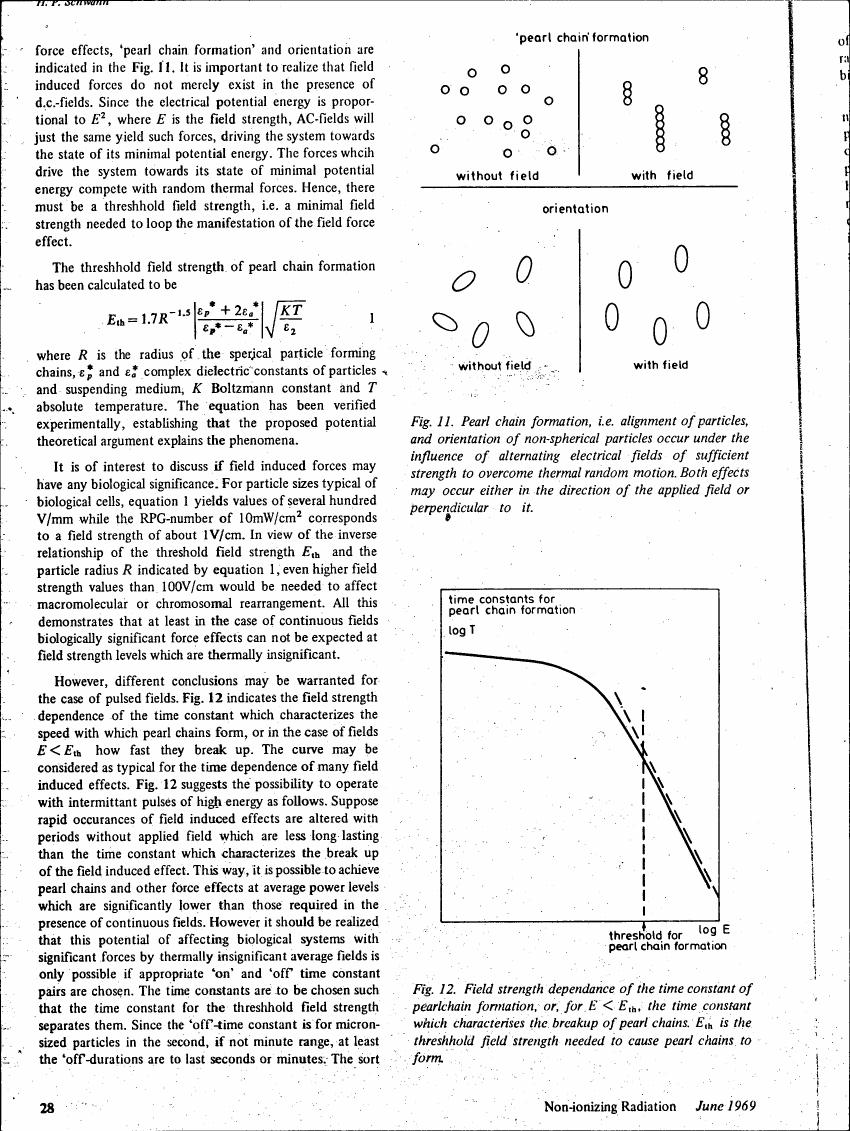

diagramPage 6 - Fig. 11 illustrates pearl chain formation and orientation under alternating electrical fields, showing particle alignment with or without a field.
p. 6 of the original PDF

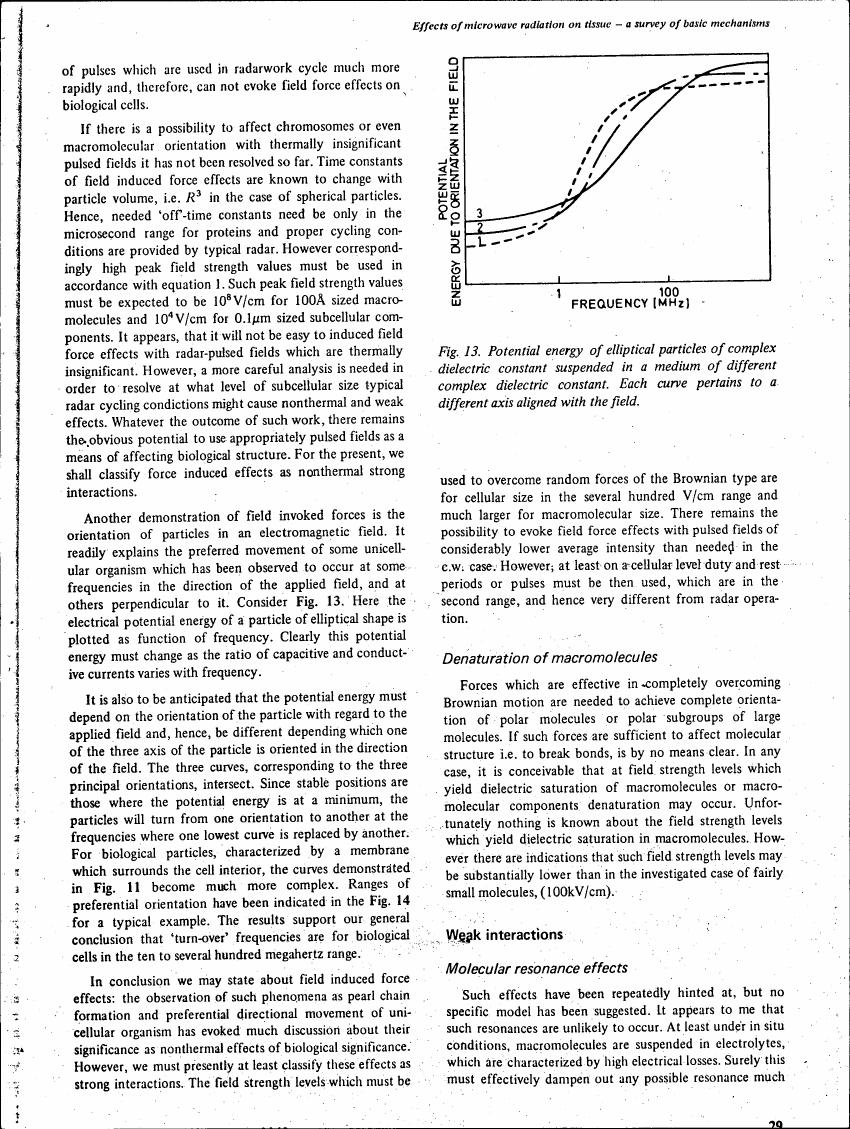

graphPage 7 - Fig. 13: Potential energy of elliptical particles with complex dielectric constant in a medium of different complex dielectric constants, showing curves for different axes aligned with the field.
p. 7 of the original PDF

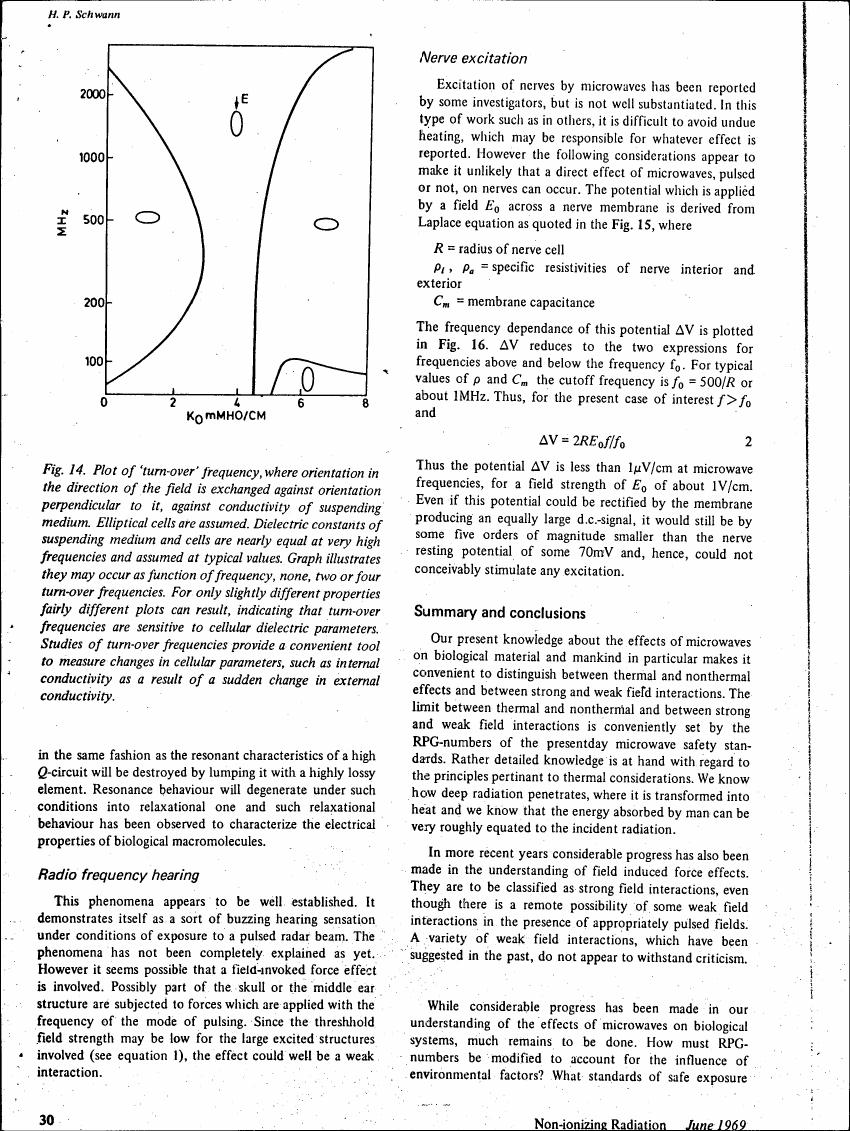

graphPage 8 - Fig. 14: Plot of 'turn-over' frequency where orientation in the direction of the field is exchanged against conductivity of suspending medium.
p. 8 of the original PDF

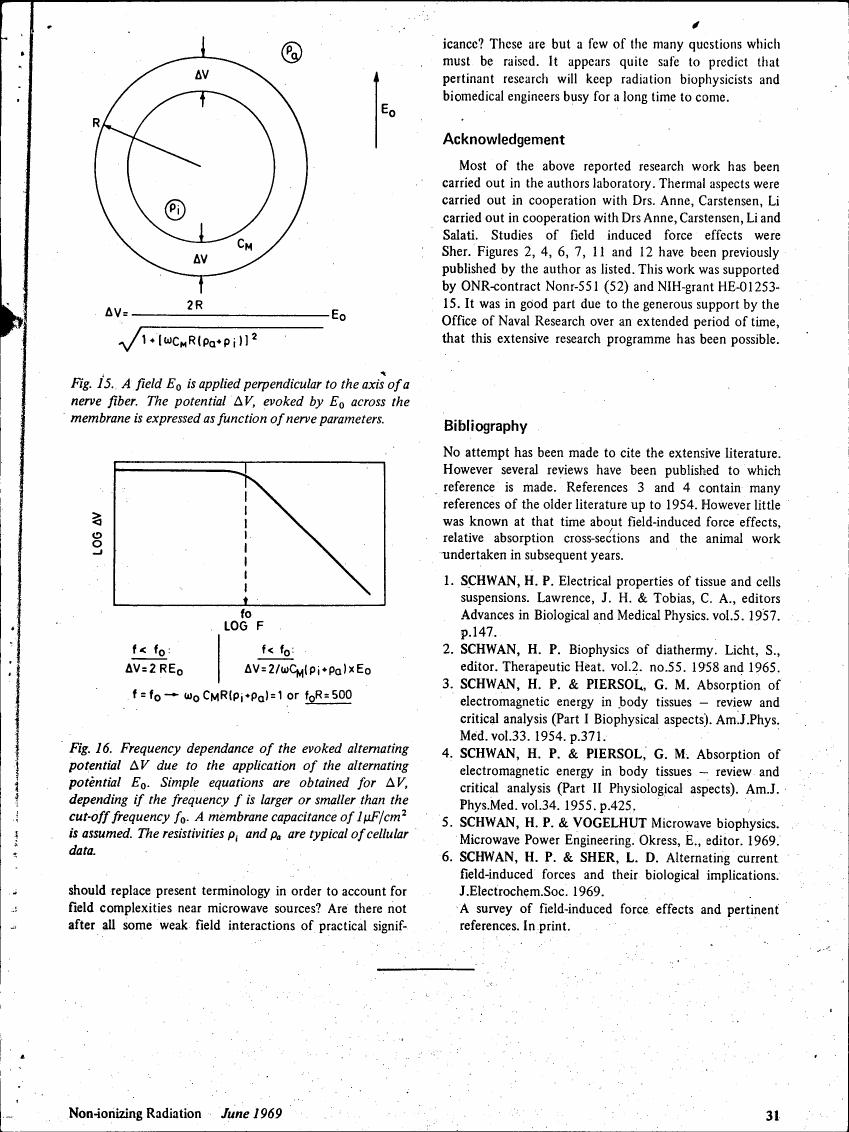

diagramPage 9 - Figure 15 illustrates a field E0 applied perpendicular to the axis of a nerve fiber and its effect on membrane potential ΔV as a function of nerve parameters.
p. 9 of the original PDF

Exposure Information

Specific exposure levels were not quantified in this study.

Cite This Study
H. P. SCHWAN (1969). Effects of microwave radiation on tissue – a survey of basic mechanisms.
Show BibTeX
@article{effects_of_microwave_radiation_on_tissue_a_survey_of_basic_mechanisms_g4035,
  author = {H. P. SCHWAN},
  title = {Effects of microwave radiation on tissue – a survey of basic mechanisms},
  year = {1969},


}
No DOI on file for this study.

Quick Questions About This Study

Schwan found that microwaves interact with human tissue through both thermal heating and poorly understood non-thermal mechanisms. He documented how different tissues absorb microwaves differently and identified force effects on cells and molecules.
Safety standards were based on thermal effects because those were well understood, while non-thermal interactions remained uncertain. Schwan acknowledged that weak biological interactions were not properly characterized at the time.
Schwan documented that microwaves reflect differently at boundaries between various tissue types, creating uneven absorption patterns throughout the body. This means some areas may receive higher exposure than others.
These are physical forces that electromagnetic fields exert on small particles including cells and large molecules. Schwan identified these as distinct from heating effects, representing a separate mechanism of biological interaction.
Schwan distinguished between 'strong' thermal interactions which were well understood, and 'weak' non-thermal interactions which remained uncertain. The weak interactions are what modern research continues to investigate today.
