ELECTRIC FIELD PROBES AND THEIR APPLICATION IN EMC

Bioeffects Seen

Ronald W. P. King, Glenn S. Smith

Share:

Accurate electric field measurement tools are essential for proper EMF exposure assessment and safety standards.

Plain English Summary

Summary written for general audiences

This technical report examined electric field probes and their applications in electromagnetic compatibility (EMC) testing. The research focused on probe design, antenna characteristics, and dielectric properties relevant to microwave frequencies. While primarily an engineering study, this work has implications for biomedical applications where accurate EMF measurement is critical.

Why This Matters

This technical research represents the foundation of how we measure electromagnetic fields in our environment. The science demonstrates that accurate EMF measurement is essential for understanding exposure levels from everyday sources like cell phones, WiFi routers, and smart meters. What this means for you is that the probes and measurement techniques developed in studies like this determine whether we're properly assessing the radiation levels you encounter daily. The reality is that without precise measurement tools, we cannot establish safe exposure limits or verify that devices comply with safety standards. Put simply, this engineering work directly impacts how well we can protect public health from EMF exposure.

Figures from the Original Paper

Diagrams extracted from the original research document.

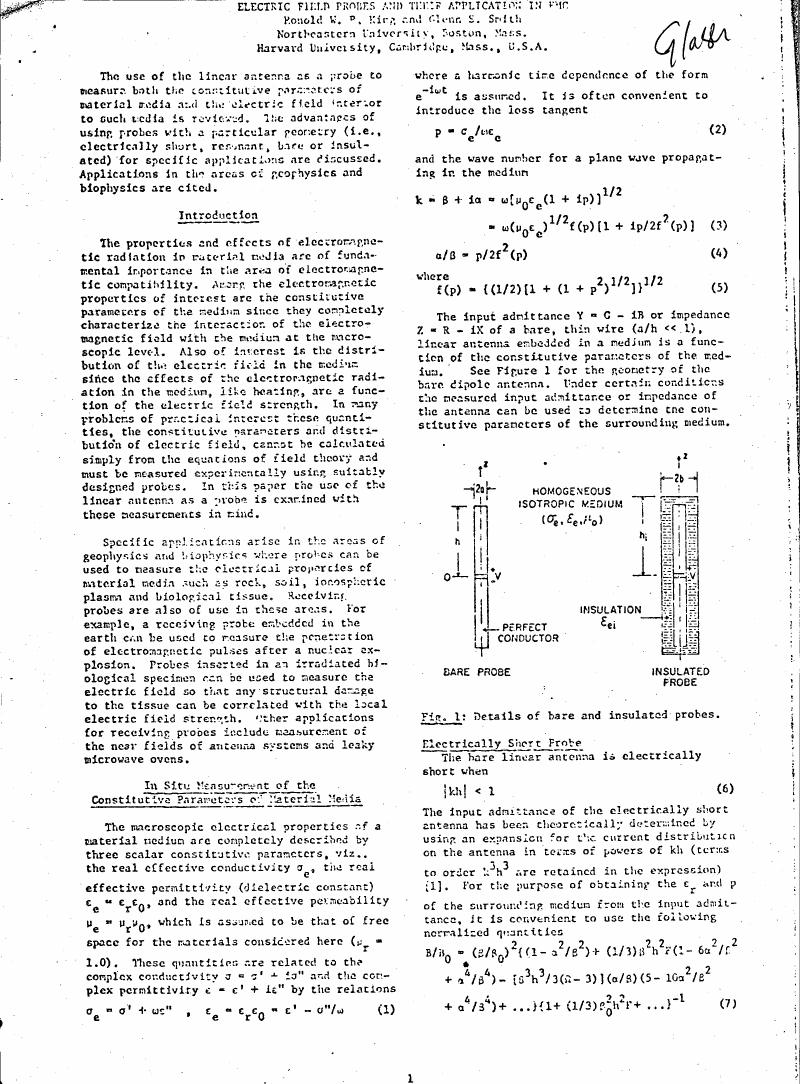

diagramPage 1 - AI-described figure: Details of bare and insulated probes as shown in Figure 1.
p. 1 of the original PDF

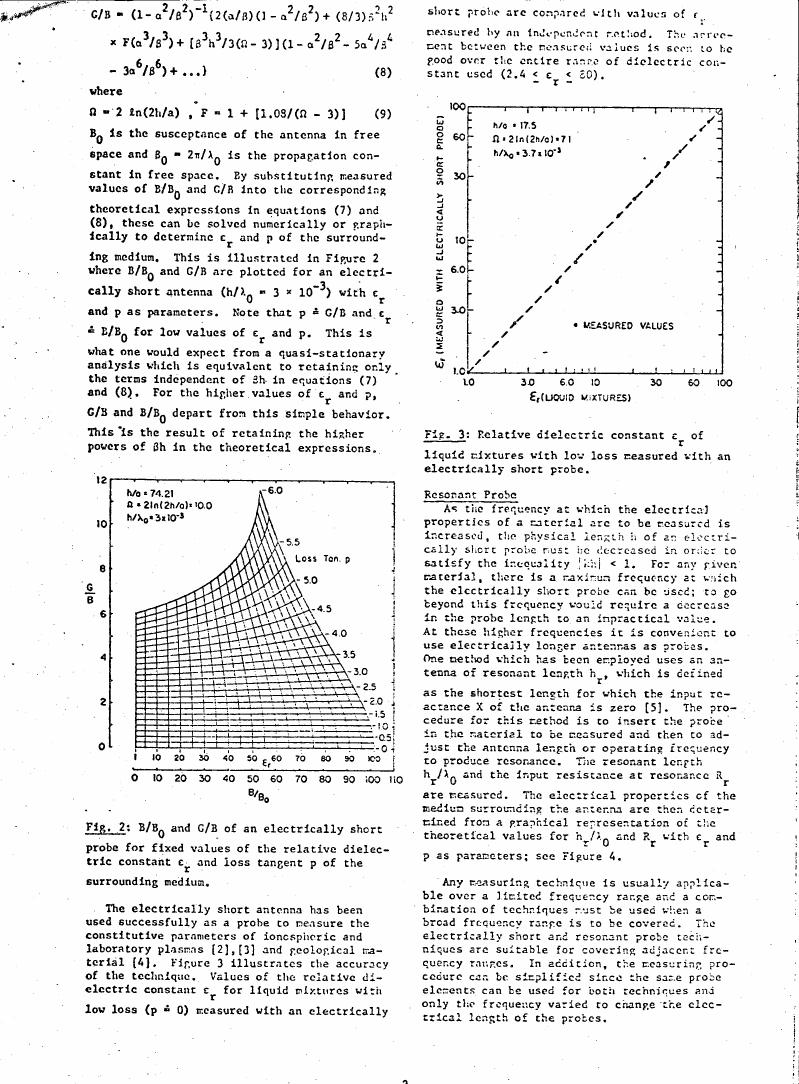

chartPage 2 - Figure 2: B/B0 and G/B of an electrically short probe for fixed values of the relative dielectric constant εr and loss tangent p of the surrounding medium.
p. 2 of the original PDF

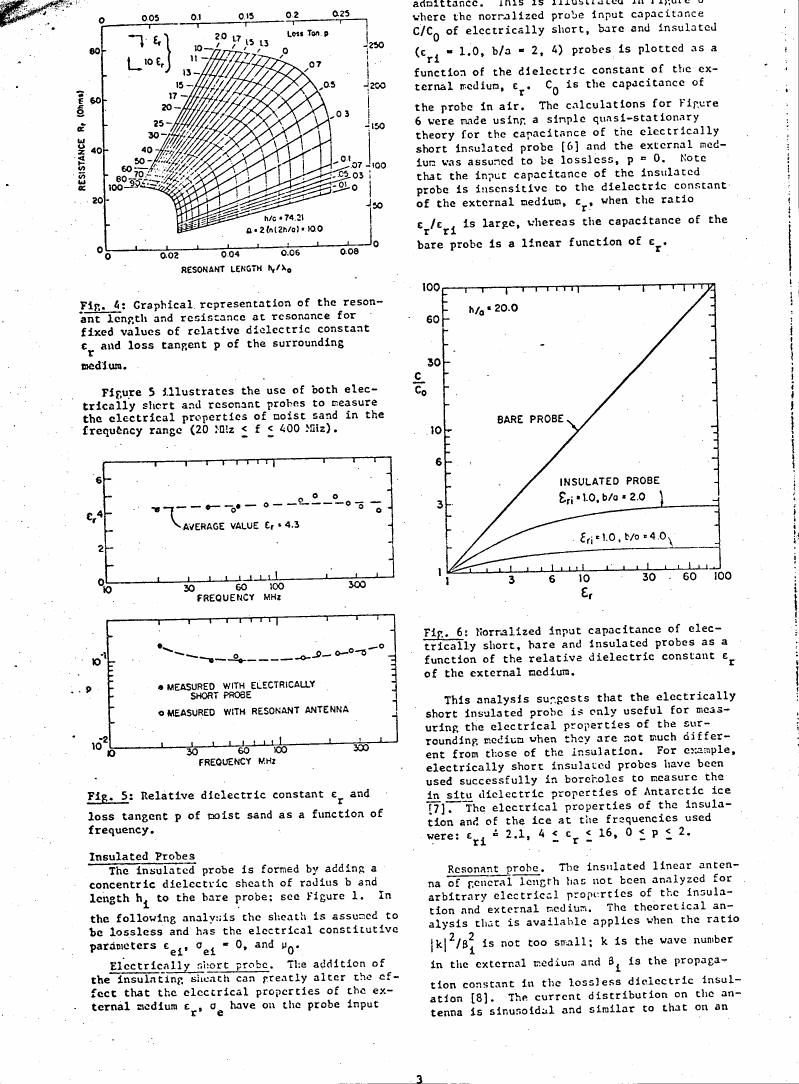

chartPage 3 - Figure 4: Graphical representation of the resonant length and resistance at resonance for fixed values of relative dielectric constant εr and loss tangent p of the surrounding medium.
p. 3 of the original PDF

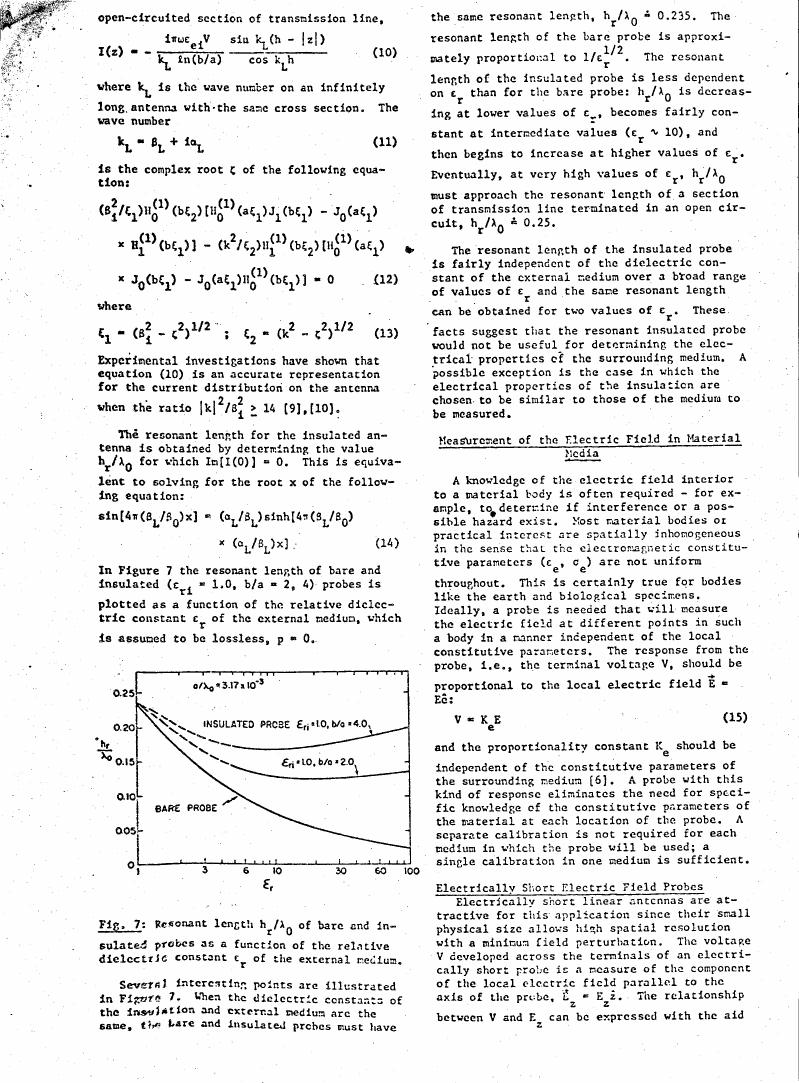

chartPage 4 - Figure 7: Resonant length h_r/λ_0 of bare and insulated probes as a function of the relative dielectric constant ε_r of the external medium.
p. 4 of the original PDF

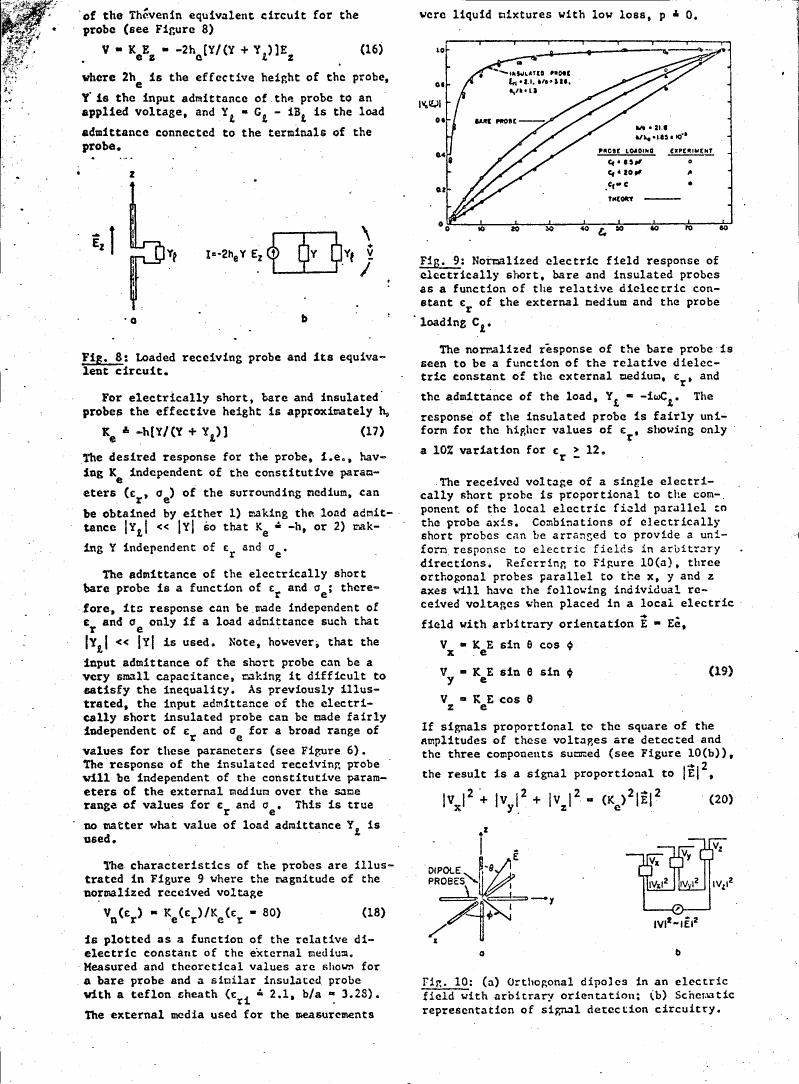

chartPage 5 - AI-described figure: Figure 9: Normalized electric field response of electrically short, bare and insulated probes as a function of the relative dielectric constant εr of the external medium and the probe loading Ck.
p. 5 of the original PDF

Exposure Information

A logarithmic frequency spectrum from 10 Hz to 100 GHz showing where this study's 20 MHz to 400 MHz exposure sits relative to common EMF sources.Where This Frequency Sits on the EMF SpectrumELFVLFLF / MFHF / VHFUHFSHFmm10 Hz100 GHzThis study: 20 MHz to 400 MHzPower lines50/60 HzCell phones~1 GHzWiFi2.4 GHz5G mm28 GHzLogarithmic scale

Specific exposure levels were not quantified in this study.

Study Details

To review the use of linear antennas as probes for measuring constitutive parameters of dielectric media and electric field intensity in such media, and to discuss the advantages of different probe geometries for specific applications.

The use of the linear antenna as a probe to measure the constitutive parameters of dielectric media ...

The electrically short antenna input admittance has been determined theoretically and used to determ...

The electrically short and resonant probe techniques are suitable for covering adjacent frequency ranges. The electrically short insulated probe is only useful for measuring the electrical properties of the surrounding medium when they are not much different from those of the insulation. The resonant insulated probe would not be useful for determining the electrical properties of the surrounding medium unless the electrical properties of the insulation are chosen to be similar to those of the medium to be measured. Electrically short probes can be arranged to provide a uniform response to electric fields in arbitrary directions.

Cite This Study
Ronald W. P. King, Glenn S. Smith (n.d.). ELECTRIC FIELD PROBES AND THEIR APPLICATION IN EMC.
Show BibTeX
@article{electric_field_probes_and_their_application_in_emc_g6122,
  author = {Ronald W. P. King and Glenn S. Smith},
  title = {ELECTRIC FIELD PROBES AND THEIR APPLICATION IN EMC},
  year = {n.d.},


}
No DOI on file for this study.

Quick Questions About This Study

Electric field probes measure the strength and characteristics of electromagnetic fields in laboratory and real-world environments. They're essential tools for determining exposure levels from electronic devices and verifying compliance with safety standards.
Antenna design directly impacts measurement accuracy by determining sensitivity, frequency response, and directional properties. Poor antenna characteristics can lead to inaccurate readings that underestimate or overestimate actual EMF exposure levels.
Dielectric properties determine how materials interact with electromagnetic fields. Understanding these properties is crucial for designing probes that don't distort the fields they're measuring, ensuring accurate assessment of EMF exposure.
Electric field probes are used in medical device testing, biological research studying EMF effects on cells and tissues, and clinical applications like diathermy and hyperthermia treatments where precise field control is critical.
EMC testing ensures electronic devices don't interfere with each other and comply with emission limits. This testing directly affects the EMF levels you encounter from household electronics, wireless devices, and infrastructure.
