ENERGY DEPOSITION IN BIOLOGICAL TISSUE NEAR PORTABLE RADIO TRANSMITTERS AT VHF AND UHF

Bioeffects Seen

Q. BALZANO, O. GARAY, R.F. STEEL · 1977

Share:

Portable radio energy penetration varies dramatically by frequency, with deeper tissue heating occurring at higher frequencies.

Plain English Summary

Summary written for general audiences

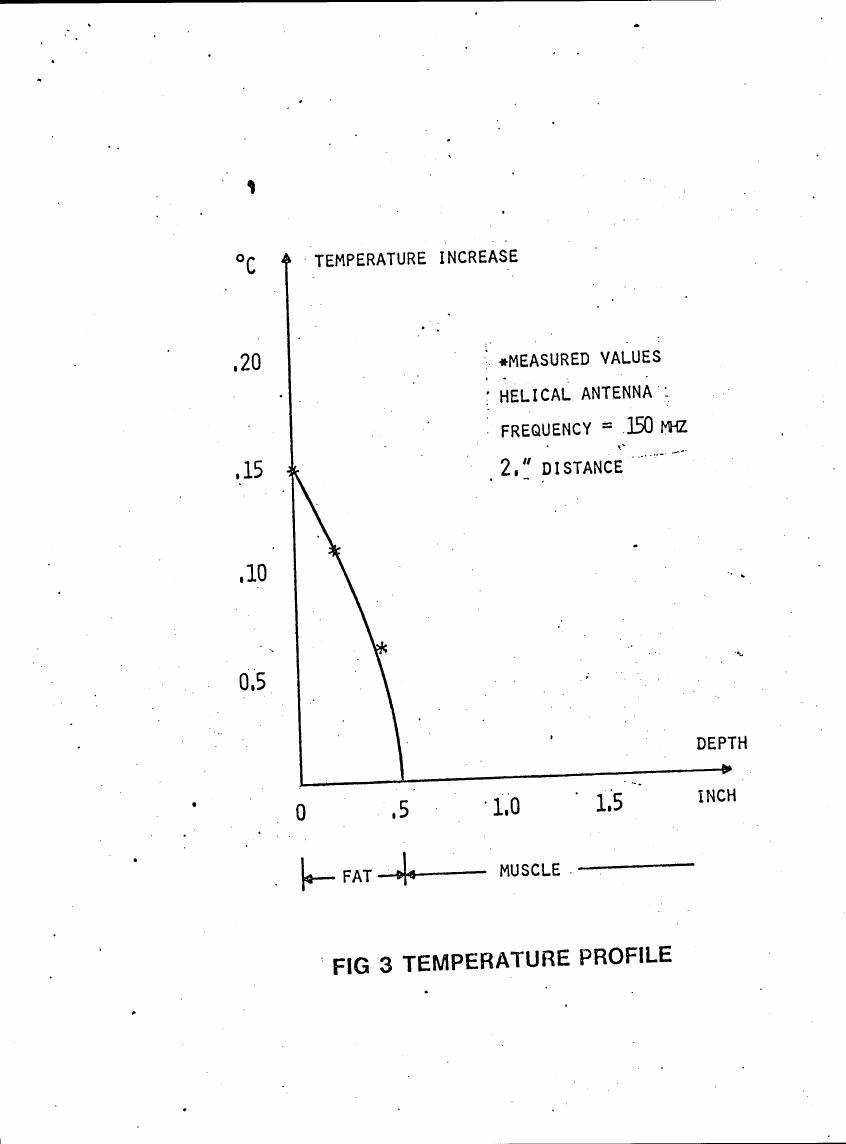

This 1977 study measured how different portable radio transmitters deposit energy in simulated biological tissue at various distances. Researchers found that VHF helical antennas primarily heated surface fat layers, while UHF quarter-wavelength antennas penetrated deeper into muscle tissue. Beyond 2 inches distance, temperature increases became negligible.

Why This Matters

This early research provides crucial baseline data on how portable radio transmitters interact with human tissue at different frequencies and distances. The findings reveal that energy penetration patterns vary dramatically by frequency and antenna design - VHF signals concentrate in surface fat while UHF penetrates deeper into muscle. What's particularly relevant today is how this 1977 work with 6-watt transmitters compares to modern devices. While the study concluded portable radios were 'safe' at distances beyond 2 inches, we now carry smartphones directly against our bodies for hours daily, often at power levels and frequencies that weren't fully characterized in this foundational research. The tissue heating patterns identified here help explain why proximity matters so much with RF exposure.

Exposure Information

Specific exposure levels were not quantified in this study.

Cite This Study
Q. BALZANO, O. GARAY, R.F. STEEL (1977). ENERGY DEPOSITION IN BIOLOGICAL TISSUE NEAR PORTABLE RADIO TRANSMITTERS AT VHF AND UHF.
Show BibTeX
@article{energy_deposition_in_biological_tissue_near_portable_radio_transmitters_at_vhf_a_g4450,
  author = {Q. BALZANO and O. GARAY and R.F. STEEL},
  title = {ENERGY DEPOSITION IN BIOLOGICAL TISSUE NEAR PORTABLE RADIO TRANSMITTERS AT VHF AND UHF},
  year = {1977},


}

Quick Questions About This Study

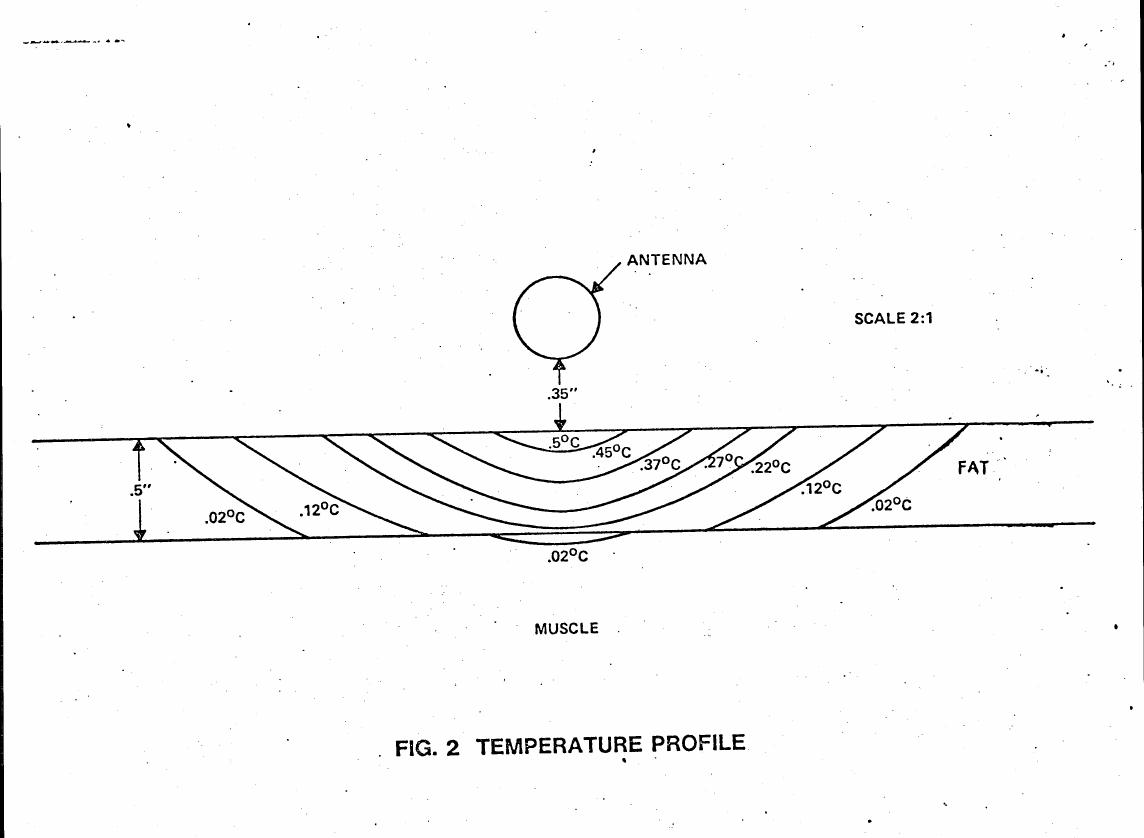

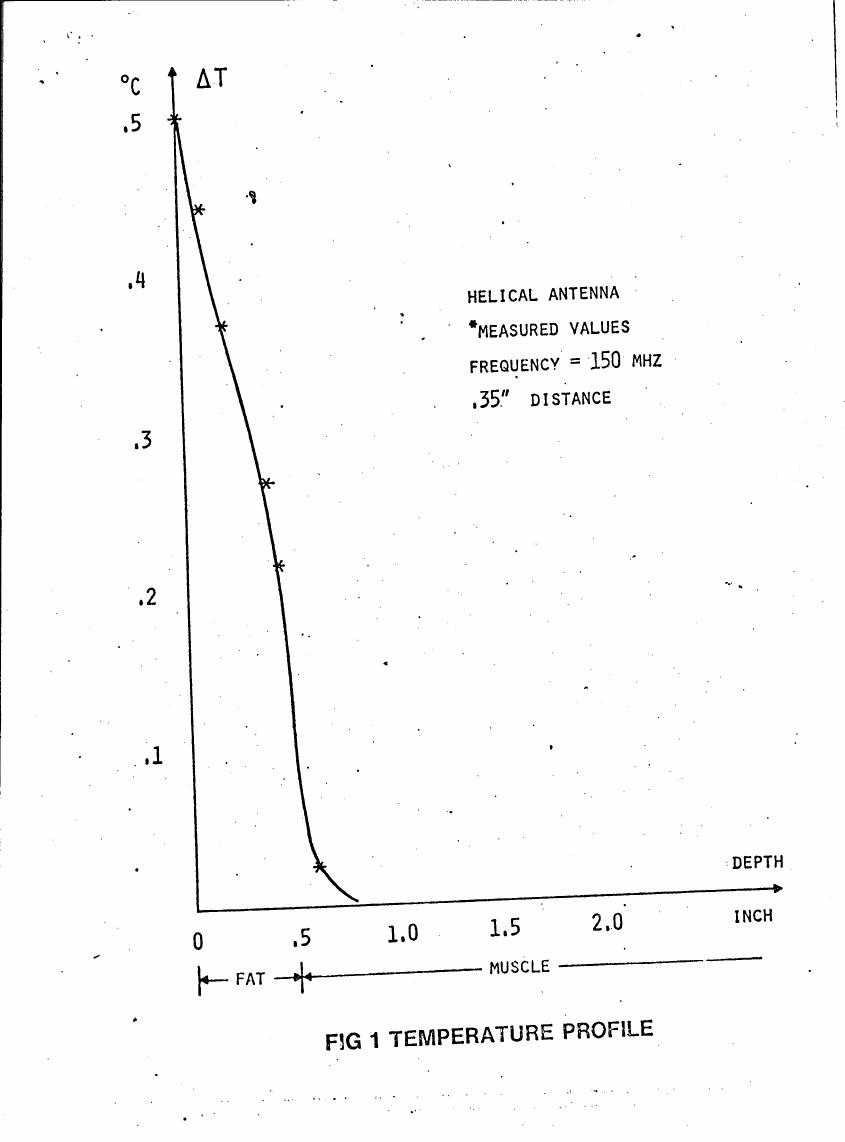

VHF helical antennas deposit energy primarily in surface fatty layers with minimal muscle penetration, while UHF quarter-wavelength antennas transfer power mostly into deeper muscle tissue, showing dramatically different penetration patterns.

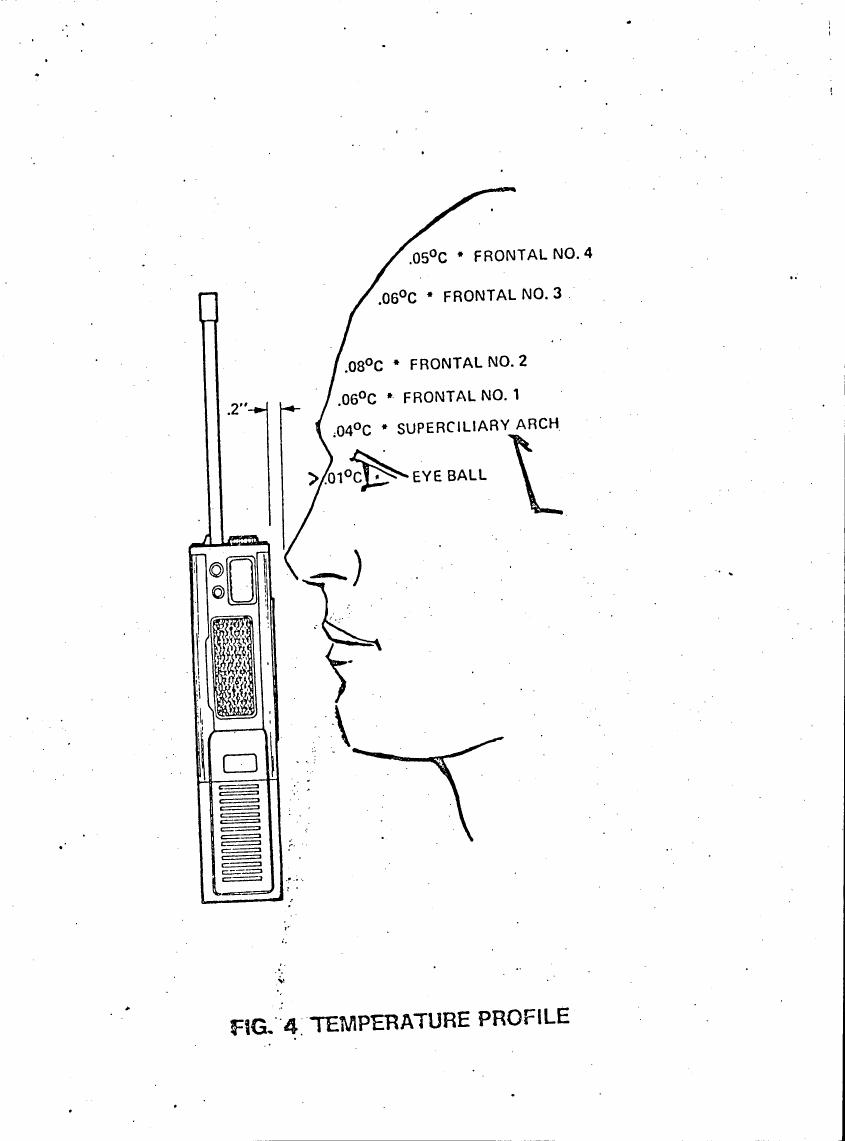

Beyond 2 inches distance, temperature increases from 6-watt portable transmitters became extremely small. However, this 1977 conclusion may not apply to modern devices used directly against the body.
The study found that penetration into deep tissue increased by a factor of 10 when frequency increased from 150 MHz to 450 MHz, demonstrating how higher frequencies penetrate more deeply.
No, 450 MHz helical antennas transfer energy mostly into surface fat but show significantly increased deep tissue penetration compared to VHF helices, representing a transition toward UHF behavior patterns.
Researchers tested 6-watt portable transmitters, which is considerably higher than many modern mobile devices but helps establish baseline energy deposition patterns for different antenna types and frequencies.
