ENERGY DEPOSITION IN BIOLOGICAL TISSUE NEAR PORTABLE RADIO TRANSMITTERS AT VHF AND UHF

Bioeffects Seen

O. BALZANO, O. GARAY, R.F. STEEL · 1977

Share:

Radio frequency heating depends heavily on both frequency and distance, with effects dropping dramatically beyond 2 inches.

Plain English Summary

Summary written for general audiences

This 1977 study measured how 6-watt portable radio transmitters heat simulated body tissue at different distances. Researchers found that VHF frequencies primarily heated surface fat layers, while UHF frequencies penetrated deeper into muscle tissue, with heating effects becoming negligible beyond 2 inches from the device.

Why This Matters

This early research provides crucial insights into how different radio frequencies interact with human tissue - findings that remain relevant as we navigate today's wireless landscape. The study demonstrates that frequency matters tremendously: VHF signals stayed in surface fat while UHF penetrated to muscle tissue, showing a 10-fold increase in deep tissue energy deposition as frequency rose from 150 MHz to 450 MHz. What makes this particularly significant is the power level tested - 6 watts - which far exceeds today's cell phones but matches many two-way radios still used by professionals. The distance findings are telling: while close contact (under half an inch) produced measurable heating, effects dropped dramatically beyond 2 inches. This distance-dependent pattern appears consistently across EMF research, reinforcing that proximity is the critical factor in RF exposure.

Exposure Information

Specific exposure levels were not quantified in this study.

Cite This Study
O. BALZANO, O. GARAY, R.F. STEEL (1977). ENERGY DEPOSITION IN BIOLOGICAL TISSUE NEAR PORTABLE RADIO TRANSMITTERS AT VHF AND UHF.
Show BibTeX
@article{energy_deposition_in_biological_tissue_near_portable_radio_transmitters_at_vhf_a_g5290,
  author = {O. BALZANO and O. GARAY and R.F. STEEL},
  title = {ENERGY DEPOSITION IN BIOLOGICAL TISSUE NEAR PORTABLE RADIO TRANSMITTERS AT VHF AND UHF},
  year = {1977},


}

Quick Questions About This Study

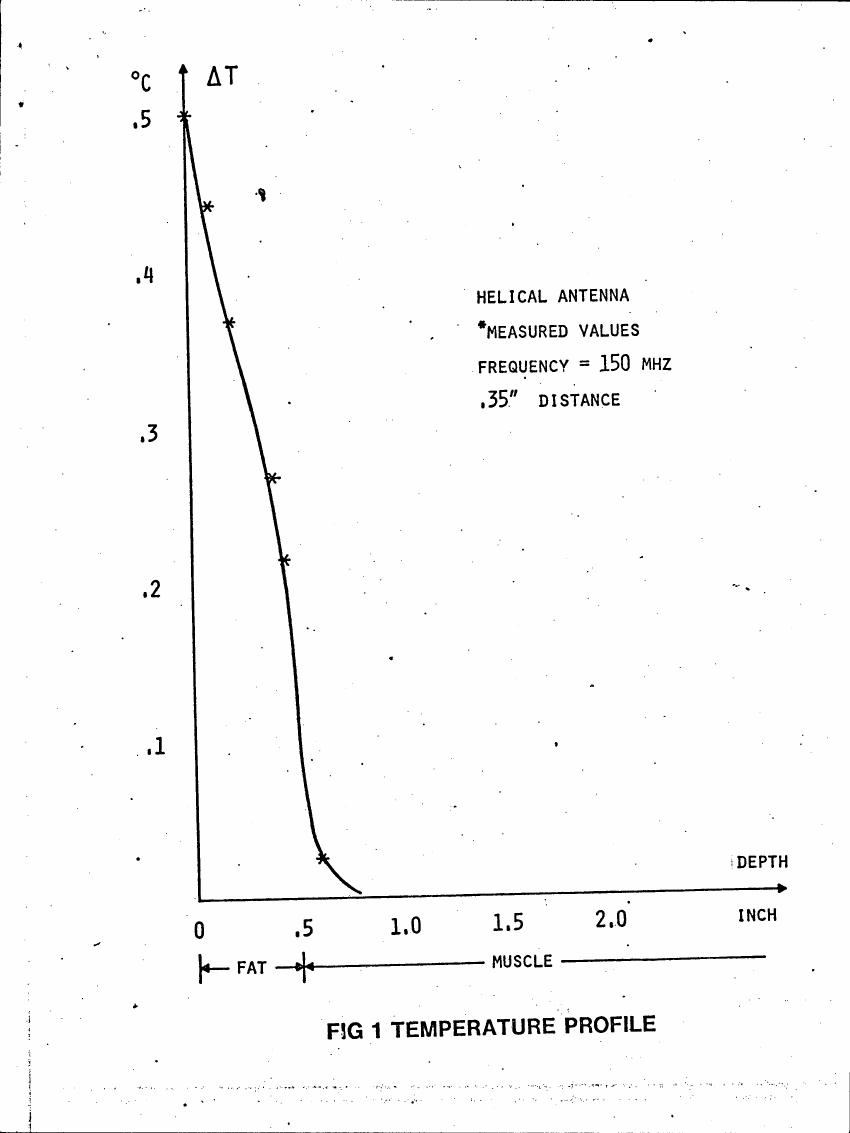

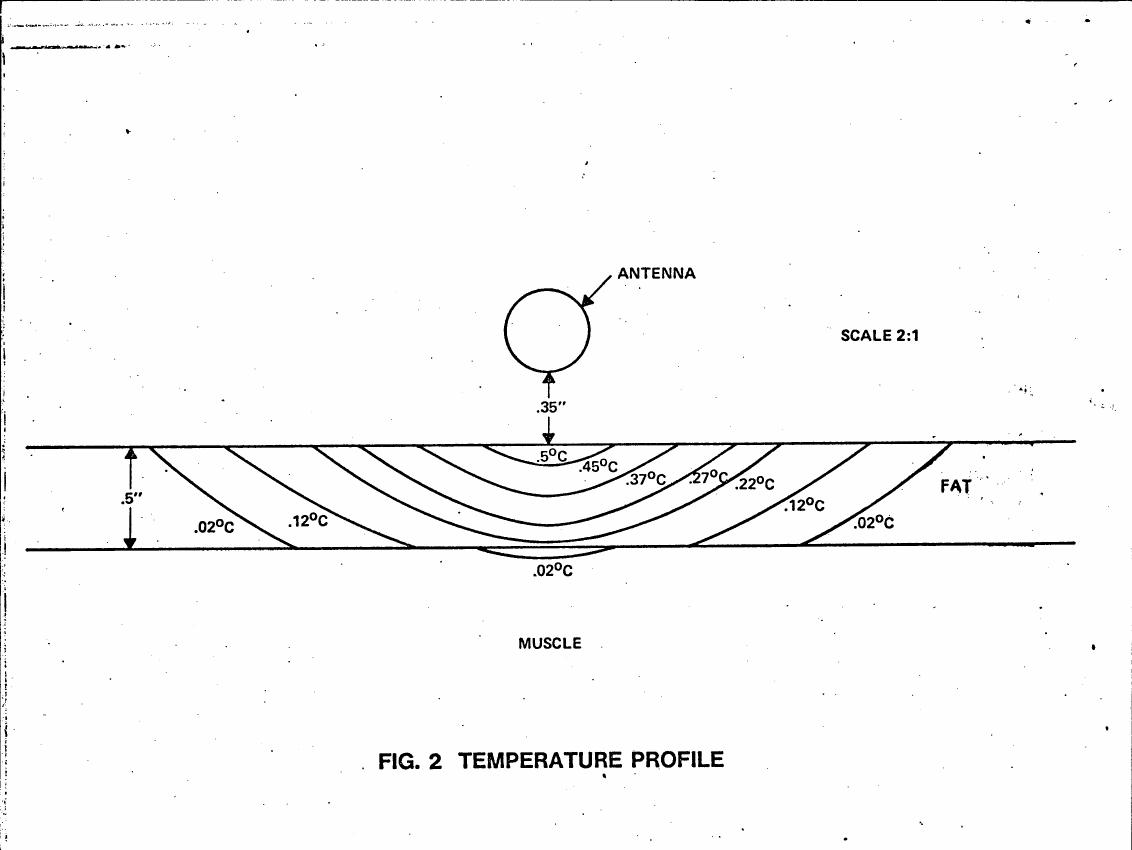

VHF helical antennas deposit energy primarily in surface fatty layers with practically no penetration into deeper muscle tissue, creating a localized heating pattern in the outer tissue layers.
Energy deposition in deep tissue increases by a factor of 10 when frequency rises from 150 MHz to 450 MHz, meaning higher frequencies penetrate much deeper into the body.
UHF quarter-wavelength whip antennas deposit power mostly in muscle tissue rather than surface fat, creating deeper penetration patterns compared to helical antenna designs.

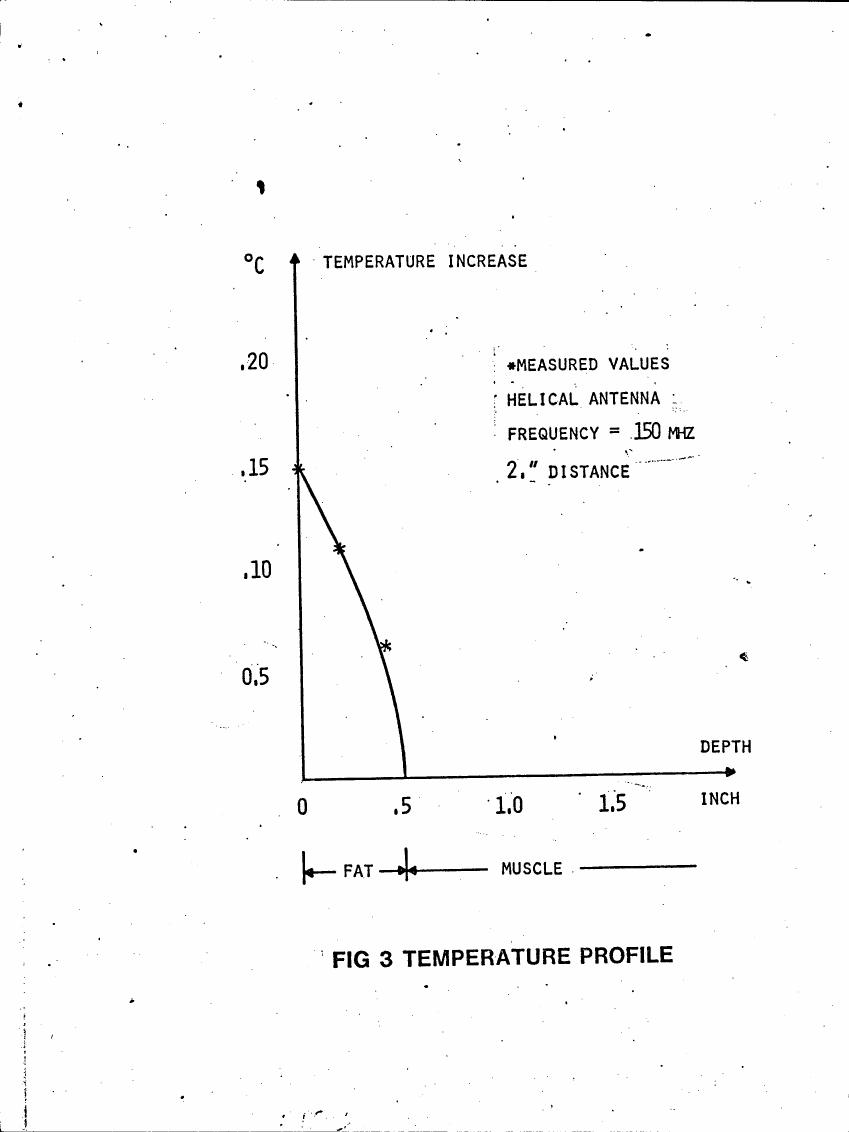

Beyond 2 inches from 6-watt portable transmitters, temperature increases become extremely small, indicating that these devices are safe at normal operating distances.

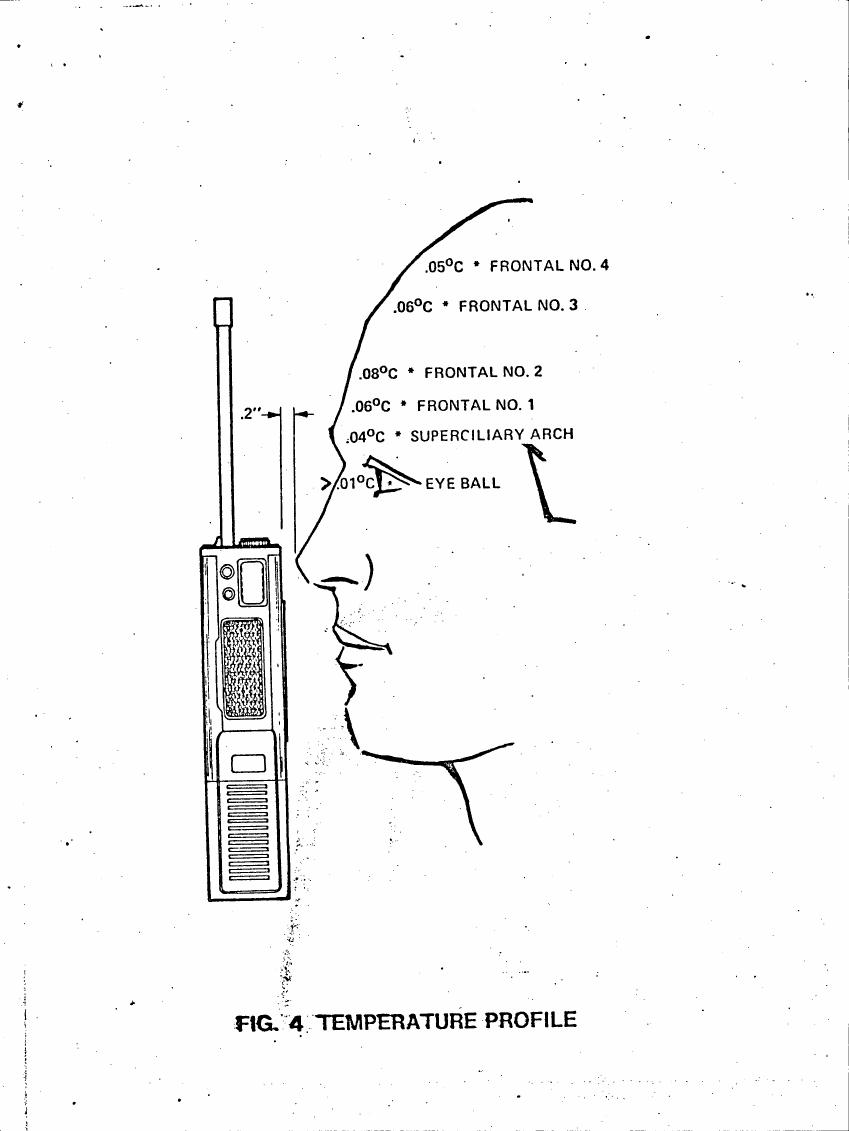

Within half an inch of portable radio transmitters, measurable temperature increases occur in biological tissue, with the specific pattern depending on antenna type and frequency used.
