FIGURE LEGENDS

Bioeffects Seen

Authors not listed

Share:

Figures from the Original Paper

Diagrams extracted from the original research document.

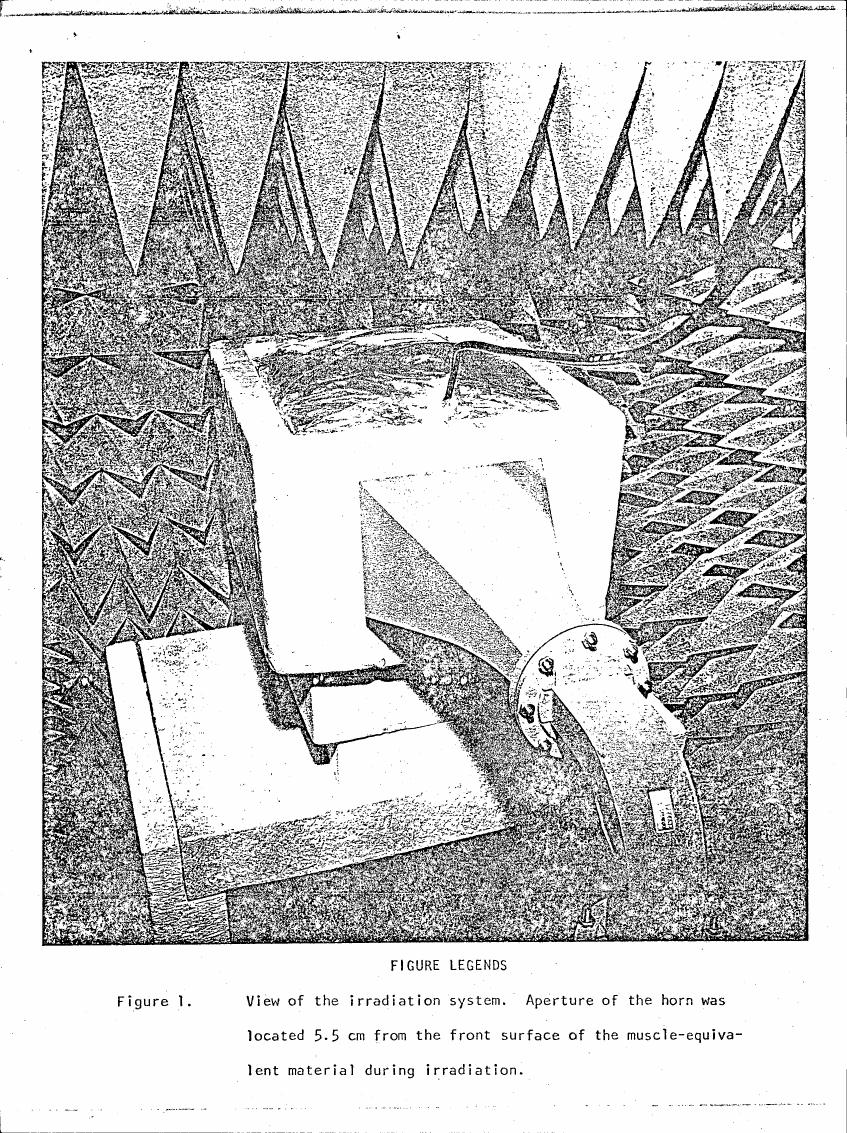

Figure 1. View of the irradiation system with a horn aperture located 5.5 cm from muscle-equivalent material during irradiation. — diagramPage 1 - Figure 1. View of the irradiation system with a horn aperture located 5.5 cm from muscle-equivalent material during irradiation.
p. 1 of the original PDF

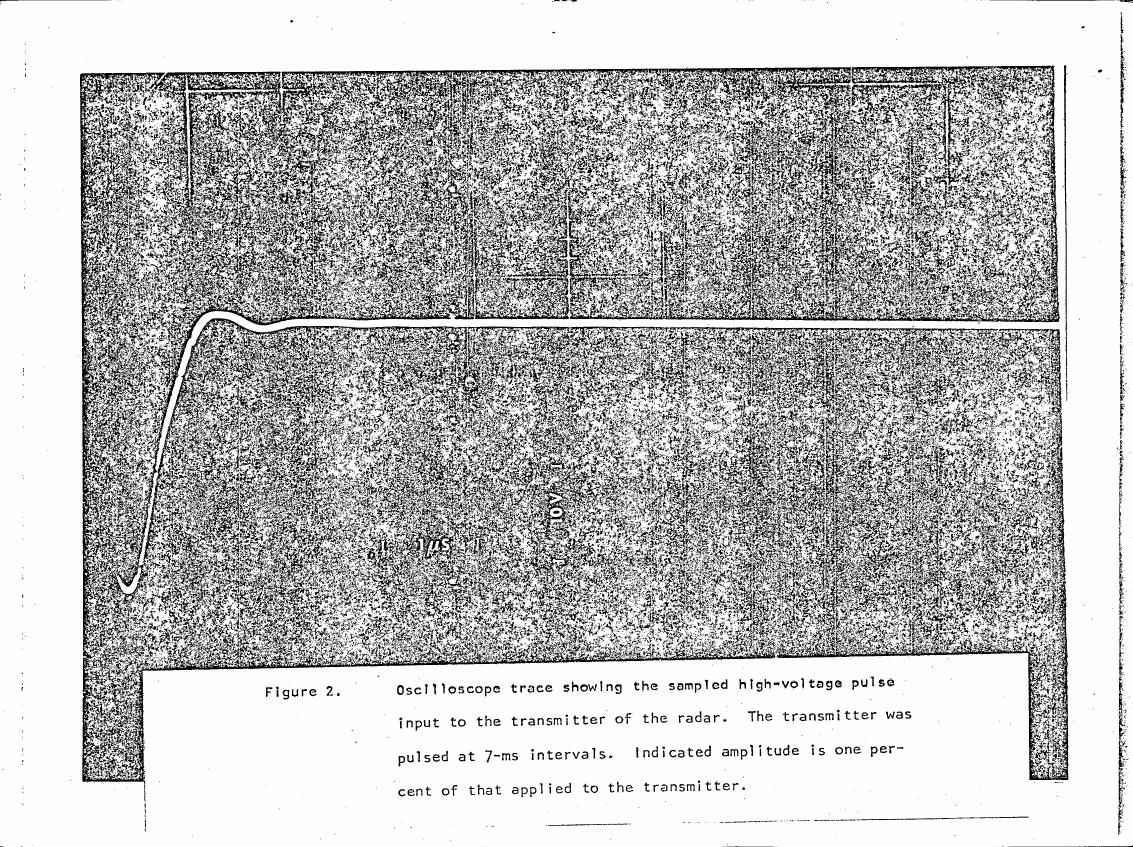

AI-described figure: Figure 2. Oscilloscope trace showing the sampled high-voltage pulse input to the transmitter of the radar. — graphPage 2 - AI-described figure: Figure 2. Oscilloscope trace showing the sampled high-voltage pulse input to the transmitter of the radar.
p. 2 of the original PDF

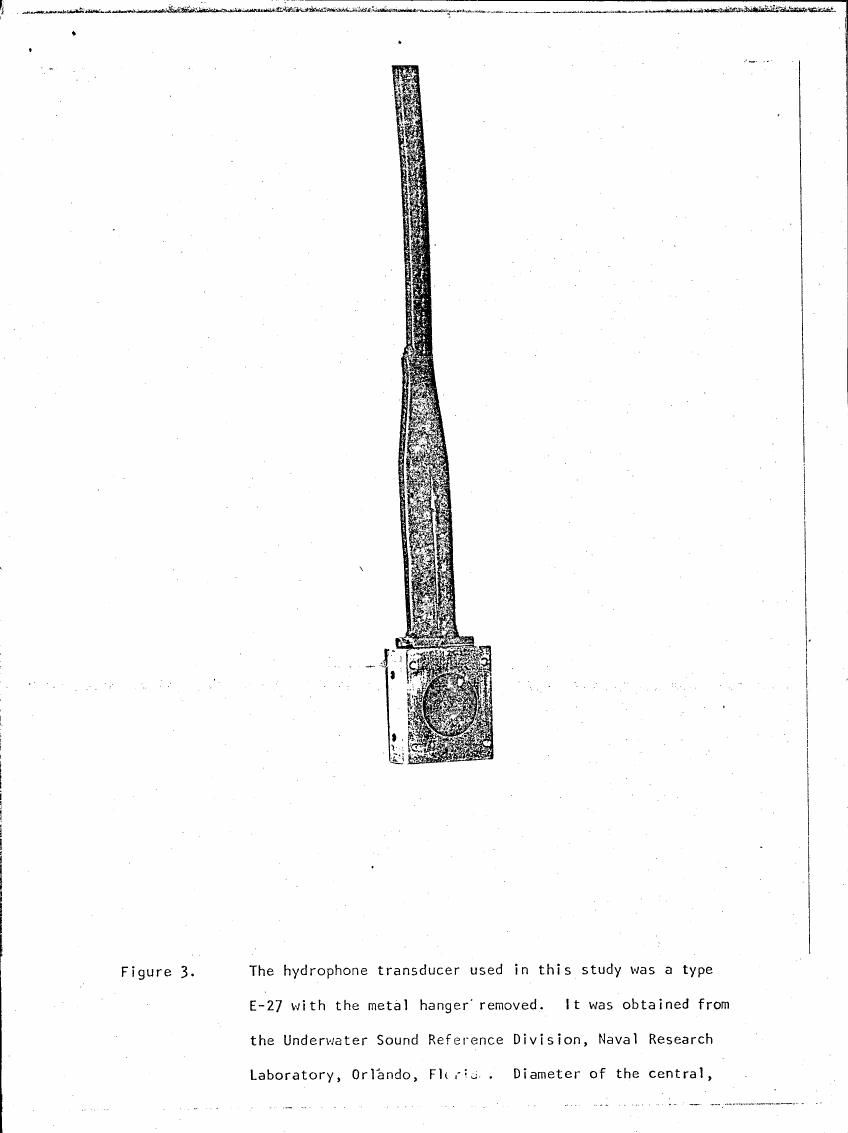

AI-described figure: Figure 3. A photograph of a hydrophone transducer used in this study. — diagramPage 3 - AI-described figure: Figure 3. A photograph of a hydrophone transducer used in this study.
p. 3 of the original PDF

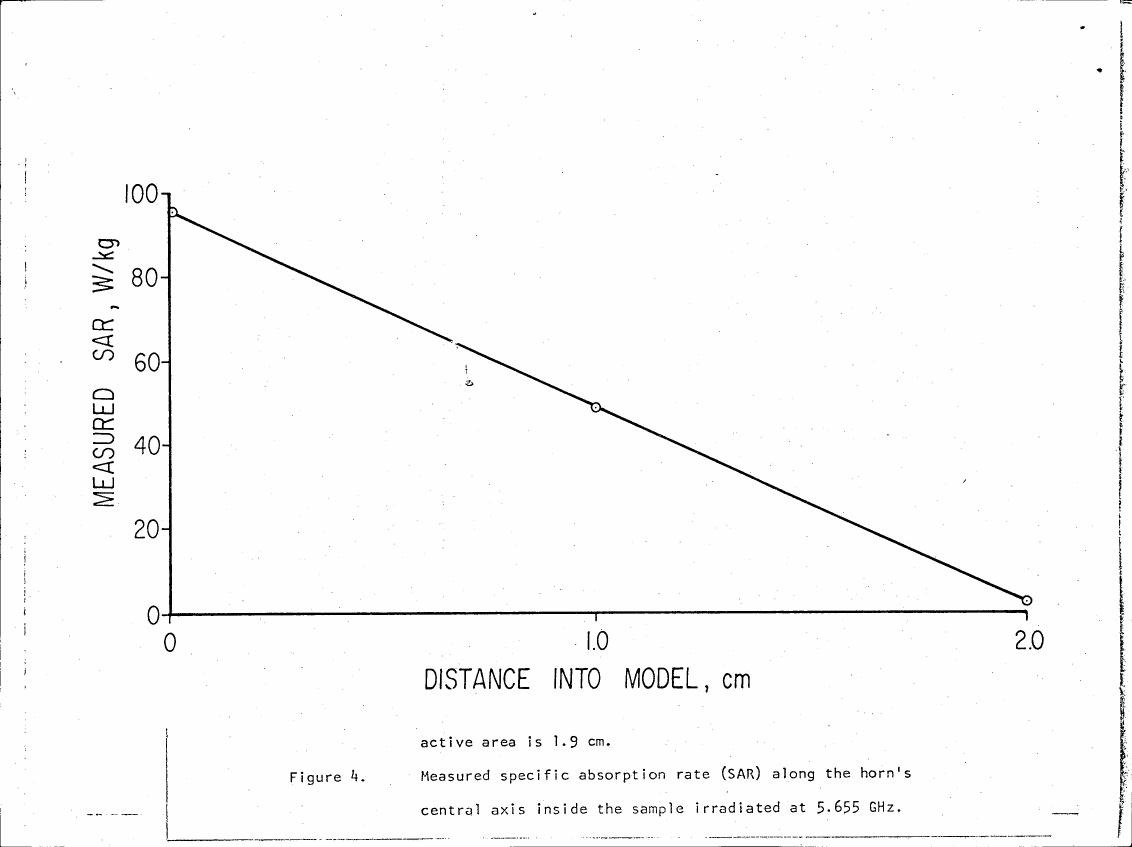

Figure 4. Measured specific absorption rate (SAR) along the horn's central axis inside the sample irradiated at 5.655 GHz. — graphPage 4 - Figure 4. Measured specific absorption rate (SAR) along the horn's central axis inside the sample irradiated at 5.655 GHz.
p. 4 of the original PDF

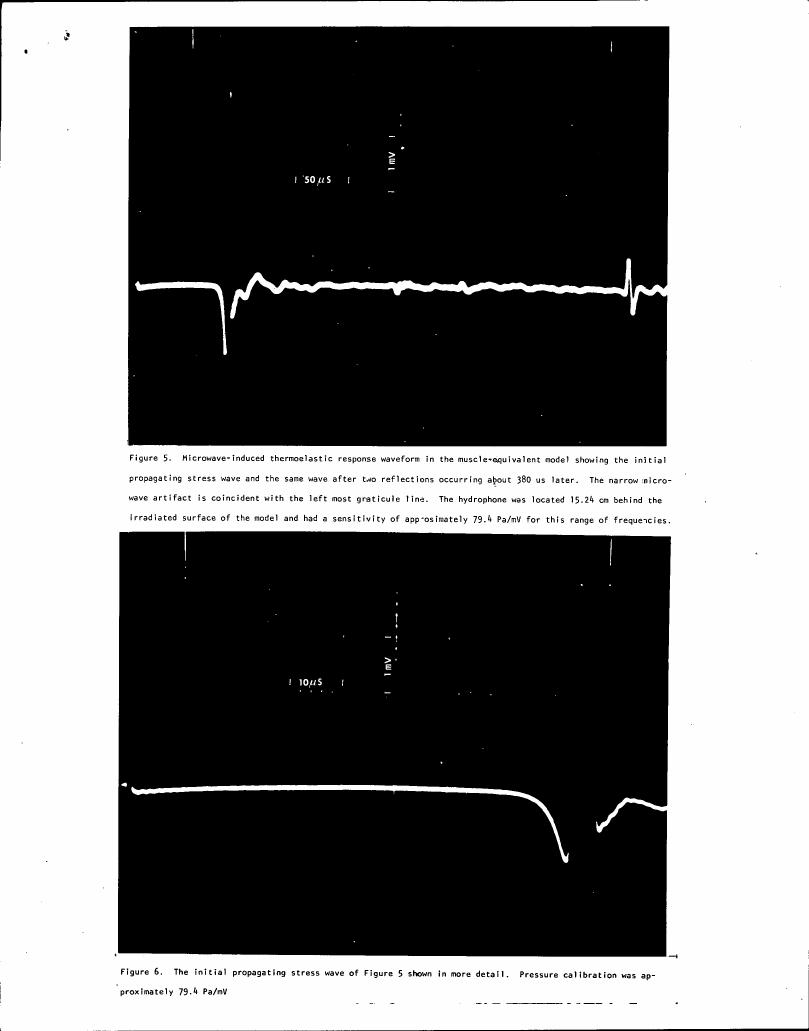

Figure 5. Microwave-induced thermoelastic response waveform in the muscle-equivalent model showing the initial propagating stress wave and the same wave after two reflections occurring about 380 us later. — graphPage 5 - Figure 5. Microwave-induced thermoelastic response waveform in the muscle-equivalent model showing the initial propagating stress wave and the same wave after two reflections occurring about 380 us later.
p. 5 of the original PDF

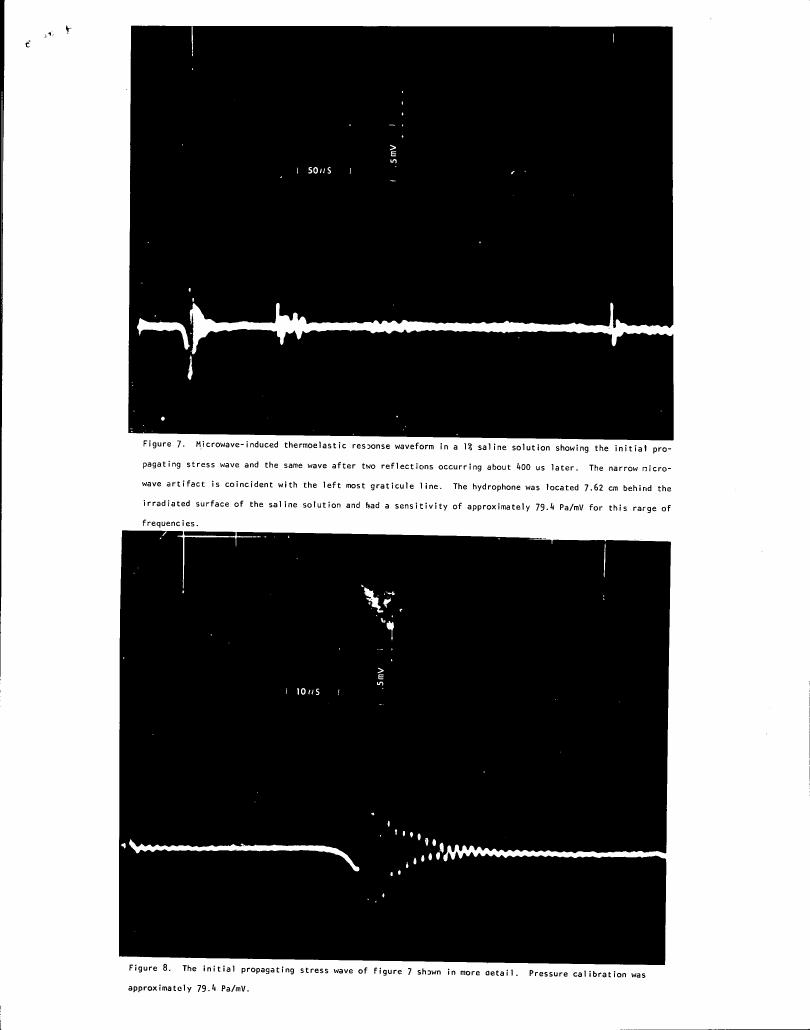

Figure 7. Microwave-induced thermoelastic response waveform in a 1% saline solution showing the initial propagating stress wave and the same wave after two reflections occurring about 400 us later. — graphPage 6 - Figure 7. Microwave-induced thermoelastic response waveform in a 1% saline solution showing the initial propagating stress wave and the same wave after two reflections occurring about 400 us later.
p. 6 of the original PDF

Exposure Information

Specific exposure levels were not quantified in this study.
