Free-Space Electric Field Mapping of Microwave Diathermy Applicators

Bioeffects Seen

Donald M. Witters, Jr., Gideon Kantor, Ph. D. · 1978

Share:

Government research mapped dangerous electric field leakage from medical microwave diathermy devices to establish safety protocols.

Plain English Summary

Summary written for general audiences

This 1978 government research mapped the electric field patterns produced by microwave diathermy devices used in medical therapy. The study measured how these therapeutic microwave applicators distribute electromagnetic energy in free space around the treatment area. This work helped establish safety protocols for medical microwave equipment that delivers concentrated RF energy to patients.

Why This Matters

This government research from 1978 represents crucial foundational work in understanding how medical microwave devices distribute electromagnetic energy. Diathermy applicators deliver concentrated microwave radiation for therapeutic heating of deep tissues, operating at power levels far exceeding consumer devices. What makes this study significant is that it mapped the 'leakage' fields around these medical devices - the unintended radiation that escapes the targeted treatment area.

The reality is that medical microwave diathermy exposes both patients and healthcare workers to substantial electromagnetic fields. While therapeutic benefits may justify patient exposure, this research helped establish that proper shielding and safety protocols are essential. The electric field mapping techniques developed here became standard practice for evaluating EMF exposure from all types of microwave medical equipment, from diathermy to MRI systems.

Figures from the Original Paper

Diagram extracted from the original research document.

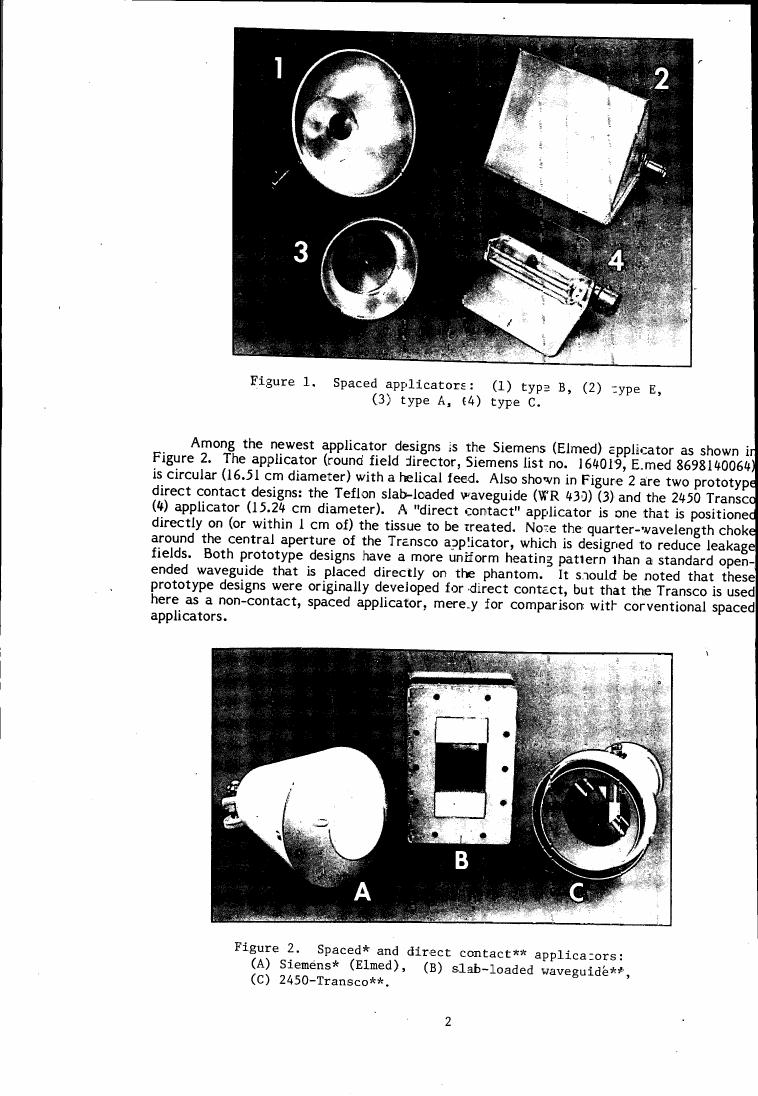

diagramPage 10 - AI-described figure: Figure 1 displays various types of spaced applicators (B, E, A, C) used in medical applications.
p. 10 of the original PDF

Exposure Information

A logarithmic frequency spectrum from 10 Hz to 100 GHz showing where this study's 2.45 GHz exposure sits relative to common EMF sources.Where This Frequency Sits on the EMF SpectrumELFVLFLF / MFHF / VHFUHFSHFmm10 Hz100 GHzThis study: 2.45 GHzPower lines50/60 Hz5G mm28 GHzLogarithmic scale

Specific exposure levels were not quantified in this study.

Study Details

To study the performance characteristics of various prototype and clinically used microwave diathermy applicators through electric field mapping and to investigate safety and thermal effectiveness.

Free-space electric field mapping was conducted using a 3-axis miniature diode-dipole probe develope...

The study found that for planar geometry, the transverse field induces virtually all heating in tiss...

Free-space electric field maps were presented for various prototype and clinically used microwave diathermy applicators. Thermal maps describing energy deposition in planar phantoms of simulated tissue confirmed the results of the field maps. The study showed that for planar geometry, the transverse field induces virtually all heating in tissue and that the longitudinal or radial field does not contribute significantly to the heating effect. The Transco applicator was found to be the safest and most effective in terms of heating the prescribed tissue with low leakage.

Cite This Study
Donald M. Witters, Jr., Gideon Kantor, Ph. D. (1978). Free-Space Electric Field Mapping of Microwave Diathermy Applicators.
Show BibTeX
@article{free_space_electric_field_mapping_of_microwave_diathermy_applicators_g6017,
  author = {Donald M. Witters and Jr. and Gideon Kantor and Ph. D.},
  title = {Free-Space Electric Field Mapping of Microwave Diathermy Applicators},
  year = {1978},


}
No DOI on file for this study.

Quick Questions About This Study

Microwave diathermy applicators deliver concentrated electromagnetic energy to heat deep body tissues for therapeutic purposes. These medical devices treat conditions like arthritis, muscle injuries, and chronic pain by using microwave radiation to generate controlled heating in targeted areas.
Electric field mapping revealed how much microwave radiation leaked outside the intended treatment area. This information was essential for protecting healthcare workers and ensuring patient safety by identifying areas where dangerous exposure levels might occur around the medical equipment.
Medical diathermy devices operate at much higher power levels than consumer electronics like cell phones or WiFi routers. While your phone emits milliwatts of power, diathermy applicators can deliver hundreds of watts of concentrated microwave energy for therapeutic heating effects.
This research established guidelines for safe distances around operating diathermy equipment and requirements for electromagnetic shielding. The field mapping data helped determine where healthcare workers could safely position themselves during treatments and what protective measures were necessary.
Yes, all medical microwave equipment must undergo electromagnetic field testing before approval. The mapping techniques developed in this 1978 research remain the foundation for evaluating EMF exposure from medical devices, ensuring both patient treatment effectiveness and operator safety.
