GENERATION AND DETECTION OF PULSED X-RAY FROM MICROWAVE SOURCES
Anthony P. DeMinco · 1960
Microwave sources can generate harmful X-ray radiation, revealing dual radiation risks from common household and industrial equipment.
Plain English Summary
This 1960 technical report examined how microwave sources can generate pulsed X-rays and methods for detecting these emissions. The research focused on the phenomenon where microwave equipment can produce ionizing radiation as an unintended byproduct. This work helped establish early understanding of secondary radiation emissions from microwave technology.
Why This Matters
This early technical research reveals a critical but often overlooked aspect of microwave technology: its ability to generate ionizing X-ray radiation. While modern microwave ovens include safety features to prevent X-ray leakage, this 1960 study demonstrates that the fundamental physics remains unchanged. The science shows that high-powered microwave sources can indeed produce pulsed X-rays through various mechanisms, including interactions with metal components and electron acceleration.
What this means for you is that microwave technology carries dual radiation risks. Beyond the well-documented thermal and non-thermal effects of microwave radiation itself, there's the additional concern of potential X-ray emissions from faulty or aging equipment. The reality is that safety standards developed decades ago may not account for cumulative exposures or the interaction effects between different types of radiation from the same source.
Figures from the Original Paper

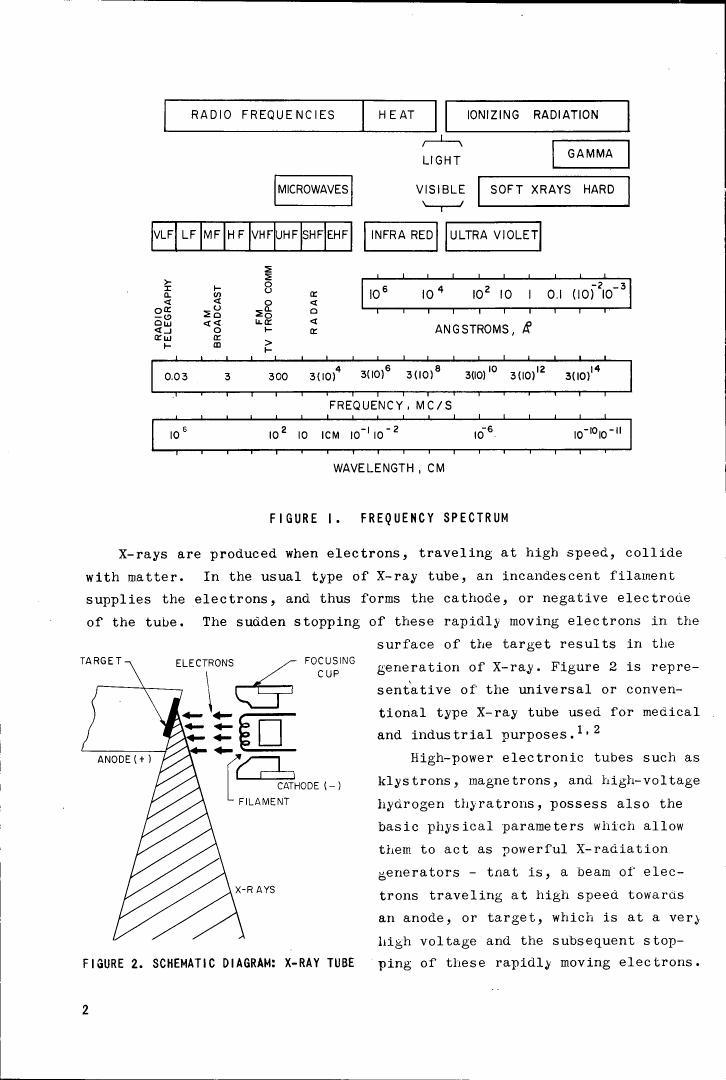

Diagram extracted from the original research document.
Exposure Information
Specific exposure levels were not quantified in this study.
Study Details
To describe in general the generation and detection of pulsed X-radiation emanating from high power microwave generators
We have discussed the physical concepts of the generation and detection of pulsed X-ray from microwave sources. To relate all this to man, some standards, rules, or procedures must be established. Radiation protection standards do not readily permit direct testing, hence are not standards at all; they are merely overall radiation protection guides. Most of our radiation protective criteria are based on absence of the demonstration of any deleterious influence. Because of our limited knowledge of the effect of low levels of radiation on animals and the almost nonexistent knowledge of the effects of small doses of radiation on man, the permissible exposure levels for radiation values have been set low enough so that there is a negligible probability that radiation damage would occur. X-radiation from high-power microwave generators is, in all respects, a potential hazard. From all present indications, it would appear that the present offenders, klystrons, magnetrons, and so forth, are not headed for extinction. It is very possible that the energy peak has been reached, but with increases in currents, the intensity factor of X-radiation is progressively climbing. Where one tube alone will not give sufficient r-f output, two, four, and even eight are being used in combination to reach unheard of power levels. X-radiation levels, correspondingly will add up with the multiplicity of tubes. Despite potential X-radiation outputs of unheard of proportions, the USAF has equipments operating in the field which are relatively personnel safe. On the average, X-radiation is so low that in some instances it is difficult to detect. Safety features are being designed into equipment which will prevent personnel from experiencing any catastrophic amounts of X-radiation. However, all effects due to human frailty and ingenuity cannot be totally designed out of equipment. As long as we have a thorough understanding of the nature of this new potential hazard, the ability to detect and measure it with a fair degree of accuracy, and a willingness to adequately shield our equipments, personnel should not be subjected to harmful radiation. Interlock systems can be improved to the extent that removal of protective shielding and subsequent operation of the equipment become almost impossible. Since the human system is not capable of recognizing the reception of ionizing radiation, constant monitoring of equipment, people, and environment is necessary for the detection of potentially harmful ionization areas and the establishment of barriers. Each day we are making strides toward this accomplishment, such that no one of our personnel will knowingly or accidentally be subjected to harmful radiation.
Show BibTeX
@article{generation_and_detection_of_pulsed_x_ray_from_microwave_sources_g5112,
author = {Anthony P. DeMinco},
title = {GENERATION AND DETECTION OF PULSED X-RAY FROM MICROWAVE SOURCES},
year = {1960},
}
