GENERATION AND DETECTION OF PULSED X-RAY FROM MICROWAVE SOURCES
Anthony P. DeMinco · 1960
1960 research showed microwave sources can generate secondary X-ray radiation, revealing hidden ionizing effects from supposedly non-ionizing EMF sources.
Plain English Summary
This 1960 technical report examined how microwave sources can generate pulsed X-ray radiation and methods for detecting this secondary radiation. The research explored the phenomenon where microwave energy can produce ionizing X-rays under certain conditions. This work contributed to understanding how non-ionizing microwave radiation can create ionizing radiation as a byproduct.
Why This Matters
This early research reveals a critical but often overlooked aspect of microwave exposure: the potential for generating secondary X-ray radiation. While we typically think of microwaves as non-ionizing radiation, this 1960 study demonstrates that microwave sources can produce ionizing X-rays under specific conditions. This finding has profound implications for our understanding of microwave safety, particularly given that modern microwave ovens, radar systems, and high-powered wireless transmitters operate at similar frequencies. The science shows that what we consider "safe" non-ionizing radiation may actually create ionizing radiation as a secondary effect, adding another layer of complexity to EMF health assessments. This research underscores why comprehensive safety testing must account for all potential radiation byproducts, not just the primary emissions.

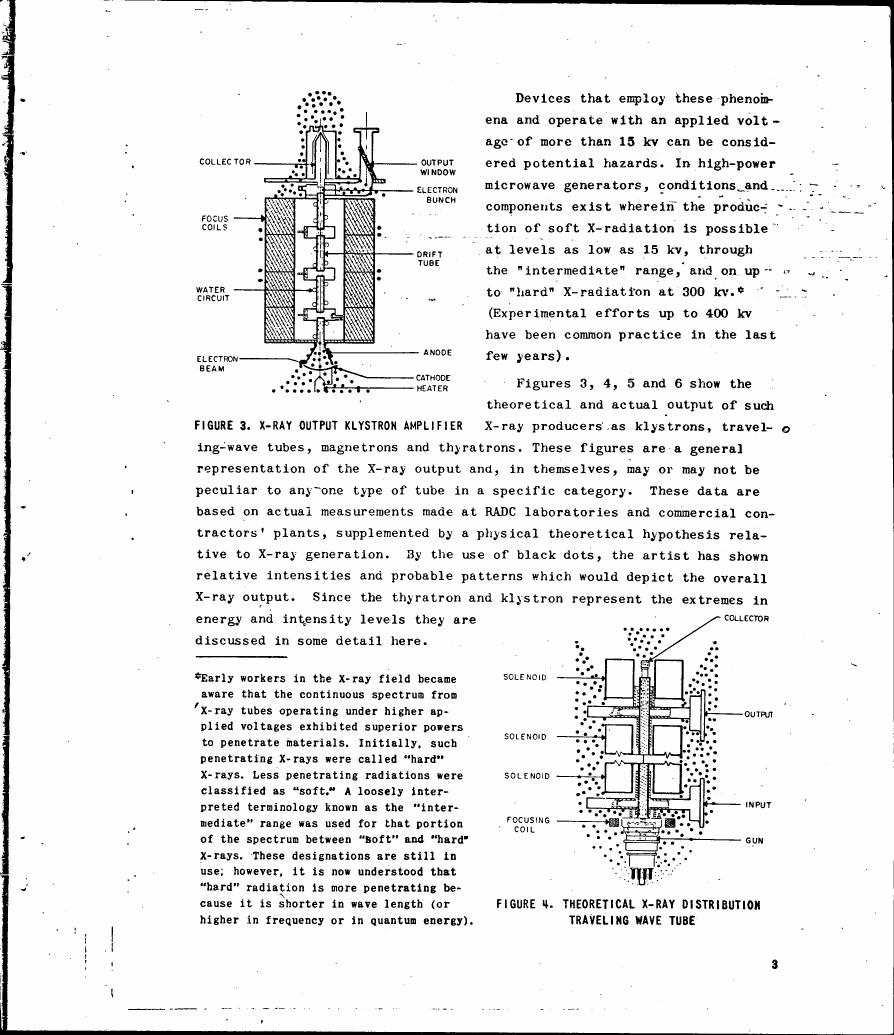

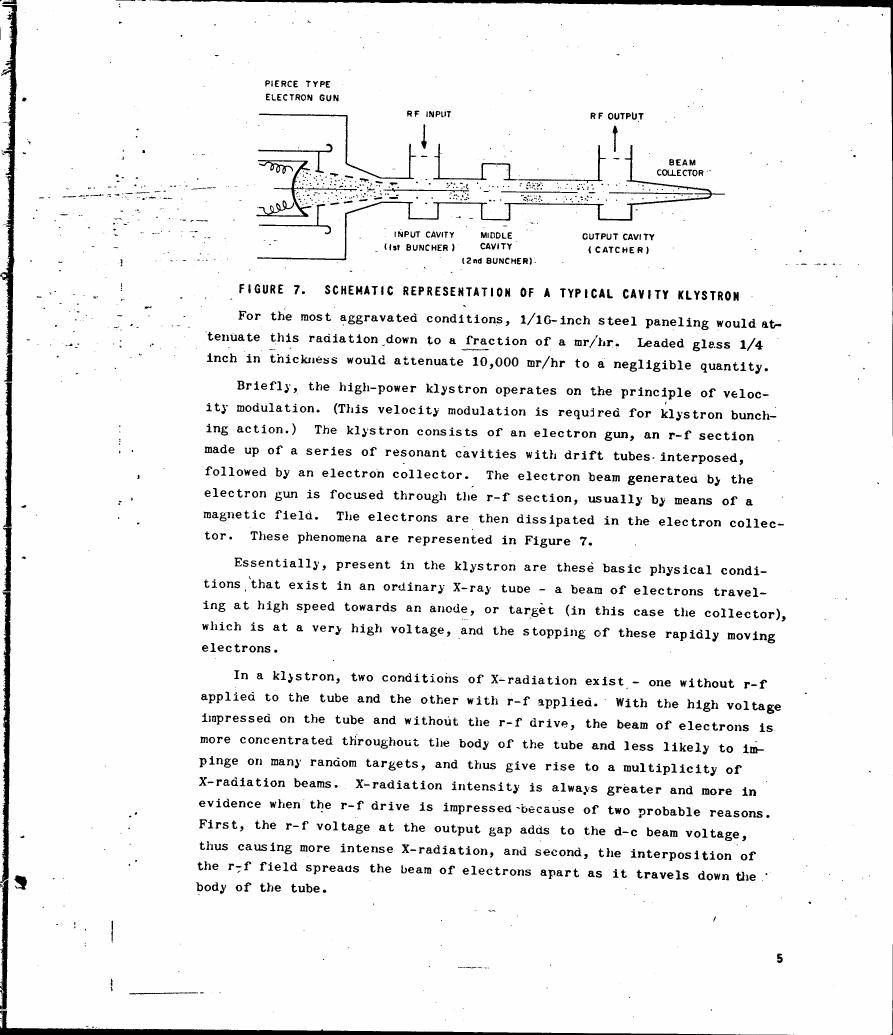

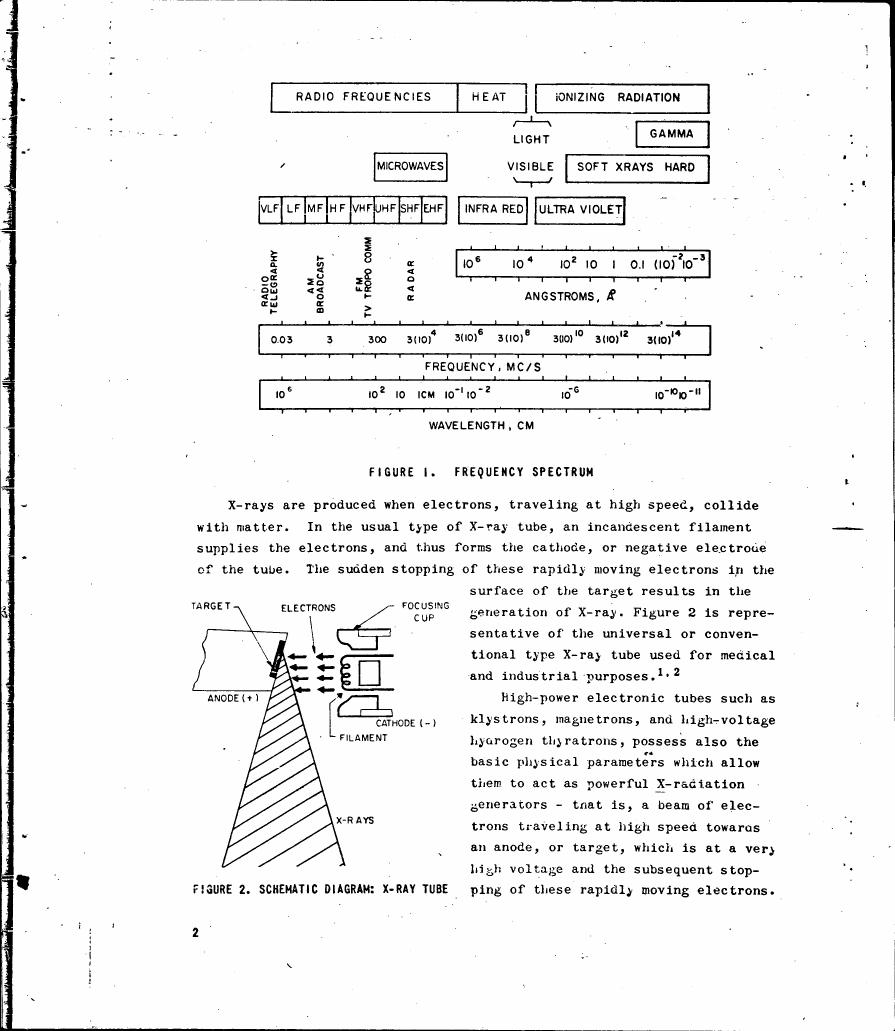

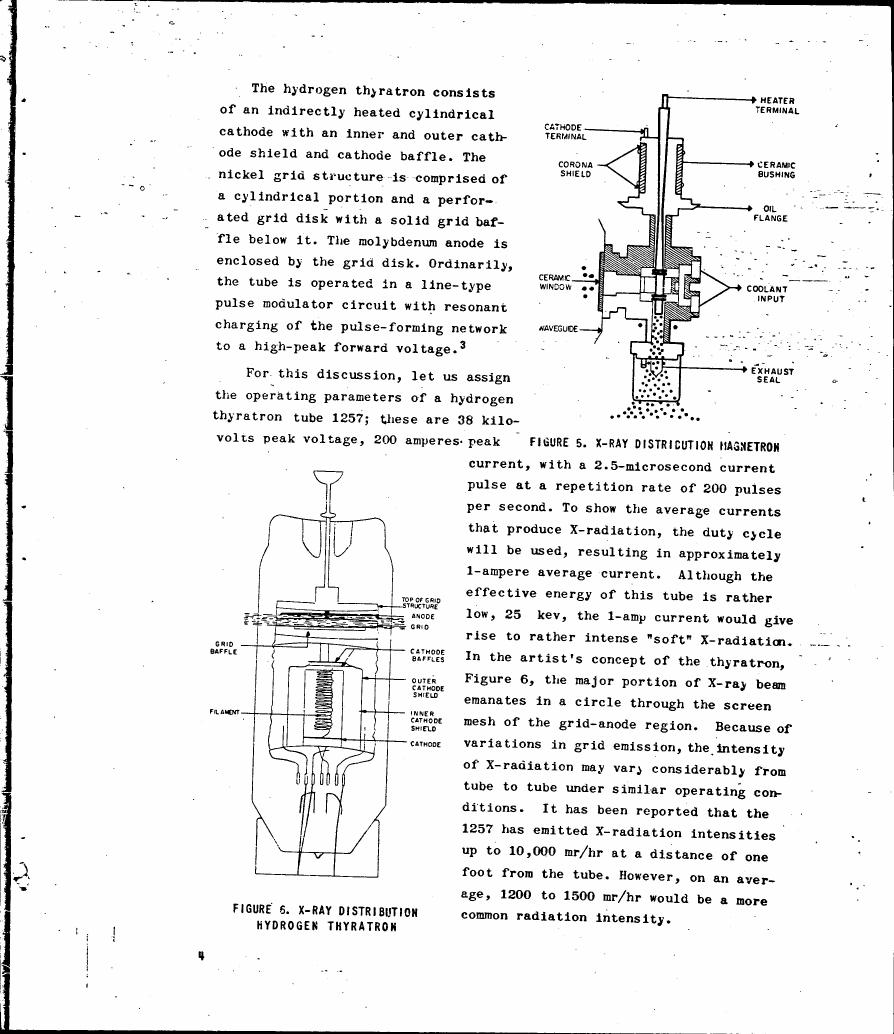

Figures from the Original Paper
Diagrams extracted from the original research document.
Exposure Information
Specific exposure levels were not quantified in this study.
Study Details
To describe in general the generation and detection of pulsed X-radiation emanating from high power microwave generators
We have discussed the physical concepts of the generation and detection of pulsed X-ray from microwave sources. To relate all this to man, some standards, rules, or procedures must be established. Radiation protection standards do not readily permit direct testing, hence are not standards at all; they are merely overall radiation protection guides. Most of our radiation protective criteria are based on absence of the demonstration or any deleterious influence. Because of our limited knowledge of the effect of low levels of radiation on animals and the almost nonexistent knowledge of the effects of small doses of radiation on man, the permissible exposure levels for radiation values have been set low enough so that there is a negligible probability that radiation damage would occur. X-radiation from high-power microwave generators is, in all respects, a potential hazard. From all present indications, it would appear that the present offenders, klystrons, magnetrons, and so forth, are not headed for extinction. It is very possible that the energy peak has been reached, but with increased currents, the intensity factor of X-radiation is progressively climbing. Where one tube alone will not give sufficient r-f output, two, four, and even eight are being used in combination to reach unheard of power levels. X-radiation levels, correspondingly will add up with the multiplicity of tubes. Despite potential X-radiation outputs of unheard of proportions, the USAF has equipments operating in the field which are relatively personnel safe. On the average, X-radiation is so low that in some instances it is difficult to detect. Safety features are being designed into equipment which will prevent personnel from experiencing any catastrophic amounts of X-radiation. However, all effects due to human frailty and ingenuity cannot be totally designed out of equipment. As long as we have a thorough understanding of the nature of this new potential hazard, the ability to detect and measure it with a fair degree of accuracy, and a willingness to adequately shield our equipments, personnel should not be subjected to harmful radiation. Interlock systems can be improved to the extent that removal of protective shielding and subsequent operation of the equipment become almost impossible. Since the human system is not capable of recognizing the reception of ionizing radiation, constant monitoring of equipment, people, and environment is necessary for the detection of potentially harmful ionization areas and the establishment of barriers. Each day we are making strides toward this accomplishment, such that no one of our personnel will knowingly or accidentally be subjected to harmful radiation.
Show BibTeX
@article{generation_and_detection_of_pulsed_x_ray_from_microwave_sources_g5835,
author = {Anthony P. DeMinco},
title = {GENERATION AND DETECTION OF PULSED X-RAY FROM MICROWAVE SOURCES},
year = {1960},
}
