GRAPH – TOTAL AVG RADIATED POWER
Authors not listed
Technical power measurements guide RF safety standards, but may miss biological effects occurring below heating thresholds.
Plain English Summary
This technical report analyzed total average radiated power from RF sources, examining power density patterns and safe distance calculations around antenna areas. The research focused on measuring how electromagnetic energy spreads from transmitting antennas and determining appropriate exposure limits based on power output.
Why This Matters
Understanding total average radiated power is fundamental to assessing RF exposure risks in our wireless world. This type of technical analysis forms the backbone of safety standards, yet the reality is that current guidelines often focus on heating effects while ignoring biological impacts at lower power levels. When you consider that cell towers, WiFi routers, and other RF sources operate continuously in our environment, the cumulative exposure from multiple sources becomes a critical concern. The science demonstrates that power density calculations alone may not capture the full picture of biological effects, particularly for long-term, low-level exposures that characterize modern life.
Figures from the Original Paper
Diagrams extracted from the original research document.
Exposure Information
Specific exposure levels were not quantified in this study.
Study Details

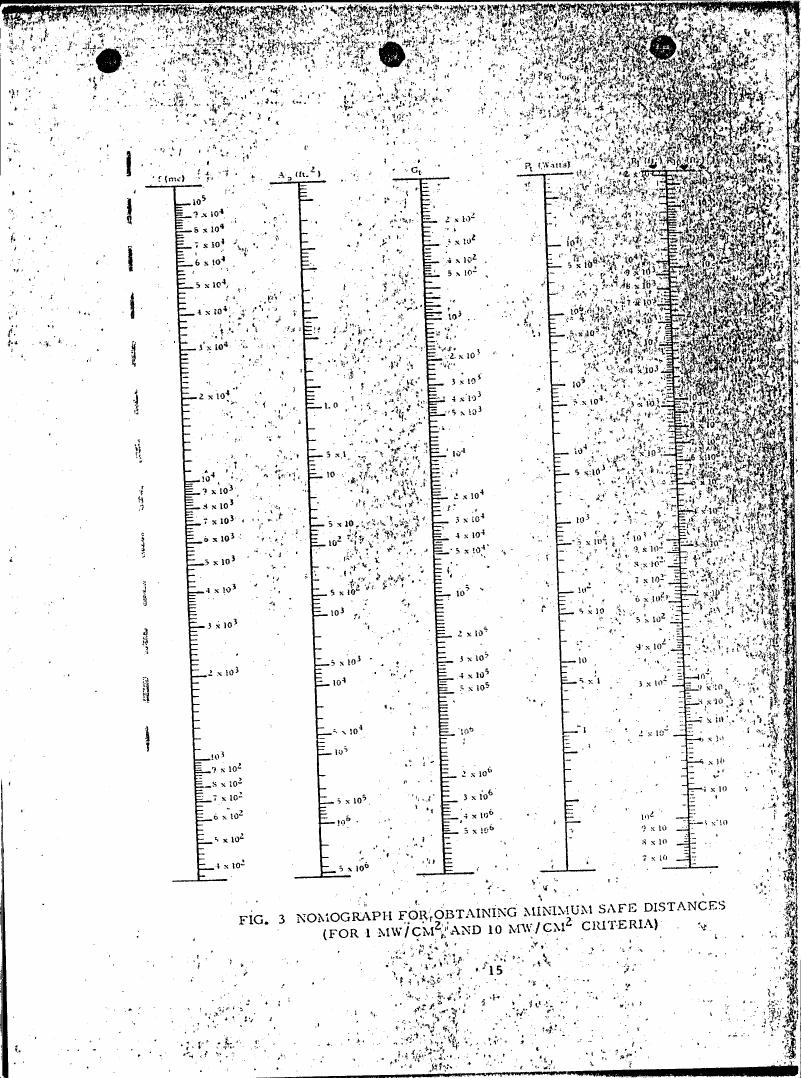

To determine safe power density limits for aircraft transit through high power density radio and radar beams, and to provide charts and procedures for calculating distances along the antenna beam axis at which these limits are reached.
Analysis of literature and conducted analyses, including determination of minimum safe distances usi...
Aircraft not carrying electroexplosive devices may be safely exposed to average power densities of 1...

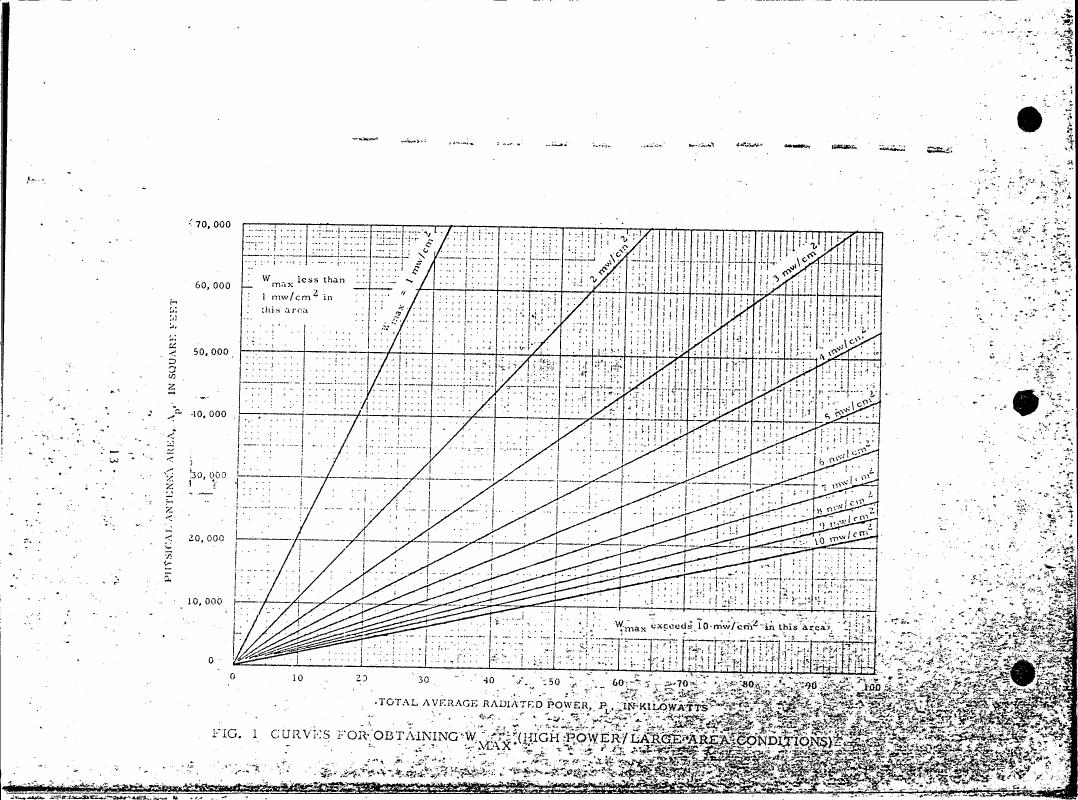

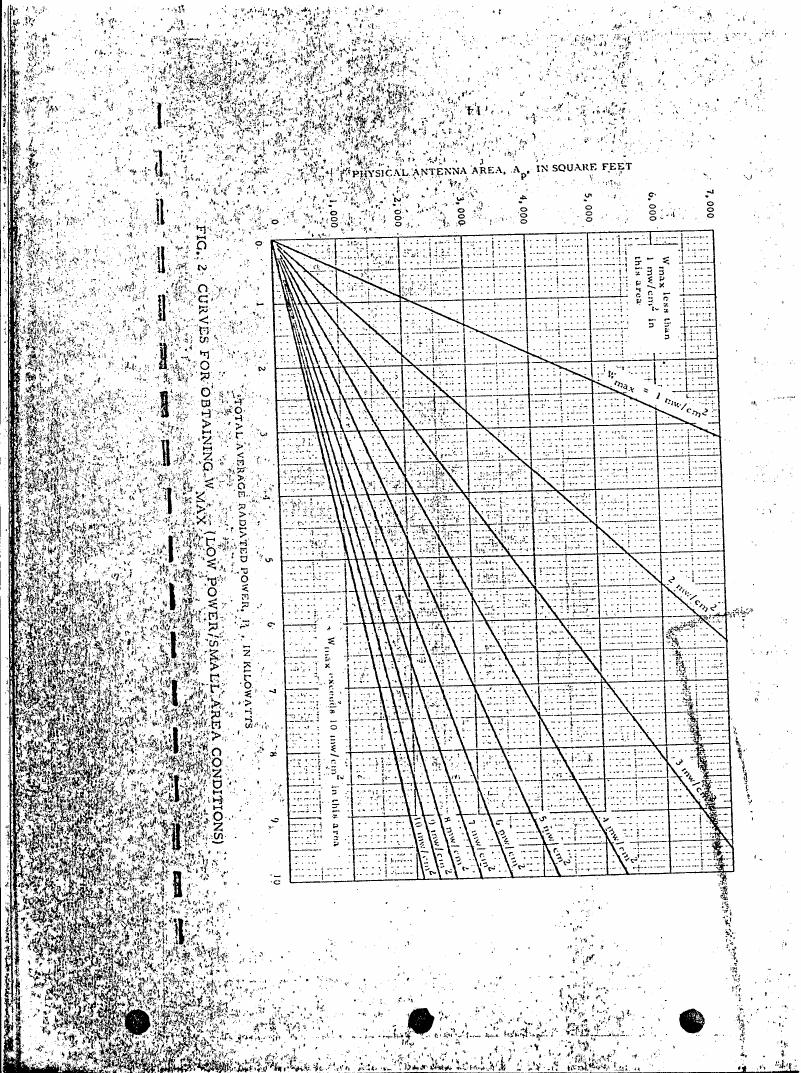

1. Aircraft transiting radio and radar beams of average power density 10 mw/cm² or less are safe, provided no electroexplosive devices are aboard. For guaranteed crystal protection, avionics items equipped with T-R (Transmit-Receive) tubes must be kept in POWER ON condition. 2. Aircraft carrying electroexplosive devices are safe in fields of average power density 1 mw/cm² or less when proper wiring procedures and maximum shielding efforts are used. 3. With regard to electroexplosive devices, progress by the military gives promise of yielding less restrictive limits in the near future. 4. The variety of high power installations precludes setting a single distance limit, and charts included in this report provide a rapid and simple means of converting from power density to distance along the antenna beam axis. 5. Power density calculations indicate that ATG radars have maximum power densities less than 10 mw/cm².
