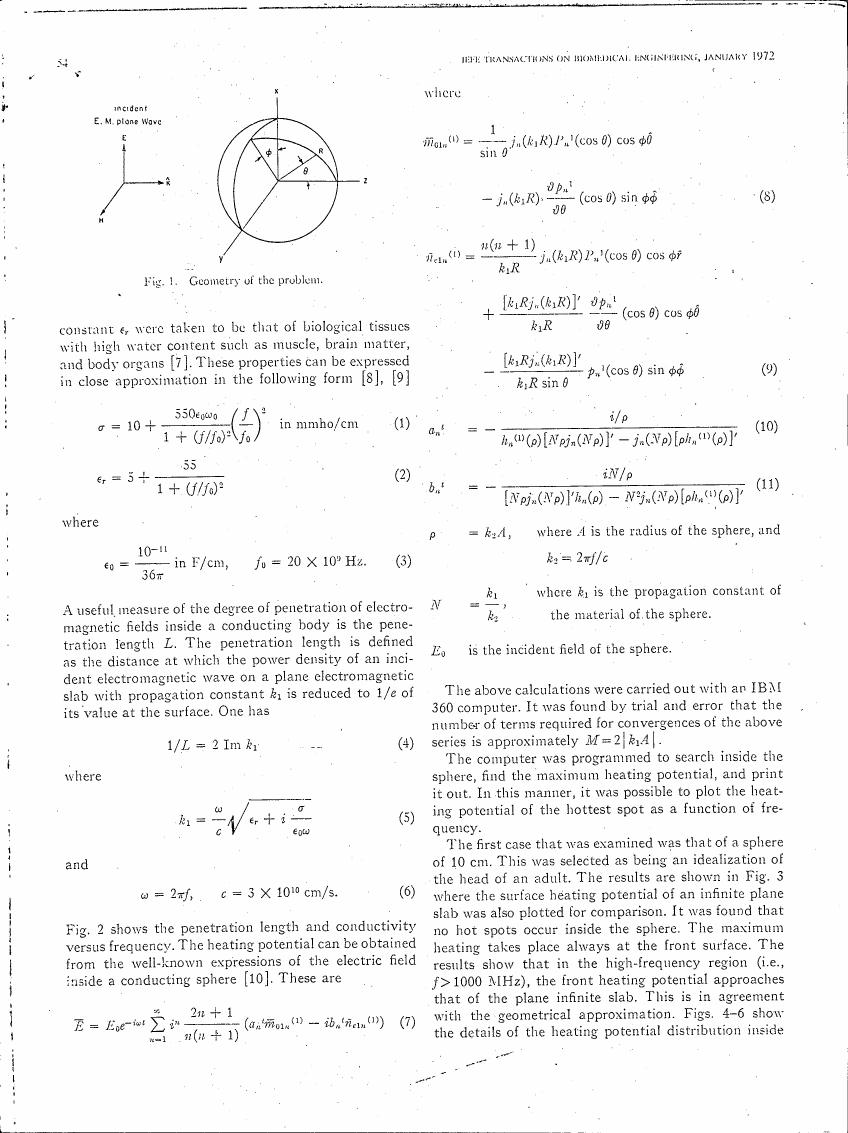

Hot Spots Generated in Conducting Spheres by Electromagnetic Waves and Biological Implications

Bioeffects Seen

Haralambos N. Kritikos, Herman P. Schwan · 1972

Share:

Children's smaller heads can develop dangerous internal electromagnetic hot spots at cell phone frequencies, while adult heads show only surface heating.

Plain English Summary

Summary written for general audiences

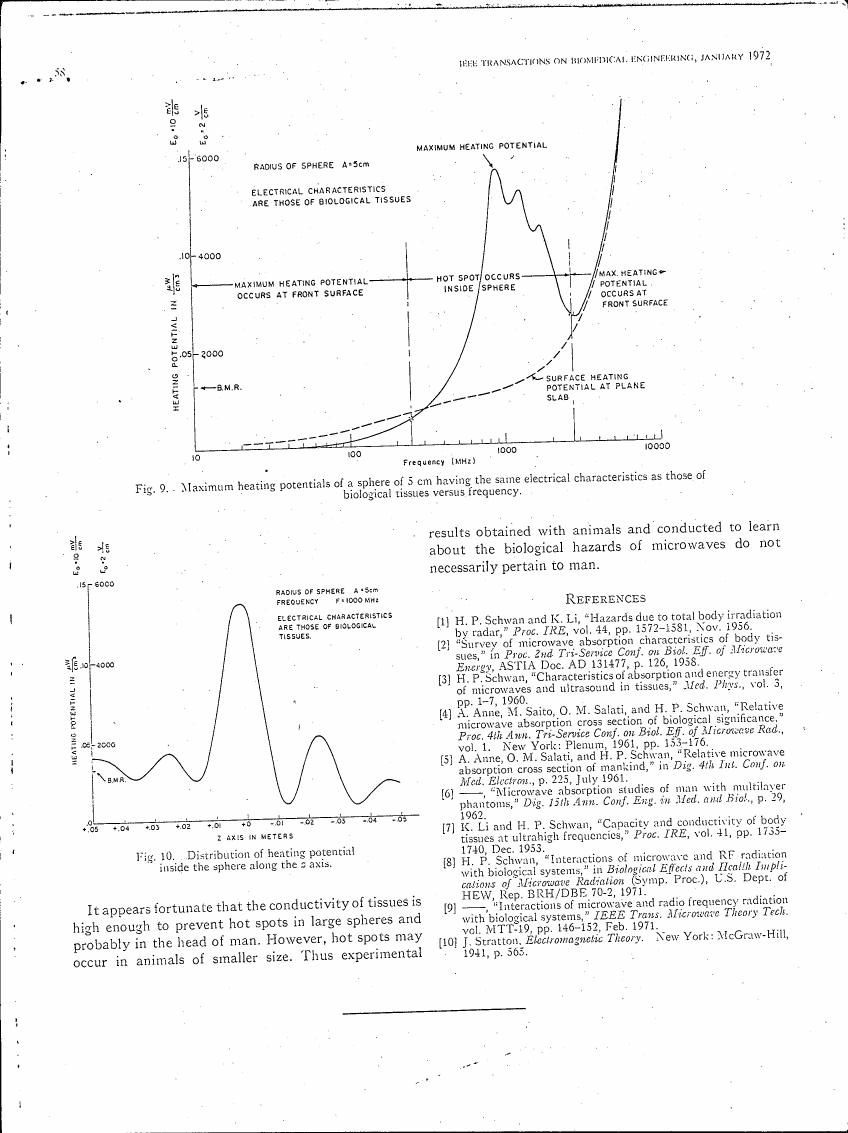

Researchers modeled electromagnetic wave heating in conducting spheres representing human heads of different sizes. They found that 10-cm radius spheres (adult heads) showed only surface heating above 1000 MHz, while smaller 4-cm spheres (child-sized heads) developed dangerous internal hot spots between 250-2800 MHz. This suggests children may face greater internal heating risks from radio frequency radiation.

Why This Matters

This early modeling study reveals a critical size-dependent vulnerability that has profound implications for EMF safety standards. The research demonstrates that smaller heads - particularly those of children - can develop intense internal heating patterns at frequencies now commonly used by cell phones, WiFi, and other wireless devices. While adult-sized models showed relatively safe surface heating, child-sized models exhibited dangerous hot spot formation across a broad frequency range that encompasses most modern wireless communications. The physics is straightforward: smaller conducting spheres can act as more efficient antennas at these frequencies, concentrating electromagnetic energy internally rather than dissipating it at the surface. This finding challenges the one-size-fits-all approach of current safety standards, which are based primarily on adult male models and focus on average heating rather than localized hot spots.

Exposure Information

Specific exposure levels were not quantified in this study.

Cite This Study
Haralambos N. Kritikos, Herman P. Schwan (1972). Hot Spots Generated in Conducting Spheres by Electromagnetic Waves and Biological Implications.
Show BibTeX
@article{hot_spots_generated_in_conducting_spheres_by_electromagnetic_waves_and_biologica_g6151,
  author = {Haralambos N. Kritikos and Herman P. Schwan},
  title = {Hot Spots Generated in Conducting Spheres by Electromagnetic Waves and Biological Implications},
  year = {1972},


}

Quick Questions About This Study

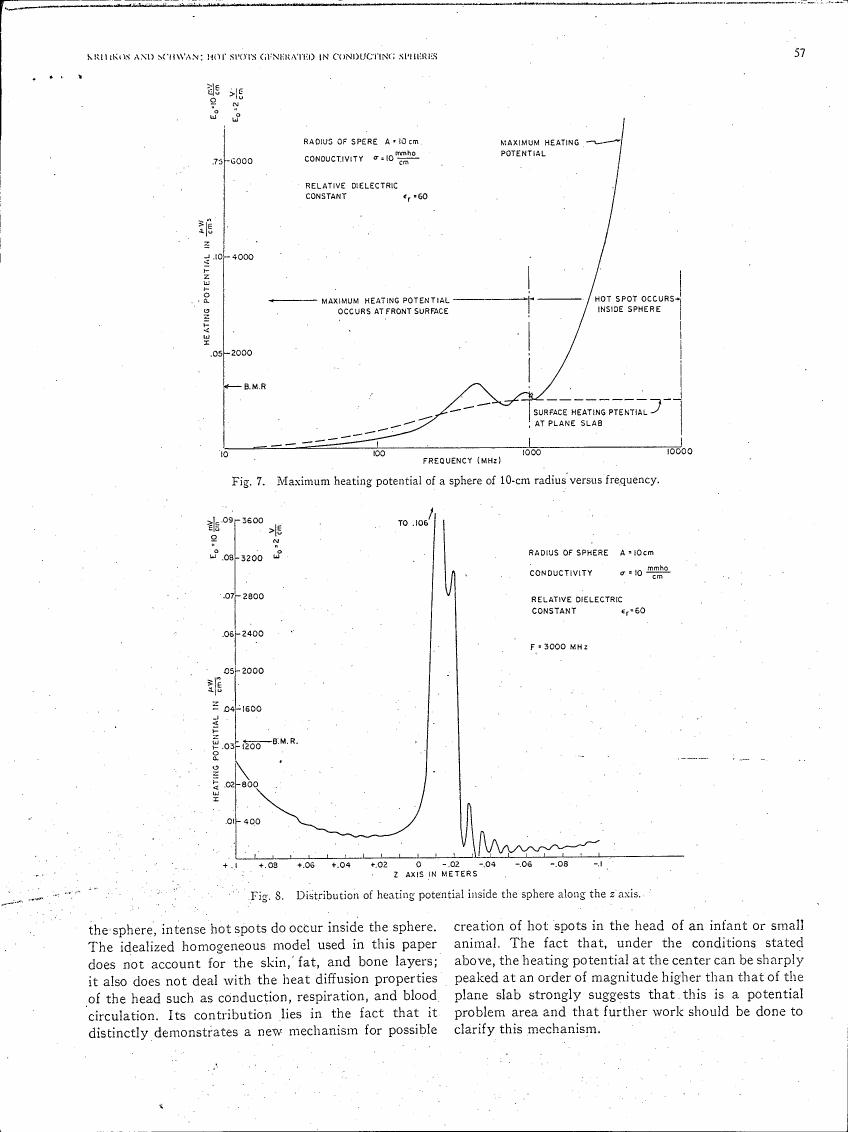

Yes, this study found that smaller head models (4-cm radius) developed intense internal hot spots between 250-2800 MHz, while larger adult-sized models (10-cm radius) showed only surface heating above 1000 MHz.
Internal hot spots formed in child-sized head models between 250-2800 MHz. This frequency range includes most modern wireless communications including cell phones, WiFi, and Bluetooth operating frequencies.
Smaller conducting spheres act as more efficient antennas at certain frequencies, concentrating electromagnetic energy internally rather than dissipating it safely at the surface like larger heads do.
Absolutely. The study showed dramatically different heating patterns between 10-cm and 4-cm radius spheres, with smaller models developing concentrated internal hot spots that larger models avoided entirely.
Lower frequencies below 1000 MHz produced relatively uniform heating in adult-sized models, while frequencies above 1000 MHz caused only skin heating. Child-sized models showed dangerous hot spot formation across 250-2800 MHz.
