ILS FAA Instrument Landing System Standard Characteristics and Terminology

Bioeffects Seen

Authors not listed · 1972

Share:

1972 radar field mapping reveals high-intensity EMF zones around airports that still expose millions today.

Plain English Summary

Summary written for general audiences

This 1972 technical report documented computed field intensity measurements from radar antenna systems, including instrument landing systems (ILS) and air route surveillance radar (ARSR). The research focused on mapping electromagnetic field patterns in the near-zone beam areas around these high-powered radar installations. This type of field mapping was essential for understanding exposure levels around aviation radar systems that operate continuously at airports.

Why This Matters

This technical documentation represents an important piece of the puzzle in understanding radar EMF exposures that affect millions of people daily. Aviation radar systems like ILS and ARSR operate at substantial power levels and run continuously at airports worldwide, creating persistent electromagnetic field exposures for airport workers, nearby residents, and air travelers. The 1972 timeframe is significant because it predates most EMF health research, meaning these systems were deployed and field intensities mapped without consideration of biological effects. What makes this particularly relevant today is that many of these same radar systems continue operating at airports, often with even higher power levels, while we now have decades of research showing potential health effects from chronic EMF exposure. The near-zone beam patterns documented in studies like this help us understand that radar exposure isn't uniform - there are hotspots and areas of intense field concentration that create much higher exposures than average measurements might suggest.

Figures from the Original Paper

Diagrams extracted from the original research document.

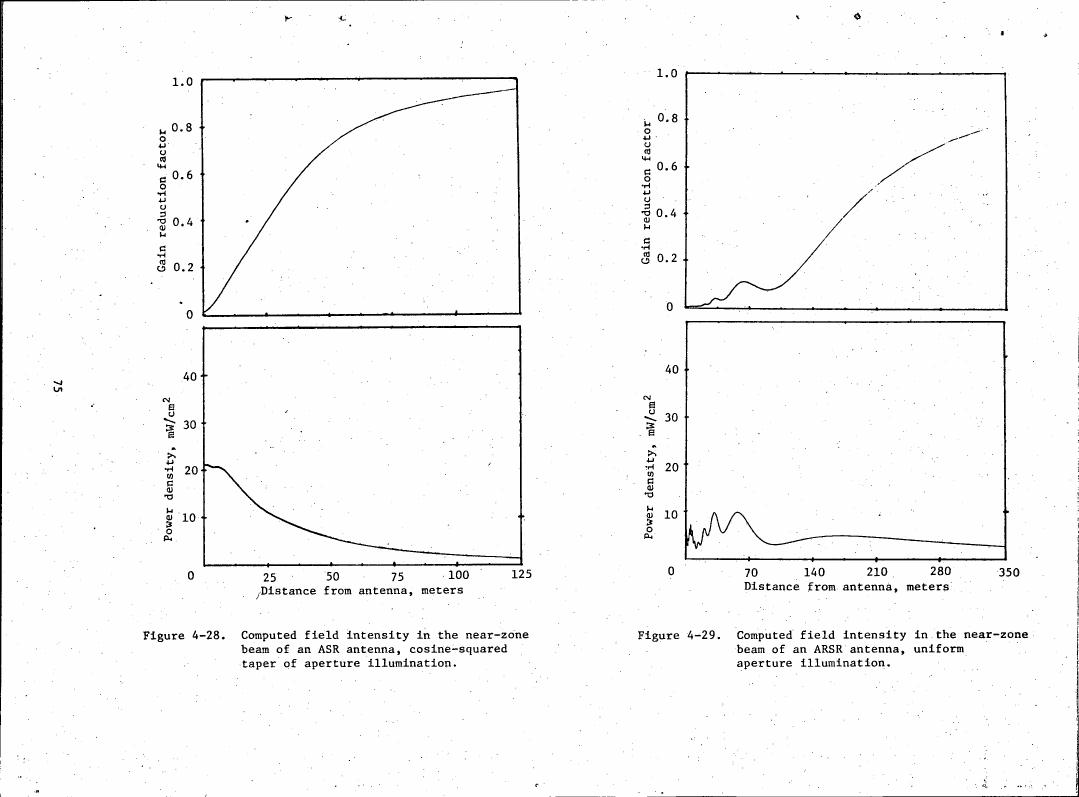

graphPage 1 - AI-described figure: Figure 4-28 and Figure 4-29 show computed field intensity in the near-zone beam of an ASR antenna with different types of aperture illumination.
p. 1 of the original PDF

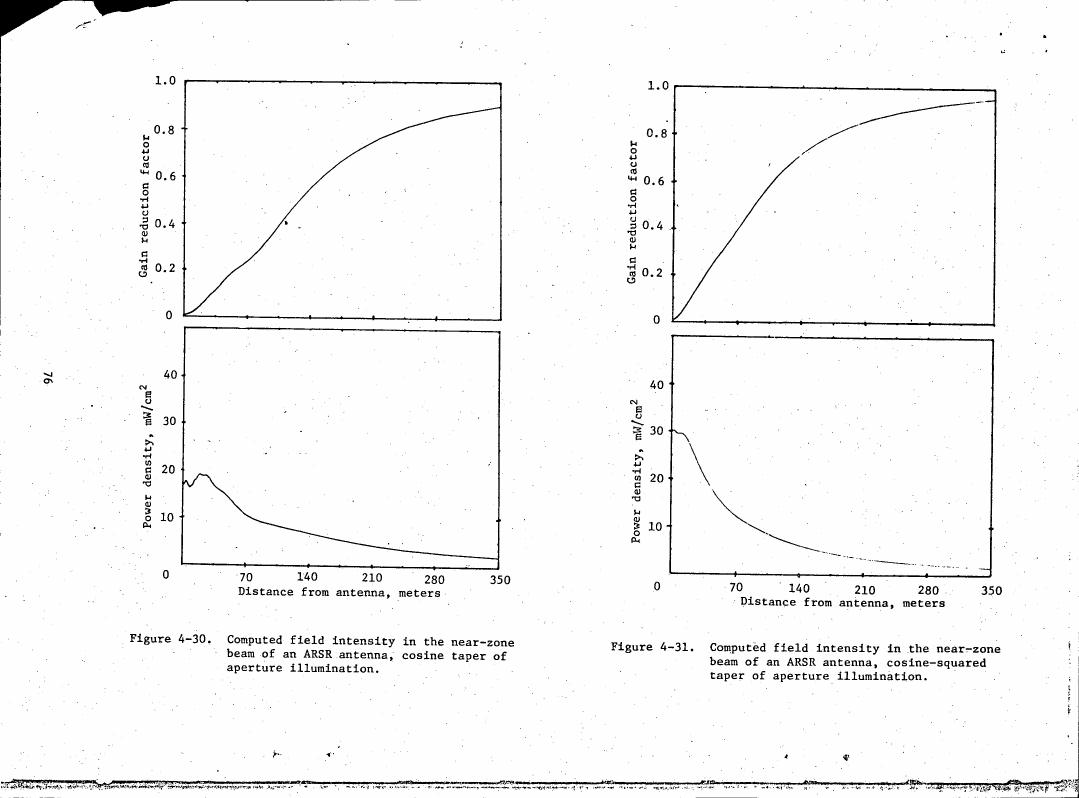

graphPage 2 - AI-described figure: Figure 4-30 and Figure 4-31 show computed field intensity in the near-zone beam of an ARSR antenna with cosine taper and cosine-squared taper of aperture illumination, respectively.
p. 2 of the original PDF

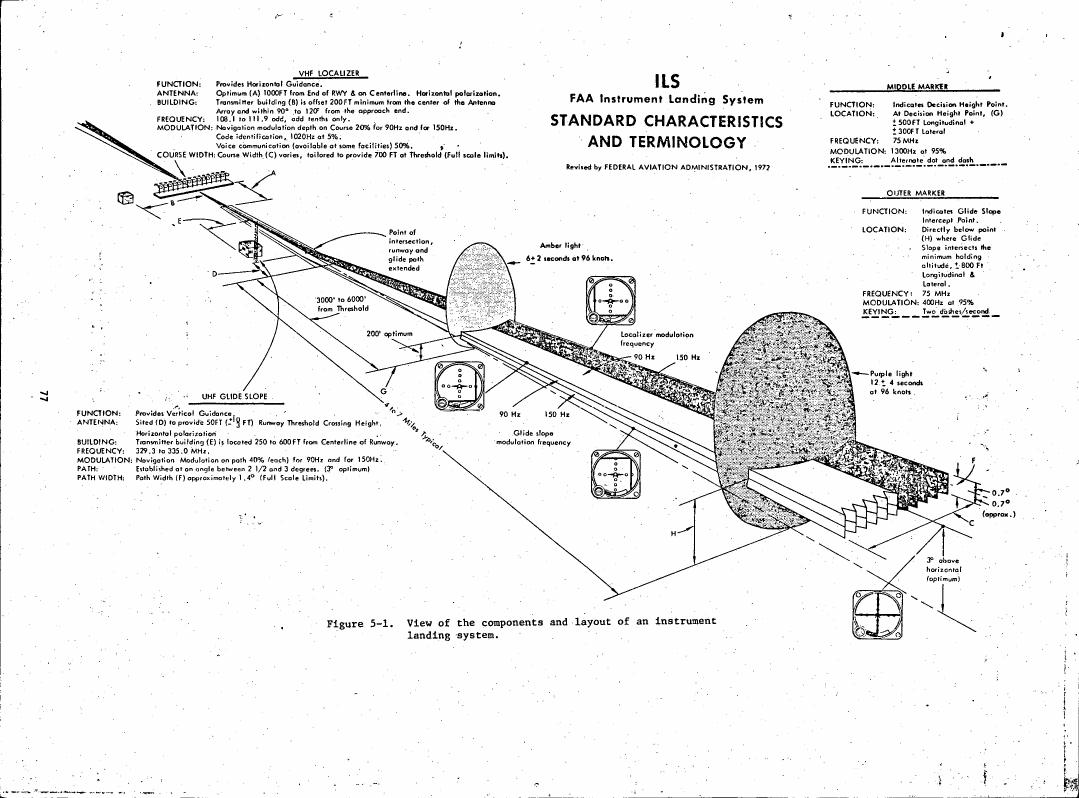

diagramPage 3 - Figure 5-1. View of the components and layout of an instrument landing system.
p. 3 of the original PDF

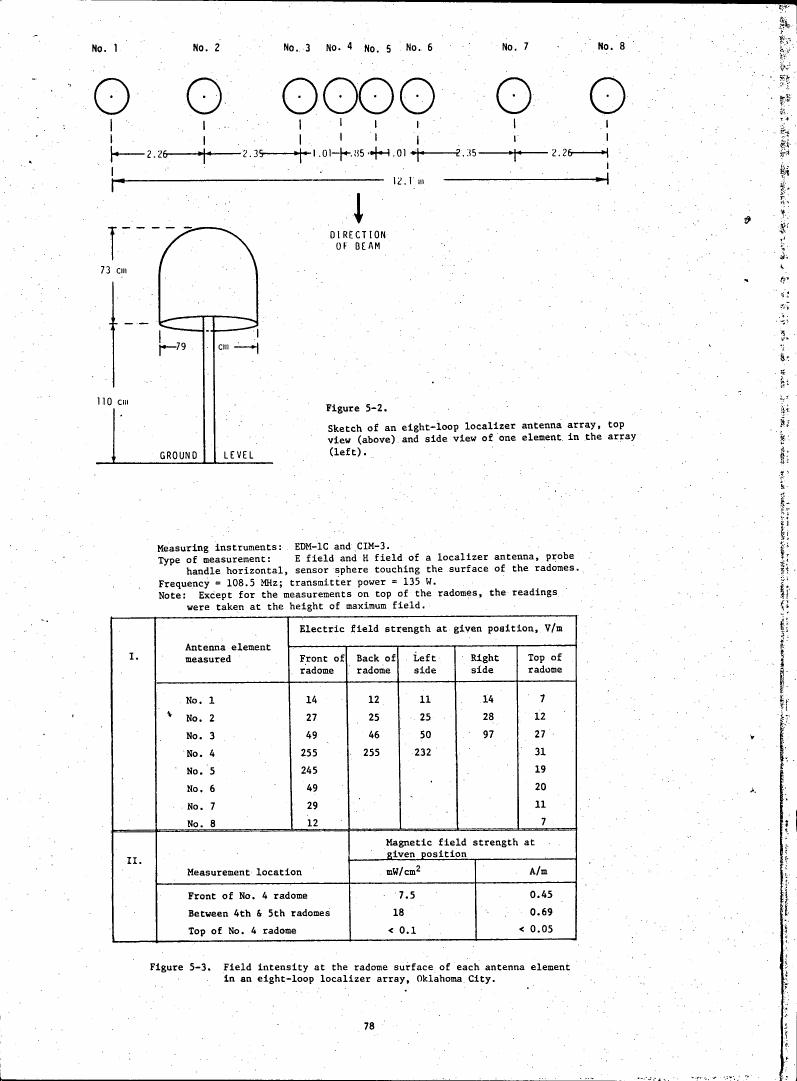

diagramPage 4 - AI-described figure: Figure 5-2. Sketch of an eight-loop localizer antenna array, top view (above) and side view of one element in the array (left).
p. 4 of the original PDF

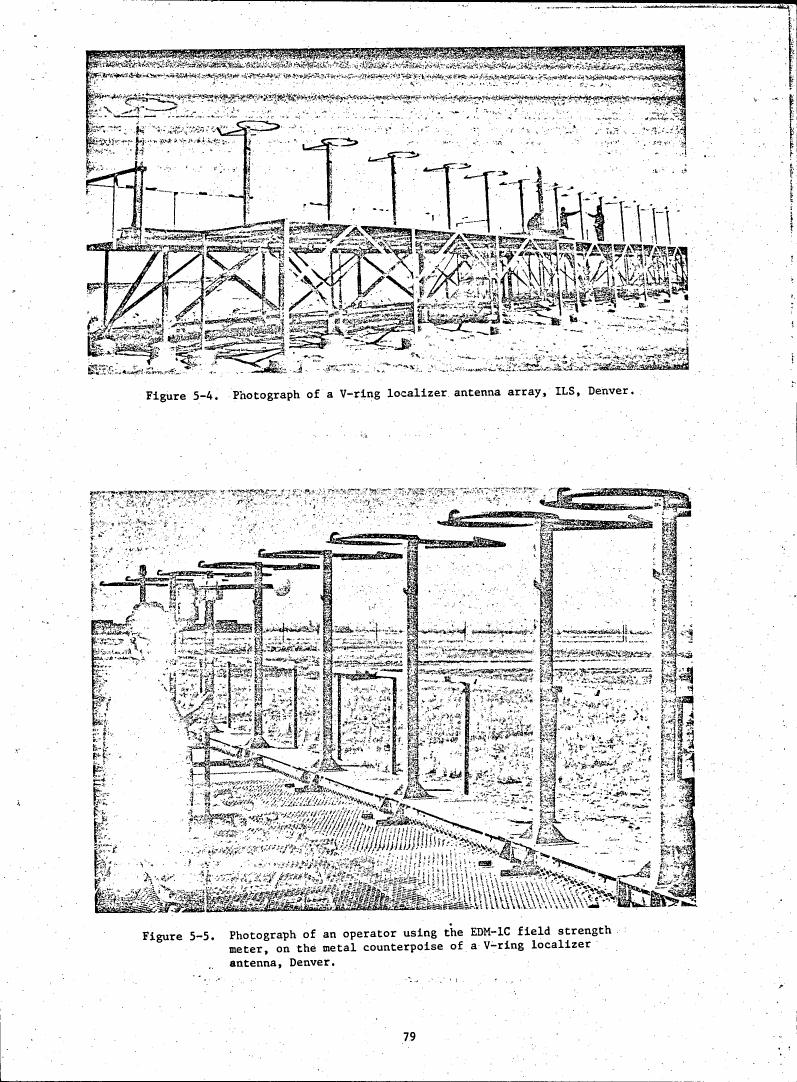

photoPage 5 - Figure 5-4. Photograph of a V-ring localizer antenna array, ILS, Denver.
p. 5 of the original PDF

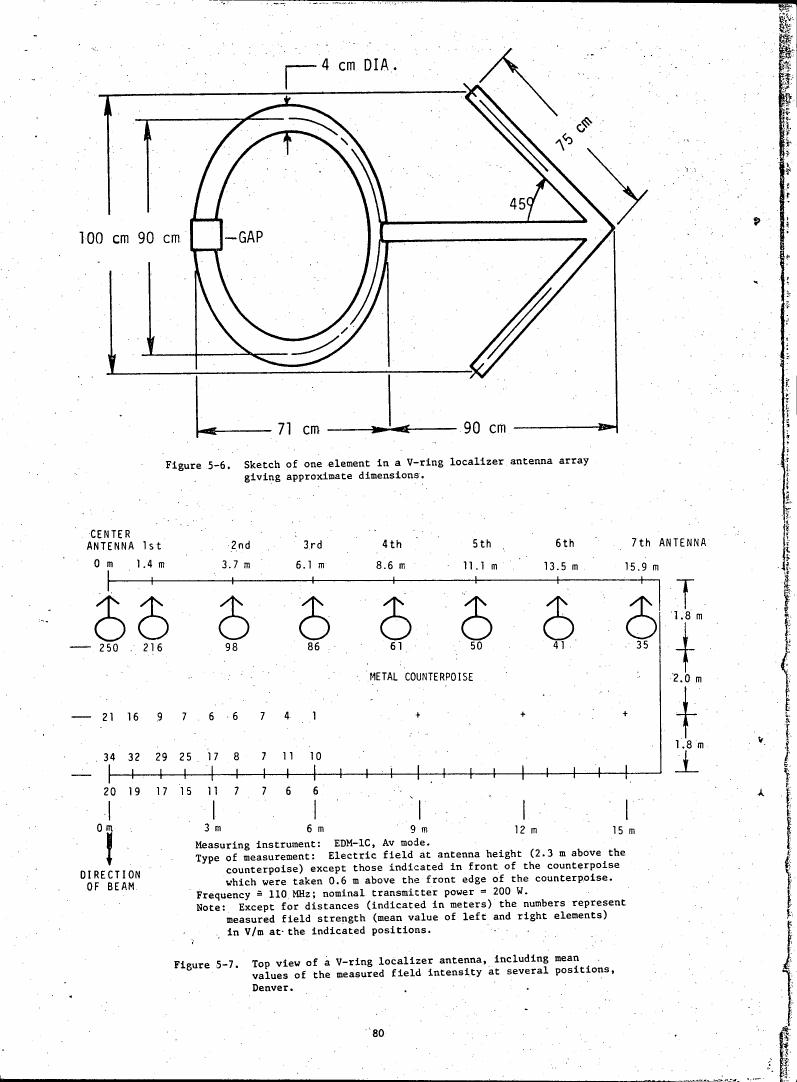

diagramPage 6 - Figure 5-6. Sketch of one element in a V-ring localizer antenna array giving approximate dimensions.
p. 6 of the original PDF

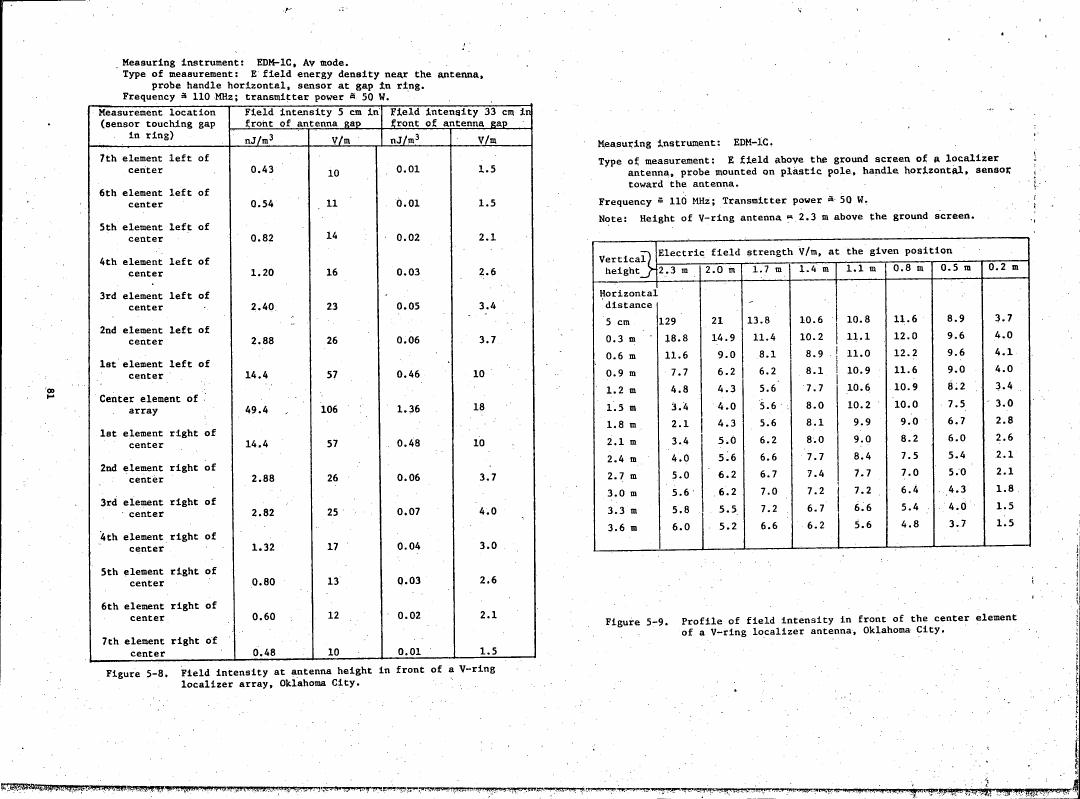

chartPage 7 - AI-described figure: Figure 5-9. Profile of field intensity in front of the center element of a V-ring localizer antenna, Oklahoma City.
p. 7 of the original PDF

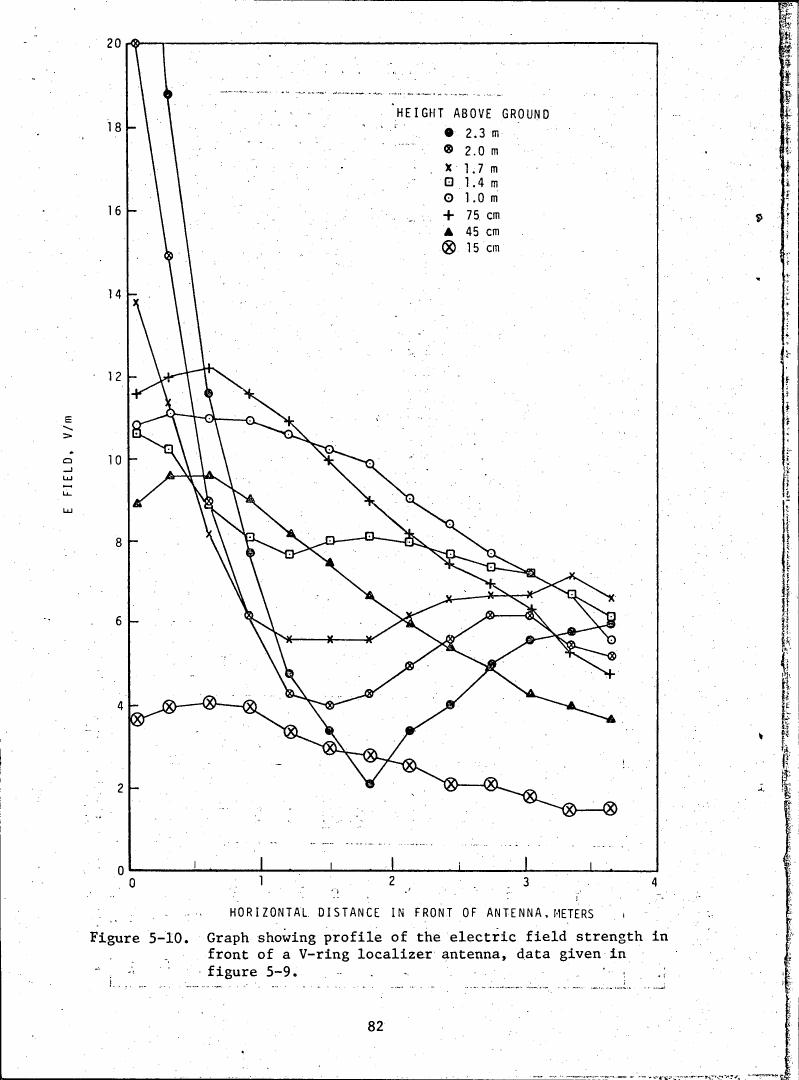

graphPage 8 - Figure showing profile of electric field strength in front of a V-ring localizer antenna at various heights above ground.
p. 8 of the original PDF

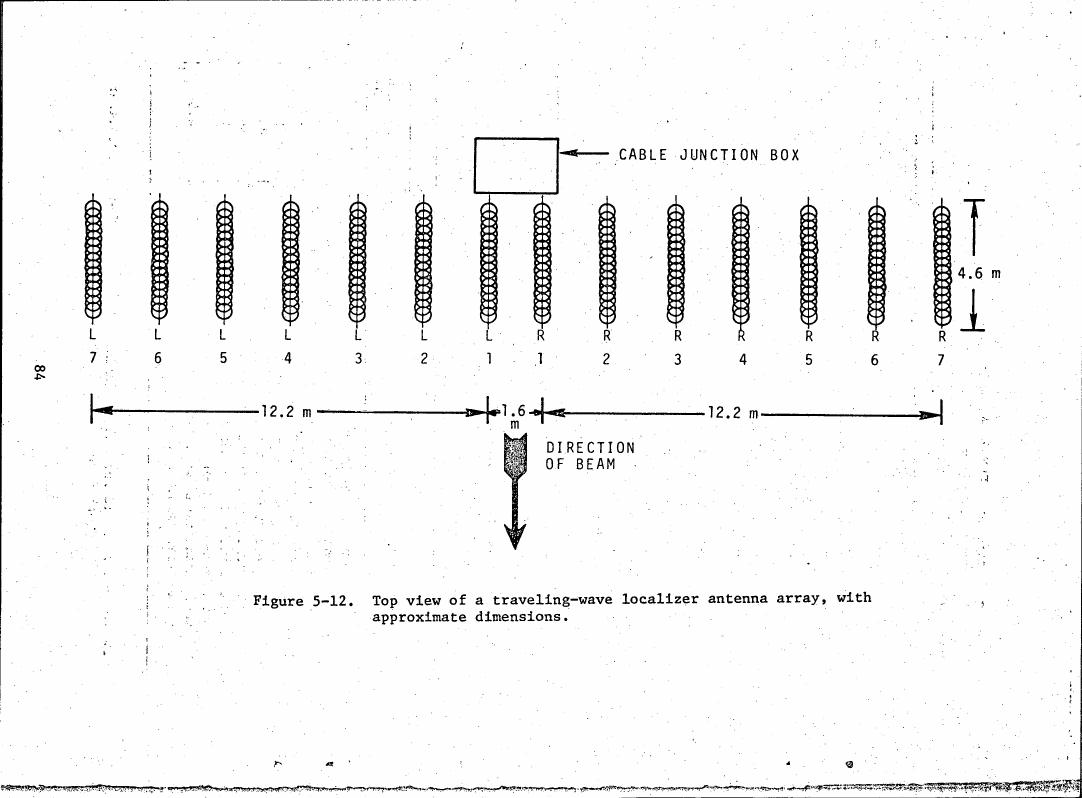

diagramPage 10 - Figure 5-12. Top view of a traveling-wave localizer antenna array, with approximate dimensions.
