Microwave Hazard Measurements Near Various Aircraft Radars

Not an original health-effects study

Richard A. Tell, John C. Nelson · 1974

Share:

Measurements near commercial aircraft radars on the ground found that power density exposures of 10 mW/cm² can occur from 8 to 18 feet from the antenna.

Plain English Summary

Summary written for general audiences

Researchers from the Electromagnetic Radiation Analysis Branch surveyed four radar units typical of those used by commercial aircraft, two at a radar simulation laboratory and two while installed in aircraft. The study focused on the potential for exposure of individuals in the close vicinity of aircraft radar units, such as when boarding commercial air carriers, while aircraft are on the ground. The radar beams were found to rotate at approximately 15 r/min and to emanate from the aircraft above 6 feet from the ground. Radiation levels inside the cockpits did not exceed 0.2 mW/cm².

Why This Matters

The principal purposes of the study were to determine the types of radars used on board various commercial and private aircraft, to ascertain pertinent radar specifications, and to compare measured radiation levels with accepted guidelines for safe microwave exposure. The airborne radars represented the most powerful equipment found aboard these vehicles and thus presented the greatest potential for harmful exposure to nonaircraft personnel if care was not exercised during operation. At the simulation laboratory, all data were collected with the radar dishes stopped in azimuthal rotation to ensure readings were taken in the main radiation lobe and to obtain true readings of maximum levels. Field measurements were made approaching the radome from a distance of approximately 100 feet, then at successively shorter distances.

Figures from the Original Paper

Diagrams extracted from the original research document.

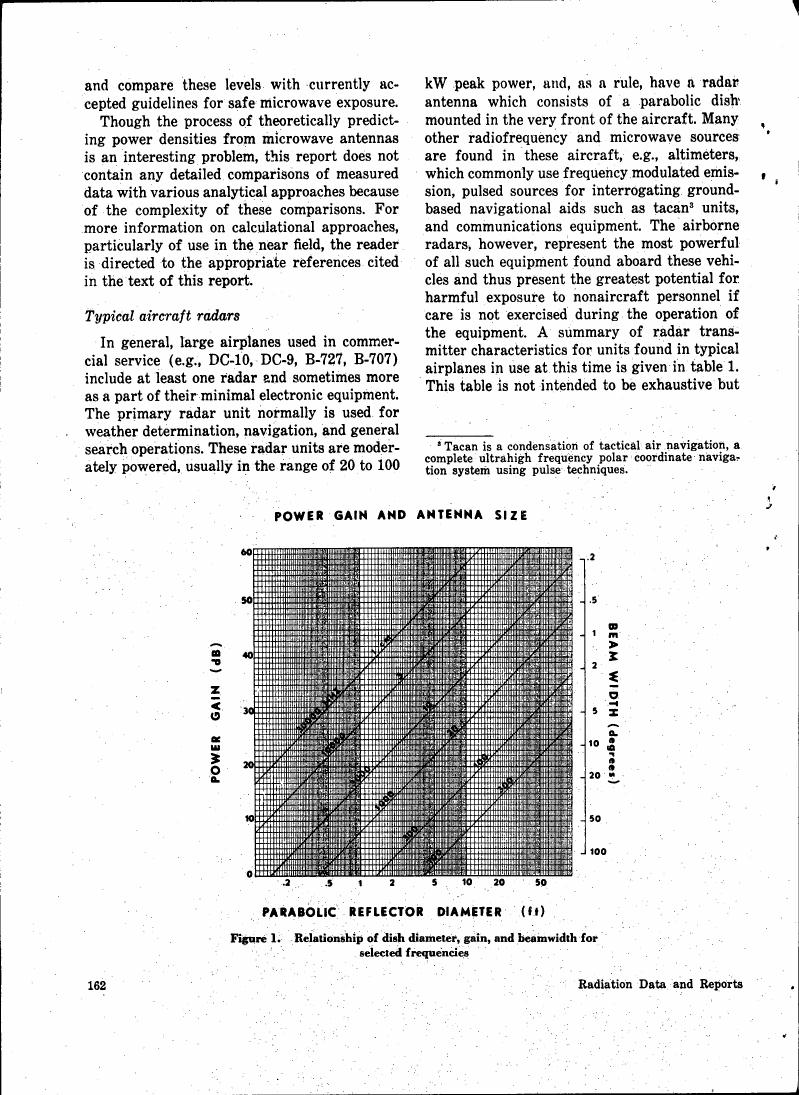

chartPage 2 - Figure 1. Relationship of dish diameter, gain, and beamwidth for selected frequencies

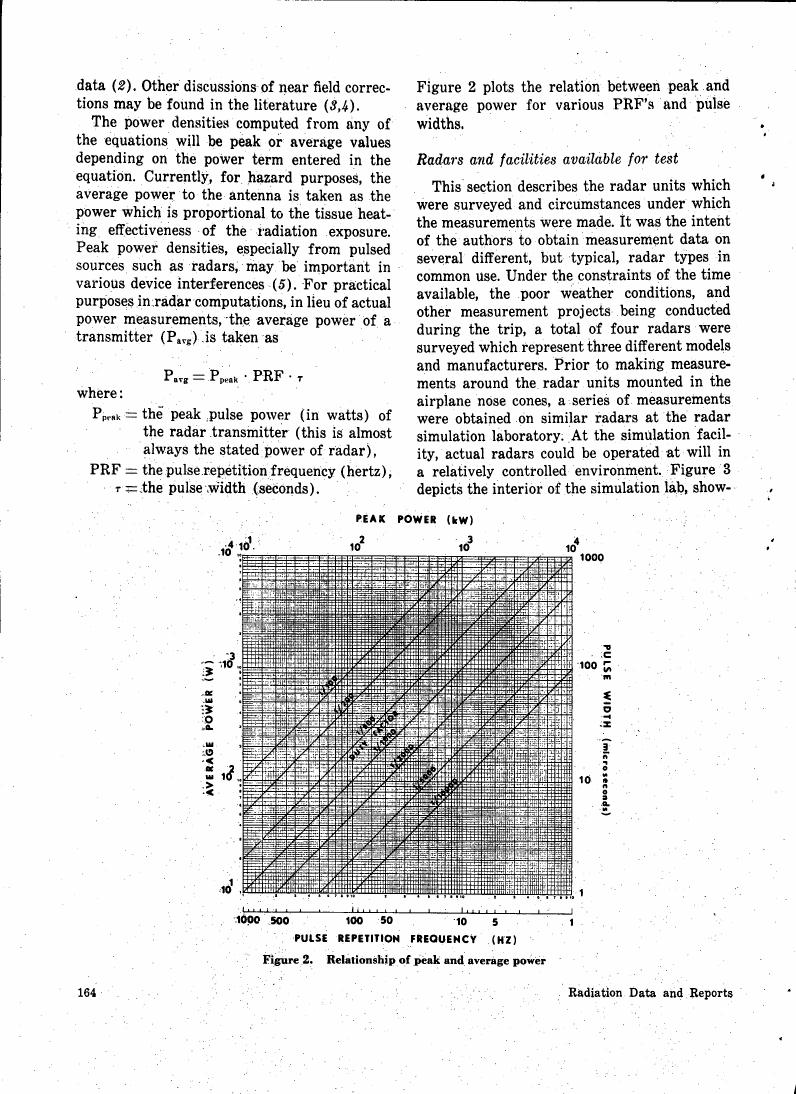

chartPage 4 - Figure 2. Relationship of peak and average power

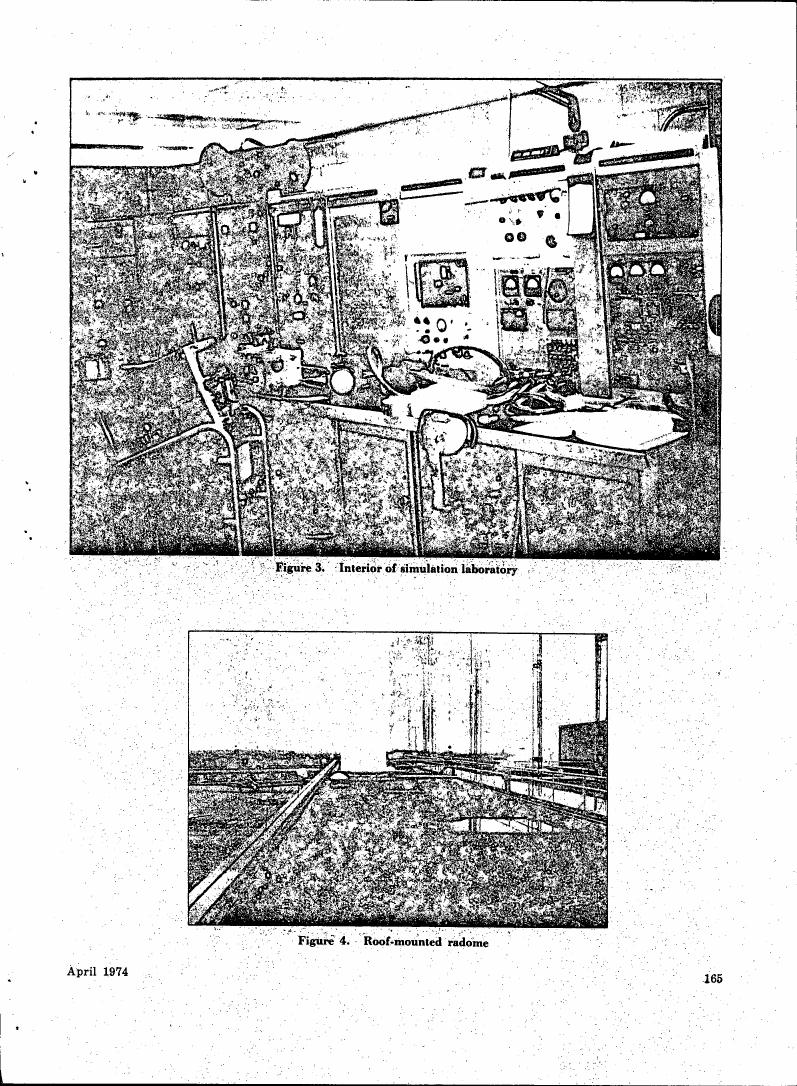

photoPage 5 - Figure 3. Interior of simulation laboratory

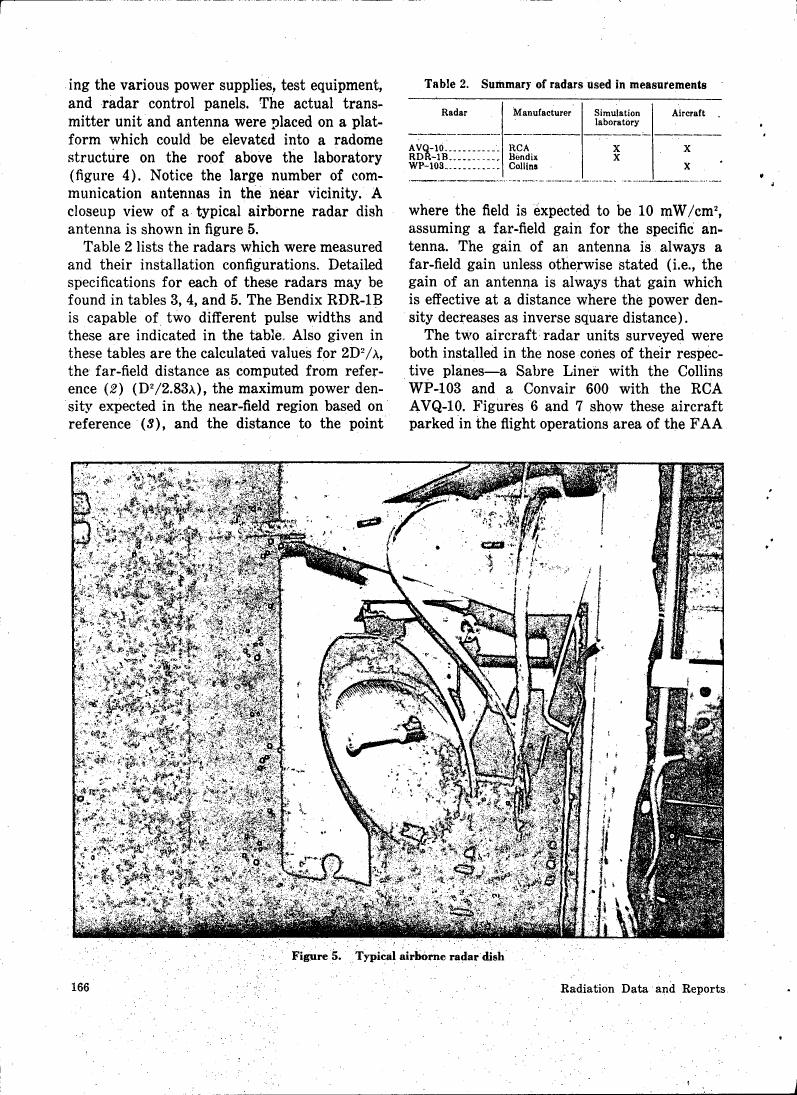

diagramPage 6 - Figure 5. Typical airborne radar dish

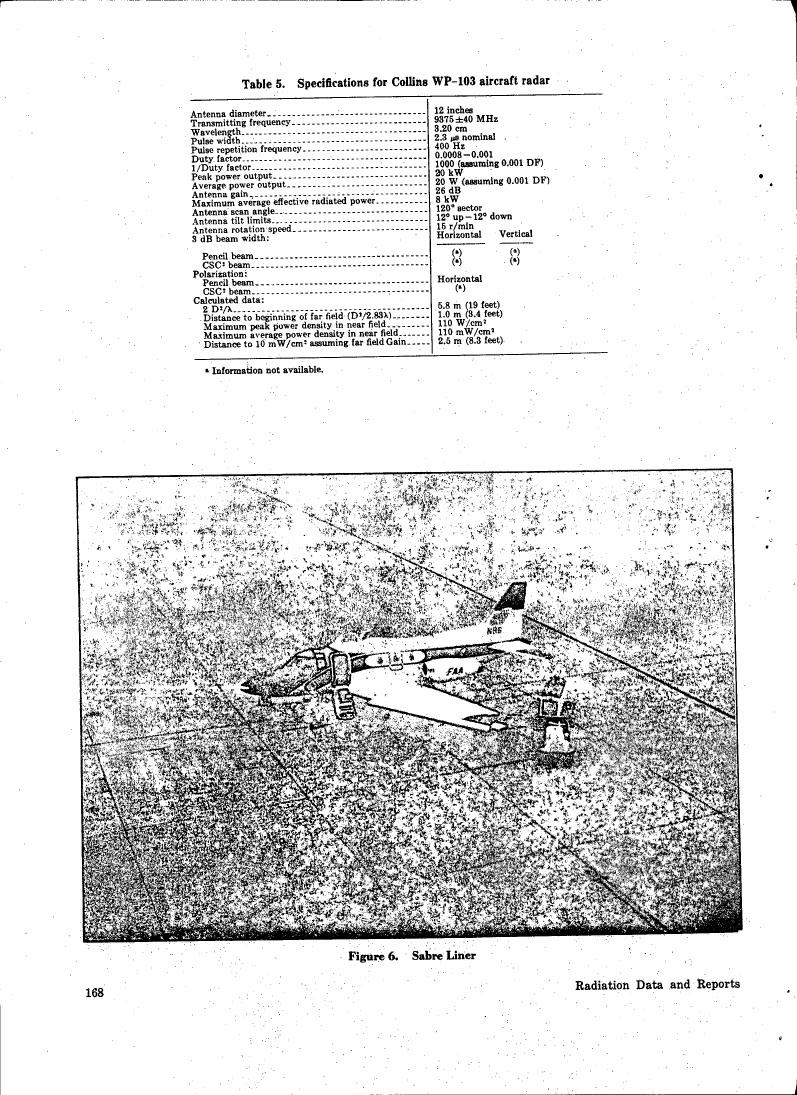

diagramPage 8 - Figure 6. Sabre Liner

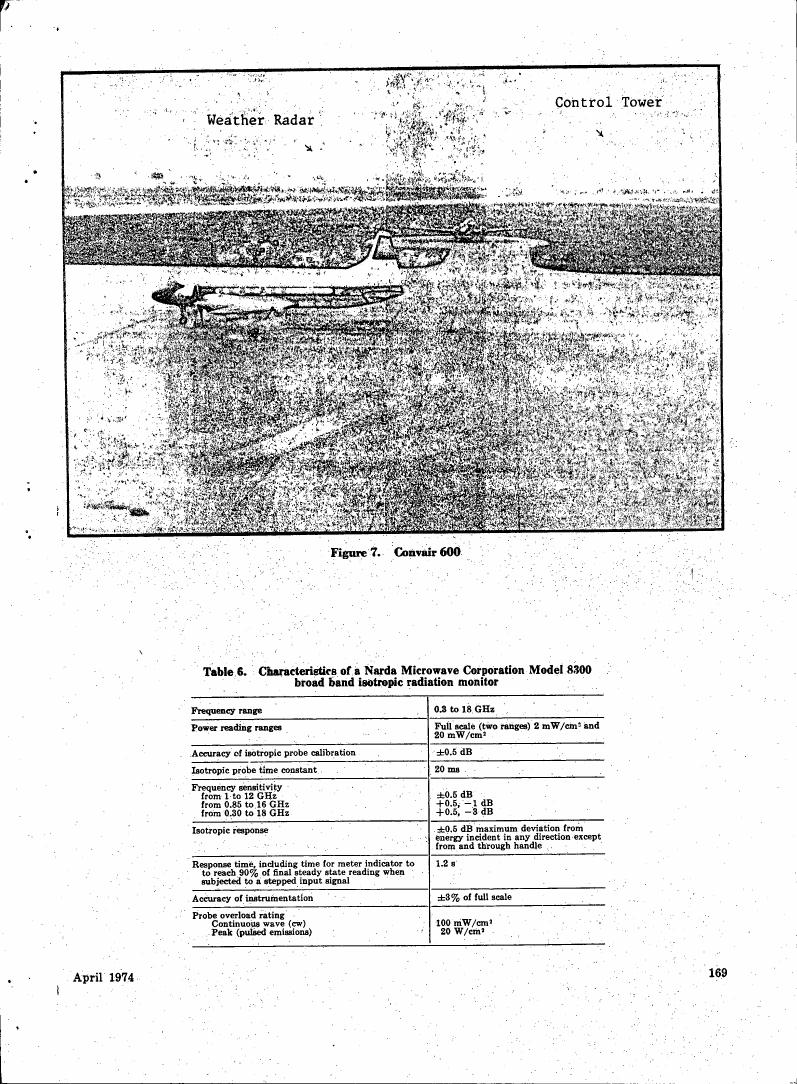

diagramPage 9 - AI-described figure: Figure 7 depicts a Convair 600 aircraft in relation to a weather radar and control tower setup.
Cite This Study
Richard A. Tell, John C. Nelson (1974). Microwave Hazard Measurements Near Various Aircraft Radars.
Show BibTeX
@article{microwave_hazard_measurements_near_various_aircraft_radars_g5545,
  author = {Richard A. Tell and John C. Nelson},
  title = {Microwave Hazard Measurements Near Various Aircraft Radars},
  year = {1974},


}
No DOI on file for this study.

Quick Questions About This Study

A total of four radar units representing three different models and manufacturers were surveyed.
Power density exposures of 10 mW/cm² can occur from 8 to 18 feet from the antenna of an aircraft radar unit.
Radiation levels inside the cockpits did not exceed 0.2 mW/cm².
All measurements were made with a Narda Microwave Corporation Model 8300 broadband isotropic radiation monitor.
The radar beams emanated from the aircraft above 6 feet from the ground.
