Microwave Heating of Malignant Mouse Tumors and Tissue Equivalent Phantom Systems
J. Eugene Robinson, Duncan McCulloch, Edgar A. Edelsack · 1976
2450 MHz microwaves efficiently heat biological tissue, requiring 200 watts to warm small tumors at the same frequency as WiFi.
Plain English Summary
Researchers used 2450 MHz microwaves (the same frequency as microwave ovens) to heat tumors in mice, finding that 200 watts was barely enough to warm small tumors. They developed a technique combining warm air with microwaves to achieve therapeutic heating levels more efficiently and uniformly.
Why This Matters
This 1976 study reveals the significant heating power of 2450 MHz microwaves - the exact frequency used in your kitchen microwave oven. The researchers needed 200 watts of power just to marginally heat 1-centimeter tumors, demonstrating the substantial thermal effects these frequencies can produce in biological tissue. What's particularly relevant today is that this frequency sits right in the middle of the 2.4 GHz WiFi band that surrounds us constantly. While your router operates at much lower power levels (typically under 1 watt), this research shows how efficiently 2450 MHz energy converts to heat in living tissue. The study's focus on achieving uniform heating also highlights a key challenge: microwave energy creates hot spots and uneven temperature distribution in biological systems, which has implications for any prolonged exposure to these frequencies.
Finding
A 200 watt, P.M., 2450 MHz source was marginal in heating 1 cm tumors from room ambient to 38°C. A technique was developed using warm air to raise the thermal baseline of the tumors to body core temperature and microwaves to produce significant hyperthermal levels. This allowed the production of tumor temperatures of 45° with greatly reduced microwave power and with significantly more uniform temperatures.
In their words
“A 200 watt, P.M., 2450 MHz source was marginal in heating 1 cm tumors from room ambient to 38°C. A technique was developed using warm air to raise the thermal baseline of the tumors to body core temperature and microwaves to produce significant hyperthermal levels. This allowed the production of tumor temperatures of 45° with greatly reduced microwave power and with significantly more uniform temperatures.”

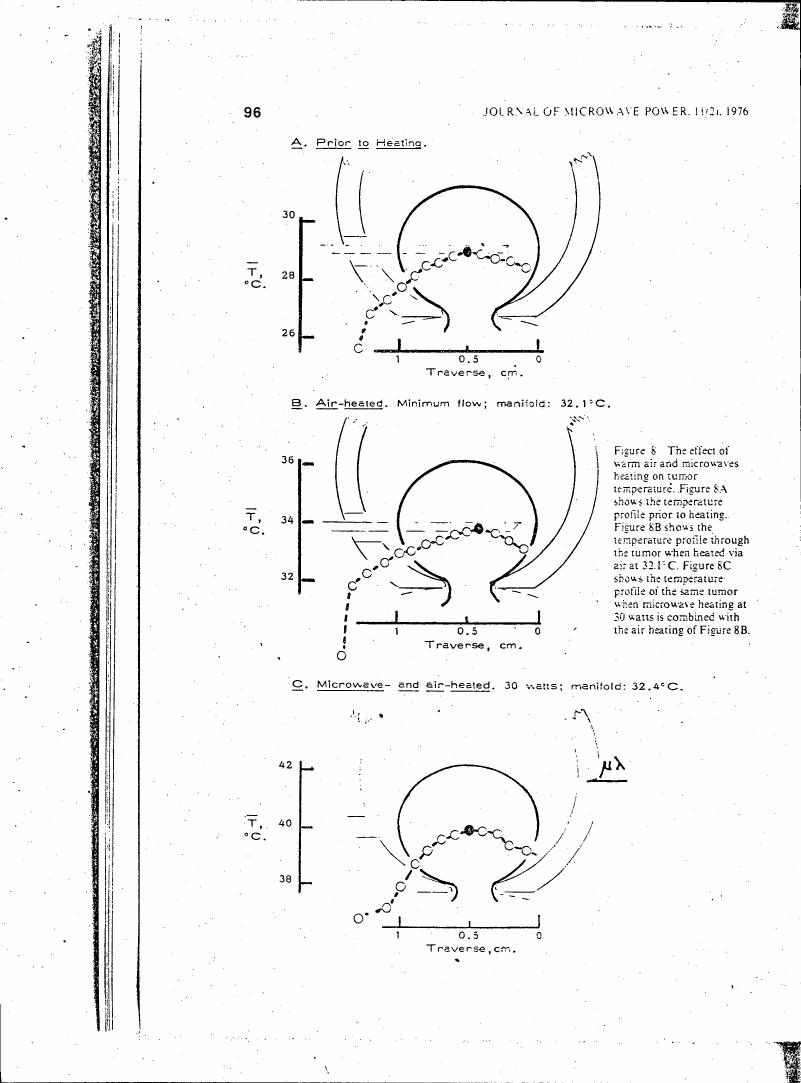

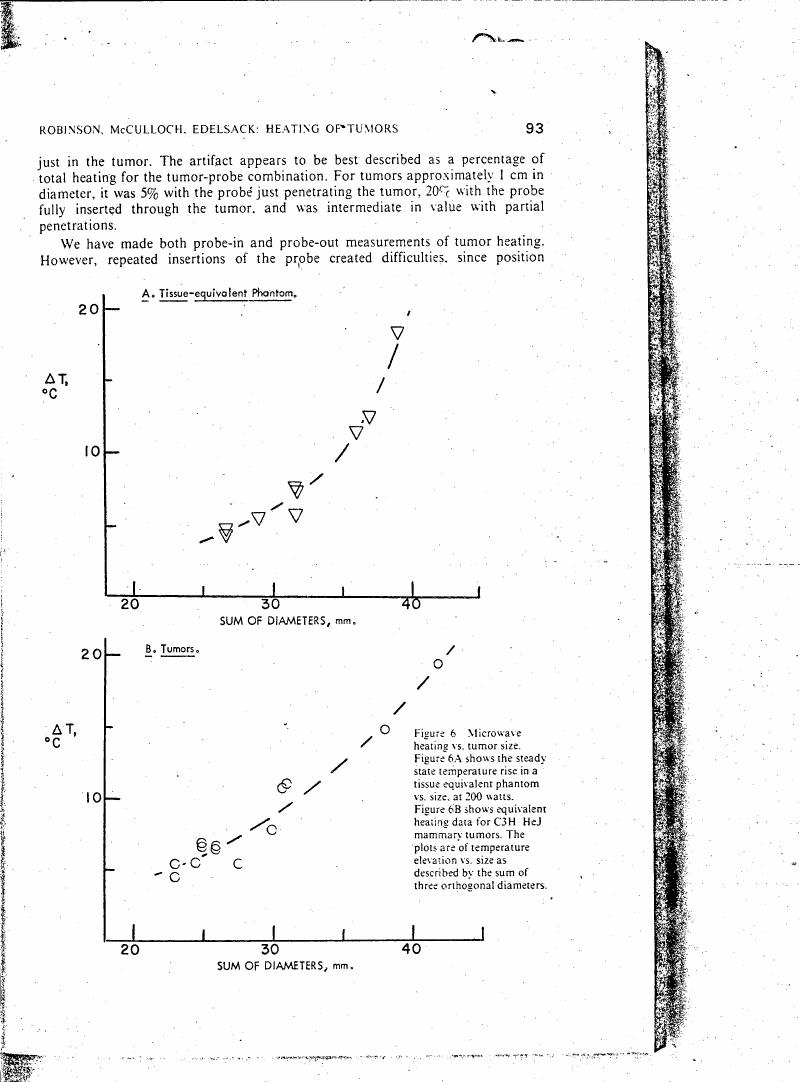

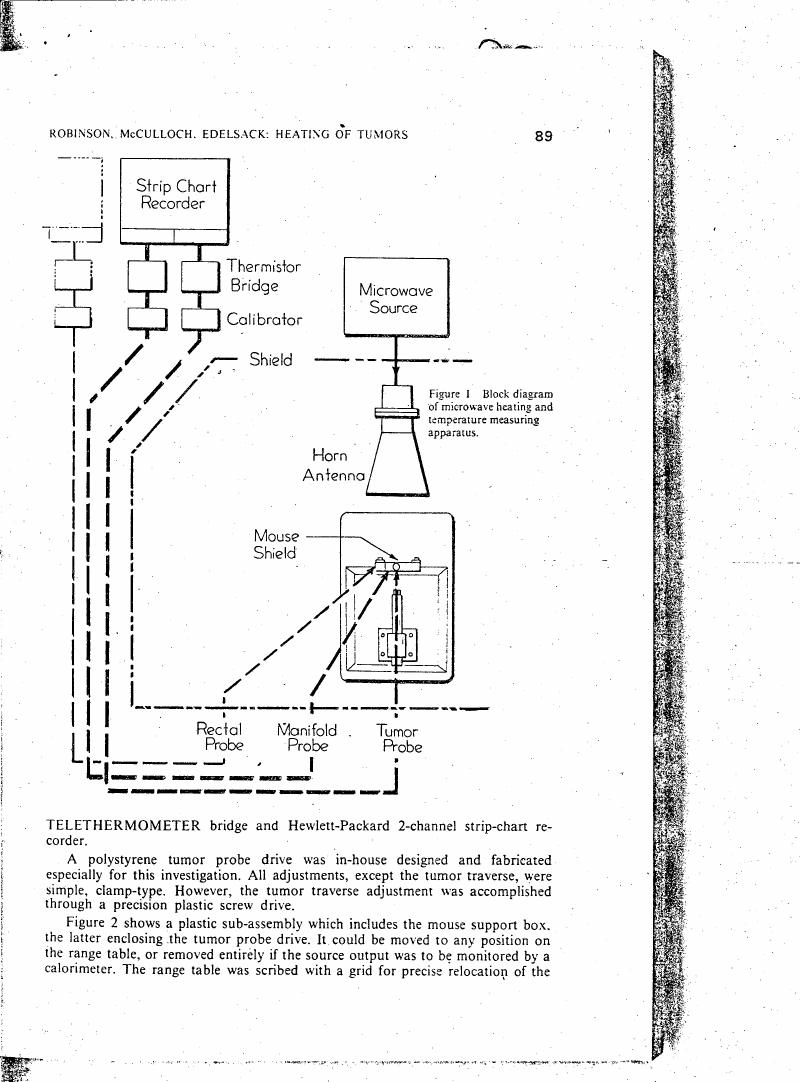

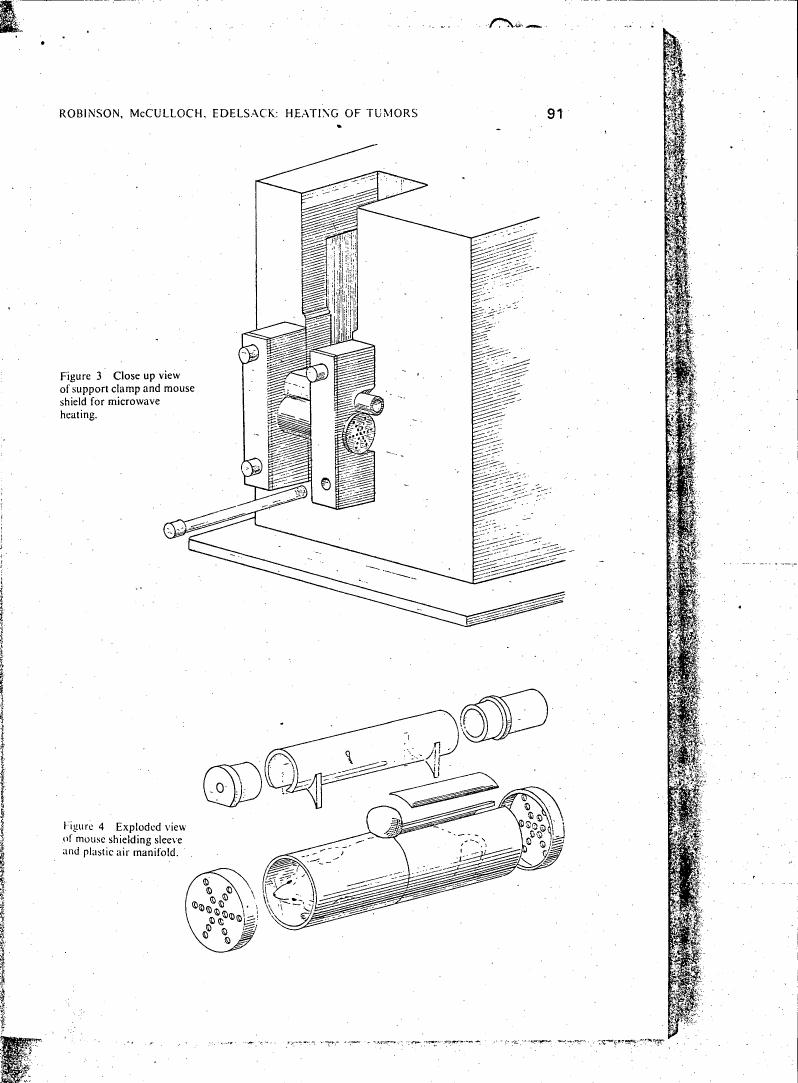

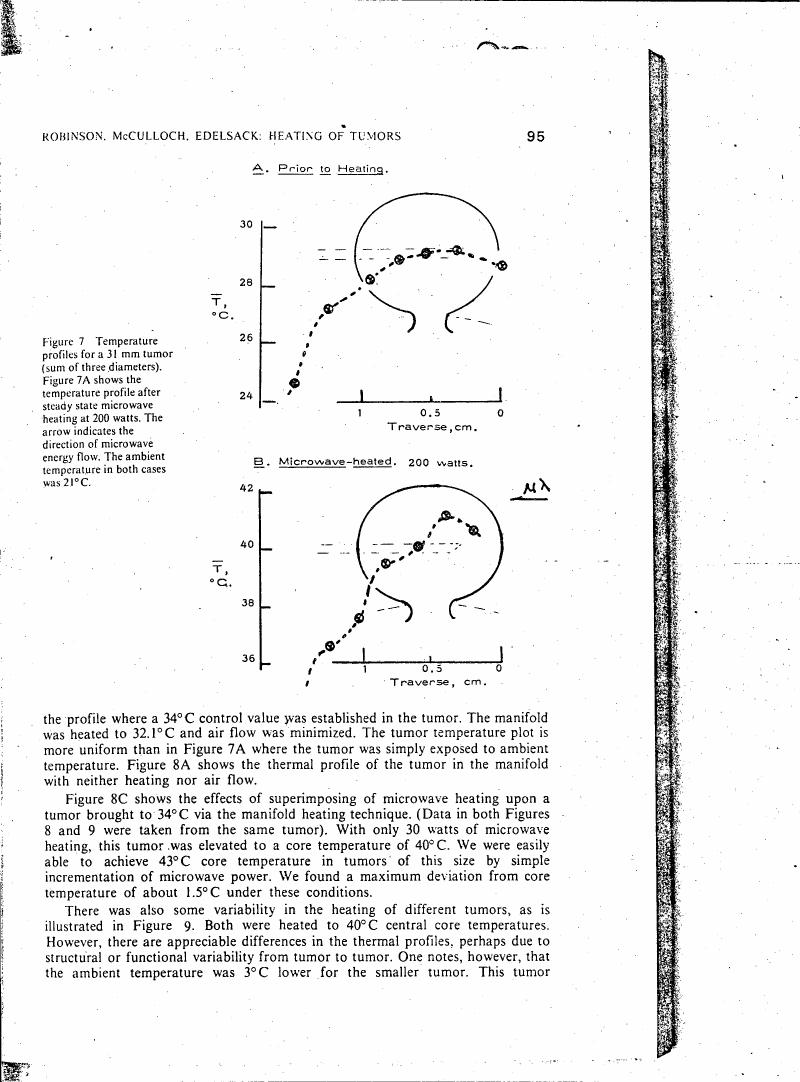

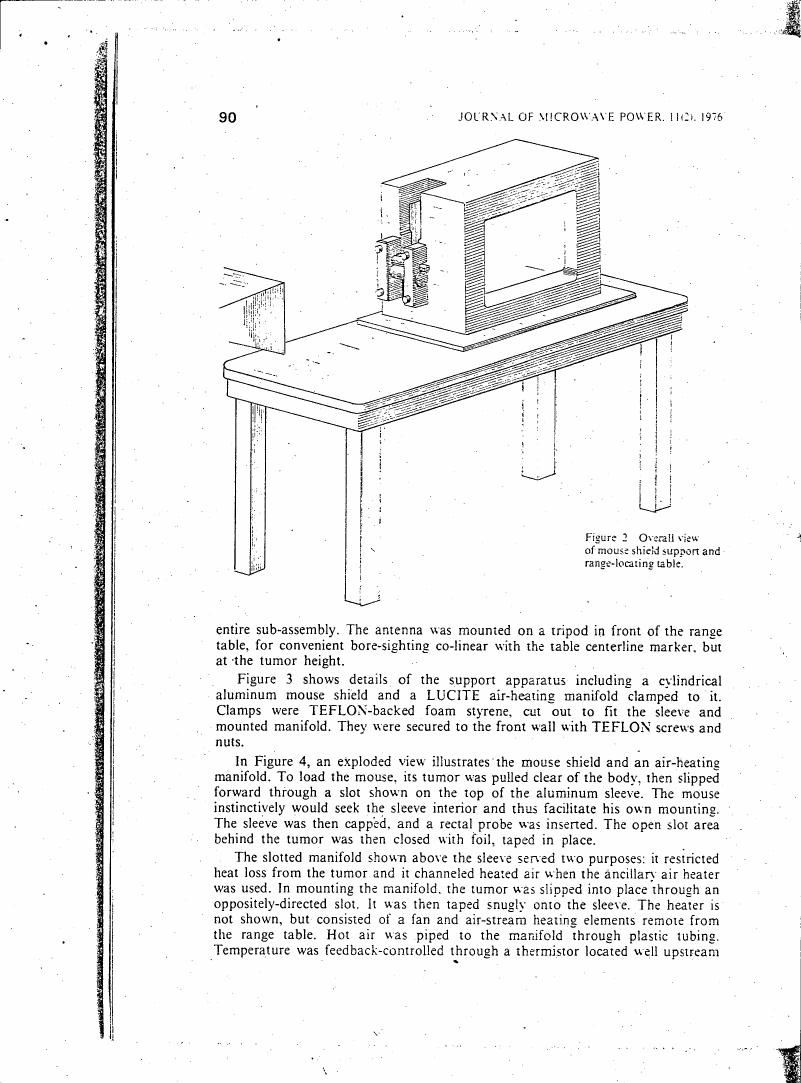

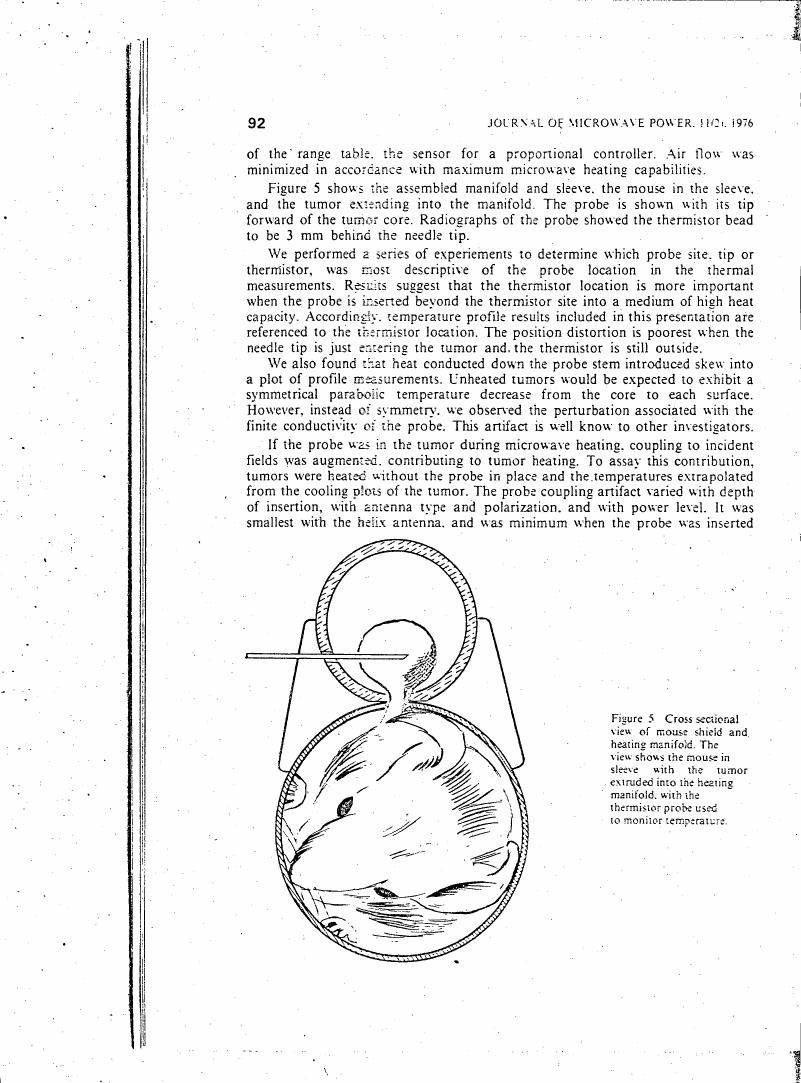

Figures from the Original Paper
Diagrams extracted from the original research document.
Exposure Information
Specific exposure levels were not quantified in this study.
Show BibTeX
@article{microwave_heating_of_malignant_mouse_tumors_and_tissue_equivalent_phantom_system_g4794,
author = {J. Eugene Robinson and Duncan McCulloch and Edgar A. Edelsack},
title = {Microwave Heating of Malignant Mouse Tumors and Tissue Equivalent Phantom Systems},
year = {1976},
}
