Whole Body / GeneralPart of the Glaser Archive

Proceedings of the Technical Coordination Conference on EMP Biological Effects

Bioeffects Seen

F. G. Hirsch, A. Bruner · 1970

Share:

Figures from the Original Paper

Diagrams extracted from the original research document.

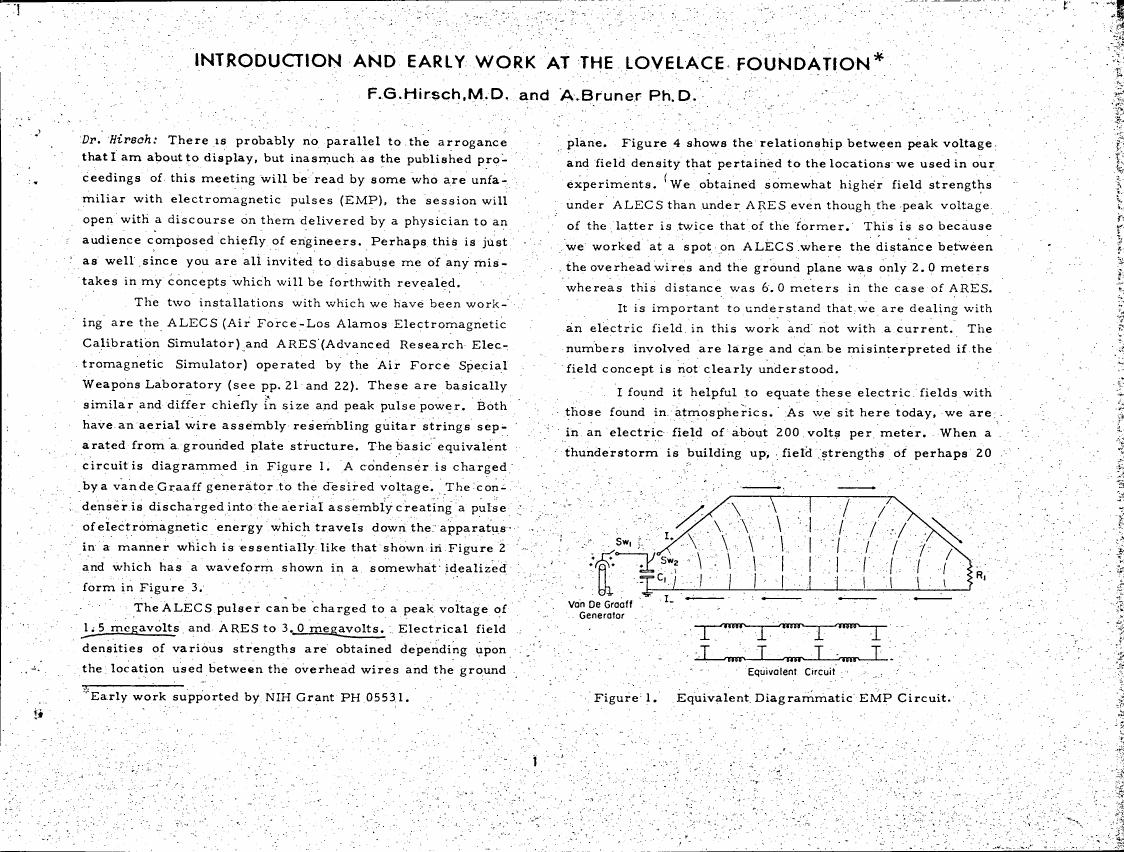

diagramPage 5 - Figure 1. Equivalent Diagrammatic EMP Circuit.
p. 5 of the original PDF

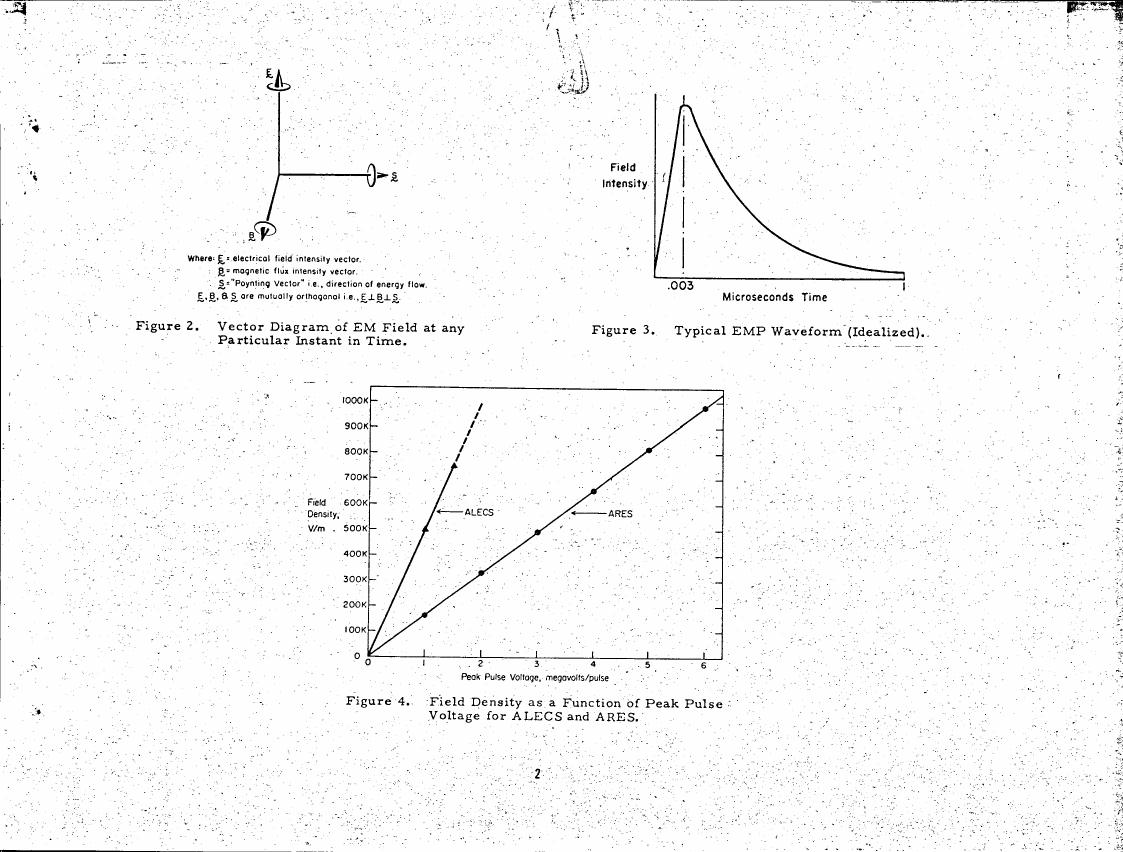

chartPage 6 - AI-described figure: Figure 4. Field Density as a Function of Peak Pulse Voltage for ALECS and ARES.
p. 6 of the original PDF

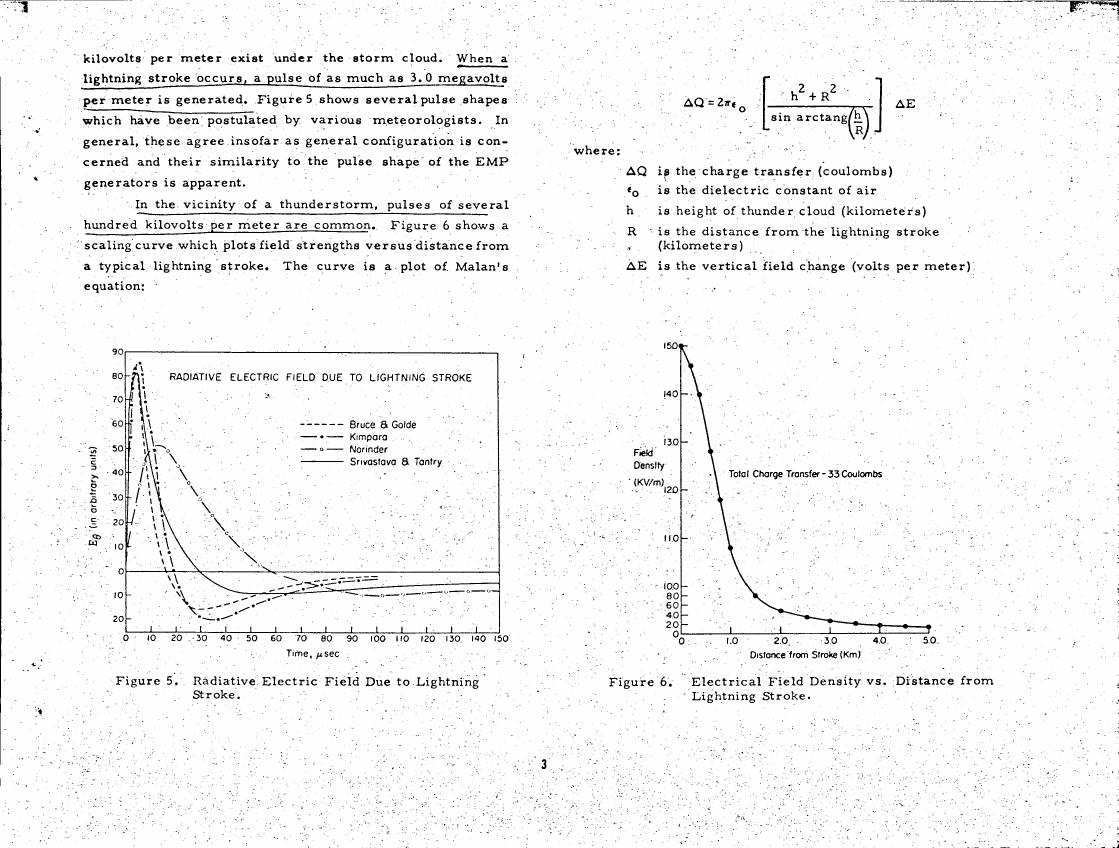

graphPage 7 - AI-described figure: Figure 5 illustrates radiative electric field due to lightning stroke over time in microseconds.
p. 7 of the original PDF

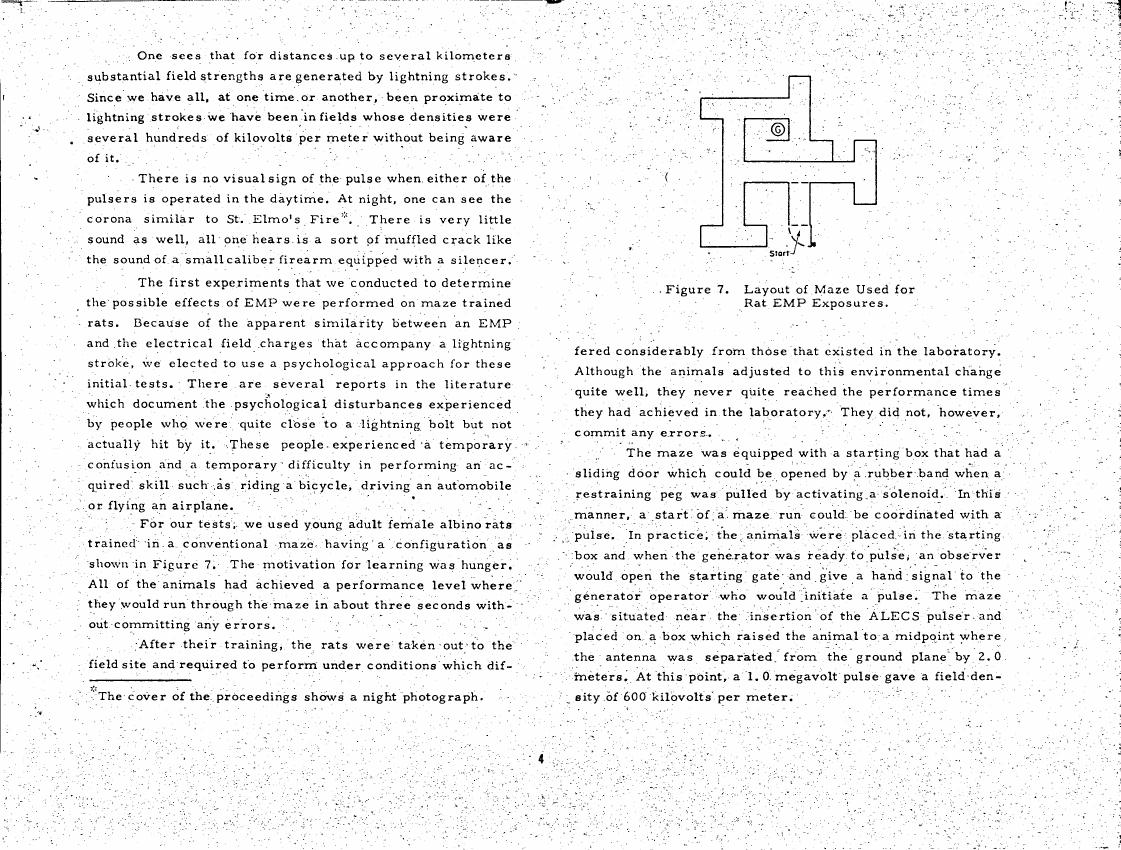

diagramPage 8 - Figure 7. Layout of Maze Used for Rat EMP Exposures.
p. 8 of the original PDF

Exposure Details

Electric Field
600 kilovolts per meter V/m
Exposure Duration
Rats: 3 consecutive pulses separated by 10-15 minute intervals. Dogs: 8 pulses spaced about 15 minutes apart. Human subjects: 2-3 months to almost 2 years, 8 hours/day, 5 days/week.

Exposure Context

This study used 600 kilovolts per meter V/m for electric fields:

Building Biology guidelines are practitioner-based limits from real-world assessments. BioInitiative Report recommendations are based on peer-reviewed science. Check Your Exposure to compare your own measurements.

Cite This Study
F. G. Hirsch, A. Bruner (1970). Proceedings of the Technical Coordination Conference on EMP Biological Effects.
Show BibTeX
@article{proceedings_of_the_technical_coordination_conference_on_emp_biological_effects_g6008,
  author = {F. G. Hirsch and A. Bruner},
  title = {Proceedings of the Technical Coordination Conference on EMP Biological Effects},
  year = {1970},


}
No DOI on file for this study.
