Some considerations concerning the use of magnetron generators in microwave biological research, Report No. NAMRL-1216
Vernon R. Reno · 1975
Military researchers in 1975 recognized magnetron microwave generators required special safety controls for biological research work.
Plain English Summary
This 1975 Naval Aerospace Medical Research Laboratory report examined considerations for using magnetron generators in microwave biological research. The study focused on workplace practices and engineering controls needed when conducting biological experiments with microwave radiation sources. This represents early recognition that microwave research equipment itself posed potential health risks to laboratory personnel.
Why This Matters
This 1975 Naval report reveals something crucial: even researchers studying microwave biological effects recognized their own equipment posed health risks. The fact that a military research lab felt compelled to publish safety considerations for magnetron generators tells us they were observing real biological effects that concerned them. Magnetrons are the same microwave sources used in radar systems and microwave ovens, operating typically at 2.45 GHz. What makes this particularly relevant today is that these frequencies overlap with WiFi, Bluetooth, and other wireless technologies now ubiquitous in our homes and workplaces. The science demonstrates that if 1970s researchers needed special engineering controls to protect themselves from magnetron exposure, we should question why similar caution isn't applied to the wireless devices we use daily at much closer distances.
Finding
Field conditions affecting an experimental subject can differ depending on the waveform of the incident radiation. These differences may not be apparent if the field is described only in terms of the average power.
In their words
“Field conditions affecting an experimental subject can differ depending on the waveform of the incident radiation. These differences may not be apparent if the field is described only in terms of the average power.”
Figures from the Original Paper
Diagrams extracted from the original research document.
Exposure Information
Specific exposure levels were not quantified in this study.
Study Details
To characterize microwave fields produced for biological studies by different types of generators (magnetron vs. traveling wave tube) and to demonstrate how field characteristics can vary based on generator type and operating conditions.

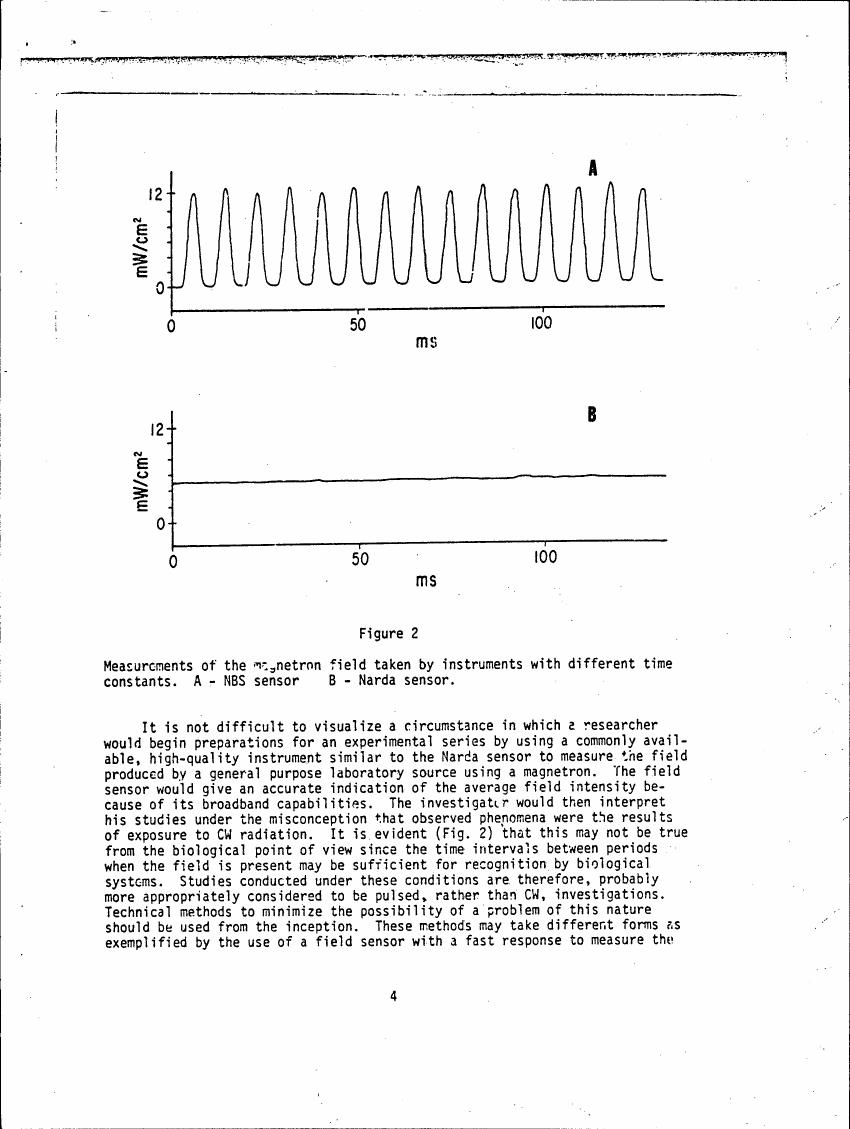

Field measurements were taken using two different instruments: 1) Electric Energy Density Meter, Mod...

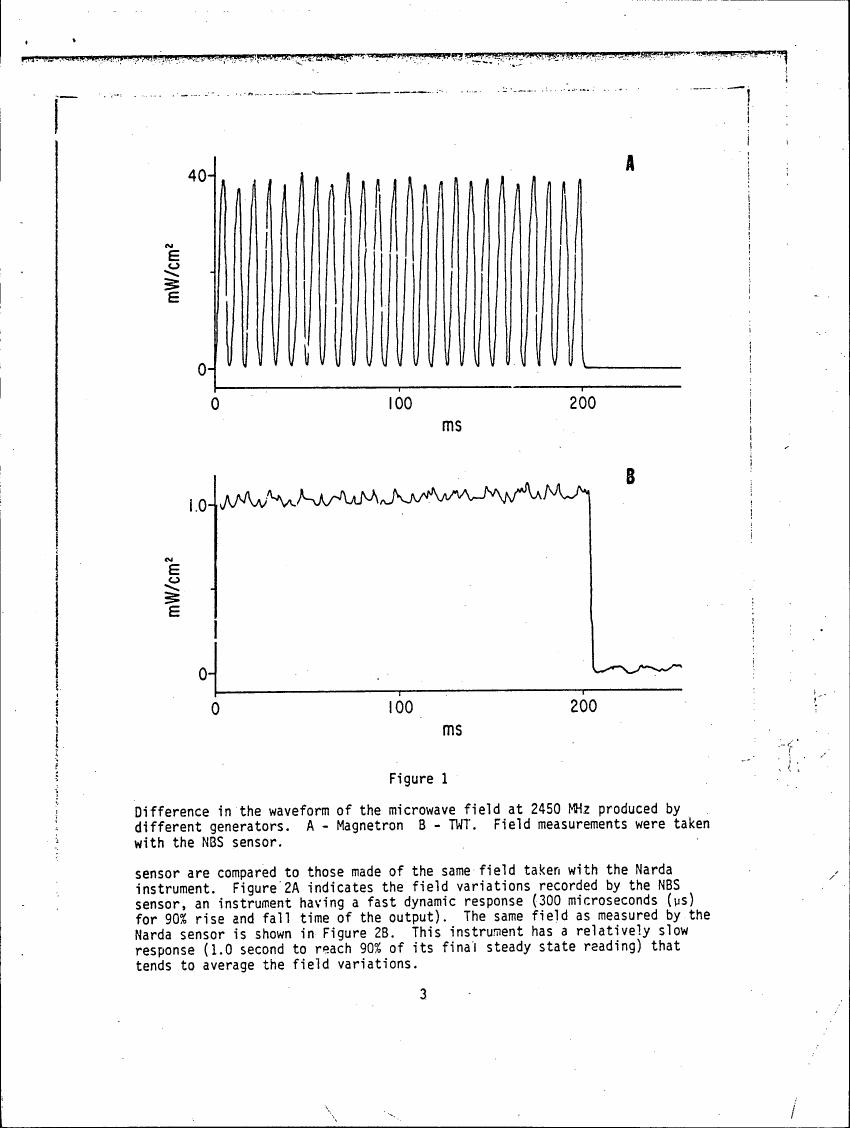

The magnetron source produced 100% amplitude modulated field at 120 Hertz due to unfiltered power su...
The field incident on experimental subjects can differ significantly depending on the generator type and operating conditions. Simple descriptions of field in terms of average power are inadequate, particularly for biological studies where temporal relationships between events are important. The waveform and energy distribution characteristics of magnetron-generated fields can significantly affect biological responses, especially when considering pulsed rather than continuous wave exposure. Clear, complete descriptions of all field parameters are prerequisite to valid interpretation of biological studies.
