The Design of Broad-Band Resistive Radiation Probes

Bioeffects Seen

Samuel Hopfer · 1972

Share:

Engineers developed broad-spectrum RF radiation measurement tools in 1972, enabling precise exposure assessment decades before widespread wireless adoption.

Plain English Summary

Summary written for general audiences

This 1972 engineering study developed specialized radiation probes using thin-film resistive screens to measure radiofrequency (RF) energy absorption. The researchers found these probes could accurately detect RF radiation across extremely broad frequency ranges from below 200 MHz up to millimeter wave frequencies. The probes absorbed 15-20% of incoming radiation and converted it directly to measurable voltage output.

Why This Matters

While this appears to be purely technical research focused on measurement instrumentation, it represents an important milestone in our ability to quantify RF radiation exposure. The science demonstrates that by 1972, engineers understood the need for precise measurement tools across the entire RF spectrum - from radio waves through what we now call 5G frequencies. What this means for you is that accurate exposure assessment has been possible for over 50 years, yet we're still debating safe exposure limits. The reality is that these measurement capabilities should have enabled better protection standards long ago. Put simply, we've had the tools to measure RF radiation precisely since the early days of wireless technology, making current regulatory gaps even more concerning.

Exposure Information

Specific exposure levels were not quantified in this study.

Cite This Study
Samuel Hopfer (1972). The Design of Broad-Band Resistive Radiation Probes.
Show BibTeX
@article{the_design_of_broad_band_resistive_radiation_probes_g3663,
  author = {Samuel Hopfer},
  title = {The Design of Broad-Band Resistive Radiation Probes},
  year = {1972},


}

Quick Questions About This Study

The probes operated from below 200 MHz up to millimeter wave frequencies, covering essentially the entire radiofrequency spectrum including what we now use for cellular, WiFi, and 5G communications.
The probes absorbed 15-20 percent of incoming RF radiation and converted it directly to voltage output for measurement, making them highly sensitive detection instruments for that era.

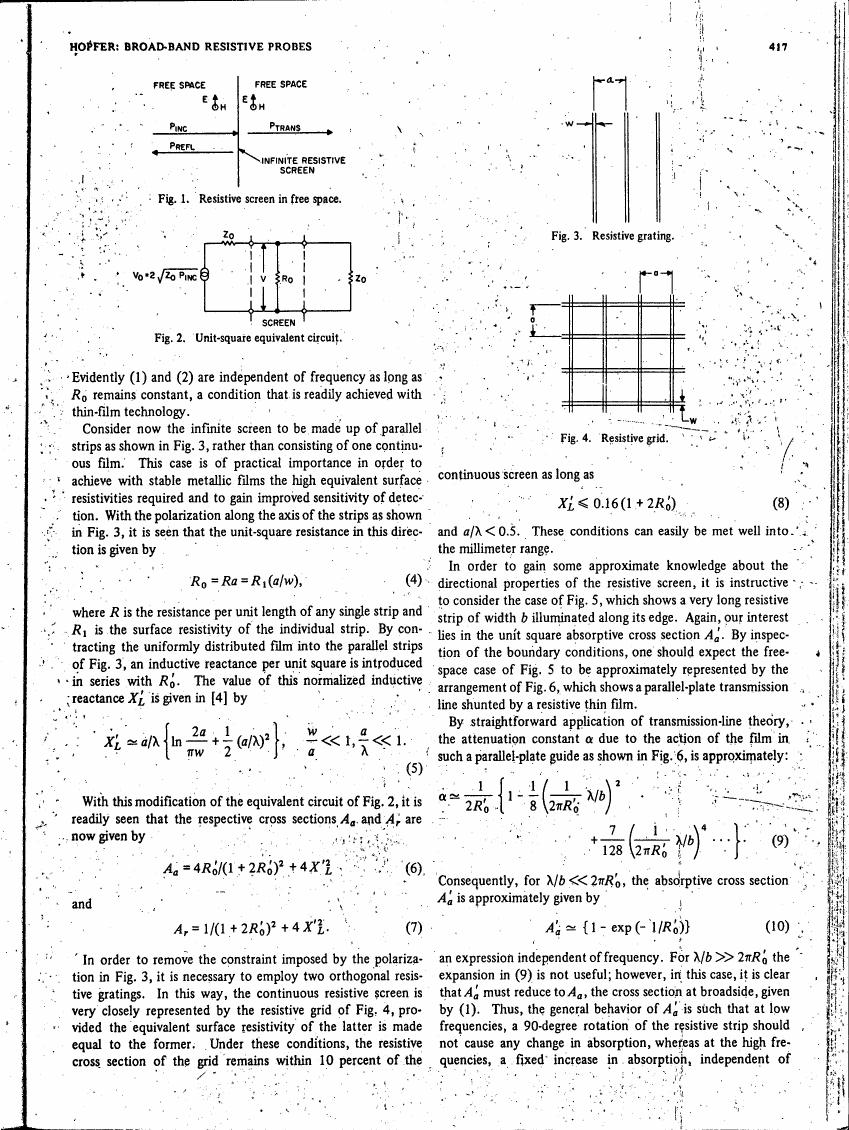

Thin-film resistive screens operated above a critical frequency maintained constant cross-sections over extremely wide frequency ranges, while below that frequency their sensitivity decreased at 12 dB per octave.
The probes had physical cross-sections of just 1-inch diameter, making them compact yet capable of detecting RF radiation across the entire spectrum from radio through millimeter waves.
These probes enabled accurate measurement of RF radiation across all frequencies for the first time, providing the technical foundation for assessing human exposure decades before widespread wireless technology adoption.
