THE REPRESENTATION OF DIELECTRIC PROPERTIES AND THE PRINCIPLES UNDERLYING THEIR MEASUREMENT AT CENTIMETRE WAVELENGTHS

Bioeffects Seen

Willis Jackson · 1946

Share:

This 1946 study established measurement techniques for microwave-tissue interactions that remain fundamental to EMF health research today.

Plain English Summary

Summary written for general audiences

This 1946 technical study by Jackson established methods for measuring how materials interact with microwave radiation at centimeter wavelengths. The research focused on developing standardized techniques and terminology for characterizing dielectric properties, which describe how substances respond to electromagnetic fields. This foundational work helped establish the scientific framework still used today to understand how microwaves interact with biological tissues.

Why This Matters

This foundational 1946 research represents the early scientific groundwork that would later become crucial for understanding EMF health effects. Jackson's work on measuring dielectric properties at centimeter wavelengths established the technical foundation for how we study microwave interactions with biological materials today. The principles developed in this research are directly relevant to modern concerns about microwave radiation from devices like cell phones, WiFi routers, and microwave ovens, all of which operate in similar frequency ranges. Understanding dielectric properties helps scientists predict how deeply microwaves penetrate tissues and where energy gets absorbed in the body. While this was purely technical research, it provided essential measurement methods that modern EMF health studies rely on to quantify exposure levels and biological effects.

Figures from the Original Paper

Diagrams extracted from the original research document.

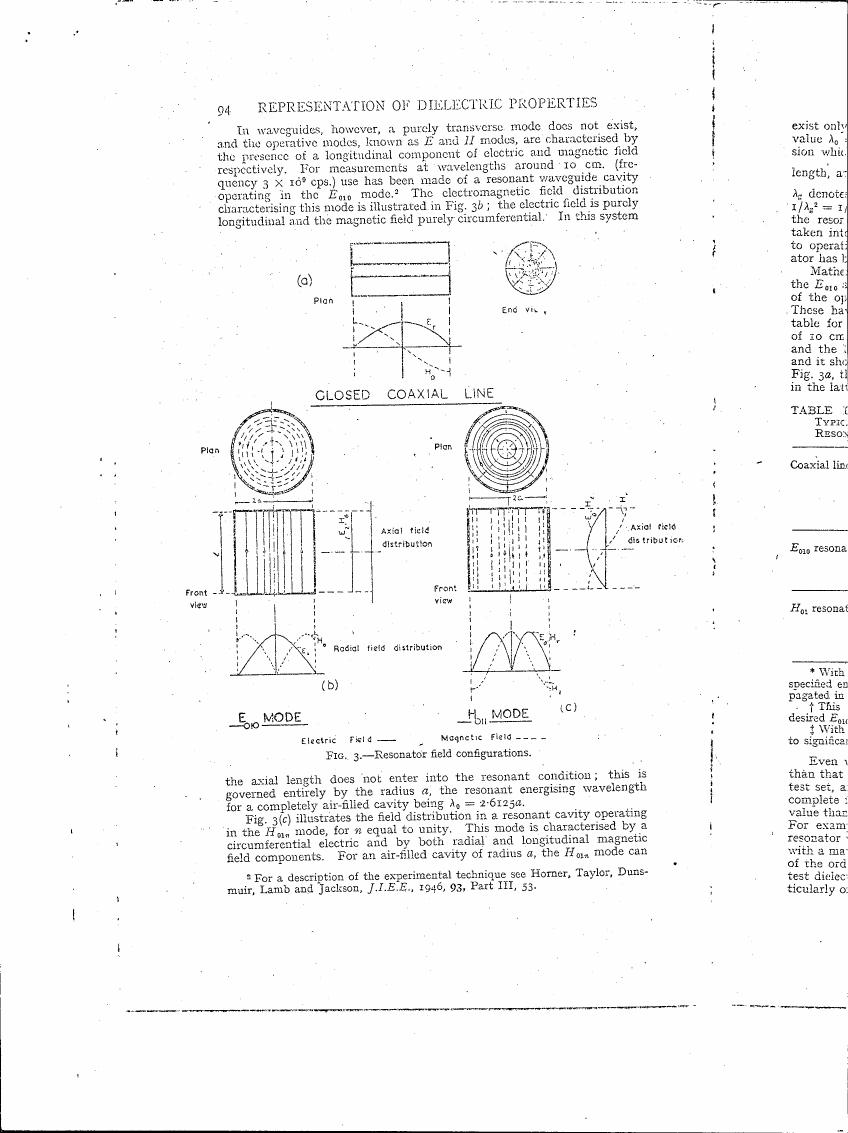

diagramPage 4 - AI-described figure: Fig. 3 - Resonator field configurations showing electric and magnetic field distributions in E010 mode and H011 mode.
p. 4 of the original PDF

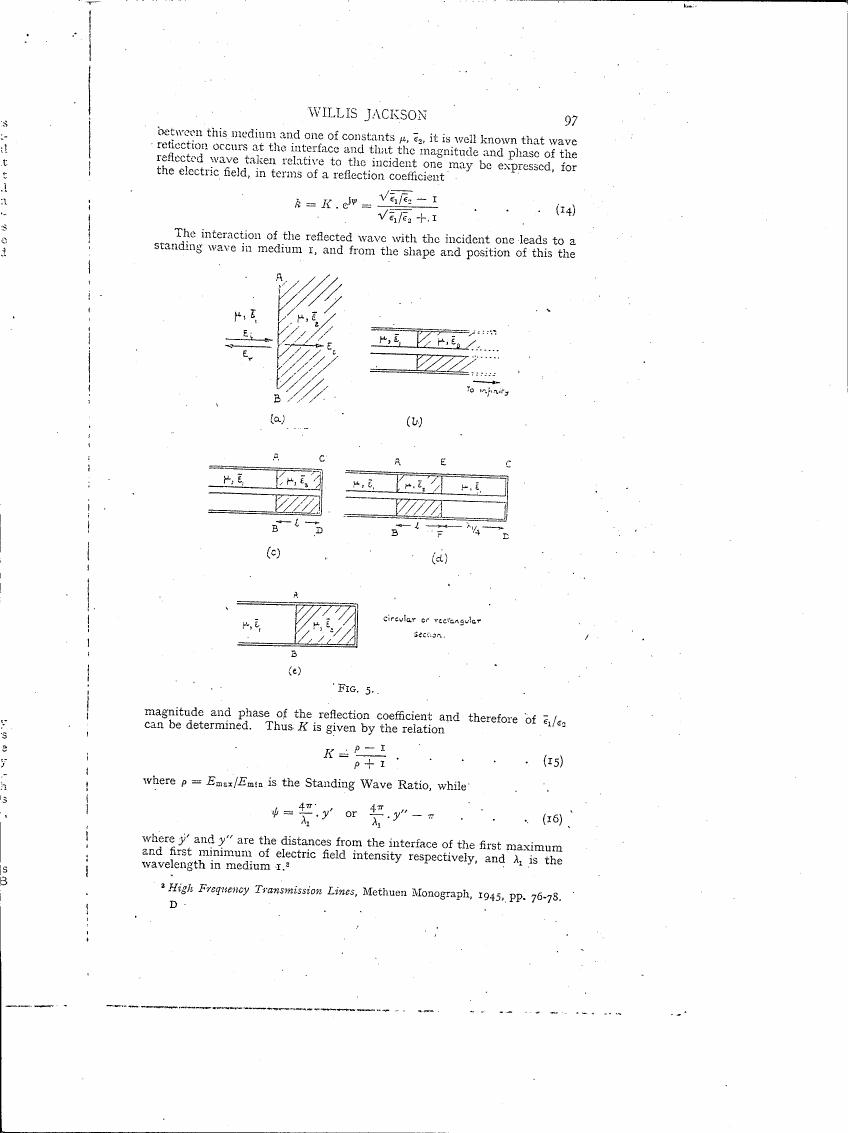

diagramPage 6 - AI-described figure: Fig. 5 illustrates various configurations and interactions between media with different electrical properties, including standing wave patterns.
p. 6 of the original PDF

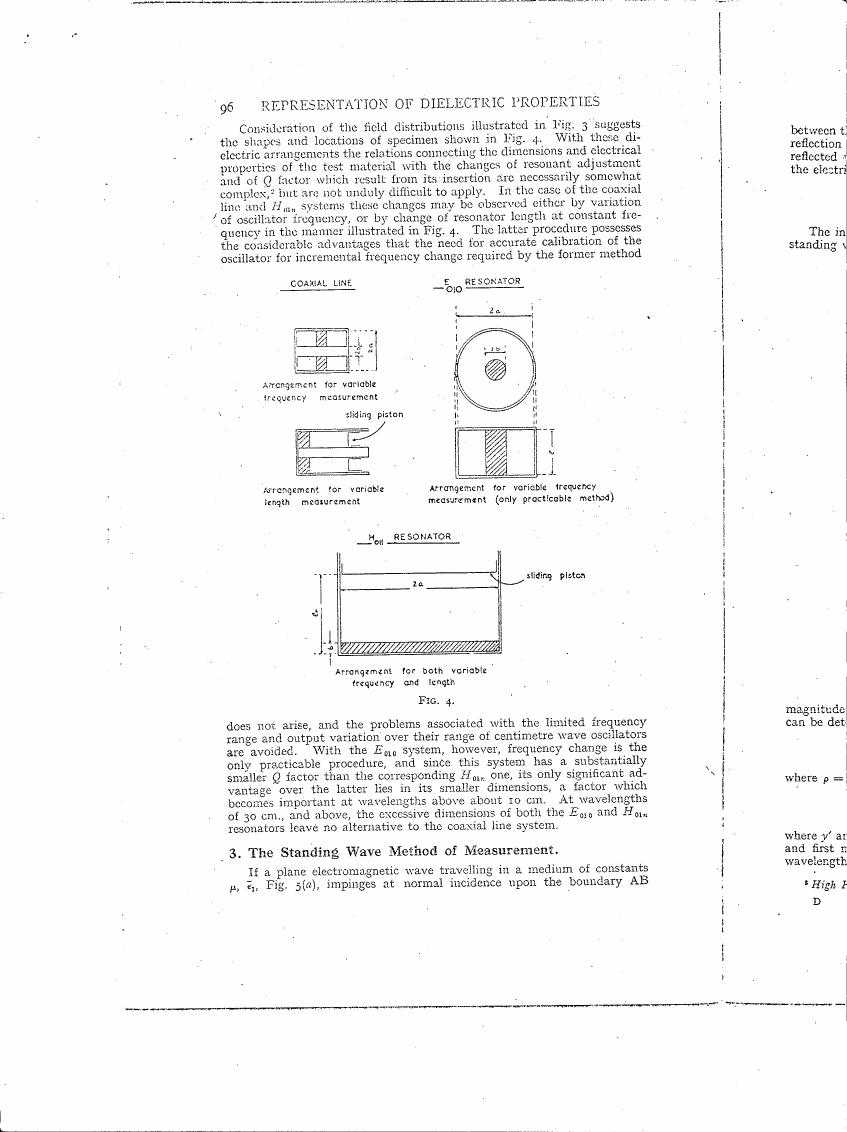

diagramPage 7 - AI-described figure: The diagram illustrates various arrangements for variable frequency and length measurements in resonators, as shown in Fig. 4.
p. 7 of the original PDF

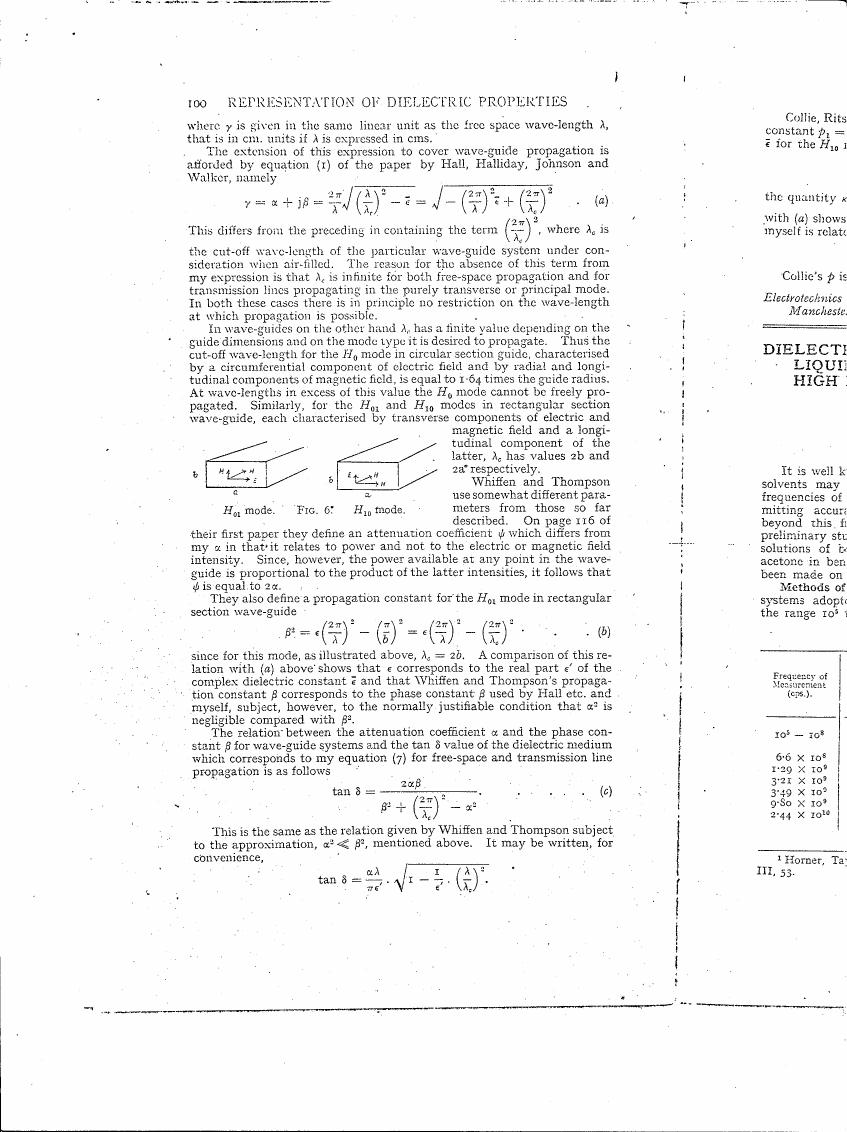

diagramPage 10 - AI-described figure: A diagram illustrating two waveguide modes: H01 and H10, with labels indicating their respective dimensions.
p. 10 of the original PDF

Exposure Information

A logarithmic frequency spectrum from 10 Hz to 100 GHz showing where this study's 1 GHz to 25 GHz exposure sits relative to common EMF sources.Where This Frequency Sits on the EMF SpectrumELFVLFLF / MFHF / VHFUHFSHFmm10 Hz100 GHzThis study: 1 GHz to 25 GHzPower lines50/60 Hz5G mm28 GHzLogarithmic scale

Specific exposure levels were not quantified in this study.

Study Details

To present the principles and methods for measuring dielectric properties at centimetre wavelengths, including resonance and standing wave techniques, and to report measurements of dielectric absorption in solutions and permittivity of low loss solids.

Resonance methods using lumped circuits, coaxial line resonators, and waveguide cavities operating i...

Dielectric absorption measurements on benzene solutions of benzophenone, nitrobenzene, brombenzene, ...

The behaviour of solutions in benzene conforms to the Debye theory with single relaxation times. The benzophenone solution results agree with audio-frequency refractive index measurements. The benzophenone-paraffin solution shows a spectrum of relaxation times but dipole moment values agree within 14%. The Debye relation connecting relaxation time and viscosity is inadequate for describing the behaviour of these systems.

Cite This Study
Willis Jackson (1946). THE REPRESENTATION OF DIELECTRIC PROPERTIES AND THE PRINCIPLES UNDERLYING THEIR MEASUREMENT AT CENTIMETRE WAVELENGTHS.
Show BibTeX
@article{the_representation_of_dielectric_properties_and_the_principles_underlying_their__g5580,
  author = {Willis Jackson},
  title = {THE REPRESENTATION OF DIELECTRIC PROPERTIES AND THE PRINCIPLES UNDERLYING THEIR MEASUREMENT AT CENTIMETRE WAVELENGTHS},
  year = {1946},


}
No DOI on file for this study.

Quick Questions About This Study

Dielectric properties describe how materials respond to electromagnetic fields, including how much energy they absorb and how fields penetrate through them. These measurements help scientists understand how microwaves interact with biological tissues and predict potential health effects.
Centimeter wavelengths correspond to microwave frequencies used in many modern devices including cell phones, WiFi, and microwave ovens. This early research established the scientific foundation for measuring how these frequencies interact with materials and biological tissues.
Resonance methods detect how materials change the behavior of electromagnetic waves by measuring shifts in frequency or energy absorption. These techniques allow precise measurement of how biological tissues respond to microwave radiation at different frequencies.
The study developed standardized methods for measuring dielectric properties at microwave frequencies, including terminology and resonance-based measurement techniques. These approaches became the foundation for modern EMF exposure assessment and biological effects research.
The measurement principles established in 1946 are still used today to study how microwave radiation from cell phones, WiFi, and other devices interacts with human tissues. This foundational work enables modern scientists to quantify EMF exposure and potential health effects.
