Two-Dimensional in-Vitro Studies of Femoral Arterial Walls of the Dog

Bioeffects Seen

Françoise M. L. Attinger · 1968

Share:

Dog arterial walls show directionally dependent mechanical properties, challenging assumptions about tissue uniformity in biological modeling.

Plain English Summary

Summary written for general audiences

Researchers tested dog arterial walls under different strain conditions to understand how blood vessels behave mechanically. They found that arteries are anisotropic (behave differently in different directions) rather than uniform, with different elastic properties when stretched tangentially versus longitudinally. This challenges common assumptions used in vascular system modeling.

Why This Matters

While this 1968 study doesn't directly involve EMF exposure, it reveals something crucial about biological systems that EMF researchers often overlook: tissues are far more complex and directionally sensitive than we typically assume. The finding that arterial walls behave completely differently when stressed in different directions should give us pause when evaluating EMF studies that treat biological tissues as uniform, isotropic materials. Many EMF exposure studies model electromagnetic field interactions with tissues using simplified assumptions about how biological materials respond to external forces. But if something as fundamental as arterial elasticity varies dramatically by direction and physiological state, how can we trust models that assume uniform tissue response to electromagnetic fields? This mechanical anisotropy suggests that EMF effects might also be highly directional and context-dependent, potentially explaining why some EMF studies show inconsistent results.

Figures from the Original Paper

Diagrams extracted from the original research document.

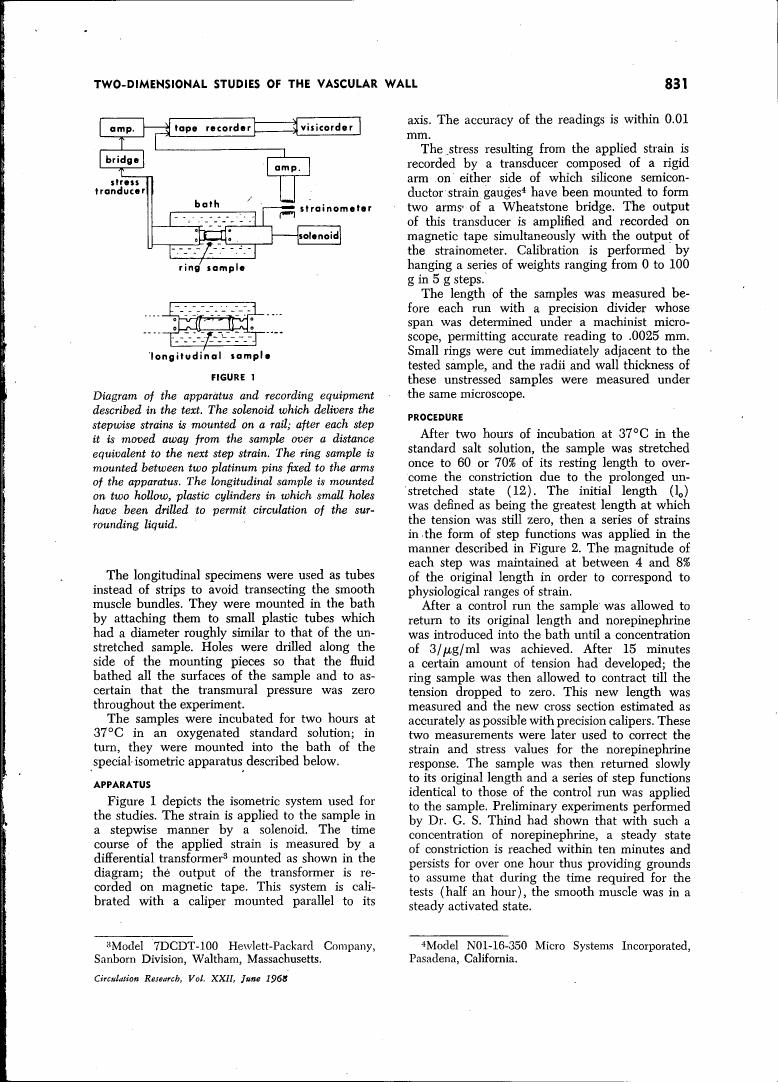

diagramPage 3 - AI-described figure: Figure 1 depicts a diagram of apparatus and recording equipment used for two-dimensional studies of the vascular wall.

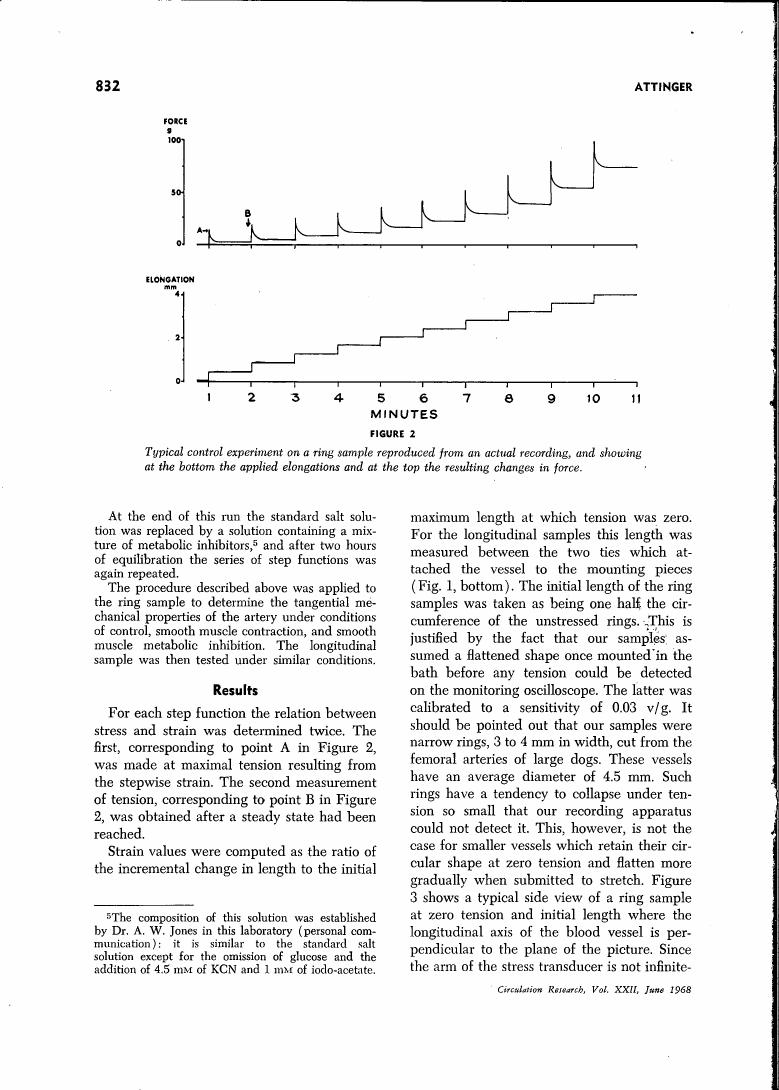

graphPage 4 - Typical control experiment on a ring sample reproduced from an actual recording, and showing at the bottom the applied elongations and at the top the resulting changes in force.

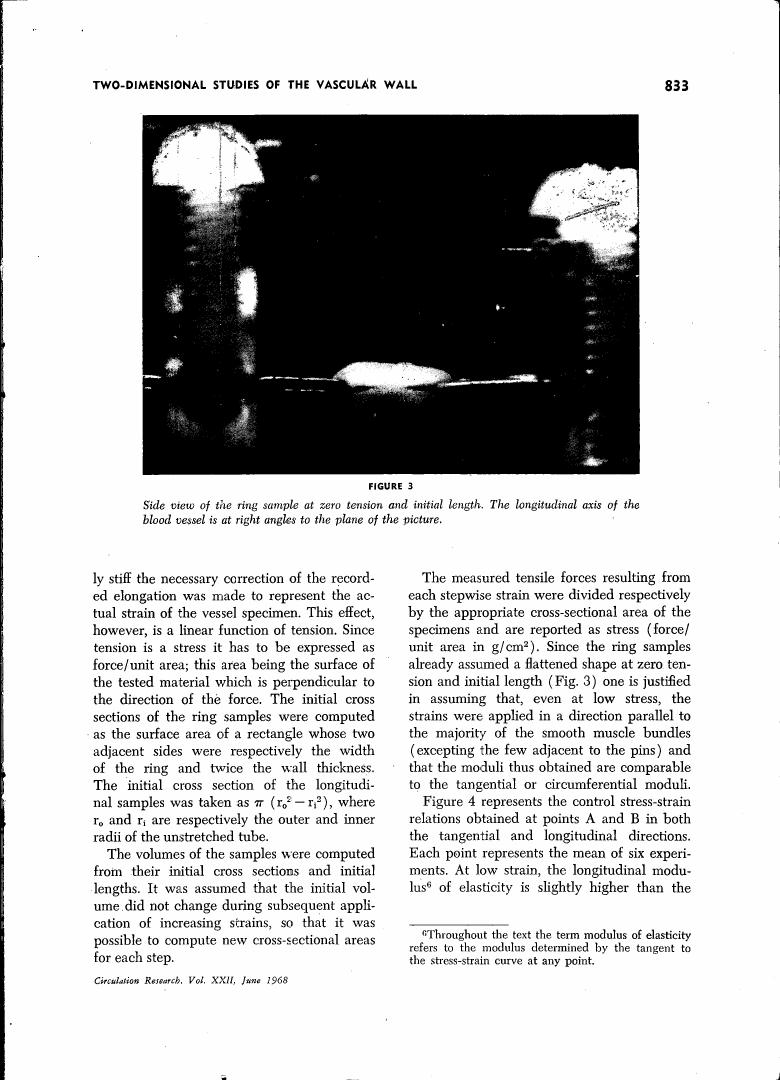

photoPage 5 - AI-described figure: Side view of the ring sample at zero tension and initial length. The longitudinal axis of the blood vessel is at right angles to the plane of the picture.

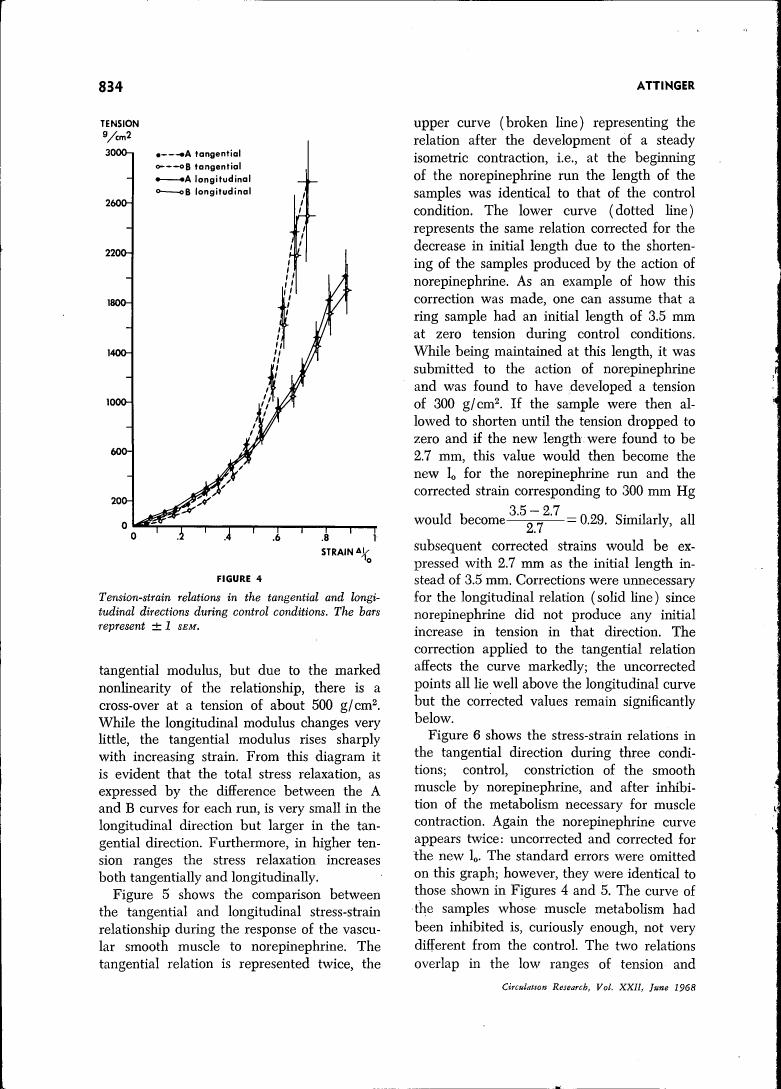

graphPage 6 - Figure 4: Tension-strain relations in the tangential and longitudinal directions during control conditions. The bars represent ±1 SEM.

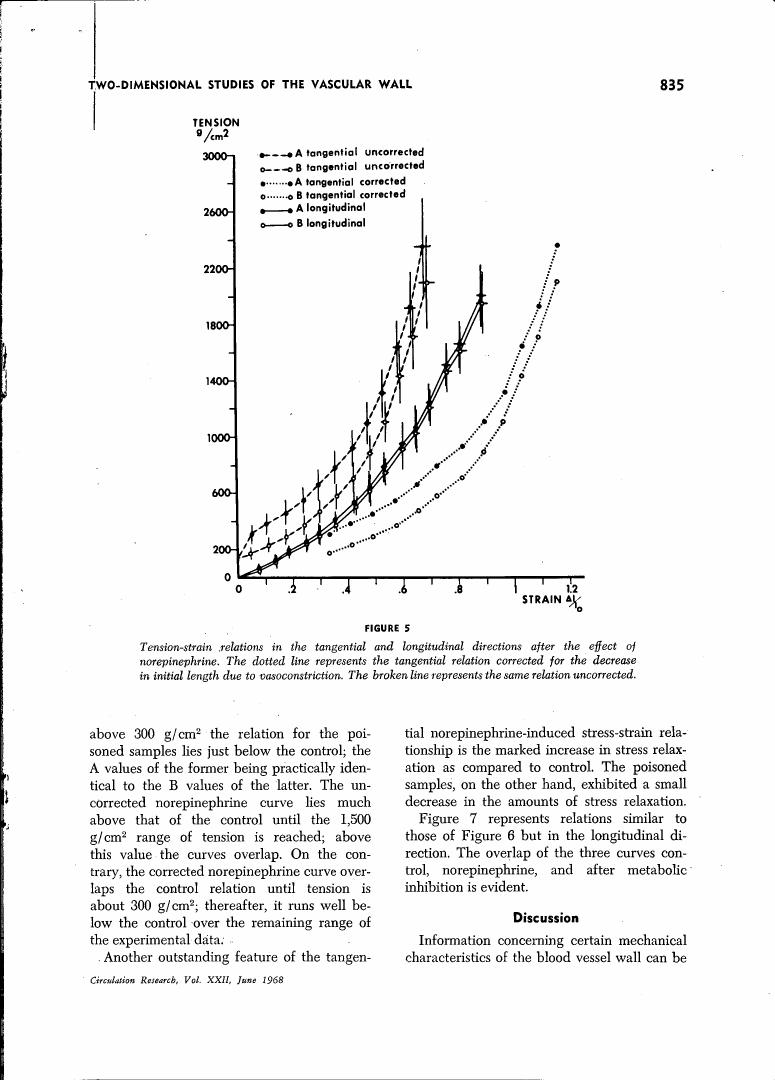

graphPage 7 - Figure 5: Tension-strain relations in the tangential and longitudinal directions after the effect of norepinephrine.

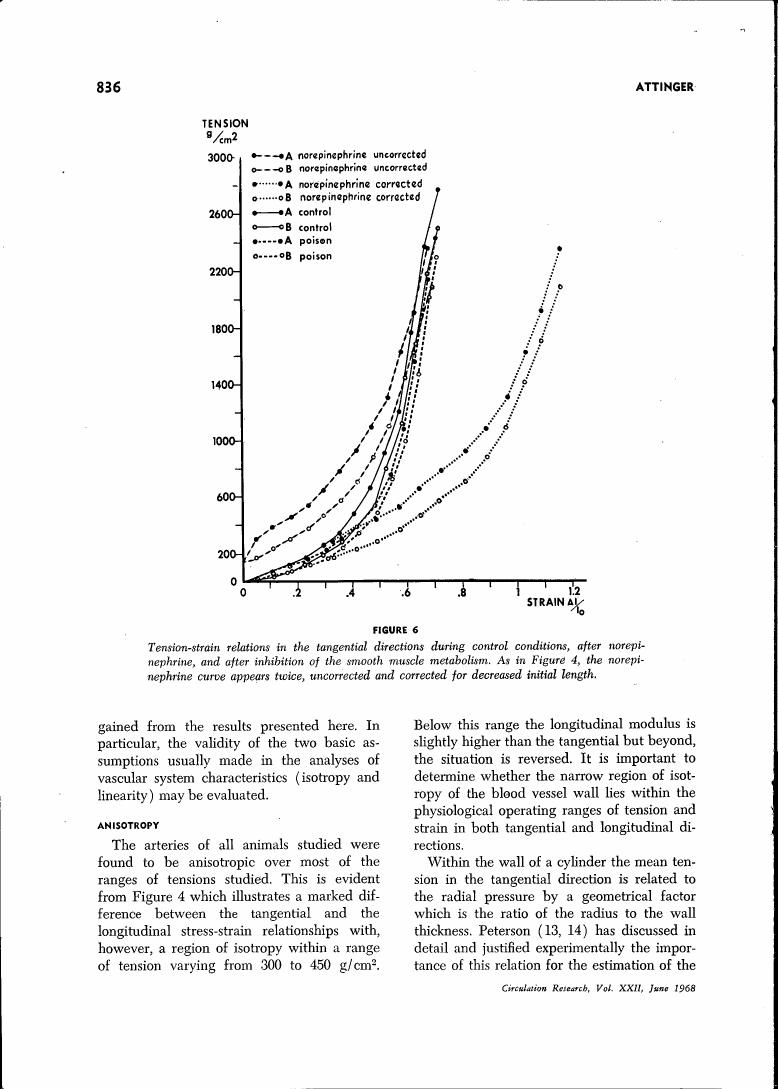

graphPage 8 - Tension-strain relations in the tangential directions during control conditions, after norepinephrine, and after inhibition of smooth muscle metabolism.

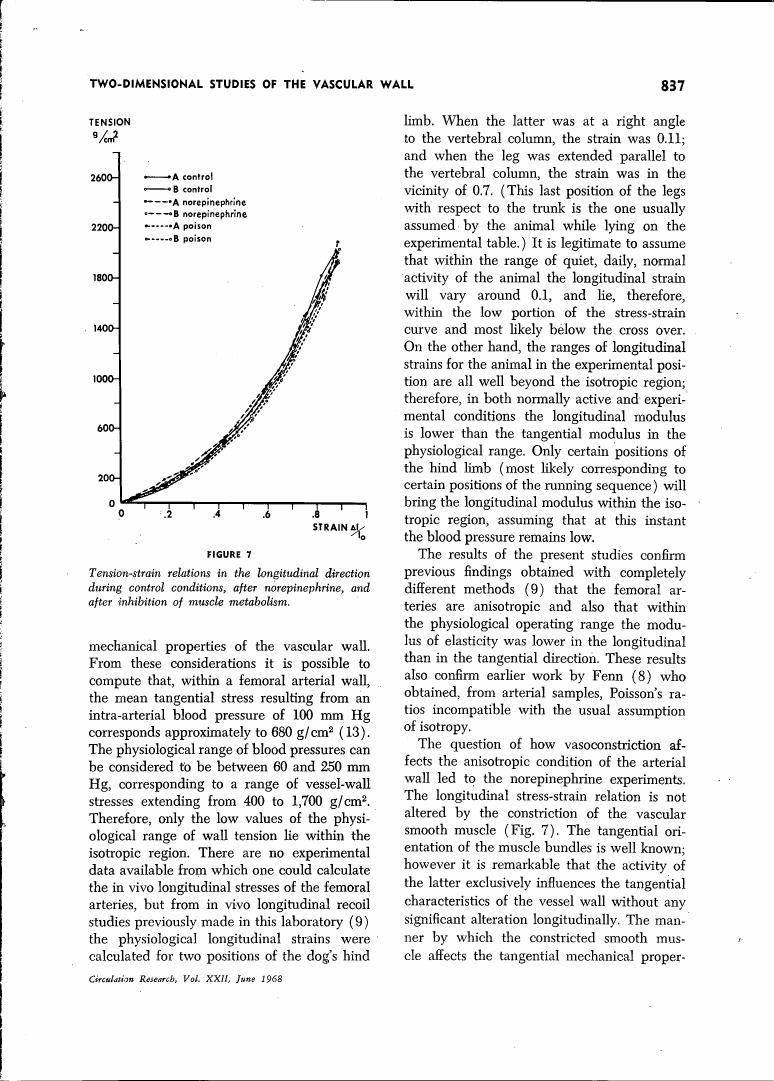

graphPage 9 - Tension-strain relations in the longitudinal direction during control conditions, after norepinephrine, and after inhibition of muscle metabolism.

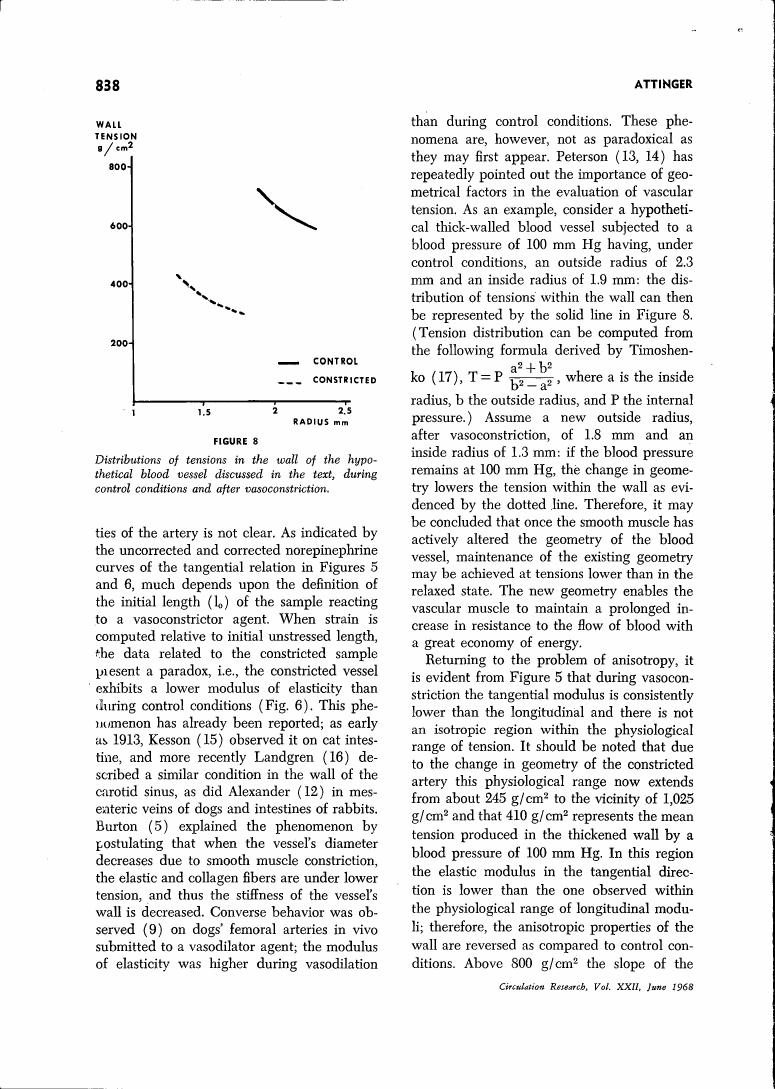

graphPage 10 - AI-described figure: A graph showing wall tension (in b/cm²) against radius in a hypothetical blood vessel before and after constriction.

Exposure Information

Specific exposure levels were not quantified in this study.

Cite This Study
Françoise M. L. Attinger (1968). Two-Dimensional in-Vitro Studies of Femoral Arterial Walls of the Dog.
Show BibTeX
@article{two_dimensional_in_vitro_studies_of_femoral_arterial_walls_of_the_dog_g5862,
  author = {Françoise M. L. Attinger},
  title = {Two-Dimensional in-Vitro Studies of Femoral Arterial Walls of the Dog},
  year = {1968},


}
No DOI on file for this study.

Quick Questions About This Study

Anisotropic means the arterial wall has different mechanical properties depending on the direction of stress. The dog arteries showed different elasticity when stretched tangentially (around the circumference) versus longitudinally (along the length), rather than behaving uniformly in all directions.
Vasoconstriction reversed the normal elasticity pattern below 190 mm Hg blood pressure, making longitudinal elasticity higher than tangential. Above this pressure, the arterial walls behaved isotropically (uniformly). Vasoconstriction also decreased overall elasticity and increased nonlinear stress-strain relationships.
Tangential stress occurs around the artery's circumference (like stretching a rubber band), while longitudinal stress occurs along the artery's length (like pulling a rope). The study found these directions showed completely different mechanical responses and viscoelastic properties.
The viscoelastic properties differed by direction, with much greater stress relaxation occurring tangentially than longitudinally. This means when stretched around the circumference, dog arteries lost tension over time more readily than when stretched lengthwise, indicating different structural fiber arrangements.
The study challenged two key assumptions: that vessel walls are isotropic (behave the same in all directions) and that their properties can be linearized (follow simple mathematical relationships). Both assumptions proved invalid within normal physiological stress and strain ranges.
