Variable frequency exposure system for small biological specimens
McRee D, Walsh P, Mathew R · 1975
1975 researchers built precise microwave testing equipment covering 1-10 GHz frequencies, enabling controlled biological studies of radiation effects.
Plain English Summary
Researchers in 1975 designed and built a specialized microwave exposure system capable of testing biological specimens across frequencies from 1 to 10 GHz at power densities up to 10 mW/cm². The system provided precise field uniformity measurements, with better uniformity at lower frequencies. This technical development enabled controlled laboratory studies of microwave radiation effects on living organisms.
Why This Matters
This 1975 technical paper represents a pivotal moment in EMF research infrastructure. The development of precise exposure systems like this one enabled the controlled studies that would later reveal biological effects from microwave radiation. What's particularly significant is the frequency range tested - 1 to 10 GHz encompasses many of today's wireless technologies, including cell phones (around 1-2 GHz) and WiFi (2.4 and 5 GHz bands). The power densities used (up to 10 mW/cm²) are actually higher than typical environmental exposures from modern devices, which generally produce exposures in the 0.01 to 1 mW/cm² range. This system's ability to maintain field uniformity was crucial for generating reliable, reproducible results that couldn't be dismissed due to measurement inconsistencies.
Finding
The log-periodic-parabolic reflector exposure system has some advantages over other type of exposure systems. A wide range of frequencies with adequate power densities can be obtained more economically than with most other systems, The plane wave field at the specimen location is achieved at small distances from the illuminator. This characteristic permits the entire system to be placed in a relatively small area.
In their words
“The log-periodic-parabolic reflector exposure system has some advantages over other type of exposure systems. A wide range of frequencies with adequate power densities can be obtained more economically than with most other systems, The plane wave field at the specimen location is achieved at small distances from the illuminator. This characteristic permits the entire system to be placed in a relatively small area.”

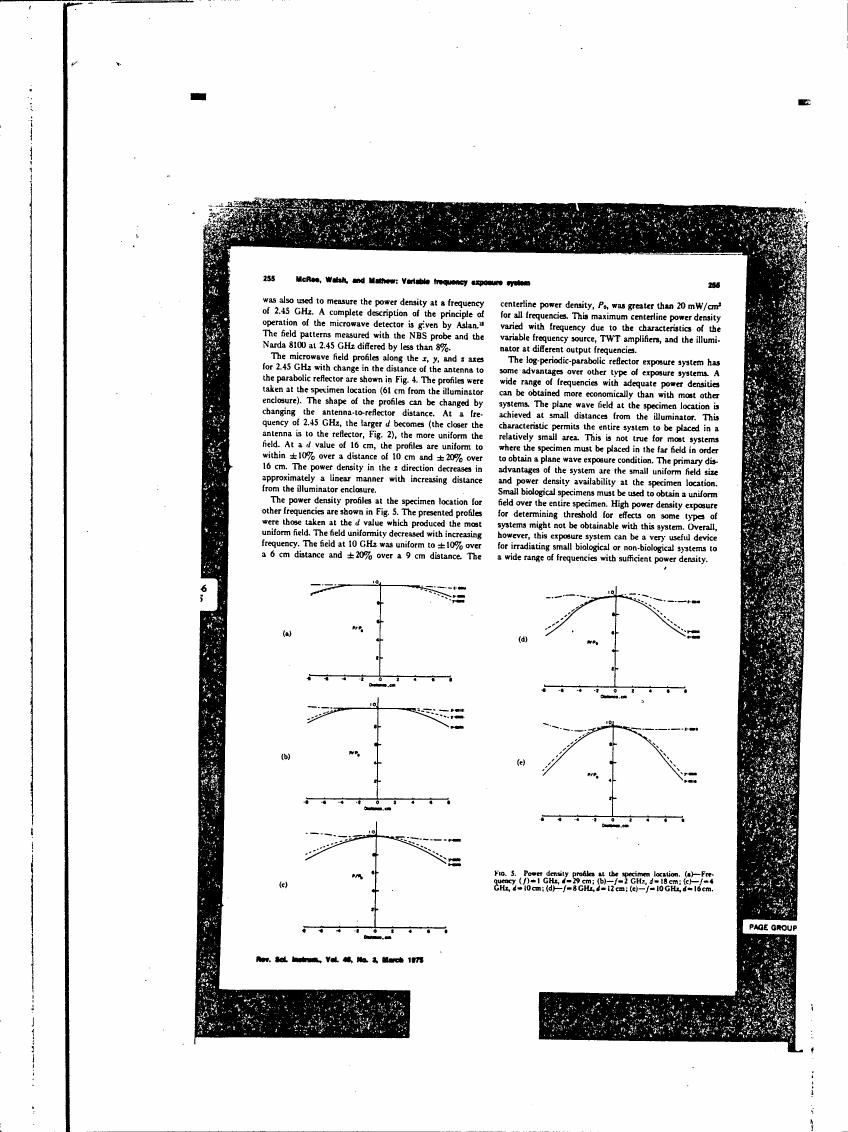

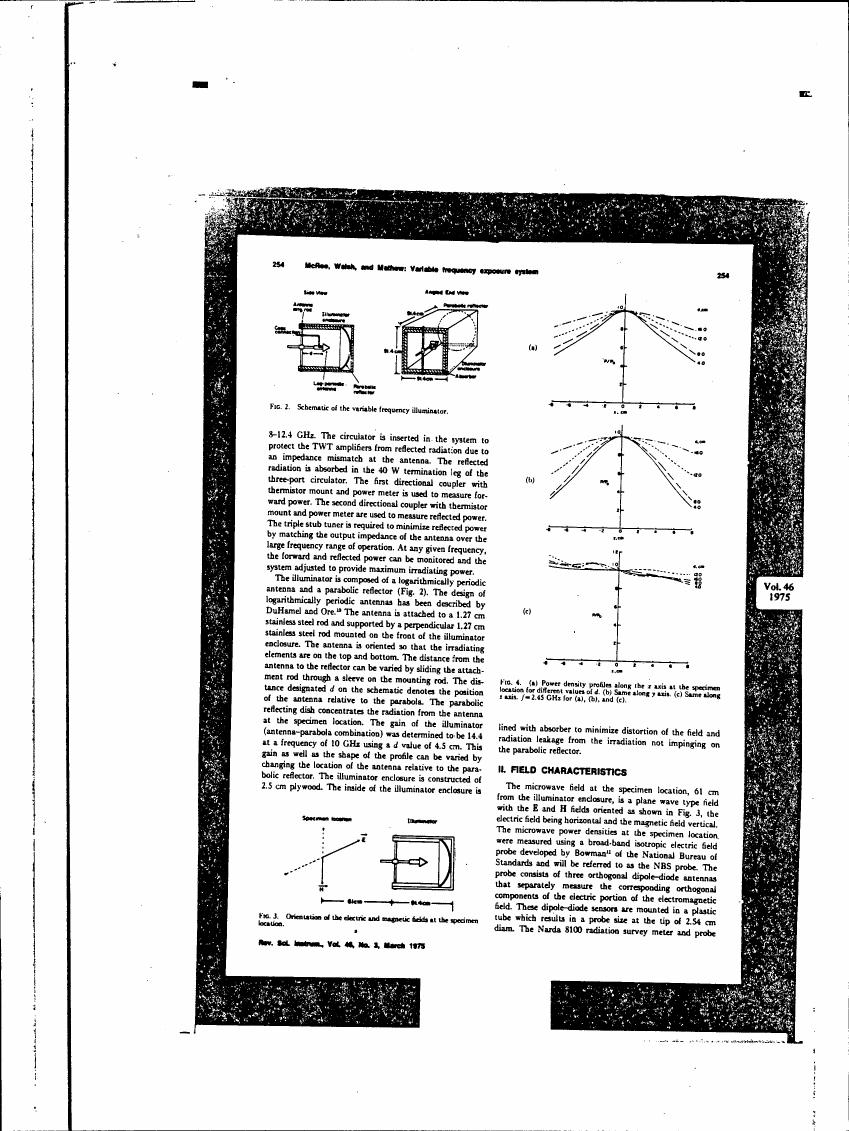

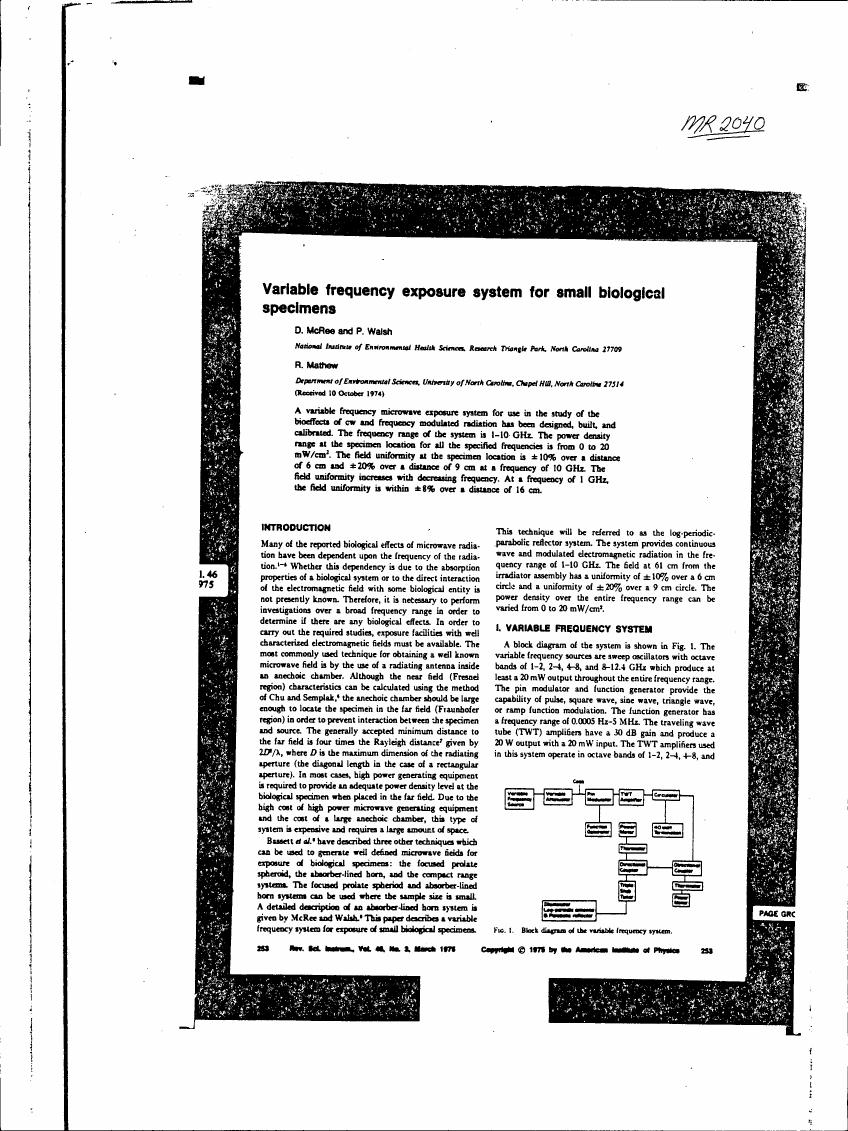

Figures from the Original Paper
Diagrams extracted from the original research document.
Exposure Information
Specific exposure levels were not quantified in this study.
