Evidence for Nonthermal Effects of Microwave Radiation: Abnormal Development of Irradiated Insect Pupae

Bioeffects Seen

Russell L. Carpenter, Elliot M. Livstone · 1971

Share:

Microwave radiation caused death or abnormal development in 76% of exposed insects while radiant heating under the same thermal conditions left development normal.

Plain English Summary

Summary written for general audiences

Scientists exposed mealworm beetle pupae to 10 GHz microwave radiation and found that 76% either died or developed abnormally, compared to 90% normal development in controls treated the same way without microwave power. When researchers duplicated the thermal conditions using radiant heating, development of the pupae was normal, which the authors present as evidence for a nonthermal effect of the microwaves.

Why This Matters

This 1971 study reports evidence of a nonthermal effect of microwave radiation on insect development. Early pupae of the mealworm beetle were irradiated at 10 GHz CW: 25% died and 51% developed abnormally, and only 24% developed normally, compared to 90% normal development in controls treated the same way without microwave power. When the thermal conditions were duplicated by means of radiant heating, development of pupae was normal. In half of the abnormal animals, the front half had undergone metamorphosis to form a normal beetle head and thorax but the hind part remained in the pupal state.

Figures from the Original Paper

Diagrams extracted from the original research document.

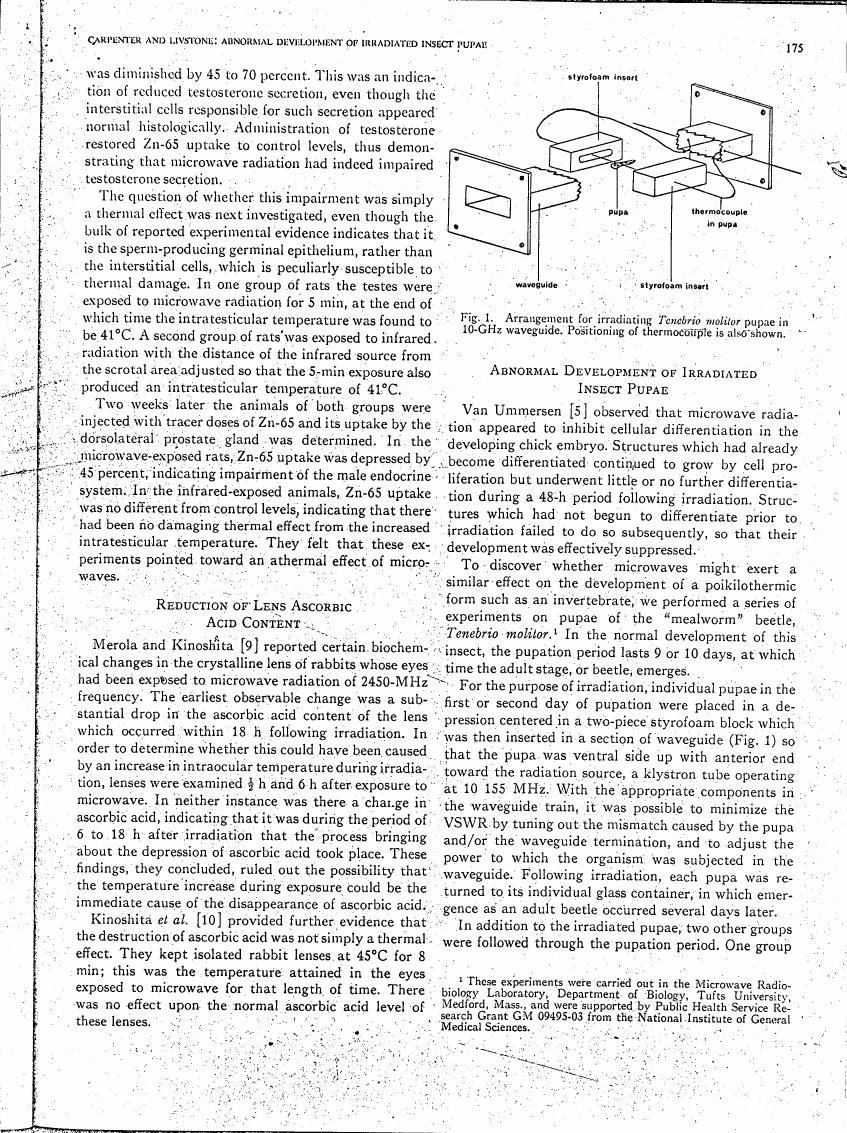

diagramPage 3 - Fig. 1. Arrangement for irradiating Tenebrio molitor pupae in a 10-GHz waveguide, showing the positioning of thermocouple.

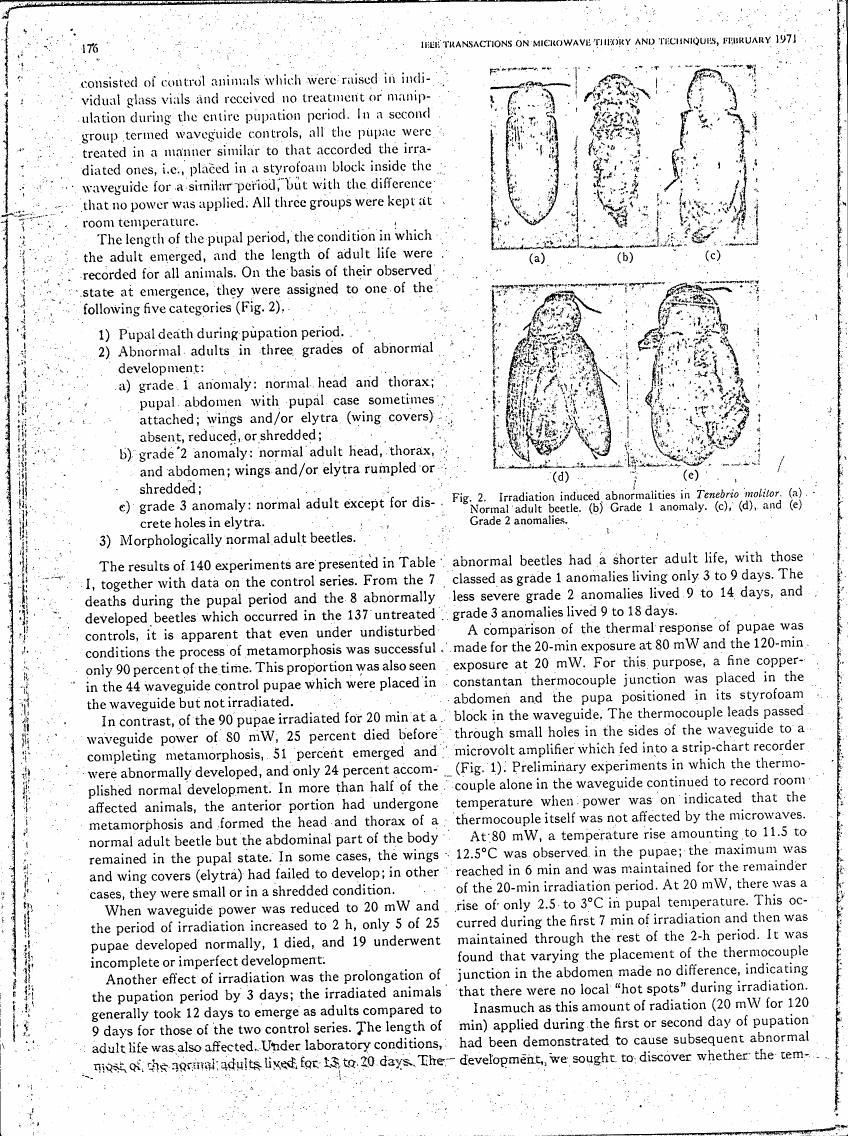

diagramPage 4 - AI-described figure: Irradiation-induced abnormalities in Tenebrio molitor, showing normal adult beetle and various grades of abnormal development.
Cite This Study
Russell L. Carpenter, Elliot M. Livstone (1971). Evidence for Nonthermal Effects of Microwave Radiation: Abnormal Development of Irradiated Insect Pupae.
Show BibTeX
@article{evidence_for_nonthermal_effects_of_microwave_radiation_abnormal_development_of_i_g5627,
  author = {Russell L. Carpenter and Elliot M. Livstone},
  title = {Evidence for Nonthermal Effects of Microwave Radiation: Abnormal Development of Irradiated Insect Pupae},
  year = {1971},


}
No DOI on file for this study.

Quick Questions About This Study

Yes, 76% of mealworm beetle pupae exposed to 10 GHz microwaves either died or developed abnormally, compared to 90% of controls treated the same way without microwave power that developed normally.
They duplicated the thermal conditions using conventional radiant heating. Subsequent development of these pupae was normal, which the authors present as evidence that the microwaves caused damage beyond heating effects.
Half of the abnormal insects showed partial metamorphosis where the front developed into normal beetle parts but the rear remained stuck in the pupal stage.
Researchers used two exposure protocols: waveguide power of 80 mW for either 20 or 30 minutes, or 20 mW for 120 minutes.
Only 24% of microwave-exposed pupae developed into normal adult beetles, while 90% of unexposed control pupae metamorphosed normally into healthy adult beetles.
